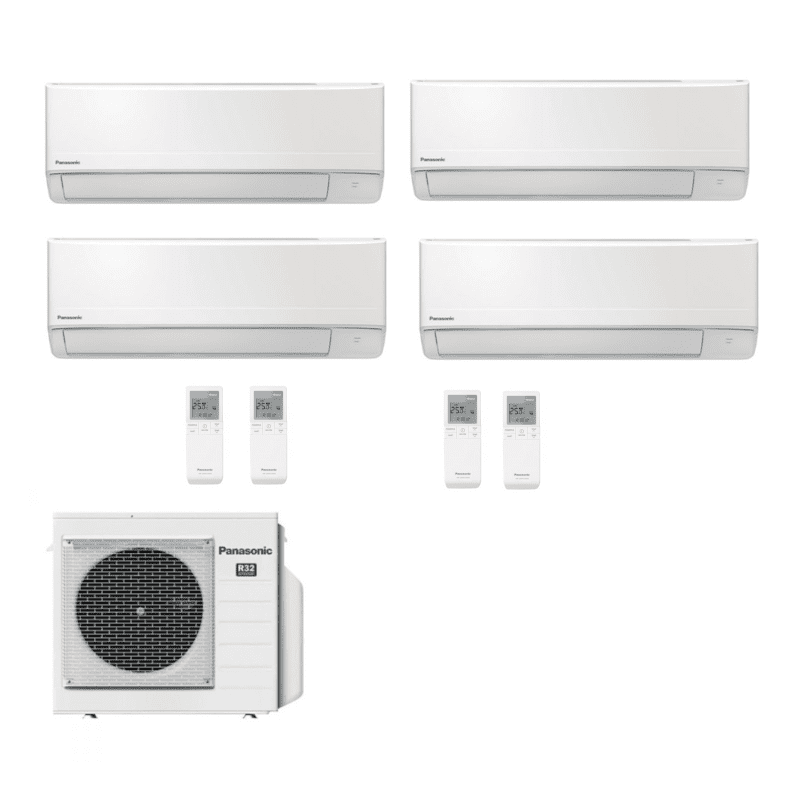

Multi Split 4x1 Panasonic CU-5Z90CBE + 2X CS-TZ25CKEW + 2X CS-TZ35CKEW

Panasonic Free Multi Split 4x1 TZ25 + TZ35 (exterior 90)

Premium multizone combined air conditioning system Panasonic. . Outdoor Unit high capacity 9.0 kW configured symmetrically with 2 2.5 kW splits and 2 spliths of 3.5 kW of the Ultracompact TZ series.

Technical study and personalized quote

Due to the multiple mechanical combinations, simultaneous powers and different lengths and cufflode tubing lengths that require multi-split 4x1 installations, we carry out custom quotes with all the necessary material for his work. To ensure a perfect hydraulic dimensioning, verify the thermal simultaneity of the compressor and determine if its installation requires optional accessories or a specific balance of refrigerant gas, our engineering department exhaustively studies each request.

📩 Facilitate this data and our technical team will send you a complete breakdown with all the necessary material for your installation.

Power and multizone versatility: symmetric and optimized combination with Panasonic

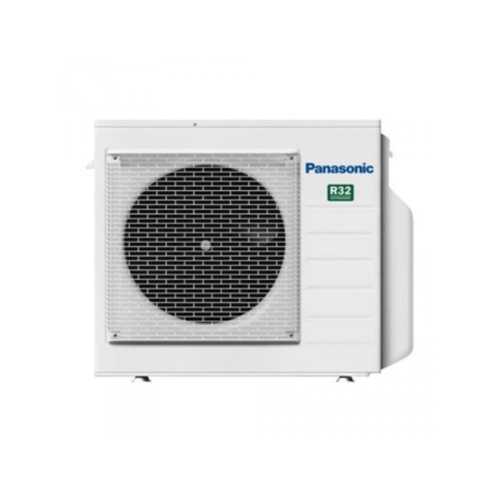

The system Panasonic Free Multi 4x1 with the powerful outdoor Unit CU-5Z90CBE offers a robust, highly efficient and aesthetically clean solution to heat complete full housing, offices or commercial premises with demanding thermal requirements in multiple stays. When using an exterior 9.0 kW nominal compressor prepared originally for a maximum of 5 rooms, this configuration in 4x1 format guarantees an excellent reservation of refrigeration and calorific power, ensuring optimal performance even when all rooms demand Air conditioning simultaneously. This drastically reduces the visual impact on the facades when unifying the entire refrigeration network in a single external equipment.

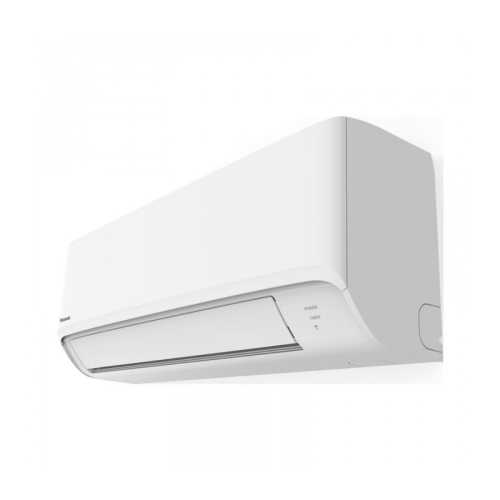

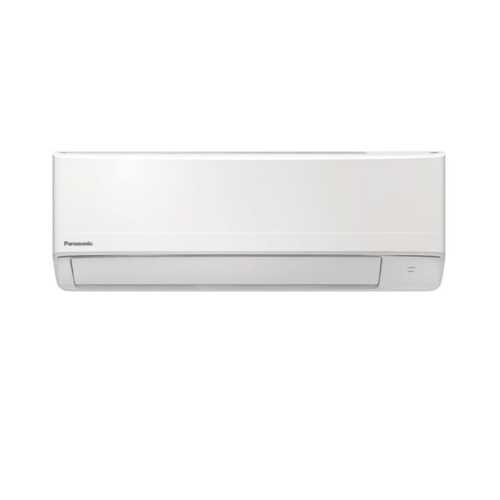

This balanced configuration incorporates two internal units of 2.5 kW (CS-TZ25CKEW model) and two higher performance units of 3.5 kW (model CS-TZ35CKEW). This distribution is suitable for housing or commercial plants that have two areas of medium size (such as bedrooms, offices or kitchens of up to 20 m²) and two largest main areas (such as dining rooms, meeting rooms or rooms of up to 30 m²). All interior teams belong to the New Tz UltraCompact range, characterized by an elegant design with an optimized width of only 765 mm, ideal to be placed in reduced spaces or on doors. The Aerowings system incorporates as standard, composed of two independent slats that direct the flow of air to the roof to create an indirect and comfortable air conditioning, eliminating the annoying direct bursts.

Advanced and intelligent management allows each of the four Splits to work fully independently, allowing differentiated setpoint temperatures or keeping the rooms that are not used off to minimize energy consumption. Thanks to the electronics inverter of Panasonic and the use of refrigerant gas R32, the set achieves superior energy efficiency with a maximum seasonal rating at +++ in refrigeration (SEE 8,50). Additionally, the system includes Wi-Fi connectivity as standard in each indoor Unit, Facilitating the integral control of the climate from the official application for smartphones or by voice commands.

Frequently asked questions

Would you like advice for the sizing of your commercial installation?

On https://tualmacendelclima.com/en/ we are specialist engineers in technical design, control and optimization of multi-split air conditioning networks and advanced zoning. If you need to solve doubts about simultaneity coefficients, maximum slopes or check the official performance specifications of the range Panasonic, our engineering department is at your entire disposal.
