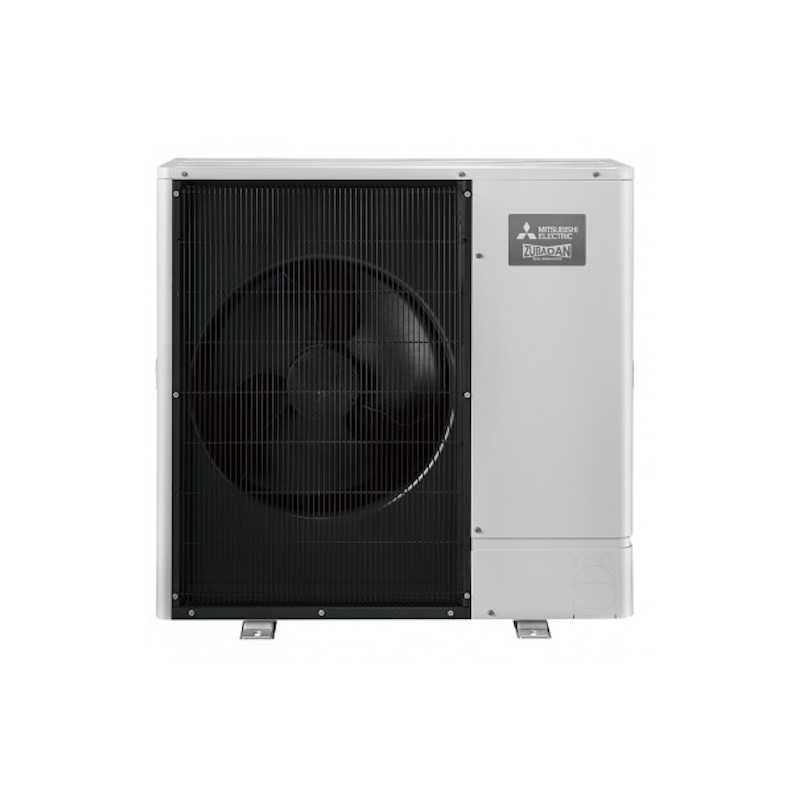

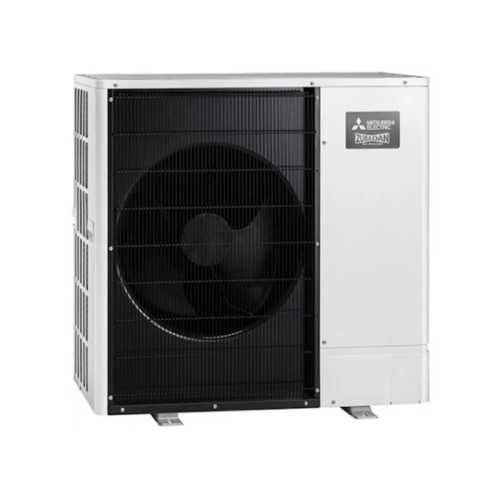

    Outdoor Unit Aerotermia Mitsubishi Ecodan Puz-shwm120ya Zubadan

    ¿Any doubt about the product?

    Talk to us and consult us. We will solve all your doubts

    Outdoor Unit Aerotermia Mitsubishi Ecodan Puz-shwm120ya Zubadan

    Referencia: PUZ-SHWM120YAA
    Mitsubishi Electric
    €5,455.54
    Tax included

    We are currently out of stock.

    Ask us about availability!!

    Envío GRATIS en España (Península) a partir de 300€ + info

    Quantity
    Add to Wishlist

    Email has been sent successfully.

    E-Mail Support
    Calcular Gastos de Envío
    🛡️ Pago Seguro ✅ Garantía Oficial

    Ecodan Puz-Shwm120ya Zubadan

    Outdoor Unit R-32 | 12kw | Three-phase | Extreme climates

    Unit Mitsubishi Ecodan Puz-shwm120ya It offers maximum reliability in cold climates with 12 kW of three-phase power. Its technology Zubadan guarantees 100% of heating capacity up to -15 ° C, with the professional solution being for comprehensive air conditioning (cold, heat and DHW) In large residential or commercial projects.

    Contact by Whatsapp
    Contact by e-mail


    Security policy



    Delivery policy



    Refund policy

    Ecodan Puz-Shwm120ya Zubadan

    Power and three-phase stability for the most challenging projects

    Zubadan Technology 100% capacity at -15 ° C Three-phase | -28 ° C.

    The outdoor Unit Mitsubishi Ecodan Puz-shwm120ya It is the professional solution for high demand projects in extreme cold areas. Combining 12 kW of power with three-phase feeding and exclusive technology Zubadan, this machine delivers the 100% of its heating capacity up to -15 ° C[387]. This feature makes it ideal for large residences, businesses or buildings that can not afford a performance drop in winter.

    With an operation range that reaches -28 ° C and the ability to boost water at 60 ° C, it offers comprehensive air conditioning (heating, cooling and DHW) totally reliable throughout the year[512]. The stability of the three-phase current next to the Flash-Injection injection system ensure robust, efficient and minimal defrosting. It is the choice par excellence for tranquility and comfort in the most adverse conditions.

    Technical specifications

    FeatureDetail
    Nominal heating power (100% chap. At -15 ° C)12.0 kw[504]
    Nominal cooling power11.0 kw[514]
    Energy efficiency (35 ° C / 55 ° C)A +++ / A ++[387]
    COP (7 ° C / 35 ° C)4,85
    EER (35 ° C / 18 ° C)2,85
    Dimensions (AlxAnXF)1040 x 1050 x 480 mm[514]
    Sound level (heating)44 dB (A)
    Range of operation (heating)-28 ° C A + 24 ° C[387]
    FeedThree-phase (400V)[504]

    Are you looking for an industrial solution for the most extreme cold?

    The three-phase zubadan is the answer. Contact our Engineering Department for a professional sizing and a tailor-made offer of your project.

    Contact Engineering
    PUZ-SHWM120YAA

    Data sheet

    Brand
    Mitsubishi Electric
    Refrigerant Gas
    R32
    Electrical supply
    Trifásica
    Reversible or only heat
    Reversible
    Refrigerator capacity (W)
    11.000
    Nominal consumption Cold (W)
    3.860
    Heat capacity (W)
    12.100
    Nominal heat consumption (W)
    2.495
    Diameter Liquid pipe
    1/4
    Diameter Gas Pipe
    5/8
    COP
    4,85
    Scop (warm weather)
    6,02
    EER
    2,85
    Interconnection type
    Gas Refrigerante
    Energy rating
    To +++
    Maximum heating (ºC)
    70
    High Ud Exterior (mm)
    1.040
    Width UD Exterior (mm)
    1.050
    Outdoor background (mm)
    480
    Weight Outside (kg)
    107
