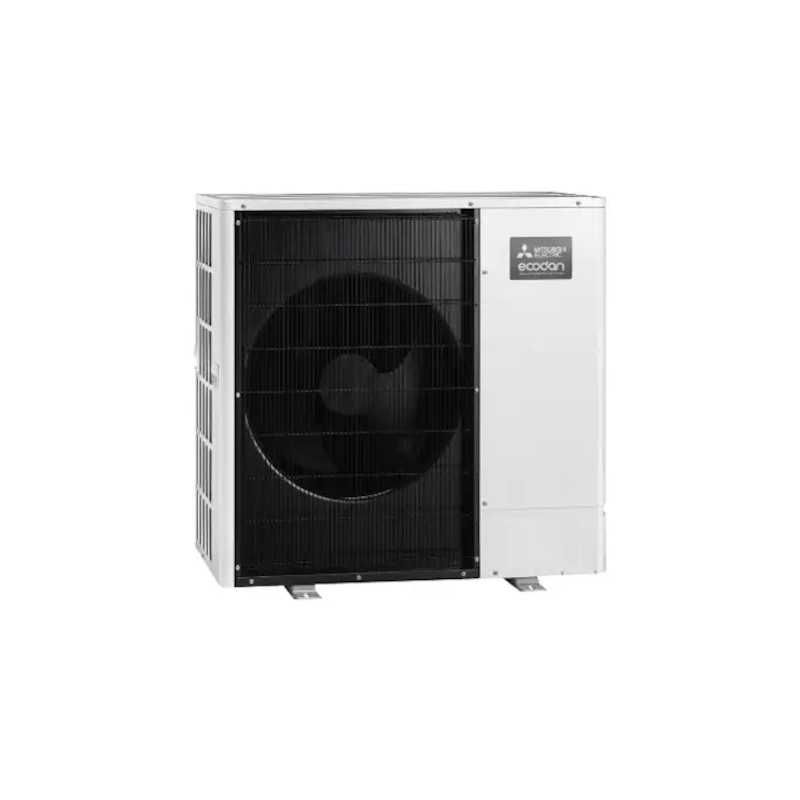

Outdoor Unit Aerotermia Mitsubishi Ecodan Puz-Wz140yaA-W 100% Hydraulic R290 Three-phase

¿Any doubt about the product?

Talk to us and consult us. We will solve all your doubts

Outdoor Unit Aerotermia Mitsubishi Ecodan Puz-Wz140yaA-W 100% Hydraulic R290 Three-phase

Name: Outdoor Unit Aerotermia Mitsubishi Ecodan Puz-Wz140yaA-W 100% Hydraulic R290 Three-phase
Brand: Mitsubishi Electric
SKU: PUZ-WZ140YAA
Price: 6609.18 EUR
Availability: PreOrder

Referencia: PUZ-WZ140YAA

€6,609.18

Tax included

We are currently out of stock.

Ask us about availability!!

Envío GRATIS en España (Península) a partir de 300€ + info

Email has been sent successfully.

E-Mail Support

Calcular Gastos de Envío

🛡️ Pago Seguro ✅ Garantía Oficial

Ecodan Puz-Wz140ya R290

Outdoor Unit Monobloc | 14kw | Three-phase | Refrigerant Gas Natural R290

Unit Mitsubishi Ecodan Puz-Wz140yaa It is the culmination of the R290 sustainable range, offering an impressive power of 14 kW in a three-phase installation. This 100% hydraulic monobloc system uses the R290 ecological refrigerant, achieving efficiency To +++ and hot water up to 75 ° C. It is the definitive solution for climate to the largest and most demanding properties in a sustainable manner.

Security policy

Delivery policy

Refund policy

Ecodan Puz-Wz140yaa | R290

The maximum sustainable three-phase power for the most ambitious projects

Refrigerant Gas R290 (PCA = 3) Monobloc 14kw three-phase Water up to 75 ° C

The outdoor Unit Mitsubishi Ecodan Puz-Wz140yaa It represents the maximum exponent in high-power sustainable airplane. This monobloc system, designed for three-phase rush, delivers a nominal power of 12 kW and a maximum of up to 18.3 kW, using natural refrigerant R290 (PCA = 3) For an environmental impact practically null[680].

It is the perfect solution for large residences, housing buildings or commercial applications that demand a high power steadily. Your ability to promote Water at 75 ° C Without electrical support resistance, it makes it the ideal option for existing radiators reforms[680]. Its ultra silent design, combined with a leading energy efficiency of To +++, offers a comprehensive air conditioning solution (heating, cooling and DHW) Without compromises, combining power, efficiency and maximum respect for the environment[680].

Technical specifications

Feature	Detail
Nominal heating power (A7 / W35)	12.0 kw[680]
Nominal refrigeration power (A35 / W18)	12.5 kW[680]
Energy class (35 ° C / 55 ° C)	A +++ / A ++[680]
COP (A7 / W35)	4,10[680]
Maximum drive temperature	75 ° C.[680]
Dimensions (AlxAnXF)	1040 x 1050 x 480 mm[680]
Net weight	120 kg[680]
Sound level SPL (heat / cold)	53/50 dB (A)[680]
Range of operation (heating)	-25 ° C A + 24 ° C[680]
Refrigerant Gas (PCA)	R290 (3)[680]
Feed	Three-phase (400V)[680]

The industrial power joins the ecological revolution.

Take your project to the next level with the most advanced and sustainable technology. Request a study for your project and discover the definitive three-phase solution.

Quote Three-phase R290 Project

With this model I have completed all the equipment on the list you gave me. If you need information about any other product, do not hesitate to ask.

Reference PUZ-WZ140YAA

Data sheet

Brand: Mitsubishi Electric
Refrigerant Gas: R290
Electrical supply: Trifásica
Reversible or only heat: Reversible
Refrigerator capacity (W): 9.000
Nominal consumption Cold (W): 2.857
Heat capacity (W): 12.000
Nominal heat consumption (W): 2.927
Diameter Liquid pipe: Hydraulic connection
Diameter Gas Pipe: Hydraulic connection
COP: 4,10
Scop (warm weather): 5,91
EER: 3,15
Interconnection type: Conexión Hidraulica
Energy rating: To +++
Maximum heating (ºC): 75
High Ud Exterior (mm): 1.040
Width UD Exterior (mm): 1.050
Outdoor background (mm): 480
Weight Outside (kg): 103

Condition New

Download

Ecodan U E R290 100% Hydraulics

Download (618.71KB)
