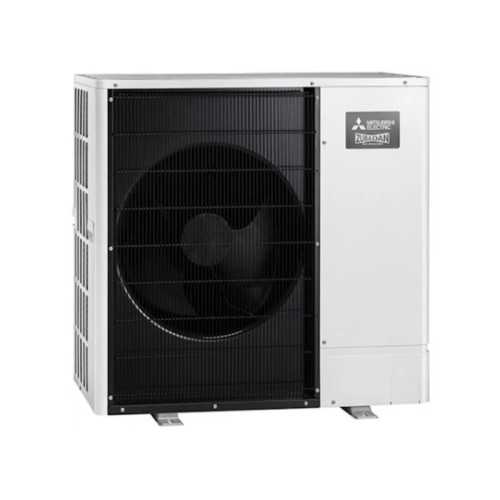

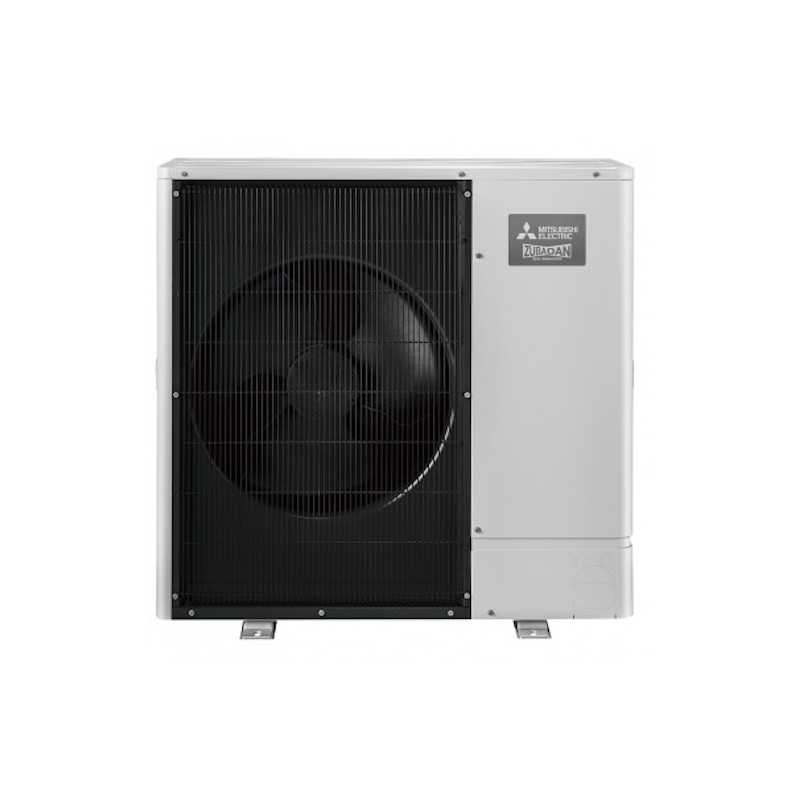

    Outdoor Unit Aerotermia Mitsubishi Ecodan Puz-shwm140yaa Zubadan

    ¿Any doubt about the product?

    Talk to us and consult us. We will solve all your doubts

    Outdoor Unit Aerotermia Mitsubishi Ecodan Puz-shwm140yaa Zubadan

    Referencia: PUZ-SHWM140YAA
    Mitsubishi Electric
    €5,925.56
    Tax included

    We are currently out of stock.

    Ask us about availability!!

    Envío GRATIS en España (Península) a partir de 300€ + info

    Quantity
    Add to Wishlist

    Email has been sent successfully.

    E-Mail Support
    Calcular Gastos de Envío
    🛡️ Pago Seguro ✅ Garantía Oficial

    Ecodan Puz-Shwm140ya Zubadan

    Outdoor Unit R-32 | 14kw | Three-phase | Extreme climates

    Unit Mitsubishi Ecodan Puz-shwm140ya It is the maximum expression of technology Zubadan. With 14 kW of three-phase power, it is designed for the most ambitious projects in the coldest areas, maintaining 100% of its heat capacity up to -15 ° C and guaranteeing a comprehensive air conditioning (cold, heat and DHW) of industrial reliability.

    Contact by Whatsapp
    Contact by e-mail


    Security policy



    Delivery policy



    Refund policy

    Ecodan Puz-Shwm140ya Zubadan

    Industrial power and absolute reliability for extreme cold

    Zubadan Technology 100% capacity at -15 ° C Three-phase | -28 ° C.

    The outdoor Unit Mitsubishi Ecodan Puz-shwm140ya It is the definitive solution for large-scale commercial or residential applications in the most severe climates. It combines a formidable power of 14 kW, three-phase feeding and the exclusive technology Zubadan, which allows you to deliver the 100% of its heating capacity up to an outside temperature of -15 ° C No performance fall[387].

    Guarantees reliable operation up to -28 ° C, providing heating, cooling and DHW With unparalleled stability and robustness. Your Flash-Injection injection system performs ultra-fast defrosts, crucial to maintain comfort in high humidity and extreme cold areas[486]. For projects that do not admit commitments and require maximum power and reliability, PUZ-SHWM140YAA is the professional choice par excellence.

    Technical specifications

    FeatureDetail
    Nominal heating power (100% chap. At -15 ° C)14.0 kw[485]
    Nominal cooling power12.5 kW[516]
    Energy efficiency (35 ° C / 55 ° C)A +++ / A ++[387]
    COP (7 ° C / 35 ° C)4,80[485]
    EER (35 ° C / 18 ° C)2,60[485]
    Dimensions (AlxAnXF)1350 x 1020 x 480 mm[441]
    Sound level (heating)58 dB (A)[441]
    Range of operation (heating)-28 ° C A + 24 ° C[387]
    FeedThree-phase (400V)[485]

    Does your project do not admit failures, not even in the worst winter?

    The 14 kW three-phase zubadan is the definitive guarantee. Contact our Engineering Department for a professional sizing and a solution tailored to your needs.

    Request engineering consultation
    PUZ-SHWM140YAA

    Data sheet

    Brand
    Mitsubishi Electric
    Refrigerant Gas
    R32
    Electrical supply
    Trifásica
    Reversible or only heat
    Reversible
    Refrigerator capacity (W)
    12.500
    Nominal consumption Cold (W)
    4.808
    Heat capacity (W)
    14.000
    Nominal heat consumption (W)
    2.917
    Diameter Liquid pipe
    1/4
    Diameter Gas Pipe
    5/8
    COP
    4,80
    Scop (warm weather)
    5,82
    EER
    2,60
    Interconnection type
    Gas Refrigerante
    Energy rating
    To +++
    Maximum heating (ºC)
    70
    High Ud Exterior (mm)
    1.040
    Width UD Exterior (mm)
    1.050
    Outdoor background (mm)
    480
    Weight Outside (kg)
    115
