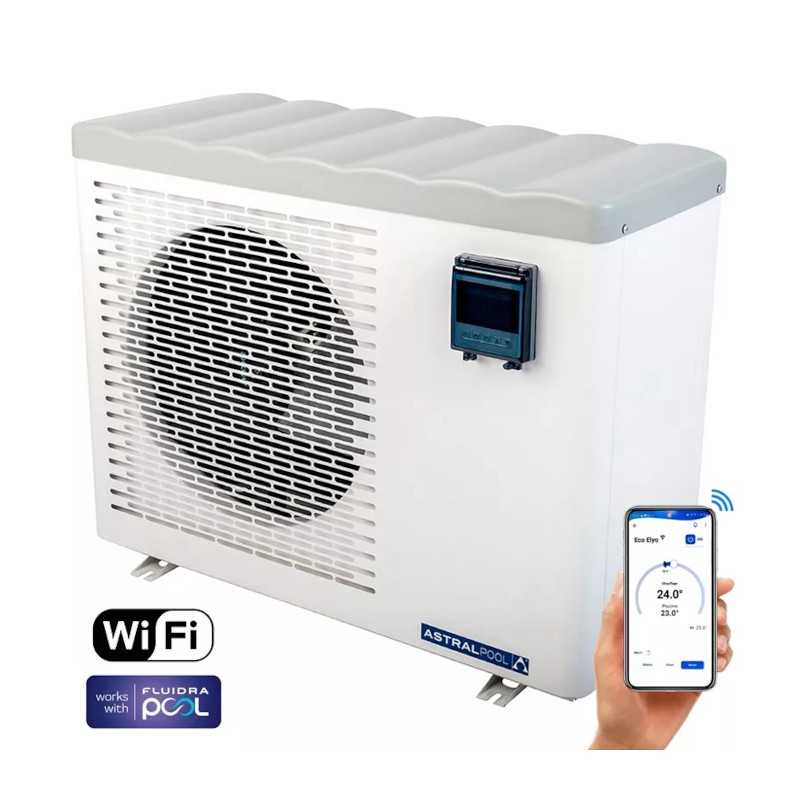

Heat pump Astralpool Eco Elyo-09 | Full Inverter 9.5 kW
Heat Pump Premium Full Inverter of Astralpool, model Eco Elyo-09. Designed to offer superior energy efficiency, it has the prestigious "A" energy classification under EN17645 with an exceptional scop of 9.6. Its technology automatically regulates the compressor and the fan in three modes (Boost, Smart and Ecosilence). It is capable of working with outer temperatures up to -5 ° C, optimally extending the bath season in spring and autumn. Includes Bluetooth and Wi-Fi connectivity integrated using the application Fluidra Pool for total remote control.
• Restituted power (max min): 9.5 - 2.3 kW (air 26 ° C / water 26 ° C)
• Certified Sustainability: Classification "A" (Scop 9.6)
• Total connectivity: Wi-Fi and Bluetooth with App Fluidra Pool
• Acoustic pressure at 10M: Silent operation of 33 to 20 dB (A)
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
copy of Bomba de Heat Astralpool para piscinas Evoline 10M NN R32
Referencia: 76659
€1,304.21
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Heat pump Astralpool Eco Elyo-09 | Full Inverter 9.5 kW
Heat Pump Premium Full Inverter of Astralpool, model Eco Elyo-09. Designed to offer superior energy efficiency, it has the prestigious "A" energy classification under EN17645 with an exceptional scop of 9.6. Its technology automatically regulates the compressor and the fan in three modes (Boost, Smart and Ecosilence). It is capable of working with outer temperatures up to -5 ° C, optimally extending the bath season in spring and autumn. Includes Bluetooth and Wi-Fi connectivity integrated using the application Fluidra Pool for total remote control.
• Restituted power (max min): 9.5 - 2.3 kW (air 26 ° C / water 26 ° C)
• Certified Sustainability: Classification "A" (Scop 9.6)
• Total connectivity: Wi-Fi and Bluetooth with App Fluidra Pool
• Acoustic pressure at 10M: Silent operation of 33 to 20 dB (A)
Security policy
Delivery policy
Refund policy
Astralpool Eco Elyo-09 Full Inverter
The Full Inverter revolution in pool air conditioning. Maximum efficiency with an official scop of 9.6, energy classification A and total connectivity Fluidra Pool.
Technical study and air conditioning balance
Due to the multiple meteorological factors, the geographical location and the need to limit surface evaporation, we carry out personalized sizing studies for installation. To ensure the correct choice of the Eco ELY series model, calculate the necessary initial lifting time and correctly design the hydraulic circuit with by-pass valves, our engineering department exhaustively studies each request.
🏊♂️
1. Dimensions and cover
Indicate the cubic meters of your pool, exposure to the wind and if you have thermal blanket to validate that the model of 9.5 kW maximum power covers your operational needs.
📍
2. Season for use
Specify your area of residence and if you want to expand the use to the spring and autumn months, taking advantage of the work capacity at low temperature chassis.
📩 Facilitate this data and our technical team will send you a complete breakdown with the necessary material.
Simple, efficient and with high performance: Extend the season with Astralpool
The Astralpool ECO-09 heat pump is a system developed specifically to offer a highly efficient, sustainable and fully automated pool air conditioning. Thanks to the incorporation of advanced Full Inverter technology, the equipment with absolute precision with absolute precision the speed of both its internal compressor and the aerodynamic fan continuously and fluidly. By avoiding the typical start peaks of the Traditional On / Off systems, the electrical consumption is substantially reduced and the thermal comfort of water is stabilized impeccably, achieving extremely silent operation that is diluted with the acoustic environment of the garden.
This model emphasizes excellently in the global market to fully comply with the new European Sustainability Standard EN17645. In approved trials, ECO ELO-09 reaches a seasonal performance coefficient (SCOP) of 9.6, which gives directly the maximum efficiency rating with the «A» tag. Its great versatility allows you to operate with total solvency even with an extreme outer air temperature of up to -5 ° C, providing the energy needed to prolong the use of the pool during the freshest months of the year such as spring and autumn, breaking summer limitation Traditional.

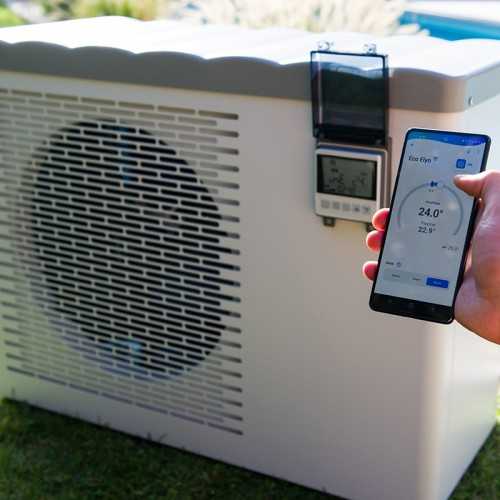

In order to guarantee total control and absolute comfort to the user, Astralpool gives the entire Eco Eco elly wireless connectivity by Bluetooth and integrated Wi-Fi series on the control electronics itself. Through the intuitive mobile platform Fluidra Pool, the user has the ability to monitor in real time the state of the water, easily alternate between its three work modes (BOOST for fast heating, SMART for automated regulation and ecosilence for extreme saving and minimum sound level) and modify the Operational parameters 24 hours a day at a distance.
Technical characteristics
Certified Energy Performance
Official reference: Eco Elyo-09 (Astralpool official technical sheet)
Sustainable Classification (Standard EN 17645): Grade A (maximum efficiency)
Official Scop (Norma in 17645): 9,6
Performance 1: Air 26 ° C / Water 26 ° C / Humidity 80%:
• Restituted power (max min): 9.5 kW - 2.3 kW
• Consumed power (max min): 1.4 kW - 0.2 kW
• Working COP range: 6.7 - 13.5 w / w
Performance 2: Air 15 ° C / Water 26 ° C / Humidity 70%:
• Restituted power (max min): 7.0 kW - 1.5 kW
• Power consumed (max min): 1.3 kW - 0.2 kW
• Working COP range: 5.3 - 6.6 W / W
External air temperature limit: Up to -5 ° C
Mechanical and hydraulic specifications
Recommended water flow: 3 m³ / h
Electrical supply: 220-240 V / 1 phase / 50-60 Hz

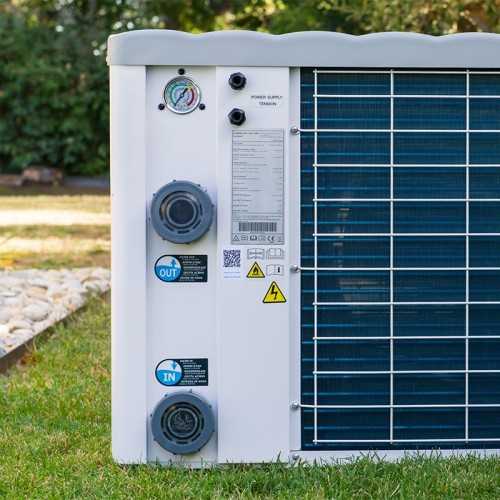

Hydraulic connection: PVC 1/2 "Union - Ø 50 mm to glue
Acoustic pressure at 10 meters (max min): 33 dB (A) - 20 dB (A)
Net weight of the unit: 41.5 kg
Dimensions of the chassis (see Official Scheme):
• Cota A (Total height): 654 mm
• Cota B (frontwide): 831 mm
• Cota C (base background): 348 mm
• Dipping D (Distance Paws): 590 mm
• Eloper E (Anchoring Background): 393 mm
• Cota F (Distance IN / OUT connections): 300 mm
• GTO G (Height Lower Connection): 93 mm
Accessories included as standard:
• Premium cover for protection and hibernation
• Complete kit for condensate drainage
• 2 a. PVC link 1/2 "Union Ø 50 mm
• 4 a. of robust antivibration feet
Frequently asked questions and work modes
What are the operating differences between the BOOST, SMART and ECOSILENCE modes?
The equipment allows you to select three electronic strategies: the mode Boost it makes 100% power compressor work to raise the water temperature accelerated, ideal for spring opening. Way Smart it is responsible for monitoring the temperature and automatically adapts the revolutions to keep water with the ideal consumption. Finally, the mode Ecosilence it limits the maximum refrigeration power, ensuring an ultrasilence of 20 dB (A) to 10 meters and reducing the electrical consumption to the indispensable minimum.
What relevance does the certification have under the European standard EN17645?
The European Standard EN17645 evaluates the overall seasonal performance (SCOP) of pool air conditioning systems. Those equipment that achieve a SCOP equal to or greater than 7 obtain the maximum class rating "A". The Eco ELYO-09 heat pump reaches a seasonal value of 9.6, which certifies a very efficient use of resources and an excellent level of sustainability compared to conventional heaters.
Would you like advice for the sizing of your commercial installation?
On https://tualmacendelclima.com/en/ we are engineers specialists in the technical design, control and optimization of air conditioning networks, aerothermia and advanced systems for residential and collective pools. If you need to solve doubts about coefficients of simultaneity, maximum slopes or check the official performance specifications of Fluidra, our engineering department is at your entire disposal.
Call 623 541 934
76659
Data sheet
- Brand
- Astralpool
- Electrical supply
- Monofásica
- COP (Maximum capacity)
- Maximum sound level (dB)
- Recommended flow (M3 / h)
- Power Heating (KW)
- Nominal current (A)
- Nominal consumed power (KW)
- WiFi
- Incluido
- High (mm)
- Width (mm)
- Deep (mm)
- Weight (kg)
