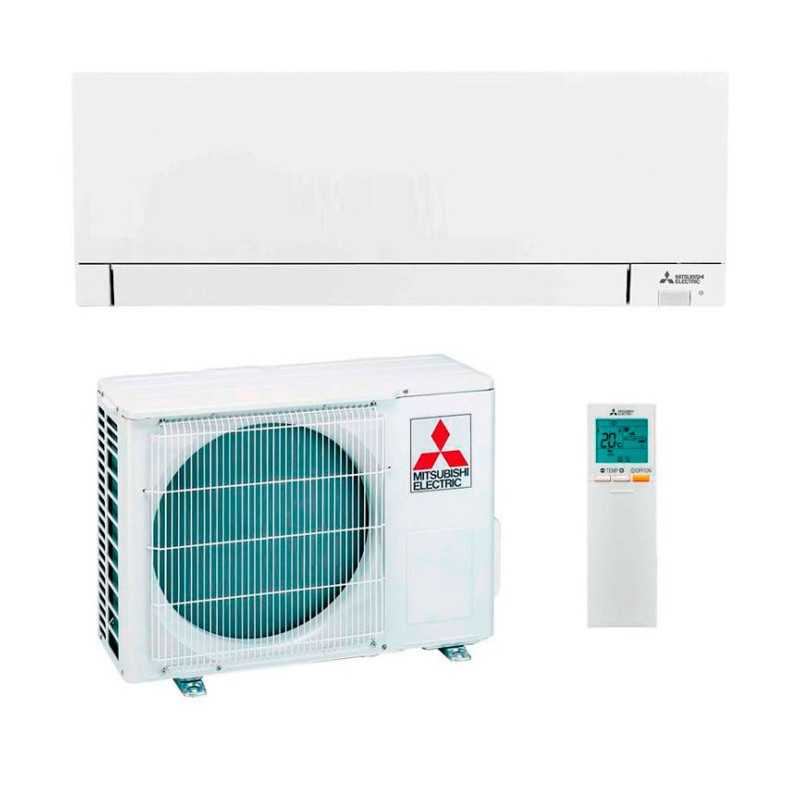

Split Air Conditioning 1x1 Mitsubishi MSZ-AY50VGK
Split air conditioning system 1x1 maximum power with 4,300 japanese frying and cutting edge technology. This MSZ-AY series team Mitsubishi Electric combines energy efficiency A++/A++, silent operation from 28 dB and integrated WiFi control, ideal for extra large rooms up to 50 m2 that require professional air conditioning with maximum performance and superior energy efficiency.
- ▷ Refrigerating power of 4,300 fridges (5.0 kW) and heater of 4,988 calories (5.8 kW)
- ▷ Energy efficiency A++/A++ with SEER 7.5 and SCOP 4.7-5.9
- ▷ Quiet operation since 28 dB for spacious spaces without discomfort
- ▷ Control WiFi MELCloud integrated compatible with Alexa and Google Assistant
- ▷ Premium V-Blocking Filter and Cleaner Air Mode
- ▷ Modulant capacity 1.4-5.4 kW cold and 1.4-7.3 kW heat for maximum versatility
Reference: MSZ-AY50VGK (Interior) + MUZ-AY50VG (Exterior)
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Split Air Conditioning 1x1 Mitsubishi MSZ-AY50VGK
Referencia: KMSZ-AY50VGK
€2,006.11
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Split Air Conditioning 1x1 Mitsubishi MSZ-AY50VGK
Split air conditioning system 1x1 maximum power with 4,300 japanese frying and cutting edge technology. This MSZ-AY series team Mitsubishi Electric combines energy efficiency A++/A++, silent operation from 28 dB and integrated WiFi control, ideal for extra large rooms up to 50 m2 that require professional air conditioning with maximum performance and superior energy efficiency.
- ▷ Refrigerating power of 4,300 fridges (5.0 kW) and heater of 4,988 calories (5.8 kW)
- ▷ Energy efficiency A++/A++ with SEER 7.5 and SCOP 4.7-5.9
- ▷ Quiet operation since 28 dB for spacious spaces without discomfort
- ▷ Control WiFi MELCloud integrated compatible with Alexa and Google Assistant
- ▷ Premium V-Blocking Filter and Cleaner Air Mode
- ▷ Modulant capacity 1.4-5.4 kW cold and 1.4-7.3 kW heat for maximum versatility
Reference: MSZ-AY50VGK (Interior) + MUZ-AY50VG (Exterior)
Security policy
Delivery policy
Refund policy
Product Description
The Split Air Conditioning 1x1 Mitsubishi MSZ-AY50VGK represents the maximum expression of japanese technology in air conditioning for extra large spaces and more demanding applications. This high-power system of the MSZ-AY series combines a frigorific capacity of 4,300 fridges (5.0 kW) and calorific of 4,988 calories (5.8 kW) with exceptional A++/A+ energy efficiency, ideal for airing spaces of up to 50 square meters that require maximum power without compromising energy efficiency or acoustic comfort.

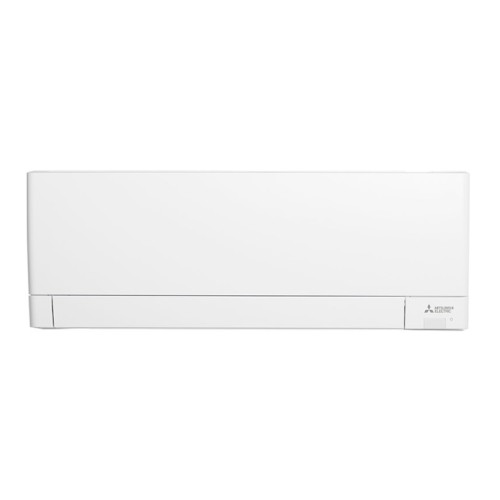

This maximum performance unit incorporates intelligent modulation technology that allows you to adjust your capacity from 1.4 to 5.4 kW in cooling and from 1.4 to 7.3 kW in heating, adapting perfectly to the most variable and demanding thermal demands. La indoor Unit MSZ-AY50VGK, with dimensions of 798 x 299 x 245 mm and weight of 10.5 kg, is combined with the outdoor Unit Higher capacity MUZ-AY50VG (800 x 714 x 285 mm), offering the necessary power for professional air conditioning of wide spaces.
The system stands out for its relatively quiet operation with sound levels from 28 dB in silent mode to 44 dB in maximum power, maintaining an optimal balance between power and acoustic comfort for wide spaces. It uses eco-friendly R32 refrigerant with a 1.00 kg preload and allows installations with pipe lengths up to 20 meters and maximum height of 12 meters. Its advanced V-Blocking purification system, self-cleaning mode and Dual Barrier coating ensure a cleaner and healthy air, while the built-in MELCloud WiFi control offers full connectivity and compatibility with Alexa and Google Assistant for maximum smart control of wide spaces.
Main features
🚀
Maximum Modulant Power
5.0 kW refrigerators and 5.8 kW heaters with modulant capacity of 1.4-5.4 kW cold and 1.4-7.3 kW in heat.
🔇
Silence for Your Power
Operation from 28 dB in silent mode, exceptional for its high power and spacious spaces.
▪
Efficiency A+/A++
Energy rating A++/A++ with SEER 7.5 and SCOP up to 5.9 for maximum energy saving with high power.
📱
Control WiFi MELCloud
Intelligent integrated control compatible with Alexa and Google Assistant, ideal for managing large spaces.
🌿
Purification V-Blocking
Advanced purification system that neutralizes bacteria, viruses, allergens and removes dust in wide spaces.
🏢
Professional applications
Ideal for spaces up to 50 m2, large offices, large lounges and demanding commercial applications.
Technical Specifications
| Feature | Value |
|---|---|
| Model Split | MSZ-AY50VGK + MUZ-AY50VG |
| Nominal Frigorific Capacity (Mín-Máx) | 5,0 kW (1,4-5,4) / 4,300 fridges |
| Nominal heating capacity (Mín-Máx) | 5.8 kW (1.4-7.3 / 4.988 calories |
| Nominal Consumption (Cold/Calor) | 1.55 kW / 1.60 kW |
| EER / COP | 3,23 / 3,63 |
| SEER / SCOP | 7.5 / 4.7 (A++) - 5.9 (A+++) |
| Energy label ( Cold/Calor) | A++ / A++ - A++ |
| Annual Electrical Consumption (Frío/Calor) | 232 kWh/year / 1.248 kWh/year |
| Dimensions Indoor Unit (AnxAlxProf) | 798 x 299 x 245 mm |
| Dimensions Outdoor Unit (AnxAlxProf) | 800 x 714 x 285 mm |
| Internal sound level (Silence/Baja/Media/Alta/Maxima) | 28 / 33 / 36 / 40 / 44 dB(A) |
| Sound level Outdoor Unit | 52 dB(A) |
| Internal Air Caudal (Silence/Baja/Media/Alta/Maxima) | 5,2 / 6,4 / 7.5 / 9,1 / 11,7 m3/min |
| Air flow rate Outdoor Unit | 40.5 m3/min |
| Refrigerant Gas / Preload | R32 / 1.00 kg |
| Maximum Length of Tuberia | 20 meters |
| Maximum level | 12 meters |
| Frigorific connections | Liquid: 1/4" (6.35 mm) / Gas: 3/8" (9.52 mm) |
| Weight Indoor Unit | 10.5 kg |
| Weight Outdoor Unit | 40.5 kg |
| Cold Operating Range | -10°C to +46°C |
| Calor Operating Range | -15°C to +24°C |
| Electrical supply | 230V/1/50Hz |
Mitsubishi MSZ-AY50VGK Air Conditioning Benefits
✓
Maximum power for extra large spaces
With 5,0 kW of frigorific power and 5.8 kW heat, it is perfect for large extra lounges, spacious offices, commercial premises and spaces up to 50 m2 that require maximum performance professional air conditioning.
✓
Exceptional efficiency with high power
The A++/A+++ classification with intelligent 1.4-5.4 kW modulation ensures maximum energy savings even with the highest available power, optimizing operating costs for large spaces.
✓
Optimized acoustic comfort
With sound levels from 28 dB in silent mode, it offers exceptionally quiet operation for its high power, ideal for spacious spaces where acoustic comfort is important.
✓
Premium purification technology
The advanced V-Blocking filter, self-cleaning and Dual Barrier coating remove bacteria, viruses, allergens and prevent mold, creating a healthy environment in wide spaces.
Why choose Air Conditioning Mitsubishi MSZ-AY50VGK?
Main applications
▪
Great Halls and Spaces
Ideal for spacious rooms, lofts, open spaces and extra large rooms that require maximum air conditioning power.
💼
Professional Offices and Spaces
Perfect for spacious offices, conference rooms, coworking spaces and professional environments up to 50 m2 that require powerful air conditioning.
🏪
Commercial premises Wide
Excellent for large shops, wide restaurants, showrooms, medical centers and commercial establishments that need maximum air power.
Installation Information
Important considerations:
- Recommended surface: up to 50 m2 in standard insulation and ceiling height conditions.
- Maximum length of pipe: 20 meters with maximum height of 12 meters between units.
- R32 refrigerant preload: 1.00 kg included for standard maximum capacity installation.
- Frigorific connections: Liquid 1/4" (6.35 mm) / Gas 3/8" (9.52 mm).
- Electrical power: 230V monophasic with maximum intensity of 6,5/6,9A.
- La outdoor Unit MUZ-AY50VG (714mm height) requires adequate space for free ventilation.
- Installation required by certified technician according to RD fluoridated gas regulations 115/2017 to maintain official warranty of 3 years.
The maximum power with Japanese excellence!
Split Mitsubishi MSZ-AY50VGK Air Conditioning combines maximum available power, superior energy efficiency and advanced air purification technologies. Perfect for extra large spaces that demand professional air conditioning without compromising silent comfort or energy saving. Invests in the most advanced technology Mitsubishi Electric.
Request your custom budget today!
KMSZ-AY50VGK
Data sheet
- Brand
- Mitsubishi Electric
- Indoor Unit
- MSZ-AY50VGK
- Outdoor Unit
- MUZ-AY50VG
- Color
- Blanco
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Recommended area (M2)
- Estancia de 32 a 45 m2
- Refrigerator capacity (W)
- 5.000
- Refrigerator capacity (kcal / h)
- 4.300
- Nominal consumption Cold (W)
- 1.550
- Energy class (cold)
- A++
- SEER
- 7,40
- Heat capacity (W)
- 5.800
- Heat capacity (Kcal / h)
- 4.988
- Nominal heat consumption (W)
- 1.600
- Energy class (heat)
- A++
- SCOP
- 4,7
- Minimum sound pressure UI DB
- 28
- Dimensions u.i (anxfxh) mm
- 798 x 245 x 299
- Dimensions u.e (anxfxh) mm
- 800 x 285 x 714
- Weight Indoor Unit (Kg)
- 10,5
- Weight Outdoor Unit (Kg)
- 40,0
- Net weight (kg)
- 50,5
- Diameter Liquid pipe
- 1/4"
- Diameter Gas Pipe
- 3/8"
- Possibility Integration
- Integrated WiFi
