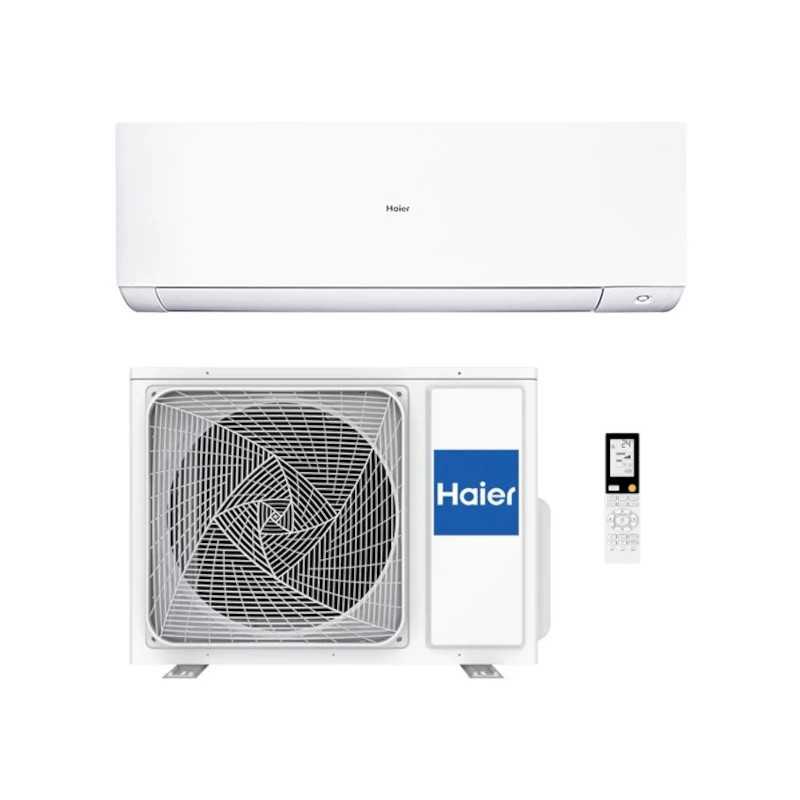

Split Air Conditioning 1x1 Haier Expert 35 White
Set Split Air Conditioning 1x1 Haier Expert 35 White It is the maximum exponent in intelligent air conditioning, seasonal efficiency and environmental hygiene for medium and salon stays (range ** HR-HJ **). With an optimum nominal capacity of 3.50 kW in refrigeration and the maximum seasonal efficiency label To +++, This system optimizes the electrical consumption in a radical way. Your elegant white chassis of clean lines integrates advanced air disinfection technology UVC PRO, the Eco Sensor of Human Presence and a modular structure designed for exceptionally easy disassembly and cleaning.
- ✅ Maximum seasonal efficiency A +++: Develop a record coefficients of SEER 8.50 and SCOP 4.75 (A ++) for an absolute saving.
- ✅ Advanced Sterilization UVC Pro: Active generation of ionized plasma that purifies forced air inhibiting viruses and bacteria.
- ✅ Eco smart sensor: Infrared volumetric detector that diverts the flow to prevent annoying direct currents.
- ✅ Ease of cleaning "Expert": Detachable modular chassis that allows quick access to the fan and internal components.
- ✅ Integrated Wi-Fi Module: Control IOT Total multiplatform, weekly programming and consumption analytical reading.
Reference: As35xcahra
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Split Air Conditioning 1x1 Haier Expert 35 White
Referencia: KEXPERT35W
€859.49
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Split Air Conditioning 1x1 Haier Expert 35 White
Set Split Air Conditioning 1x1 Haier Expert 35 White It is the maximum exponent in intelligent air conditioning, seasonal efficiency and environmental hygiene for medium and salon stays (range ** HR-HJ **). With an optimum nominal capacity of 3.50 kW in refrigeration and the maximum seasonal efficiency label To +++, This system optimizes the electrical consumption in a radical way. Your elegant white chassis of clean lines integrates advanced air disinfection technology UVC PRO, the Eco Sensor of Human Presence and a modular structure designed for exceptionally easy disassembly and cleaning.
- ✅ Maximum seasonal efficiency A +++: Develop a record coefficients of SEER 8.50 and SCOP 4.75 (A ++) for an absolute saving.
- ✅ Advanced Sterilization UVC Pro: Active generation of ionized plasma that purifies forced air inhibiting viruses and bacteria.
- ✅ Eco smart sensor: Infrared volumetric detector that diverts the flow to prevent annoying direct currents.
- ✅ Ease of cleaning "Expert": Detachable modular chassis that allows quick access to the fan and internal components.
- ✅ Integrated Wi-Fi Module: Control IOT Total multiplatform, weekly programming and consumption analytical reading.
Reference: As35xcahra
Security policy
Delivery policy
Refund policy
Advanced expert range • Comfort and total hygiene
Haier Expert 35 White
Vanguard Residential Engineering with seasonal efficiency at +++, disinfection of UVC Pro plasma and easy-service chassis.
❄️ Nominal refrigeration: 3.50 kW 🔥 Nominal heating: 4,00 kW 🌱 ERP classification: A +++ / A ++
High-end professional air conditioning: performance and health in perfect harmony
The SPLIT MONE-SPLIT system system Haier Expert 35 White (Gama catalog reference ** HR-HJ **) is one of the most sophisticated residential comfort and hygiene solutions in the current market. Designed specifically to respond optimally in dining rooms, medium-sized lofts, residential rooms or modern aesthetic business offices, this set associates the indoor Unit in white color of fluid lines As35xcahra with the outdoor Unit mono-compressor high strength inverter 1u35s2sm1fa-2. Operating echo-efficiently with pure ecological gas of low GWP index R32, the team develops a nominal capacity of 3.50 kW in refrigeration and 4.00 kW in heating mode, achieving the highest seasonal energy step (To +++). Its revolutionary modular architecture has been projected so that the work, disinfection and preventive maintenance work by professionals are executed cleanly and agile, drastically reducing service times in the work.
🛡️
Biocidal purification UVC Pro
The Expert Gama incorporates the advanced UVC Pro Biological Emitter, which evolves traditional purification systems by actively generating ionized plasma. By acting directly on the forced air flow, inactive inactively the virus structure, bacteria and allergens in the room, simultaneously eliminating the bad organic odors.
👁️
Smart echo sensor
It implements a high-resolution infrared volumetric detector that continuously scans the thermal environment of the stay. It identifies the presence and activity of users to adapt and redirect the slats of the air flow, avoiding annoying direct currents and reducing power if the room is emptied.
🔧
Easy disassembly structure
The internal chassis of the indoor Unit it has been developed meticulously under a modular concept. It allows the technician installer or maintenance to access frontally and extract critical elements such as the fan turbine, the air deflectors or the electronic control plate by removing the minimum of mechanical screws.
Advanced technical benefits: Expert Series Comfort 35
💨 Comfortable 3D airflow
The continuous and synchronized movement of the horizontal and vertical motorized deflectors guarantees a completely homogeneous air distribution in medium stays, suppressing the annoying areas with thermal stratification.
💧 Double drain flexibility
The evaporator chassis incorporates a versatile condensed outlet on both sides (left and right), greatly facilitating adaptation to the cold pre-installation of the house and reducing wall mounting times.
📱 Integrated home automation Hon App
The factory wi-fi controller links the split directly to the intelligent ecosystem of Haier. It allows immediate monitoring graphics of seasonal consumption, setting complex climatic profiles and controlling functions by Alexa or Google Assistant.
Complete technical specifications (AS35XCAHRA / 1U35S2SM1FA-2)
| Parameter / Mechanical and thermal magnitude | Certified official value (3.5 kW) | |
|---|---|---|
| Identification of system components | ||
| Commercial reference code | Set Split 1x1 Wall Series Expert | Expert 35 White (HR-HJ) |
| Model Indoor Unit | Pure white residential evaporator | As35xcahra |
| Model Outdoor Unit | Inverter Compressor Unit Haier | 1u35s2sm1fa-2 |
| Nominal thermodynamic performance data | ||
| Power delivered in refrigeration | Nominal (minimum range - maximum) in KW | 3.50 (1.00 - 4.00) |
| Power delivered in heating | Nominal (minimum range - maximum) in KW | 4.00 (1.00 - 5,20) |
| Power absorbed cooling | Nominal (minimum - maximum) in KW | 0.93 (0.20 - 1.50) |
| Power absorbed heating | Nominal (minimum - maximum) in KW | 1.02 (0.30 - 1.80) |
| Static efficiency coefficients | EER / COP (W / W) nominal officers | 3.75 / 3,92 |
| Seasonal energy efficiency ERP structure | ||
| Seer (Cold Mode) / Label | Seasonal efficiency factor | 8.50 (A +++) |
| SCOP (Heat Mode) / Label | Seasonal efficiency factor (average) | 4.75 (A ++) |
| Cold annual electrical consumption | Seasonal annual consumption (kWh / a) | 144 kWh / year |
| Electrical consumption annual heat | Seasonal annual consumption (kWh / a) | 797 kWh / year |

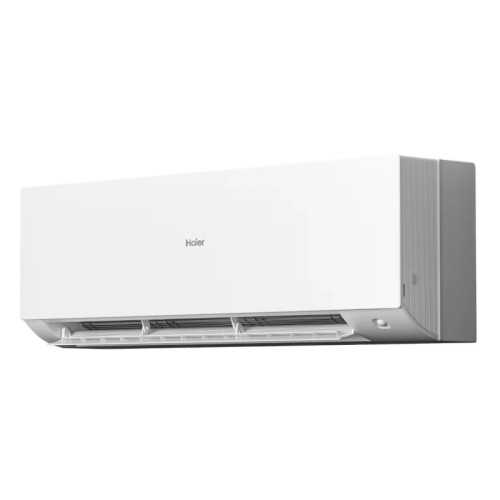

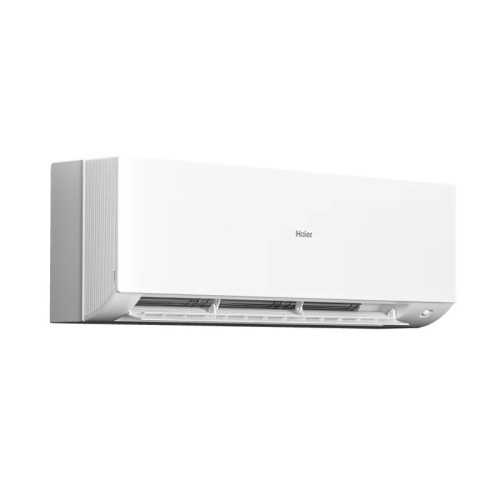

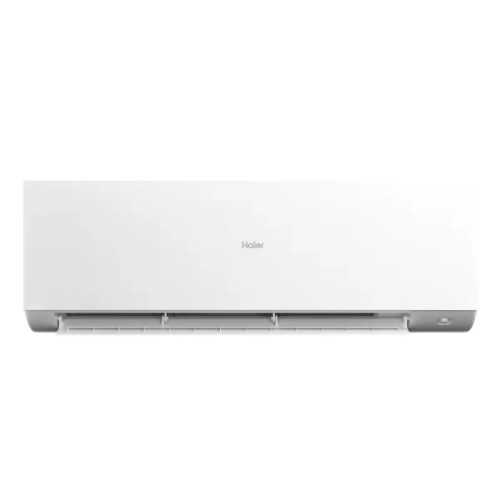

| Technical specifications Indoor Unit (As35xcahra) | ||
| Treated air flow (H) | Maximum volume of drive per hour | 760 m³ / h |
| Sound pressure Ui (cold) | Scales: High / Medium / Low / Super Silence | 40/33/26/17 dB (A) |
| Net Dimensions Chassis UI | Width x depth x high in mm | 895 x 236 x 313 mm |
| Net Structural Weight UI | Evaporator mass without packing | 11.30 kg |

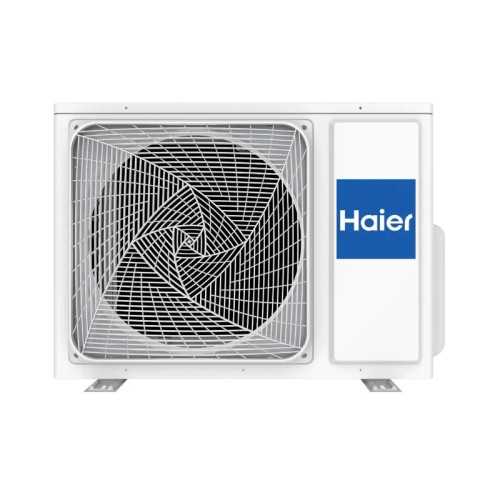

| Technical specifications Outdoor Unit (1u35s2sm1fa-2) | ||
| Pressure / external sound power | Nominal acoustic levels issued | 48 dB (A) / 61 dB (A) |
| Outside net dimensions | Width x depth x high in mm | 800 x 275 x 553 mm |
| EU structural net weight | Structural mass of the outdoor Unit | 30.40 kg |
| Installation data and refrigeration magnitudes | ||
| Fluid Refrigerant Gas Used | Pure ecological gas of low GWP index | R32 |
| Load of Refrigerant Gas factory | Pre-loaded amount (up to 7 meters) | 740 g |
| Liquid line diameters / gas | Mechanical abdoDing connections (inches) | 6.35 mm (1/4 ") / 9.52 mm (3/8") |
| Maximum length / maximum height | Limits of admissible mechanical layout | 20 m / 10 m |
Frequently asked questions about the Haier Expert 35 White
What is the advantage of the UVC Pro purification system integrated into the Expert Series?
The revolutionary Technology ** UVC Pro ** integrated into the Expert range marks a remarkable evolution against conventional ultraviolet filters. This system actively generates ionized plasma that interacts directly on the forced air flow. When decomposing and altering safely the molecular structures of viruses, bacteria and suspension allergens, it provides deep and continuous environmental disinfection in the room, eliminating unpleasant odors from root.
Why the modular structural design of the Expert Gama benefits both the user and the installer?
Under the concept of ease of disassembly of Haier, the chassis of the indoor Unit it has been thoroughly redesigned to simplify technical service and preventive maintenance. It allows quickly to remove the front casing and extract critical components such as the fan turbine or the electronic plate by removing a minimum number of mechanical screws. This half cuts traditional times of deep cleaning and optimizes long-term hygiene.
Is this 3.5 kW model silent enough to be installed in bedrooms?
It is an absolute reference model for stays destined for rest. Thanks to the aerodynamic improvement of its inner blades and inverter control at very low frequency of rotation, the split decreases its sound pressure level to minimum and imperceptible ** 17 dB (A) ** on its super scale Silence It provides optimal climate comfort and an environment completely free of annoying mechanical noise during night hours.
What are the technical guidelines and refrigeration distances that must be met in assembly?
The mechanical installation of this model requires abosarded copper pipes with a diameter of 6.35 mm (1/4 ") for the liquid line and 9.52 mm (3/8") for the gas line. The circuit comes pre-loaded from the factory with ecological gas R32 to cover up to 7 linear meters of standard plot without additional recharge. Tolerate a maximum longitudinal length total of up to 20 meters and manages a vertical limit of up to 10 meters between both units.
Maximum intelligent purification and comfort technology for your home
Get the Haier Expert 35 White Benefiting you of our best guaranteed price, exclusive professional rates and direct discount on your climate store.
Authorized Supply Reference: AS35XCAHRA
KEXPERT35W
Data sheet
- Brand
- Haier
- Indoor Unit
- As35xcahra
- Outdoor Unit
- 1U35S2SM1FA-2
- Color
- Blanco
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Recommended area (M2)
- Estancia de 22 a 32 m2
- Refrigerator capacity (W)
- 3.500
- Refrigerator capacity (kcal / h)
- 3.010
- Nominal consumption Cold (W)
- 880
- Energy class (cold)
- A+++
- SEER
- 8,5
- Heat capacity (W)
- 4.200
- Heat capacity (Kcal / h)
- 3.612
- Nominal heat consumption (W)
- 1.040
- Energy class (heat)
- A+++
- SCOP
- 5,1
- Minimum sound pressure UI DB
- 17
- Dimensions u.i (anxfxh) mm
- 895 x 236 x 313
- Dimensions u.e (anxfxh) mm
- 800 x 275 x 553
- Weight Indoor Unit (Kg)
- 11,3
- Weight Outdoor Unit (Kg)
- 30,0
- Diameter Liquid pipe
- 1/4"
- Diameter Gas Pipe
- 3/8"
- Possibility Integration
- Integrated WiFi
