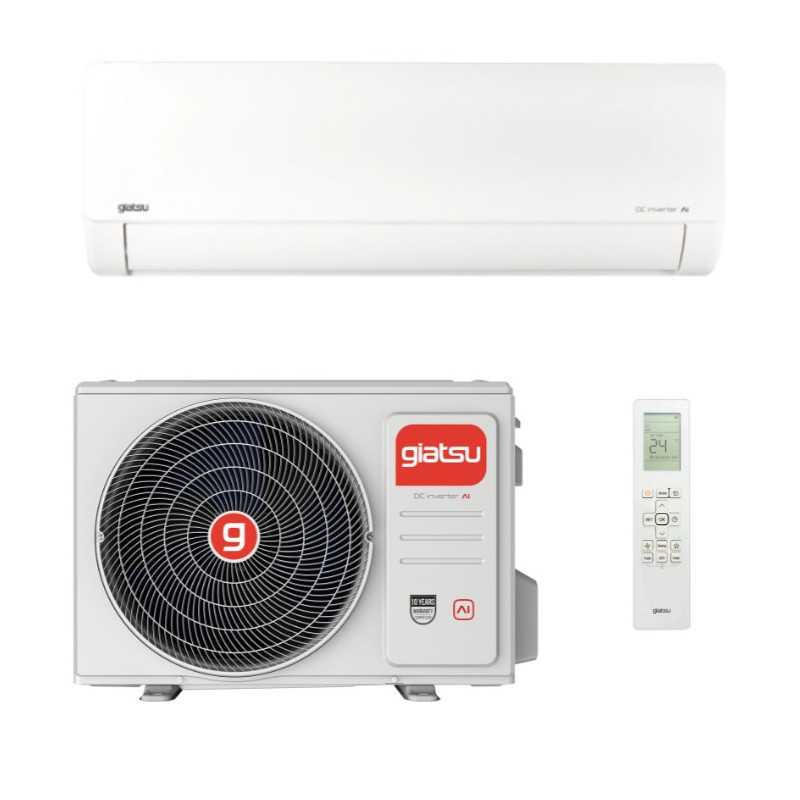

Split Air Conditioning 1x1 Giatsu GIA-S24AR3-R32 AROMA 3
Set Split Air Conditioning 1x1 Giatsu GIA-S24AR3-R32 AROMA 3 From the HOME range is the highest refrigeration and thermal capacity of the firm, designed specifically to air conditioner with total slack large commercial spaces, large-scale halls, lofts and diaphanous areas. With an imposing 6.81 kW power in refrigeration and seasonal energy classification To ++, This system incorporates artificial intelligence algorithms to intelligently optimize electricity consumption. Its high-temperature sterilizing self-cleaning cycle (56 ° C) keeps the evaporator free of pathogens, while its support with integrated level and optimized chassis drastically minimize the technical installation costs.
- ✅ Maximum capacity performance (A ++): Awesome seasonal air conditioning power for large areas with SEER coefficients from 6.10 and SCOP of 4.00.
- ✅ Integrated artificial intelligence: Regulates and AutoGese the Inverter cycle of the compressor autonomously by analyzing the thermal environment of the stay.
- ✅ Thermal sterilization at 56 ° C: Radically eliminates mold, dust and bacteria spores in the heat shock exchanger.
- ✅ Quick installation engineering: Includes support with a built-in bubble level, removable PCB and easy access to wiring chassis.
- ✅ Golden Protective Treatment End: Golden anticorrosive layer shielding exchanger against extreme moisture and saline mist.
Reference: Gia-s24ar3-r32
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Split Air Conditioning 1x1 Giatsu GIA-S24AR3-R32 AROMA 3
Referencia: KGIA-S24AR3-R32
€860.44
Tax included
IMMEDIATE DELIVERY!
For deliveries in Europe, consult delivery time
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Split Air Conditioning 1x1 Giatsu GIA-S24AR3-R32 AROMA 3
Set Split Air Conditioning 1x1 Giatsu GIA-S24AR3-R32 AROMA 3 From the HOME range is the highest refrigeration and thermal capacity of the firm, designed specifically to air conditioner with total slack large commercial spaces, large-scale halls, lofts and diaphanous areas. With an imposing 6.81 kW power in refrigeration and seasonal energy classification To ++, This system incorporates artificial intelligence algorithms to intelligently optimize electricity consumption. Its high-temperature sterilizing self-cleaning cycle (56 ° C) keeps the evaporator free of pathogens, while its support with integrated level and optimized chassis drastically minimize the technical installation costs.
- ✅ Maximum capacity performance (A ++): Awesome seasonal air conditioning power for large areas with SEER coefficients from 6.10 and SCOP of 4.00.
- ✅ Integrated artificial intelligence: Regulates and AutoGese the Inverter cycle of the compressor autonomously by analyzing the thermal environment of the stay.
- ✅ Thermal sterilization at 56 ° C: Radically eliminates mold, dust and bacteria spores in the heat shock exchanger.
- ✅ Quick installation engineering: Includes support with a built-in bubble level, removable PCB and easy access to wiring chassis.
- ✅ Golden Protective Treatment End: Golden anticorrosive layer shielding exchanger against extreme moisture and saline mist.
Reference: Gia-s24ar3-r32
Security policy
Delivery policy
Refund policy
HOME range • Maximum capacity and efficient engineering
Giatsu Aroma 3 gia-s24ar3-r32
Maximum climatic power with predictive artificial intelligence, active sterilization at 56 ° C and maximum flexibility of refrigerator layout.
❄️ Cold capacity: 6.81 kW 🔥 Heat capacity: 6,87 kW 🌱 ERP efficiency: A ++ / A +
Massive thermodynamic power and environmental purity without concessions for large spaces
The maximum capacity wall split system Giatsu Aroma 3 gia-s24ar3-r32 it is positioned as the flagship of the brand to solve large-scale thermal demands, ideally projected for installers, design studios, commercial premises and engineers. This robust set coordinates the indoor Unit high-volume Gia-s24ar3-r32-1 with the powerful unit condensor exterior inverter high strength Gia-s24ar3-r32-0. Operating echo-efficiently with pure refrigerator fluid R32 low overall heating index, the system develops a nominal capacity of 6.81 kW in refrigeration and 6.87 kW in heating. Thanks to the incorporation of an intelligent algorithm of Artificial intelligence, the team adapts its performance to the exact needs of the thermal environment, managing to certify a high seasonal efficiency with a SEE of 6.10 and label ** A ++ **, consolidating as the perfect option for the air conditioning of large residential surfaces, Diapan rooms or concurrent commercial premises.
🧠
Integrated artificial intelligence
It implements a predictive intelligent software that studies the thermal variations of the stay and the behavior of the user. Automatically modulates the inverter frequency of the compressor to stabilize the ideal comfort and trim the unnecessary energy waste.
🧼
Hygienic cleaning at 56 ° C
It has an advanced sterilization cycle that submits the evaporator of the indoor Unit at an intensive and controlled heating of 56 ° C. This thermal shock process completely eliminates bacteria, mold spores and accumulated dust.
🔧
FAST Installation structure
Chassis engineering is aimed at simplifying assembly and maintenance tasks. It incorporates a solid mounting plate that includes a serial bubble level, an easily removable electronic (PCB) card and a wide front access to wiring.
Advanced technical benefits: Confort series Aroma 3
📱 Wi-Fi and domotics by voice
The serial wi-fi controller links the split with any smartphone or tablet. It allows you to regulate advanced schedules and is fully compatible by voice commands using Alexa and Google Home.
✨ Golden Exchanger End
Both exchangers are endowed with the golden end-density golden anti-corrosive coating. Excellent premature oxidation caused by high humidity climates and the salinity of coastal areas.
🎯 Located comfort "I Feel"
The wireless remote control integrates a high precision temperature sensor. The system dynamically adjusts the drive based on the exact reading from which the user is located with the command.
Official Complete Technical Specifications (GIA-S24AR3-R32)
| Parameter / Mechanical, Electric and Thermal Magnitude | Certified official value (7.0 kW) | |
|---|---|---|
| Identification and components of the system | ||
| Commercial reference code | Set Split 1x1 Wall Series Aroma 3 Maximum capacity | Gia-s24ar3-r32 |
| Model Indoor Unit | Residential evaporator / commercial of great flow | Gia-s24ar3-r32-1 |
| Model Outdoor Unit | Inverter Compressor Unit Giatsu | Gia-s24ar3-r32-0 |
| BAR CODE EAN | European product identification | 8435483876071 |
| Thermal performance in cooling mode (cold) | ||
| Nominal refrigeration capacity | Range of power delivery (minimum - maximum) | 6,81 (1,85 - 7,90) KW |
| Refrigerator capacity in BTU / H | British nominal thermal power | 23,235 (6.312 - 26,954) BTU / H |
| Electrical consumption absorbed | Network power Nominal consumed | 2.257 (410 - 2,800) W |
| Electric current work | Amperage absorbed in refrigeration | 9.8 (1.8 - 12.2) a |
| Seer / Static coefficient EER | Seasonal efficiency / static official | 6.10 / 3.01 |
| Seasonal energy classification | ERP official label in cold mode | To ++ |
| Thermal performance in heating mode (heat) | ||
| Nominal heat capacity | Range of power delivery (minimum - maximum) | 6,87 (1,70 - 8,20) KW |
| Heat capacity in BTU / H | British nominal thermal power | 23,440 (5,800 - 27,978) BTU / H |
| Electrical consumption absorbed | Network power Nominal consumed | 2.063 (420 - 3,000) W |
| Electric current work | Amperage absorbed in heating | 9.0 (1,8 - 13.0) to |
| Scop (warm areas) / Label | Seasonal heating coefficient | 4.00 (A +) |
| Physical and acoustic specifications of the Indoor Unit | ||
| Sound pressure (H / m / l / s) | Acoustic level of work in dB (A) | 48.5 × 44.5 × 39 × 31 dB (A) |
| Flow of treated air (maximum) | Drive volume per hour | 1,050 m³ / h |
| Net dimensions (an x at x PR) | Measures of the chassis UI without packaging | 1082 × 330 × 233 mm |
| Net weight / Gross weight UI | Evaporator structural mass | 12.4 / 15.9 kg |
| Physical and acoustic specifications of the Outdoor Unit | ||
| Exterior sound pressure / flow | External acoustic level / Volume fan | 59 dB (A) / 2,700 m³ / h |
| Net dimensions (an x at x PR) | Measures of the external condenser unit | 890 × 673 × 342 mm |
| Net weight / Gross weight EU | Structural mass of the outdoor Unit | 42.9 / 45.9 kg |
| External Operation Limits | Working ambient temperature ranges | -15 at 50 ° C (cold) / -20 to 24 ° C (heat) |
| Frigor and electrical installation data | ||
| Gas load Refrigerant Gas factory | Type of fluid / pre-loaded weight (up to 5m) | R32 / 1.30 kg |
| Diameters Liquid Line - Gas | Mechanical abdoDing connections (inches) | 1/4 "- 5/8" (6.35 mm - 15.87 mm) |
| Maximum length / maximum rate | Admissible mechanical longitudinal limits | 50 m / 25 m |
| Power cable section | Electric rush (towards outdoor Unit) | 3 x 2.5 (Phase + Neutral + Earth) |
| Interconnection cable section | Line of maneuver and electrical communication | 4 x 1.5 + Earth |
Frequently asked questions about the Giatsu Aroma 3 70
How does the self-cleaning cycle respond to 56 ° C on a large flower as aroma 3 70?
Despite treating an imposing volume of air of up to ** 1,050 m³ / h **, the automatic self-cleaning process acts with total forcefulness. The split raises and holds internally the temperature of the evaporator to ** 56 ° C **, effectively eliminating embedded dust, bacteria and mold spores. This avoids the dispersion of pathogens in large stays and suppresses the bad organic odors from root.
Why does this 6,8 kW model optimize both labor costs in professional facilities?
Giatsu he has developed the range architecture thinking about reducing technical service times, which is critical in units of this volume. The wall-based plate integrates a physical bubble level that guarantees a rapid alignment without metric errors. In addition, the large-format chassis offers large access to wiring terminals and an electronic card (PCB) fully sliding, greatly facilitating assembly and reviews.
In what way does predictory artificial intelligence act to moderate electricity consumption in large rooms?
In massive power equipment such as this 7 kW model, traditional energy waste is usually high. The algorithm of ** Artificial Intelligence ** Giatsu he continuously monitors the climatic fluctuations of the room and the habits of use of the occupants. By predicting the ideal thermal load, accurately modulate the frequency of the Inverter compressor, drastically cutting the unnecessary consumption and stabilizing comfort.
What are the guidelines for refrigeration and pipes that must be met in the assembly of this unit?
The
KGIA-S24AR3-R32
Data sheet
- Brand
- Giatsu
- Indoor Unit
- Gia-s24ar3-r32-I
- Outdoor Unit
- Gia-s24ar3-r32-or
- Color
- Blanco
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Recommended area (M2)
- Estancia de 45 a 60 m2
- Refrigerator capacity (W)
- 7.000
- Refrigerator capacity (kcal / h)
- 6.020
- Nominal consumption Cold (W)
- 2.600
- Energy class (cold)
- A++
- SEER
- 6,5
- Heat capacity (W)
- 7.330
- Heat capacity (Kcal / h)
- 6.304
- Nominal heat consumption (W)
- 2.150
- Energy class (heat)
- A+
- SCOP
- 5,1
- Minimum sound pressure UI DB
- 20
- Dimensions u.i (anxfxh) mm
- 1055 x 231 x 330
- Dimensions u.e (anxfxh) mm
- 890 x 342 x 673
- Weight Indoor Unit (Kg)
- 12,4
- Weight Outdoor Unit (Kg)
- 38,3
- Diameter Liquid pipe
- 1/4"
- Diameter Gas Pipe
- 1/2"
- Possibility Integration
- Integrated WiFi
