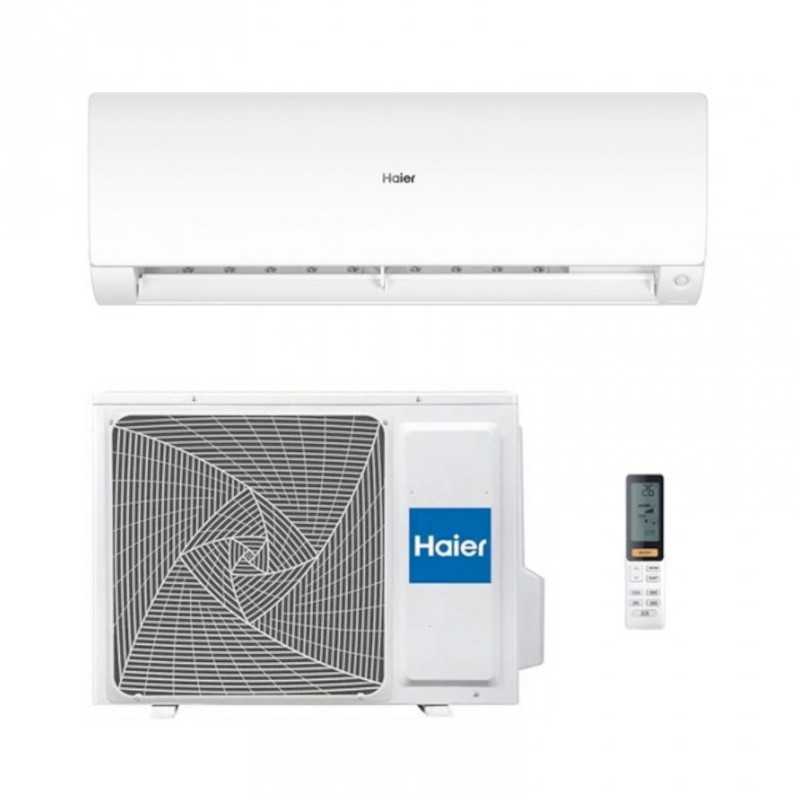

Split Air Conditioning 1x1 Haier Flexis S 35 White
Set Split Air Conditioning 1x1 Haier Flexis S 35 White It is the maximum exponent in comfort air conditioning adapted to bright, modern and minimalist interiors (range reference ** HJ1-W **). With a nominal capacity of 3.50 kW in refrigeration and a seasonal efficiency label To +++, This system optimizes consumption intelligently through its advanced inverter architecture. It integrates a white chassis of refined lines that incorporates the Eco volumetric presence sensor, a UVC Plus active biocide module for total air purification and first level acoustic comfort.
- â Record seasonal efficiency A +++: Maximum energy saving in air conditioning with an excellent Seer of 8.50.
- â Eco smart sensor: Scan the room to guide or divert air intelligently and reduce consumption if there is no one.
- â Active Sterilization UVC Plus: Biological purification of the latest generation that inactive virus and completely eliminates bad odors.
- â Sound pressure of 20 dB (A): Operation in super silence mode at attenuated frequencies, suitable for bedrooms and classrooms.
- â IoT connectivity Wi-Fi Host: Total distance control and analytical reading of seasonal energy consumption.
Commercial SKU reference: As35sbbhra-mw
ÂżAny doubt about the product?
Talk to us and consult us. We will solve all your doubts
Split Air Conditioning 1x1 Haier Flexis S 35 White
Referencia: FlexisS35Blanco
âŹ729.94
Tax included
î IMMEDIATE DELIVERY!
For deliveries in Europe, consult delivery time
EnvĂo GRATIS en España (PenĂnsula) a partir de 300⏠+ info
Email has been sent successfully.
Calcular Gastos de EnvĂo
đĄïž Pago Seguro â
GarantĂa Oficial
Split Air Conditioning 1x1 Haier Flexis S 35 White
Set Split Air Conditioning 1x1 Haier Flexis S 35 White It is the maximum exponent in comfort air conditioning adapted to bright, modern and minimalist interiors (range reference ** HJ1-W **). With a nominal capacity of 3.50 kW in refrigeration and a seasonal efficiency label To +++, This system optimizes consumption intelligently through its advanced inverter architecture. It integrates a white chassis of refined lines that incorporates the Eco volumetric presence sensor, a UVC Plus active biocide module for total air purification and first level acoustic comfort.
- â Record seasonal efficiency A +++: Maximum energy saving in air conditioning with an excellent Seer of 8.50.
- â Eco smart sensor: Scan the room to guide or divert air intelligently and reduce consumption if there is no one.
- â Active Sterilization UVC Plus: Biological purification of the latest generation that inactive virus and completely eliminates bad odors.
- â Sound pressure of 20 dB (A): Operation in super silence mode at attenuated frequencies, suitable for bedrooms and classrooms.
- â IoT connectivity Wi-Fi Host: Total distance control and analytical reading of seasonal energy consumption.
Commercial SKU reference: As35sbbhra-mw
Security policy
Delivery policy
Refund policy
Premium Elegance range âą Climate novelty 2025
Haier Flexis S 35 White
Pure white minimalist aesthetics, maximum seasonal efficiency A +++, intelligent ECO sensor and active biological purification UVC Plus.
âïž Nominal refrigeration: 3.50 kW đ„ Nominal heating: 4,20 kW đ± ERP classification: A +++ / A ++
Exclusive interior and sustainable comfort for modern architectures
The Split 1x1 high-end wall system Haier Flexis S 35 White (Commercial Set Reference of Gama ** HJ1-W **) represents the perfect fusion between stylized industrial design and maximum thermodynamic innovation. Projected suitably for engineering, indoor studies, accredited installers and demanding users, this set combines the elegant indoor Unit in pure white satin finish As35sbbhra-mw with the robust unit compressor exterior inverter 1u35debfra-'s. Developed under the strictest Energy Efficiency Guidelines on the European Market, operates with low GWP Index Ecological Refrigerant Gas R32. With a nominal power of 3.50 kW cold and 4,20 kW in heat mode, the system guarantees millimeter thermal control and an impeccable flow distribution in medium-sized rooms, rigorously complying with ECRP ERP directives of the Union European.
đïž
Intelligent volumetric eco sensor
It incorporates a double-area infrared sensor that detects in real time the presence, position and activity of people in the stay. It allows you to customize the blown to avoid direct impact on users or look for envelope comfort, automatically reducing the frequency of the compressor if the room remains empty.
đĄïž
Advanced Sterilization UVC Plus
Latest biocide module that emits ultraviolet radiation of optimized spectrum directly on the air flow treated by the split. This process destroys the genetic material of viruses and bacteria suspended in the environment. At the same time, it chemically decomposes the molecules causing bad odors.
âš
Steri-Clean Hygiene Cycle 56 ° C
Through precise management of refrigerant pressures, the evaporator executes a freezing phase to trap the dust particles of the environment. Subsequently, it performs a rapid defrost followed by an intense thermal phase that raises the battery at 56 ° C for 30 minutes, eliminating internal molds.
Installation and Comfort Engineering: Features of the Flexis S series
đš Dynamic function i Feel

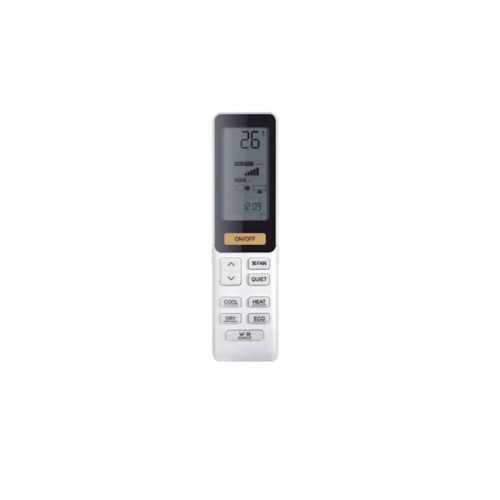

The wireless infrared controller has a built-in thermal sensor to continuously evaluate the thermal conditions of the user's actual occupancy zone instead of the upper return of the unit, achieving a highly accurate inverter response.
đ§ Easy-installation optimized chassis
Designed thoroughly to reduce assembly times. It incorporates an improved wall bracket with clear markings, the greater internal maneuver space for the connection of the pipes and a front access to the electronic control plate.
đ± Connectivity with Hon App
The factory integrated Wi-Fi module allows to link the equipment to the domotic ecosystem Hon intuitively. It offers the immediate monitoring of the historical seasonal consumption, the customization of climatic profiles and the native voice integration with Alexa and Google Assistant.
Complete technical specifications (AS35SBBHRA-MW / 1U35DEBFRA-S)
| Parameter / Mechanical and thermal magnitude | Certified official value (3.5 kW) | |
|---|---|---|
| Identification of system components | ||
| Commercial reference code | Set Split 1x1 Monosplit Wall | Flexis S 35 White (HJ1-W) |
| Model Indoor Unit | Satin White Residential Evaporator | As35sbbhra-mw |
| Model Outdoor Unit | Rotary compressor inverter factory | 1u35debfra-'s |
| Nominal thermodynamic performance data | ||
| Power delivered in refrigeration | Nominal (minimum range - maximum) in KW | 3.50 (1.00 - 4.00) |
| Power delivered in heating | Nominal (minimum range - maximum) in KW | 4.20 (1,10 - 5,40) |
| Power absorbed cooling | Nominal in KW (Electric Consumption) | 1.02 (0.30 - 1.50) |
| Power absorbed heating | Nominal in KW (Electric Consumption) | 1,13 (0.50 - 1.60) |
| Static efficiency coefficients | EER / COP (W / W) nominal | 3.43 / 3,71 |
| Seasonal energy efficiency ERP structure | ||
| Seer (Cold Mode) | Seasonal efficiency factor | 8.50 (A +++) |
| SCOP (Heat Mode - Average Climate) | Seasonal efficiency factor | 4.60 (A ++) |
| Cold annual electrical consumption | Seasonal annual consumption | 144 kWh / year |
| Technical specifications Indoor Unit (As35sbbhra-mw) | ||
| Treated air flow (H) | Maximum volume of drive per hour | 630 mÂł / h |
| Sound pressure Ui (cold) | Scales: High / Medium / Low / Super Silence | 39/34/28/20 db (a) |
| Net Dimensions Chassis UI | Width x depth x high in mm | 812 x 203 x 296 mm |
| Net Structural Weight UI | Evaporator mass without packing | 8.80 kg |
| Installation data and refrigeration magnitudes | ||
| Fluid Refrigerant Gas / Base Load | Purified ecological gas / circuit weight | R32 / 620 g |
| Liquid line diameters / gas | ABOUTHING CONNECTIONS OF PIPE (inches) | 6.35 mm (1/4 ") / 9.52 mm (3/8") |
| Maximum length / maximum height | Limits of admissible mechanical layout | 20 m / 10 m |
Frequently asked questions about the Haier Flexis S 35 White
What aesthetic advantages does the satin white finish of the Flexis S series provide?
Satin white finish (AS35SBBHRA-MW reference) has been conceived to be impeccably mimicked in lightweight decorations, nordic environments or minimalist designs of clear walls. Unlike the common bright plastics of the market, its premium satin texture distributes indirect lighting softly, mitigating reflections and maintaining a pure and discreet aesthetic in the room.
How does the intelligent ECO sensor interact to reduce energy expenditure?
The ECO sensor executes constant three-dimensional volumetric monitoring by infrared. Accurately locate the position of people in the room and allows to program the slats to send the air flow directly towards them or divert it for diffuse comfort. In addition, if it determines that no human activity is recorded for a long time, automatically reduces the frequency of the Inverter compressor, avoiding unnecessary consumption.
Is this Slit 3.5 kW silent for installation in bedrooms or study rooms?
Yes, it is an outstanding model for its acoustic comfort. Thanks to the aerodynamic balance of the inner fan and the low frequency inverter modulation, the split decreases its sound pressure level to a minimum of 20 dB (A) in its super silent stage. This ensures a comfortable environment and without mechanical disturbances, ideal for stays for night rest or concentration.
What are the guidelines and boundaries of refrigerant connection required for this model?
The circuit coupling of the refrigerator uses standard panels abosarded with a diameter of 6.35 mm (1/4 ") for the liquid line and 9.52 mm (3/8") for the gas line. The system is designed to support a maximum longitudinal trace between units up to 20 meters with a vertical rate limit of up to 10 meters, providing excellent versatility of the professional aspect.
Design air conditioning with maximum efficiency available to your work
Get the Haier FLEXIS S 35 White Benefiting you of our best guaranteed price, exclusive professional rates and direct discount at your climate store.
Authorized Supply Reference: AS35SBBHRA-MW
FlexisS35Blanco
Data sheet
- Brand
- Haier
- Indoor Unit
- As35sbbhra-mw
- Outdoor Unit
- 1u35debfra-'s
- Color
- White Mate
- Refrigerant Gas
- R32
- Electrical supply
- MonofĂĄsica
- Recommended area (M2)
- Estancia de 22 a 32 m2
- Refrigerator capacity (W)
- 3.500
- Refrigerator capacity (kcal / h)
- 3.010
- Nominal consumption Cold (W)
- 1.050
- Energy class (cold)
- A+++
- SEER
- 8,5
- Heat capacity (W)
- 4.200
- Heat capacity (Kcal / h)
- 3.612
- Nominal heat consumption (W)
- 1.080
- Energy class (heat)
- A+++
- SCOP
- 5,6
- Minimum sound pressure UI DB
- 20
- Dimensions u.i (anxfxh) mm
- 812 x 296 x 203
- Dimensions u.e (anxfxh) mm
- 753 x 275 x 549
- Weight Indoor Unit (Kg)
- 8,8
- Weight Outdoor Unit (Kg)
- 24,0
- Diameter Liquid pipe
- 1/4"
- Diameter Gas Pipe
- 3/8"
- Possibility Integration
- Integrated WiFi
