Split Air Conditioning 1x1 Haier Flexis S 50 Black
Set Split Air Conditioning 1x1 Haier Flexis S 50 Black It is the high-capacity climate solution suitable for spacious classrooms, commercial premises and modern offices that do not want to give up an aesthetic Luxury (range reference ** HJ1-B **). It offers an imposing nominal power of 5.30 kW in refrigeration supported by the maximum seasonal energy classification To +++. Its exclusive chassis in matte black finish is integrated with absolute distinction in any room, providing intelligent management management through its eco presence sensor and an advanced active biocidal disinfection system.
- ✅ Double maximum efficiency A +++: Outstanding energy saving ratios with a Seer of 8.50 and a 5.10 scop.
- ✅ Eco smart sensor: It scans the room volumetically to adjust the air flow and avoid annoying currents over the occupants.
- ✅ Sterilization UVC Plus: Latest Biological Purification than inactive virus and chemically eliminates bad odors.
- ✅ Great air flow: Move an optimized air volume of 830 m³ / h for a homogeneous air conditioning of large spaces.
- ✅ Wi-Fi Module Serial: Universal domotic control and analytical supervision of consumer historicals using smartphone.
SKU reference: As50sdbhra-mb
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Split Air Conditioning 1x1 Haier Flexis S 50 Black
Referencia: FlexisS50Black
€1,052.18
Tax included
IMMEDIATE DELIVERY!
For deliveries in Europe, consult delivery time
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Split Air Conditioning 1x1 Haier Flexis S 50 Black
Set Split Air Conditioning 1x1 Haier Flexis S 50 Black It is the high-capacity climate solution suitable for spacious classrooms, commercial premises and modern offices that do not want to give up an aesthetic Luxury (range reference ** HJ1-B **). It offers an imposing nominal power of 5.30 kW in refrigeration supported by the maximum seasonal energy classification To +++. Its exclusive chassis in matte black finish is integrated with absolute distinction in any room, providing intelligent management management through its eco presence sensor and an advanced active biocidal disinfection system.
- ✅ Double maximum efficiency A +++: Outstanding energy saving ratios with a Seer of 8.50 and a 5.10 scop.
- ✅ Eco smart sensor: It scans the room volumetically to adjust the air flow and avoid annoying currents over the occupants.
- ✅ Sterilization UVC Plus: Latest Biological Purification than inactive virus and chemically eliminates bad odors.
- ✅ Great air flow: Move an optimized air volume of 830 m³ / h for a homogeneous air conditioning of large spaces.
- ✅ Wi-Fi Module Serial: Universal domotic control and analytical supervision of consumer historicals using smartphone.
SKU reference: As50sdbhra-mb
Security policy
Delivery policy
Refund policy
Luxury range • Climate novelty 2025
Haier Flexis S 50 Black
High power and sophisticated aesthetics matte black, double seasonal efficiency A +++, Eco sensor and UVC Plus biological immunity.
❄️ Nominal refrigeration: 5.30 KW 🔥 Nominal heating: 6.00 kW 🌱 ERP classification: A +++ / A +++
Large thermodynamic capacity and author design for premium projects
The air conditioning system mono-split wall Haier Flexis S 50 Black (Commercial reference of Gama ** HJ1-B **) is a high-capacity air conditioning solution designed to meet the highest expectations of architects, decorators, promoters and installers. This set conjugates the indoor Unit large volume in matte black textured finish As50sdbhra-mb with the powerful and efficient unit condensor exterior inverter of last generation 1u50kebfra-'s. Operating ecologically with pure refrigerant gas from low atmospheric heating potential (PCA) R32, Provides a nominal power of 5.30 kW in refrigeration and 6.00 kW in heat mode. Its imposing dynamic performance ensures a millimeter thermal control and a uniform air distribution in large area rooms or diaphanous commercial environments, strictly complying with the maximum classifications of the ECP ECP Design Directive.
👁️
Smart echo sensor
It incorporates a dual-sensitive dual infrared volumetric sensor that continuously scans the areas of the stay continuously. Identify the presence and activity of users to guide the slats, allowing to choose between a direct or indirect air flow, and decreases autonomously the frequency of the compressor if the stay is empty.
🛡️
Medical Sterilization UVC Plus
Latest biocide module that emits upper band ultraviolet radiation over the forced air flow driven by the split. This process effectively destroys the genetic material of the microorganisms suspended in the environment. In parallel, it chemically decomposes odoriferous particles, achieving an air of high environmental purity.
✨
Steri-Clean sanitization cycle
Through a precise management of the refrigerant pressures, the equipment freezes the internal battery to trap the suspended dust particles and, then, runs a rapid defrosting phase followed by intense heating. This raises the battery at 56 ° C for 30 minutes, eliminating from root molds and bacteria.
Installation and Comfort Engineering: Features of the Flexis S 50 series
💨 precise heat shrinkage i feel

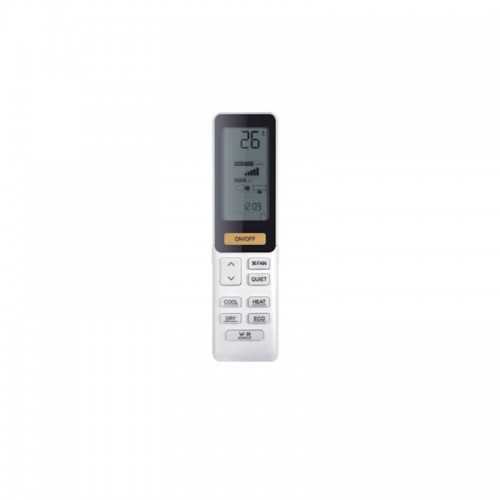

The wireless infrared controller has an integrated thermal sensor to continuously evaluate the temperature conditions of the actual occupancy zone instead of the upper roof return, achieving a millimetric and non-fluctuating inverter compressor response.
🔧 Easy professional installation kit
The chassis of the indoor Unit it has been designed to significantly optimize assembly times. It incorporates a robust support template, greater internal maneuver space for the connection of refrigerated pipes and front access to electronic components.
📱 IoT connectivity with HONEP
The integrated Wi-Fi module serial lies the split directly to the HON ECOSYSTEM Haier. It allows to monitor immediately seasonal energy consumption, establish advanced time schedules and control the functions of voice comfort with Alexa and Google Assistant.
Complete technical specifications (AS50SDBHRA-MB / 1U50KEBFRA-S)
| Parameter / Mechanical and thermal magnitude | Certified official value (5.0 kW) | |
|---|---|---|
| Identification of system components | ||
| Commercial reference code | Set Split 1x1 Monosplit Wall Great Capacity | FLEXIS S 50 BLACK (HJ1-B) |
| Model Indoor Unit | Residential Evaporator / Commercial Black Matte | As50sdbhra-mb |
| Model Outdoor Unit | Rotary compressor inverter high durability | 1u50kebfra-'s |
| Nominal thermodynamic performance data | ||
| Power delivered in refrigeration | Nominal (minimum range - maximum) in KW | 5.30 (1.40 - 6.00) |
| Power delivered in heating | Nominal (minimum range - maximum) in KW | 6.00 (1.50 - 6,80) |
| Power absorbed cooling | Nominal in KW (energy consumption) | 1,47 (0.40 - 2.00) |
| Power absorbed heating | Nominal in KW (energy consumption) | 1.50 (0.50 - 2,40) |
| Static efficiency coefficients | EER / COP (W / W) Officers | 3.61 / 4.00 |
| Seasonal energy efficiency ERP structure | ||
| Seer (Cold Mode) | Seasonal efficiency factor | 8.50 (A +++) |
| SCOP (Heat Mode - Average Climate) | Seasonal efficiency factor | 5.10 (A +++) |
| Cold annual electrical consumption | Estimated seasonal consumption | 218 kWh / year |
| Electrical consumption annual heat | Estimated seasonal consumption | 1235 kWh / year |
| Technical specifications Indoor Unit (As50sdbhra-mb) | ||
| Treated air flow (H) | Maximum volume of drive per hour | 830 m³ / h |
| Sound pressure Ui (cold) | Scales: High / Medium / Low / Super Silence | 44/40/36/31 dB (A) |
| Net Dimensions Chassis UI | Width x depth x high in mm | 999 x 225 x 323 mm |
| Net Structural Weight UI | Evaporator mass without packing | 12.00 kg |
| Technical specifications Outdoor Unit (1u50kebfra-'s) | ||
| Pressure / external sound power | Nominal acoustic levels issued | 53 dB (A) / 65 dB (A) |
| Outside net dimensions | Width x depth x high in mm | 820 x 338 x 614 mm |
| EU structural net weight | Structural mass of the outdoor Unit | 37.80 kg |
| Installation data and refrigeration magnitudes | ||
| Fluid Refrigerant Gas Used | Pure fluorinated ecological gas | R32 |
| Load of Refrigerant Gas factory | Pre-loaded amount | 950 g |
| Liquid line diameters / gas | Mechanical abdoDing connections (inches) | 6.35 mm (1/4 ") / 12.70 mm (1/2") |
| Maximum length / maximum height | Limits of admissible mechanical layout | 25 m / 15 m |
Frequently asked questions about the Haier Flexis S 50 Black
What does Black Matt finish in this high capacity split contribute?
The textured matte black finish of the indoor Unit (Reference AS50SDBHRA-MB) has been expressly developed to break with the traditional design of large industrial and residential equipment. Its matt surface absorbs unwanted reflections and prevents handling brands, providing a sober and elegant distinction ideal for premium offices, design meeting rooms or avant-garde cutting rooms.
How does the Eco sensor maximize the Savings in a 5.0 kW model?
The Eco Intelligent Sensor volumetically monitors the infrared stay. By identifying the exact location of the occupants, it allows the team to direct the air flow or divert it to offer superior comfort. Its main benefit in large capabilities is that, by detecting that the room remains empty for a long time, it autonomously reduces the frequency of the Inverter compressor, drastically mitigating energy waste.
What level of filtering and hygienization does the UVC Plus system provide?
The advanced UVC PLUS system emits ultraviolet radiation directly on high-speed-driven air (830 m³ / h). This breaks the structures of the viruses and bacteria suspended in the environment. In addition, the equipment chemically decomposes annoying volatile gases and bad odors, guaranteeing deep environmental sterilization, free of harmful and suitable chemical compounds for commercial or family environments.
What are the technical constraints and pipelines required for installation?
For this system of 5.0 kW, the use of abosarded copper pipes with a diameter of 6.35 mm (1/4 ") is required for the liquid line and 12.70 mm (1/2") for the gas line. The refrigerator circuit tolerates a maximum track of tracing of up to 25 meters, with a maximum vertical rate limit of 15 meters between both units, providing excellent mounting versatility for residential buildings and commercial premises.
Its upgrades large spaces with maximum exclusivity and design Luxury
Get the Haier FLEXIS S 50 BLACK with the permanent technician stock, official guarantee and the Enterprise logistical support of your climate warehouse.
Official distribution reference: AS50SDBHRA-MB
FlexisS50Black
Data sheet
- Brand
- Haier
- Indoor Unit
- As50sdhra-mb
- Outdoor Unit
- 1u50kebfra-'s
- Color
- Negro Mate
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Recommended area (M2)
- Estancia de 32 a 45 m2
- Refrigerator capacity (W)
- 5.200
- Refrigerator capacity (kcal / h)
- 4.472
- Nominal consumption Cold (W)
- 1.460
- Energy class (cold)
- A+++
- SEER
- 8,5
- Heat capacity (W)
- 6.000
- Heat capacity (Kcal / h)
- 5.160
- Nominal heat consumption (W)
- 1.470
- Energy class (heat)
- A+++
- SCOP
- 5,6
- Minimum sound pressure UI DB
- 31
- Dimensions u.i (anxfxh) mm
- 983 x 221 x 322
- Dimensions u.e (anxfxh) mm
- 820 x 306 x 642
- Weight Indoor Unit (Kg)
- 12,8
- Weight Outdoor Unit (Kg)
- 36,3
- Diameter Liquid pipe
- 1/4"
- Diameter Gas Pipe
- 1/2"
- Possibility Integration
- Integrated WiFi
