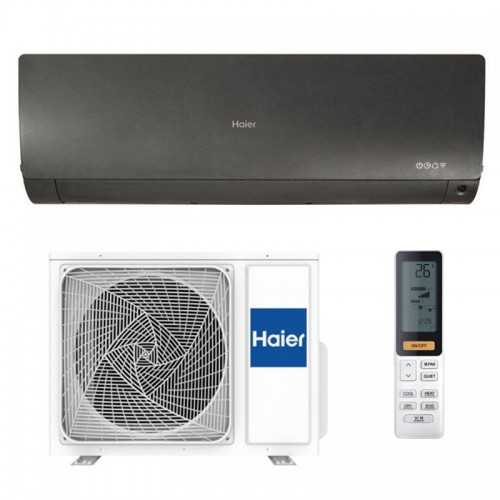

Split Air Conditioning 1x1 Haier Flexis S 71 Black
Set Split Air Conditioning 1x1 Haier Flexis S 71 Black It represents the cusp of the thermodynamic power attached to the exclusive author design in matte black finish (range reference ** HJ1-B **). With an imposing nominal capacity of 7.10 kW in refrigeration and a maximum seasonal efficiency label To +++, This intelligent system has been designed to cover climate needs of large residential surfaces, diaphanous rooms or avant-garde aesthetic business offices. Integrates as standard an ECO presence sensor for intelligent airflow management and an advanced active biocidal biocidal disinfection system UVC Plus.
- â Maximum seasonal efficiency A +++: Maximum energy saving for a great team with a SEE of 8.50 and a 5.10 scop.
- â Eco smart sensor: It scans the stay continuously to redirect air flow and avoid direct currents on users.
- â Active Sterilization UVC Plus: Advanced module that destroys viruses and bacteria in the air flow and completely removes bad odors.
- â Industrial drive flow: Projects an impressive air volume of 1,060 mÂł / h for homogeneous air conditioning.
- â Integrated Wi-Fi Module: Total distance control, advanced programming and analytical consumer historical reading.
SKU reference: As71sephra-mb
ÂżAny doubt about the product?
Talk to us and consult us. We will solve all your doubts
Split Air Conditioning 1x1 Haier Flexis S 71 Black
Referencia: FlexisS71Black
âŹ1,362.04
Tax included
î We are currently out of stock.
Ask us about availability!!
EnvĂo GRATIS en España (PenĂnsula) a partir de 300⏠+ info
Email has been sent successfully.
Calcular Gastos de EnvĂo
đĄïž Pago Seguro â
GarantĂa Oficial
Split Air Conditioning 1x1 Haier Flexis S 71 Black
Set Split Air Conditioning 1x1 Haier Flexis S 71 Black It represents the cusp of the thermodynamic power attached to the exclusive author design in matte black finish (range reference ** HJ1-B **). With an imposing nominal capacity of 7.10 kW in refrigeration and a maximum seasonal efficiency label To +++, This intelligent system has been designed to cover climate needs of large residential surfaces, diaphanous rooms or avant-garde aesthetic business offices. Integrates as standard an ECO presence sensor for intelligent airflow management and an advanced active biocidal biocidal disinfection system UVC Plus.
- â Maximum seasonal efficiency A +++: Maximum energy saving for a great team with a SEE of 8.50 and a 5.10 scop.
- â Eco smart sensor: It scans the stay continuously to redirect air flow and avoid direct currents on users.
- â Active Sterilization UVC Plus: Advanced module that destroys viruses and bacteria in the air flow and completely removes bad odors.
- â Industrial drive flow: Projects an impressive air volume of 1,060 mÂł / h for homogeneous air conditioning.
- â Integrated Wi-Fi Module: Total distance control, advanced programming and analytical consumer historical reading.
SKU reference: As71sephra-mb
Security policy
Delivery policy
Refund policy
High Range Luxury Capacity âą Novelty 2025
Haier Flexis S 71 Black
Maximum climatic power in black premium matte finish with double efficiency A +++, Eco Sensor and UVC Plus Biological Immunity.
âïž Nominal refrigeration: 7,10 kW đ„ Nominal heating: 7,40 kW đ± ERP classification: A +++ / A +++
Maximum thermal performance and cutting-edge interior design for large projects
SPLIT SPLIT MONE-SPLIT high capacity wall Haier Flexis S 71 Black (Gama catalog reference ** HJ1-B **) constitutes the maximum solution of the Flexis series, developed thoroughly to respond to engineering, architecture studies, accredited installers and promoters seeking an aesthetic value Premium without concessions at power. This robust set combines the indoor Unit of large aerodynamic volume in exclusive matte black finish As71sephra-mb with the advance outdoor Unit high strength mono-compressor 1u71wepfra-'s. Operating echo-efficiently with pure refrigerant gas from low global warming index R32, the system develops a nominal power of 7.10 kW in refrigeration and 7.40 kW in heating. Its Luxury chassis is the perfect asset for the integral air conditioning of large lounges, diaphanous commercial spaces or high-level offices under the demanding regulations of the ERP Directive of the European Union.
đïž
ECO Sensor of Human Presence
The equipment implements a high resolution infrared volumetric sensor that continually scans the area. It detects the exact position of people to intelligently orient the air flow (direct or indirect) and switches autonomously as a low consumption when it determines that the stay is empty.
đĄïž
Medical Sterilization UVC Plus
It incorporates a last generation biocidal emitter that projects ultraviolet radiation optimized directly on the high forced air flow driven by the split. This process actively destroys viruses and bacteria suspended in the environment, while inactive the volatile compounds causing bad odors.
âš
Steri-Clean heat treatment
The digital control system automatically actively a thermal cycle that freezes the battery of the indoor Unit to encapsulate dust and dirt microparticles. Next, it executes a rapid defrosting phase combined with an intense heating that keeps the battery at 56 ° C for 30 minutes, eliminating internal molds.
Exclusive benefits of engineering: Flexis S Series 71
đš Termoregulator control I Feel

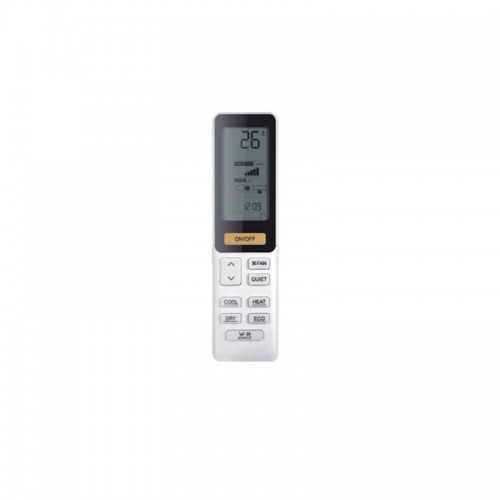

An integrated thermal sensor in the wireless remote control evaluates the actual temperature conditions of the occupancy zone instead of the upper return area of the ceiling, optimizing the response of the Inverter compressor in a millimetric manner.
đ§ Chassis of easy professional installation
Despite its high capacity dimensions, the chassis of the indoor Unit it has been designed to optimize assembly times, incorporating clear template brands, ample space for pipe laying and convenient front access to electronics.
đ± Domotic management Hon App
The factory wi-fi controller directly links the split to the intelligent ecosystem Hon. It allows immediate monitoring graphics of seasonal consumption, setting complex hourly climatic profiles and controlling functions by Alexa or Google Assistant.
Complete technical specifications (AS71SEPHRA-MB / 1U71WEPFRA-S)
| Parameter / Mechanical and thermal magnitude | Certified official value (7.1 kW) | |
|---|---|---|
| Identification of system components | ||
| Commercial reference code | Set Split 1x1 monosplit Maximum capacity wall | FLEXIS S 71 BLACK (HJ1-B) |
| Model Indoor Unit | Commercial Evaporator / Matte Black Residential | As71sephra-mb |
| Model Outdoor Unit | Rotary compressor Inverter Heavy Duty | 1u71wepfra-'s |
| Nominal thermodynamic performance data | ||
| Power delivered in refrigeration | Nominal (minimum range - maximum) in KW | 7.10 (2.10 - 8.00) |
| Power delivered in heating | Nominal (minimum range - maximum) in KW | 7.40 (1.50 - 8.50) |
| Static efficiency coefficients | EER / COP (W / W) nominal officers | 3.60 / 4.00 |
| Seasonal energy efficiency ERP structure | ||
| Seer (Cold Mode) | Seasonal efficiency factor | 8.50 (A +++) |
| SCOP (Heat Mode - Average Climate) | Seasonal efficiency factor | 5.10 (A +++) |
| Cold annual electrical consumption | Seasonal annual consumption | 222 kWh / year |
| Electrical consumption annual heat | Seasonal annual consumption | 1430 kWh / year |

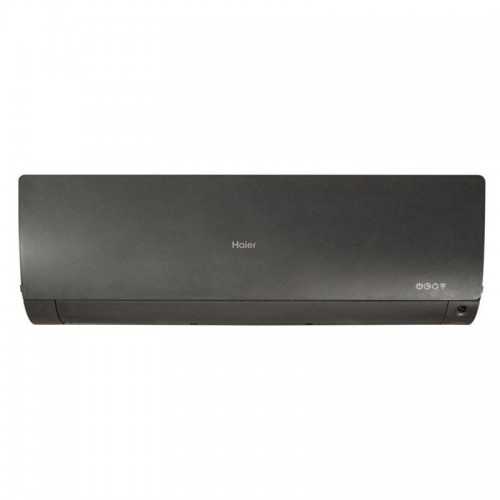

| Technical specifications Indoor Unit (As71sephra-mb) | ||
| Treated air flow (H) | Maximum volume of drive per hour | 1060 mÂł / h |
| Sound pressure Ui (cold) | Scales: High / Medium / Low / Super Silence | 48/42/35/27 dB (A) |
| Net Dimensions Chassis UI | Width x depth x high in mm | 1115 x 240 x 343 mm |
| Net Structural Weight UI | Evaporator mass without packing | 14.00 kg |

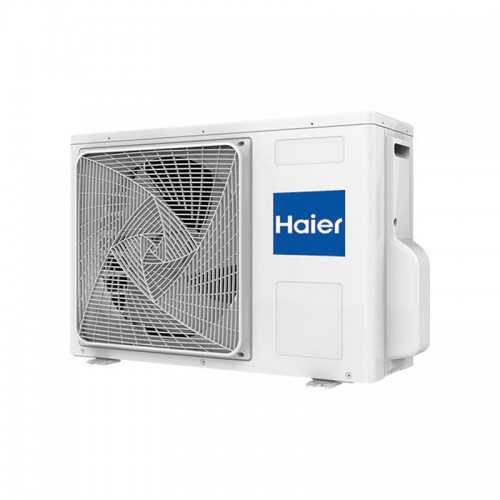

| Technical specifications Outdoor Unit (1u71wepfra-'s) | ||
| Pressure / external sound power | Nominal acoustic levels issued | 57 dB (A) / 68 dB (A) |
| Outside net dimensions | Width x depth x high in mm | 890 x 340 x 705 mm |
| EU structural net weight | Structural mass of the outdoor Unit | 45.00 kg |
| Installation data and refrigeration magnitudes | ||
| Fluid Refrigerant Gas Used | Pure ecological gas of last generation | R32 |
| Load of Refrigerant Gas factory | Pre-loaded amount | 1200 g |
| Liquid line diameters / gas | Mechanical abdoDing connections (inches) | 9.52 mm (3/8 ") / 15.88 mm (5/8") |
| Maximum length / maximum height | Limits of admissible mechanical layout | 25 m / 15 m |
Frequently asked questions about the Haier Flexis S 71 Black
What aesthetic benefits reports the Black Matt finish in an industrial-residential split of this size?
The textured matte black finish of the indoor Unit of great magnitude (Reference AS71SEPHRA-MB) has been expressly developed to break with the monotonous aesthetics of traditional high capacity equipment. Its matte surface excellently absorbs light reflections and avoids handling prints, providing a high-end minimalist visual impact for design commercial premises, large-dimensional lofts or premium conference rooms.
How does the consumption optimize the intelligent ECO sensor on a 7.1 kW team?
In highly power equipment, energy control is vital. The intelligent ECO sensor Haier it executes three-dimensional volumetric readings by continuous infrared to locate the occupants of the room. This allows to regulate the motorized slats to divert the flow or direct it as appropriate. Its main economic advantage is that, if the room remains empty, it automatically reduces the rotation frequency of the Inverter compressor, avoiding unnecessary electricity expenditure on large surfaces.
How does the UVC Plus biological filtrate acts with such high air flows?
Despite moving an impressive air volume of up to 1,060 mÂł / h, the UVC Plus active module projects optimized spectrum ultraviolet radiation directly on forced flow. This procedure destroys the genetic material of viruses, bacteria and suspension allergens. At the same time, chemically inactivate the harmful volatile organic compounds and bad odors, guaranteeing deep and continuous environmental sterilization in wide spaces without resorting to chemical additives.
What are the guidelines and limits of refrigerant connection required for this 7.1 kW model?
The mechanical installation of this model requires the use of specific abosarded copper pipes with a diameter of 9.52 mm (3/8 ") for the liquid line and 15.88 mm (5/8") for the gas line. The refrigerator circuit supports a total longitudinal trace up to 25 meters and supports a vertical limit of up to 15 meters between the indoor Unit and exterior, which gives the professional installer a great flexibility in complex commercial works.
Hardize large volumes with maximum exclusivity and Luxury design
Get the Haier FLEXIS S 71 BLACK BACKED BY THE GUARANTEE TECHNITIZER, Full Warranty Official and the Enterprise Logistics Service of your Climate Warehouse.
Authorized Supply Reference: AS71Sephra-MB
FlexisS71Black
Data sheet
- Brand
- Haier
- Indoor Unit
- As71sephra-mb
- Outdoor Unit
- 1U71WEPFRA-PR
- Color
- Negro Mate
- Refrigerant Gas
- R32
- Electrical supply
- MonofĂĄsica
- Recommended area (M2)
- Estancia de 45 a 60 m2
- Refrigerator capacity (W)
- 5.000
- Refrigerator capacity (kcal / h)
- 4.300
- Nominal consumption Cold (W)
- 1.970
- Energy class (cold)
- A+++
- SEER
- 8,5
- Heat capacity (W)
- 8.000
- Heat capacity (Kcal / h)
- 6.880
- Nominal heat consumption (W)
- 1.950
- Energy class (heat)
- A+++
- SCOP
- 5,4
- Minimum sound pressure UI DB
- 27
- Dimensions u.i (anxfxh) mm
- 1119 x 246 x 349
- Dimensions u.e (anxfxh) mm
- 890 x 340 x 705
- Weight Indoor Unit (Kg)
- 15,4
- Weight Outdoor Unit (Kg)
- 43,0
- Diameter Liquid pipe
- 1/4"
- Diameter Gas Pipe
- 5/8"
- Possibility Integration
- Integrated WiFi
