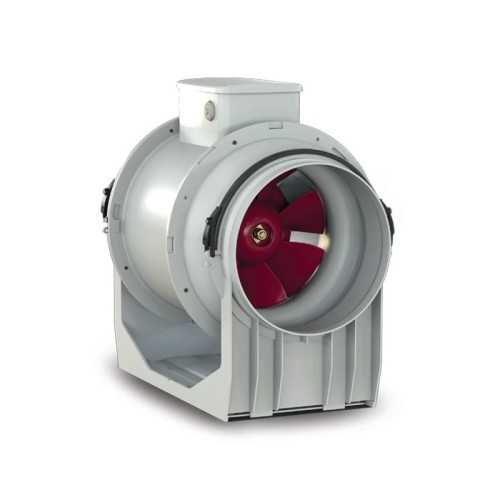

Extractor Vortice New Lineo 200T AC tempered in line of duct

Mixed flow technology that provides impressive flows of up to 1,135 m3/h at maximum speed (2,710 RPM), with capacity for 1.025 m3/h at medium speed and 815 m3/h at low speed, adapting to any need for ventilation from the basic to the most demanding.

Built-in timer system (model T) that allows the automatic operation of the extractor, optimizing ventilation according to specific needs and providing greater energy comfort and efficiency in different scenarios of use.

High static pressure capacity of up to 294.2 Pa at maximum speed, 267.7 Pa at medium speed and 210.9 Pa at low speed, ensuring optimal performance even in installations with long or complex ducts with multiple bends or resistors.

Operating versatility with three selectable speeds (2,710, 2.450 and 1,925 RPM) that allow to adapt the operation according to specific requirements, perfectly balancing between maximum flow, optimal pressure, sound level and energy consumption in any situation.

International CE, IMQ, and UKCA certifications guarantee compliance with the most demanding regulations, with IPX5 protection against water jets and Class II insulation, ensuring safe operation even in humid or demanding environments.

Power consumption optimized according to operating speed: 110W at maximum speed, 95W at medium speed, and 80W at low speed, providing a perfect balance between power and efficiency for each level of performance required.

High Performance Professional Ventilation

The exceptional flow capacity (up to 1,135 m3/h) combined with superior static pressure (up to 294,2 Pa) allows the efficient ventilation of large commercial or industrial spaces, even with extensive and complex duct systems, ensuring optimal air renewal in any circumstances.

Intelligent Automated Control

The integrated timer allows to program automatic ventilation cycles adapted to the specific needs of each space, optimizing the operation according to predetermined times or conditions, which increases efficiency and reduces the need for manual intervention.

Insurmountable Operation Flexibility

The triple-speed system offers exceptional flexibility to balance between maximum performance, energy efficiency and sound level according to specific needs, allowing you to find the optimal operating point for any situation, from intensive ventilation to continuous silent operation.

Superior reliability and durability

The combination of IPX5 protection against water jets, international certifications and recognized quality Vortice guarantees an exceptionally durable and reliable product, capable of operating continuously even in demanding environments such as industrial kitchens, humid spaces or facilities with adverse environmental conditions.
