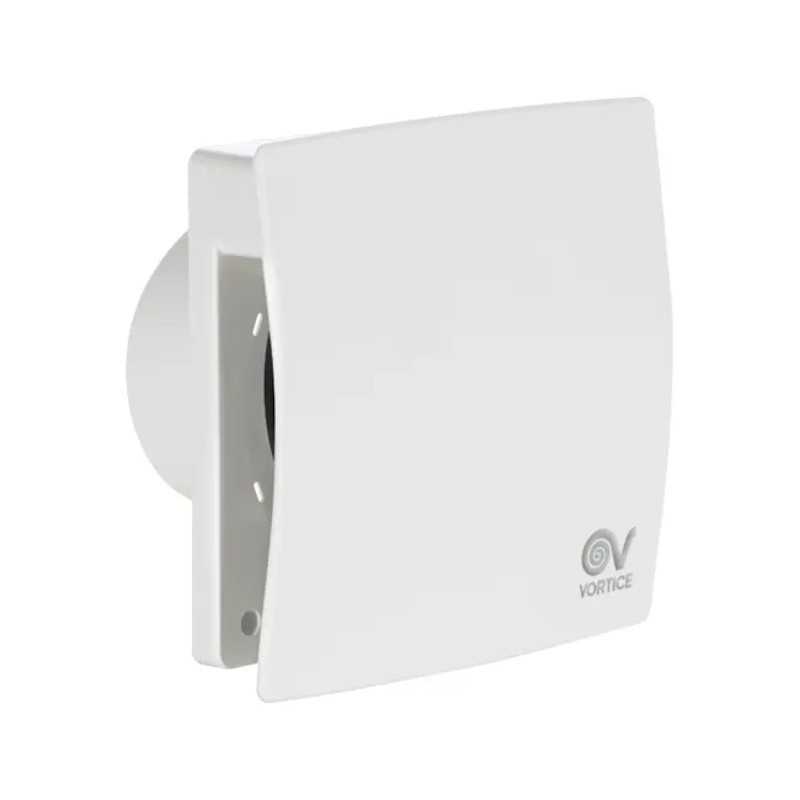

Bathroom Extractor Evo Flexo MEX100-T white c/temporizer
Wall axial ventilator with adjustable timer and antireturn gate. Advanced mixed flow design made of ABS impact resistant and UV, ideal for baths and toilets, with ball bearings that guarantee a long service life and silent operation.
- ▷ 90 m3/h air flow rate with mixed flow technology for maximum efficiency
- ▷ 3 to 20 minutes adjustable timer to customize the operation
- ▷ Ultra silent with only 26.9 dB(A) 3 meters for maximum comfort
- ▷ Low energy consumption of only 9W with greater performance
- ▷ IP45 protection that allows your installation in Zone 1 of bathrooms
- ▷ International certifications IMQ, CE, CCC and EAC guaranteeing quality and safety
Reference: MEX 100/4" LL 1S T
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Bathroom Extractor Evo Flexo MEX100-T white c/temporizer
Referencia: MEX100T
€92.96
Tax included
IMMEDIATE DELIVERY!
For deliveries in Europe, consult delivery time
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Bathroom Extractor Evo Flexo MEX100-T white c/temporizer
Wall axial ventilator with adjustable timer and antireturn gate. Advanced mixed flow design made of ABS impact resistant and UV, ideal for baths and toilets, with ball bearings that guarantee a long service life and silent operation.
- ▷ 90 m3/h air flow rate with mixed flow technology for maximum efficiency
- ▷ 3 to 20 minutes adjustable timer to customize the operation
- ▷ Ultra silent with only 26.9 dB(A) 3 meters for maximum comfort
- ▷ Low energy consumption of only 9W with greater performance
- ▷ IP45 protection that allows your installation in Zone 1 of bathrooms
- ▷ International certifications IMQ, CE, CCC and EAC guaranteeing quality and safety
Reference: MEX 100/4" LL 1S T
Security policy
Delivery policy
Refund policy
Product Description
The Bathroom Extractor Evo Flexo MEX100-T represents the evolution of domestic ventilation, combining advanced mixed flow technology with a modern and functional design. Made of impact resistant ABS and UV radiation, this wall axial fan offers a durable and efficient solution for air renewal in bathrooms, toilets and small spaces.
Equipped with a high quality AC engine and long-lasting ball bearings, this extractor ensures quiet and reliable operation for years. Its mixed-flow impeller, made of polypropylene resistant to aggressive substances, optimizes airflow to achieve superior performance with a minimum energy consumption of just 9W.
With a maximum flow of 90 m3/h and an extremely low sound level of only 26.9 dB(A) to 3 meters, the MEX100-T provides efficient and discreet ventilation. It incorporates a adjustable timer that allows to adjust the operating time between 3 and 20 minutes after switching off, as well as a butterfly-type antireturn gate that prevents unwanted air input when the device is off. Its IP45 protection makes it suitable for installing in Zone 1 of bathrooms according to international IEC 60364-7 regulations.
Main Features
️
Regulable timer
It allows to adjust the operating time between 3 and 20 minutes after switching off, adapting to your specific needs.
🔄
Mixed Flow Technology
Printer specially designed to optimize airflow, combining the advantages of axial and centrifugal fans.
🔇
Ultra Quiet
Only 26.9 dB(A) 3 meters away, providing a quiet and comfortable atmosphere in your home.
🔒
Antireturn computer
Butterfly type system that prevents unwanted air input and heating leaks when the extractor is off.
▪
Energy efficiency
Minimum consumption of only 9W that provides optimal performance with reduced energy spending.
️
High Protection
IP45 classification that allows its installation in Area 1 of bathrooms according to international IEC 60364-7 standards.
Technical Specifications
| Feature | Value |
|---|---|
| Model | MEX 100/4" LL 1S T |
| Nominal diameter | 100 mm |
| Maximum rate | 90 m3/h (25 l/s) |
| Maximum pressure | 39,23 Pa (4 mmH2O) |
| Timer | Replaceable 3 to 20 minutes |
| Power absorbed | 9W |
| Absorbed current | 0.052A |
| Maximum speed | 2175 RPM |
| Sound level | 26.9 dB(A) to 3m |
| Tension | 230V |
| Frequency | 50Hz |
| IP protection | 45 |
| Isolation | Class II |
| Temp. max. operation | 50°C |
| Dimensions (AxB) | 173 x 173 mm |
| Depth (C) | 126 mm |
| Weight | 0.6 kg |
| Certifications | IMQ, CE, CCC, EAC |
Benefits of Extractor MEX100-T
✓
Customized ventilation
The adjustable timer allows you to adapt the operation to your specific needs, optimizing ventilation and energy consumption according to each situation.
✓
Exceptional acoustic comfort
With just 26.9 dB(A) 3 meters, it provides a quiet and comfortable atmosphere, ideal for bedrooms, bathrooms and rest spaces.
✓
Maximum energy efficiency
With only 9W of consumption, it combines high performance with low energy spending, contributing to the savings in its electricity bill and environmental sustainability.
✓
Safe installation in wet areas
Its IP45 protection allows you to install it with total security in Zone 1 of bathrooms according to international standards, ensuring maximum protection even in humid environments.
Why choose the MEX100-T?
Compatible accessories
Flexible conduct Ø100mm
Flexible aluminium conduct for a versatile and efficient installation.
See DetailsInstallation Kit in Crystal
Accessory to install the extractor on glass surfaces or thin panels.
See DetailsRenew the air of your home with cutting-edge technology!
The MEX100-T Extractor with mixed flow technology combines efficiency, silence and advanced functionality to provide you with the best experience in ventilation. Enjoy a healthy and fresh environment with international quality certification!
ADD TO THE CARRITO MEX100T
Data sheet
- Brand
- Vortice
- Maximum consumption (W)
- 9
- Maximum sound pressure DBA
- 27
- Ø Conduit (mm)
- 100
- Maximum flow (m3 / h)
- 90
- High (mm)
- 173
- Width (mm)
- 173
- Deep (mm)
- 126
