Remove moisture from your wet rooms with the extractor Zehnder ZCV2. Modern and efficient design for a healthy and comfortable environment. Make your purchase now!
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
copy of Extractor Zehnder ZCV2 Cuartos Humedos
Referencia: MEX100
€72.65
Tax included
IMMEDIATE DELIVERY!
For deliveries in Europe, consult delivery time
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Remove moisture from your wet rooms with the extractor Zehnder ZCV2. Modern and efficient design for a healthy and comfortable environment. Make your purchase now!
Security policy
Delivery policy
Refund policy
Product Description

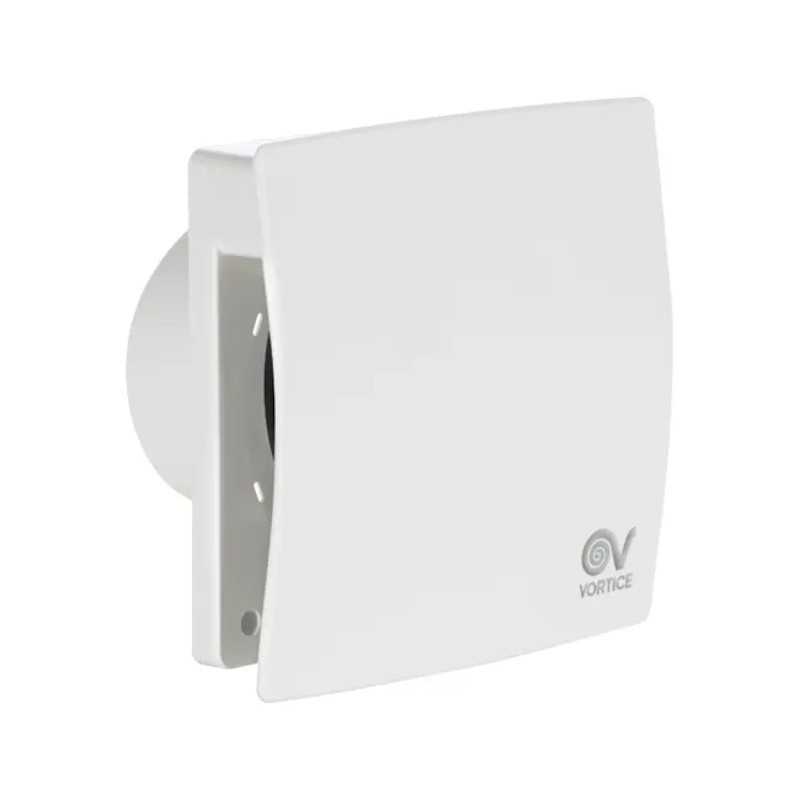

The Bathroom Extractor Evo Flexo MEX100 represents the evolution of domestic ventilation in its basic version, combining advanced mixed flow technology with a modern and functional design. Made of impact resistant ABS and UV radiation, this wall axial fan offers a durable and efficient solution for air renewal in bathrooms, toilets and small spaces.
Equipped with a high quality AC engine and long-lasting ball bearings, this extractor ensures quiet and reliable operation for years. Its mixed-flow impeller, made of polypropylene resistant to aggressive substances, optimizes airflow to achieve superior performance with a minimum energy consumption of just 9W.
With a maximum flow of 90 m3/h and an extremely low sound level of only 26.9 dB(A) to 3 meters, the MEX100 provides efficient and discreet ventilation. It incorporates a butterfly-type antireturn gate that prevents unwanted air input when the device is off, contributing to energy saving and thermal comfort. Its IP45 protection makes it suitable for installing in Zone 1 of bathrooms according to international IEC 60364-7 regulations.
Main Features
💨
Optimal flow
It provides 90 m3/h for efficient ventilation in small and medium spaces.
🔄
Mixed Flow Technology
Printer specially designed to optimize airflow, combining the advantages of axial and centrifugal fans.
🔇
Ultra Quiet
Only 26.9 dB(A) 3 meters away, providing a quiet and comfortable atmosphere in your home.
🔒
Antireturn computer
Butterfly type system that prevents unwanted air input and heating leaks when the extractor is off.
▪
Energy efficiency
Minimum consumption of only 9W that provides optimal performance with reduced energy spending.
️
High Protection
IP45 classification that allows its installation in Area 1 of bathrooms according to international IEC 60364-7 standards.
Technical Specifications
| Feature | Value |
|---|---|
| Model | MEX 100/4" LL 1S |
| Nominal diameter | 100 mm |
| Maximum rate | 90 m3/h (25 l/s) |
| Maximum pressure | 39,23 Pa (4 mmH2O) |
| Power absorbed | 9W |
| Absorbed current | 0.052A |
| Maximum speed | 2175 RPM |
| Sound level | 26.9 dB(A) to 3m |
| Tension | 230V |
| Frequency | 50Hz |
| IP protection | 45 |
| Isolation | Class II |
| Temp. max. operation | 50°C |
| Dimensions (AxB) | 173 x 173 mm |
| Depth (C) | 126 mm |
| Weight | 0.6 kg |
| Certifications | IMQ, CE, CCC, EAC |
Benefits of Extractor MEX100
✓
Effective removal of moisture
Prevents mold formation, condensation and problems resulting from excess moisture, protecting both your health and the structure of your home.
✓
Exceptional acoustic comfort
With just 26.9 dB(A) 3 meters, it provides a quiet and comfortable atmosphere, ideal for bedrooms, bathrooms and rest spaces.
✓
Energy saving
The combination of low consumption (9W) and antireturn gates contributes to the savings in your electricity bill and the energy efficiency of your home.
✓
Safety in wet environments
Its IP45 protection ensures safe operation even in Zone 1 of bathrooms, providing tranquility and regulatory compliance.
Why choose the MEX100?
Compatible accessories
Flexible conduct Ø100mm
Flexible aluminium conduct for a versatile and efficient installation.
See DetailsInstallation Kit in Crystal
Accessory to install the extractor on glass surfaces or thin panels.
See DetailsRenew the air of your home with cutting-edge technology!
The MEX100 Extractor with mixed flow technology combines efficiency, silence and durability to provide the best experience in ventilation. Enjoy a healthy and fresh environment with international quality certification!
ADD TO THE CARRITO MEX100
Data sheet
- Brand
- Vortice
- Maximum consumption (W)
- 9
- Sound pressure maximum dBA
- 27
- Ø Conduct (mm)
- 100
- Maximum flow (m3 / h)
- 90
- High (mm)
- 173
- Width (mm)
- 173
- Deep (mm)
- 126
