Ariston Nimbus Compact 35 m NET R32
Compact All-in-One 3.5KW heat pump with 180L accumulator
Compact Aerotermal System R32 with Integrated 180L accumulator. Single-phase Inverter technology for housing up to 70mÂČ with maximum compact energy efficiency.
Nominal power 3.5kw with maximum 6.35kW. Includes Sensys HD and Connectivity Ariston Net Series
Main advantages
3.5kw Nominal, 6.35kw max
COP 5.1 Exceptional
SCOP 6.06 Superior
Classification A +++
221L water at 40 ° C
Warming 2h17min
Ideal for:
Compact apartments âą Housing up to 70mÂČ âą Small spaces âą Reforms âą First home âą Maximum compact efficiency
3.5KW All-In-One Compact
A +++ âą COP 5.1 âą SCOP 6.06 âą 3301854
ÂżAny doubt about the product?
Talk to us and consult us. We will solve all your doubts
Aerotermia Ariston Nimbus Compact 35 M Net Single R32 heat pump
Referencia: 3301854
âŹ6,094.29
Tax included
î We are currently out of stock.
Ask us about availability!!
EnvĂo GRATIS en España (PenĂnsula) a partir de 300⏠+ info
Email has been sent successfully.
ÂĄÂĄMĂDULO WI-FI INCLUIDO EN EL PRECIO!!
Calcular Gastos de EnvĂo
đĄïž Pago Seguro â
GarantĂa Oficial
Ariston Nimbus Compact 35 m NET R32
Compact All-in-One 3.5KW heat pump with 180L accumulator
Compact Aerotermal System R32 with Integrated 180L accumulator. Single-phase Inverter technology for housing up to 70mÂČ with maximum compact energy efficiency.
Nominal power 3.5kw with maximum 6.35kW. Includes Sensys HD and Connectivity Ariston Net Series
Main advantages
3.5kw Nominal, 6.35kw max
COP 5.1 Exceptional
SCOP 6.06 Superior
Classification A +++
221L water at 40 ° C
Warming 2h17min
Ideal for:
Compact apartments âą Housing up to 70mÂČ âą Small spaces âą Reforms âą First home âą Maximum compact efficiency
3.5KW All-In-One Compact
A +++ âą COP 5.1 âą SCOP 6.06 âą 3301854
Security policy
Delivery policy
Refund policy
The Ariston Nimbus Compact 35 M NET R32 represents the most compact and efficient aerothermic solution, using coolant R32 new generation with low GWP. This All-in-One monobloc system integrates into a single indoor Unit 180L accumulator, 3.5kW nominal heat pump and all the necessary components for heating, refrigeration and sanitary hot water.
With a heating capacity of 3.5Kw nominal and up to 6.35 kW maximum at 7 ° C / 35 ° C, this system is ideal for housing of up to 50 mÂČ seeking maximum energy efficiency. Technology Inverter with R32 refrigerant it guarantees ecological and economic functioning, adapting perfectly to radiant floor installations and low temperature radiators.

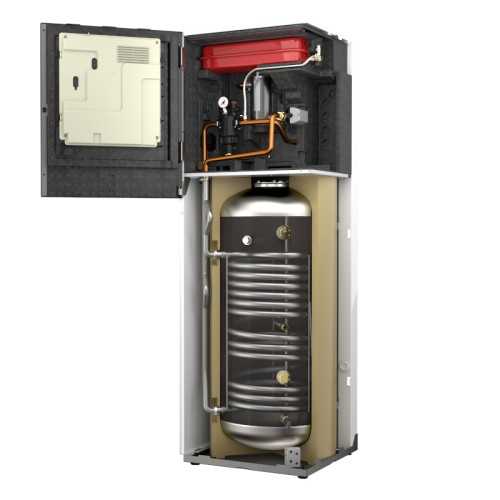

The indoor Unit refrigerator series Integra: 180-liter hot water accumulator with electronic anode, 3-way valve DHW, Magnetic filter and particles, 12 liter heating expansion cup and configurable electrical resistances. Its compact design maximizes the use of space.
The system includes sensys HD it acts as a main control, modulating environment probe and hygrostat. The connectivity Ariston Net it allows remote control via smartphone and online technical assistance, optimizing maintenance and operation.
The energy classification A +++ in heating with 5.1 and SCOP COP of 6.06 in warm climate confirms the exceptional efficiency of the R32 refrigerant. In Refrigeration mode it provides 6.59 kW maximum with EER of 5.29, ensuring comfort throughout the year.
The guaranteed operation from -20 ° C up to + 35 ° C in heating, it maintains reliable benefits even in extreme conditions. The Inverter technology gently modulates the power by optimizing the behavior of the R32 throughout the operating range.
For sanitary hot water, the accumulator 180L with profile XL it allows to obtain up to 221 liters of water at 40 ° C in an extraction. The full heating time is only 2 hours and 17 minutes in average climate, guaranteeing continuous availability of DHW.
The Nimbus Compact 35 M Net R32 represents the perfect choice for homes that prioritize efficiency, sustainability and ease of installation, offering a compact compact solution with the highest quality Ariston.
Main features
đż R32 Eco-Friendly
Refrigerant Gas of new generation with low GWP.
đ All-in-one compact
180L accumulator integrated in indoor Unit.
⥠Inverter Technology
Continuous modulation with advanced heat shrinkage.
đŻ COP 5.1
Maximum energy efficiency with R32.
đ± Ariston Net
Remote control and online technical assistance.
đ„ Profile DHW XL
221L of water at 40 ° C in an extraction.
General Technical Specifications
Performance in Heating
Refrigeration Performance
Performance hot water sanitary
Energy classification
Heating 35 ° C
To +++
SCOP: 6.06 (warm weather)
Heating 55 ° C
To ++
Scop: 3.49 (warm weather)
Hot water
A +
COP: 3.15 (Average climate)
Applications and advantages
Ideal applications
- Single-family homes up to 50 mÂČ
- Apartments with limited space
- Radiant floor installations
- Low temperature systems
- Reforms and rehabilitation
Advantages of the system
- Maximum energy efficiency A +++
- Refrigerant Gas R32 Eco-Friendly
- Simple installation All-in-One
- Intelligent Control Sensys HD
- Remote connectivity and management
All-in-One Compact Solution: Nimbus 35 M!
The maximum efficiency in the minimum space. Refrigerant Gas R32, Integrated 180L accumulator and A +++ classification. All in one for your home!
3.5 kW
180l DHW
To +++
3301854
Data sheet
- Brand
- Ariston
- Indoor Unit
- NIMBUS FS M R32
- Outdoor Unit
- 35 M EXT R32
- Accumulator DHW
- Incluido Formato AllInOne (180L)
- Refrigerant Gas
- R32
- Electrical supply
- MonofĂĄsica
- Reversible or only heat
- Reversible
- Refrigerator capacity (W)
- 4.080
- Nominal consumption Cold (W)
- 770
- Heat capacity (W)
- 3.500
- Nominal heat consumption (W)
- 690
- Diameter Liquid pipe
- Hydraulic connection
- Diameter Gas Pipe
- Hydraulic connection
- COP
- 5,10
- Scop (warm weather)
- 6,06
- EER
- 5,29
- Interconnection type
- ConexiĂłn Hidraulica
- Energy rating
- To +++
- Maximum heating (ÂșC)
- 60
- WiFi
- Incluido
- High Ud. Interior (mm)
- 1.818
- Width UD Interior (mm)
- 600
- Ud interior background (mm)
- 612
- Weight (kg)
- 127
- High Ud Exterior (mm)
- 756
- Width UD Exterior (mm)
- 1.016
- Outdoor background (mm)
- 374
- Weight Outside (kg)
- 66
