Aerotermia Haier AW122HVGHA HYDRO Split 12KW R290 single-phase
12 kW Heating | COP 5,10 | Scop 4,82 A +++ | Refrigerant Gas Natural R290 | Reversible | Up to 80 ° C
The Aerotermia Haier AW122HVGHA HYDRO SPLIT develops 12 kW of heat power with COP 5,10 and Energy rating A +++ (Scop 4,82). Used Natural coolant R290 (1.05 kg / 3,15t co2eq). System reversible with 10 kW of refrigeration capacity (EER 3.35). Reaches Temperatures up to 80 ° C in heating and DHW. Compressor DC Inverter Twin Rotary High performance Outdoor Unit 880 × 1250 × 460 mm (114 kg) interior 850 × 480 × 310 mm (37 kg). Includes 8L expansion deposit and auxiliary heater 2 + 4 kW. Hydraulic connection, control of 2 zones, compatible with Smart Grid, Solar control, Modbus and heating of swimming pools. Operating range -25 ° C at 35 ° C in heating. Ideal for large chalets, small hotels or shops with high air conditioning demand and DHW continuous.
Discover the definitive solution for efficient air conditioning in https://tualmacendelclima.com/en/
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Aerotermia Haier AW122HVGHA HYDRO Split 12KW R290 single-phase
Referencia: AW122HVGHAHS
€5,257.97
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
¡¡MÓDULO WI-FI INCLUIDO EN EL PRECIO!!
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Aerotermia Haier AW122HVGHA HYDRO Split 12KW R290 single-phase
12 kW Heating | COP 5,10 | Scop 4,82 A +++ | Refrigerant Gas Natural R290 | Reversible | Up to 80 ° C
The Aerotermia Haier AW122HVGHA HYDRO SPLIT develops 12 kW of heat power with COP 5,10 and Energy rating A +++ (Scop 4,82). Used Natural coolant R290 (1.05 kg / 3,15t co2eq). System reversible with 10 kW of refrigeration capacity (EER 3.35). Reaches Temperatures up to 80 ° C in heating and DHW. Compressor DC Inverter Twin Rotary High performance Outdoor Unit 880 × 1250 × 460 mm (114 kg) interior 850 × 480 × 310 mm (37 kg). Includes 8L expansion deposit and auxiliary heater 2 + 4 kW. Hydraulic connection, control of 2 zones, compatible with Smart Grid, Solar control, Modbus and heating of swimming pools. Operating range -25 ° C at 35 ° C in heating. Ideal for large chalets, small hotels or shops with high air conditioning demand and DHW continuous.
Discover the definitive solution for efficient air conditioning in https://tualmacendelclima.com/en/
Security policy
Delivery policy
Refund policy
The Haier Hydro Split 12kw (AW122HVGHA) is designed to offer heating, refrigeration and sanitary hot water (DHW) In large homes. With a power of 12KW in heating and cooling and a deposit of 200 liters of DHW, It is ideal for housing up to 150m².
This model stands out for its energy rating A +++ / A +++ and his 5.10 scop, which allows efficient performance with minimal energy consumption. The system uses refrigerant Ecological R290 and has an extremely low noise level of 40db, which guarantees a silent operation.

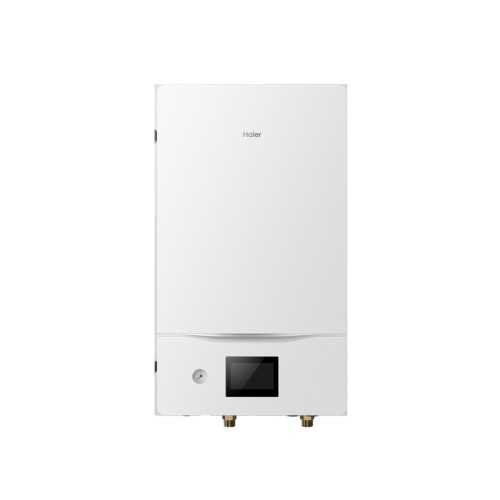

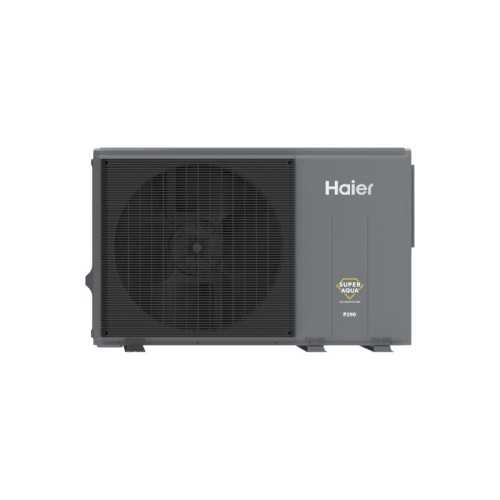

The indoor Unit Hu102wahya it has dimensions of 900 x 500 x 330 mm, while the outdoor Unit Aw122hvgha measures 790 x 1250 x 380 mm. In addition, it is capable of generating hot water up 80 ° C and can operate in a range of temperatures -25 ° C A + 35 ° C for heating and 10 ° C A + 48 ° C for cooling.
Main features
⚡ All-in-one
12KW Heating / Refrigeration + DHW 200L with integrated deposit
🏆 Efficiency at +++ / A +++
SCOP 5.10 - Maximum certified energy savings
🔇 Silent 40db
Ultra silent operation for maximum acoustic comfort
🌿 Refrigerant Gas R290
Ecological Technology GWP 3, maximum environmental respect
🌡️ DHW up to 80 ° C
High temperature sanitary hot water in 200L deposit
❄️ Extreme rank
Guaranteed operation from -25 ° C up to + 48 ° C
Technical specifications
Main benefits
✓ All-in-one system
Heating, cooling and DHW 200L in a single installation
✓ Maximum efficiency at +++
SCOP 5.10 and COP 5.50 for minimum energy consumption
✓ Ecological R290 technology
Refrigerant Gas natural with GWP 3, zero environmental impact
✓ DHW High temperature
Hot water up to 80 ° C in stainless steel tank
Main applications
🏠 Single-family homes
Up to 150m² all-in-one
🏢 Apartments
Integrated compact solution
🏠 Rural houses
Total comfort in rural setting
🏡 Small villas
Full air conditioning
Why choose the Haier Hydro Split 12kw?
The Haier Hydro Split 12KW is ideal for those looking for an advanced and ecological system for air conditioning and DHW in larger spaces. With exceptional performance and outstanding energy efficiency, it guarantees superior comfort all year round.
5.10
SCOP40db
Ultra silent200l
DHW Integrated80 ° C
High temperatureGet your Haier Hydro Split 12KW!
All-in-one system with maximum energy efficiency A +++. Heating, cooling and DHW 200L in a single ecological installation.
✓ SCOP 5.10 Certificate
✓ R290 Ecological GWP 3
✓ DHW 200L Up to 80 ° C
✓ Official guarantee Haier
AW122HVGHAHS
Data sheet
- Brand
- Haier
- Indoor Unit
- Hu102wahya (b)
- Outdoor Unit
- Aw122hvgha
- Accumulator DHW
- No incluido
- Refrigerant Gas
- R290
- Electrical supply
- Monofásica
- Reversible or only heat
- Reversible
- Refrigerator capacity (W)
- 10.000
- Nominal consumption Cold (W)
- 2.990
- Heat capacity (W)
- 12.000
- Nominal heat consumption (W)
- 2.350
- Diameter Liquid pipe
- Hydraulic connection
- Diameter Gas Pipe
- Hydraulic connection
- COP
- 5,10
- Scop (warm weather)
- 4,82
- EER
- 3,35
- Interconnection type
- Conexión Hidraulica
- Energy rating
- To +++
- Maximum heating (ºC)
- 80
- WiFi
- Opcional
- High Ud. Interior (mm)
- 850
- Width UD Interior (mm)
- 480
- Ud interior background (mm)
- 310
- Weight (kg)
- 37
- High Ud Exterior (mm)
- 880
- Width UD Exterior (mm)
- 1.250
- Outdoor background (mm)
- 460
- Weight Outside (kg)
- 114
