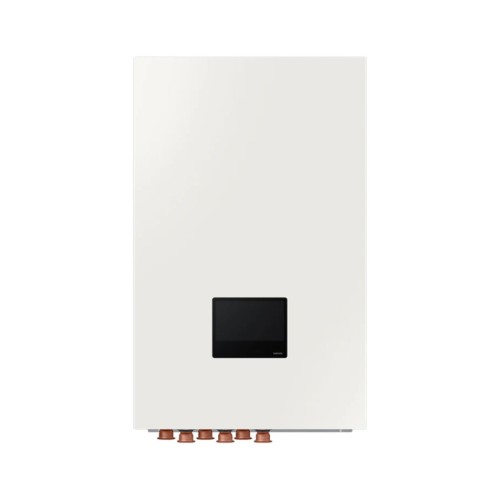

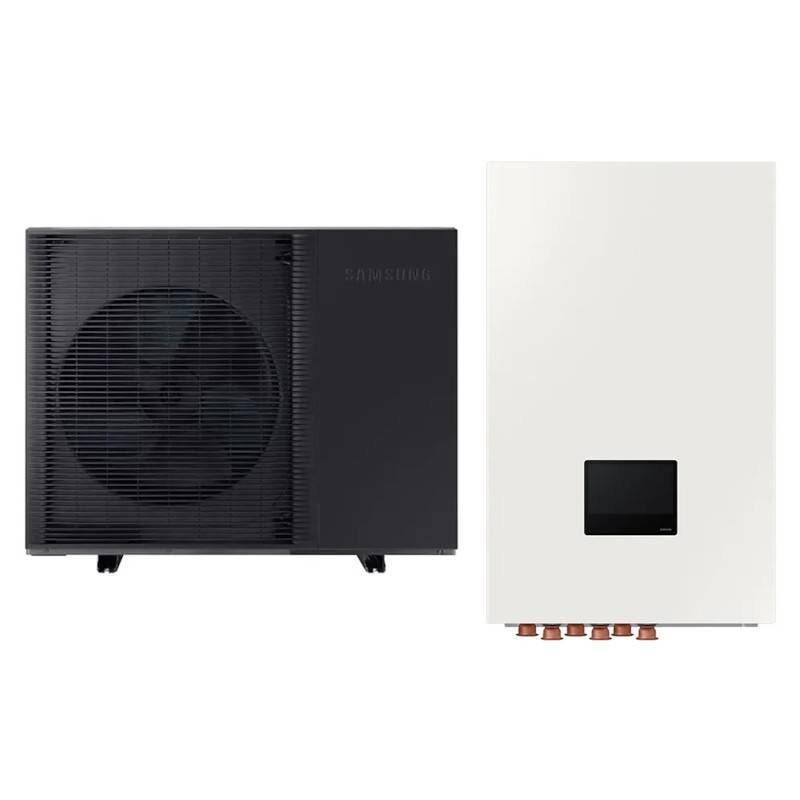

Samsung EHS Mono R290 AE050CXYDEK / EU + AE160DNYMPK / EU Mural Bibloc
5 KW Heating | COP 5,10 | SCOP A +++ | Without deposit | R290 Ecological | Single-phase | 75 ° C.
The Samsung EHS Mono R290 5 kW mural bibloc reaches COP 5,10 with Energy rating A +++. System reversible with 5 KW of refrigeration capacity (EER 3,91). Bible format without integrated deposit For installation with optional external tank. Operate Natural coolant R290 (0.63 kg / 1,99 CO2EQ) of minimum environmental impact. Reaches Temperatures up to 75 ° C For maximum comfort. Twin Rotary Compressor High efficiency. Single-phase feed 1Ï, 220-240V, 50 Hz. Nominal consumption Heating 1.000w. Outdoor Unit compact 798 Ă 1025 Ă 310 mm (86 kg) and mural interior 460 Ă 350 Ă 195 mm (41-45 kg). Incorporates Expansion Glass 10L, circulating pump, magnetic filter, Resistance 2 (4) KW. Hydraulic connection, Wi-Fi control MIM-E03FN, silent mode 3 steps, control 2 zones. Sound pressure 24/28 dB (A). Ideal for housing with deposit DHW Existing that seek maximum efficiency with ecological refrigerant in compact wall format.
ÂżAny doubt about the product?
Talk to us and consult us. We will solve all your doubts
Aerotermia Samsung EHS Mono R290 AE050CXYDEK / EU + AE160DNYMPK / EU Heat Pump Wall-mounted
Referencia: AE050CXYDEK_AE160DNYMPK
âŹ5,809.92
Tax included
î We are currently out of stock.
Ask us about availability!!
EnvĂo GRATIS en España (PenĂnsula) a partir de 300⏠+ info
Email has been sent successfully.
Calcular Gastos de EnvĂo
đĄïž Pago Seguro â
GarantĂa Oficial
Samsung EHS Mono R290 AE050CXYDEK / EU + AE160DNYMPK / EU Mural Bibloc
5 KW Heating | COP 5,10 | SCOP A +++ | Without deposit | R290 Ecological | Single-phase | 75 ° C.
The Samsung EHS Mono R290 5 kW mural bibloc reaches COP 5,10 with Energy rating A +++. System reversible with 5 KW of refrigeration capacity (EER 3,91). Bible format without integrated deposit For installation with optional external tank. Operate Natural coolant R290 (0.63 kg / 1,99 CO2EQ) of minimum environmental impact. Reaches Temperatures up to 75 ° C For maximum comfort. Twin Rotary Compressor High efficiency. Single-phase feed 1Ï, 220-240V, 50 Hz. Nominal consumption Heating 1.000w. Outdoor Unit compact 798 Ă 1025 Ă 310 mm (86 kg) and mural interior 460 Ă 350 Ă 195 mm (41-45 kg). Incorporates Expansion Glass 10L, circulating pump, magnetic filter, Resistance 2 (4) KW. Hydraulic connection, Wi-Fi control MIM-E03FN, silent mode 3 steps, control 2 zones. Sound pressure 24/28 dB (A). Ideal for housing with deposit DHW Existing that seek maximum efficiency with ecological refrigerant in compact wall format.
Security policy
Delivery policy
Refund policy
The Samsung EHS Monkey R290 5kW Bibloc Mural (AE050CXYDEK / EU + AE160DNYMPK / EU) represents the most ecological and versatile solution for heating, refrigeration and sanitary hot water in housing up to 80mÂČ. This bibloc system without bomb integrates hydraulic connection with the Hydrokit Mural AE160DNYMPK / EU, designed to connect to a deposit of DHW external optional according to the needs of the user.
Highlights for its exceptional energy rating A+++/A+ with a SCOP of 5.00 and one COP 5.10, guaranteeing maximum energy savings. Use the innovative refrigerant R290 Natural (propane) with a GWP of just 3, converting this equipment into the most respectful option with the market environment. The Mural Hydrokit incorporates 10L expansion cup, 2 + 2kW electric resistance, circulating pumps, magnetic filter, safety valves and WiFi control screen.

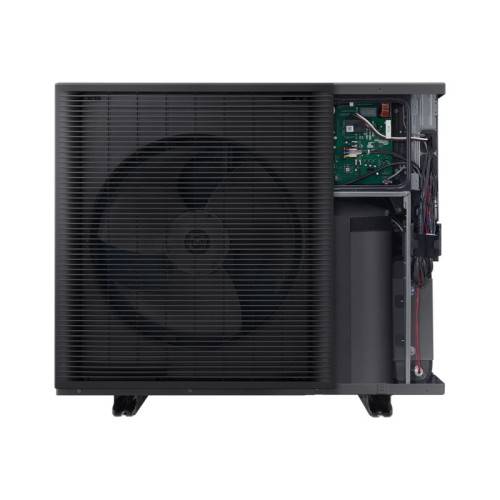

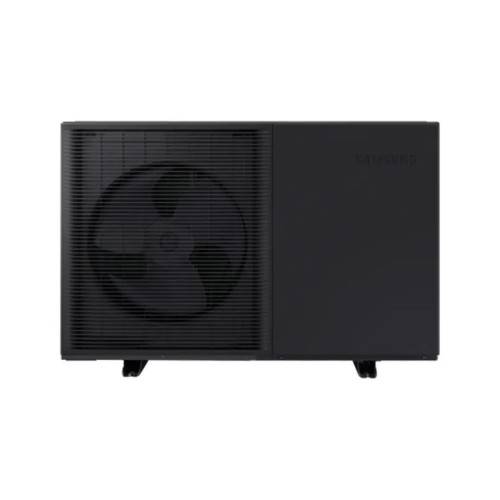

The outdoor Unit Ae050cxydek / EU measures 998 x 850 x 500 mm and weighs 86 kg, while the Hydrokit mural Ae160dnympk / EU measures 530 x 840 x 350 mm with a weight of 43-54 kg. Operates at extreme temperatures from -25 ° C up to + 35 ° C in heating and of 10 ° C A + 46 ° C in refrigeration, producing hot water up 75 ° C.
Main features
⥠Flexible Bible System
5KW with Hydrokit Mural Compact - Deposit DHW optional external
đ Efficiency A +++ / A ++
SCOP 5.00 and COP 5.10 - Maximum certified energy savings
đż Refrigerant Gas R290 natural
Natural propane with GWP 3 - zero environmental impact
đ§ Hydrokit compact mural
Expansion Glass, Valves, Pumps, Filter and Resistance 2 + 2KW Included
đĄïž DHW up to 75 ° C
High temperature sanitary hot water with external tank
âïž Extreme range -25 ° C
Funcionamiento garantizado en condiciones extremas
Technical specifications
Main benefits
â Flexible Bible System
Hydrokit compact mural - Choose your own deposit DHW
â Versatile installation
Hydraulic components preinstalled in Hydrokit mural
â Maximum efficiency at +++
SCOP 5.00 for minimum consumption and maximum savings
â Ecological R290
Refrigerant Gas natural GWP 3 - Maximum Environmental Commitment
Main applications
đ Small housing
Up to 80mÂČ - custom deposit
đą Apartments
Flexible compact installation
đĄ Reforms
Take advantage of existing deposit
đ± Eco Projects
Sustainable Constructions
Why choose the Samsung EHS Mono R290 5KW Bible?
This BIBOC system represents maximum versatility in domestic air stopermia. The compact wall Hydrokit integrates all the necessary hydraulic components, allowing you to choose the deposit of DHW that best suits your needs. Its natural R290 technology makes it the most ecological option in the market.
5.00
SCOPGWP 3
EcologicalExternal
DHW5kw
PowerWhy choose Samsung EHS Mono R290 5KW Mural Bible?
- â Refrigerant Gas natural R290 with GWP of Solo 3 (the most ecological)
- â Maximum efficiency at +++ with COP 5.10 and SCOP 5.00
- â Flexible Bible System - Choose your own deposit DHW
- â Hydrokit compact mural 530x840x350mm
- â Temperatures up to 75 ° C (compatible with traditional radiators)
- â Reversible system heating + Refrigeration
- â Ultra silent 26-28 dB (A) Interior
- â Wifi control with SMARTTHINGS App and Screen Included
- â Compatible with photovoltaic Smart grid
- â Simplified installation - Integrated components
- â Warranty Samsung - 5 years compressor
Get your Samsung EHS Mono R290 5KW Bible!
The most efficient and ecological Bible solution of the market for small housing. Hydrokit compact mural with deposit DHW at your choice. Natural R290 technology for maximum environmental respect.
â SCOP 5.00 Certificate
â R290 GWP 3
â Maximum flexibility
â Official guarantee Samsung
AE050CXYDEK_AE160DNYMPK
Data sheet
- Brand
- Samsung
- Indoor Unit
- Ae160dnympk / EU
- Outdoor Unit
- Ae050cxydek / EU
- Accumulator DHW
- Not included (optional)
- Refrigerant Gas
- R290
- Electrical supply
- MonofĂĄsica
- Reversible or only heat
- Reversible
- Refrigerator capacity (W)
- 5.000
- Nominal consumption Cold (W)
- 1.280
- Heat capacity (W)
- 5.000
- Nominal heat consumption (W)
- 1.000
- Diameter Liquid pipe
- Hydraulic connection
- Diameter Gas Pipe
- Hydraulic connection
- COP
- 5,10
- EER
- 3,91
- Interconnection type
- ConexiĂłn Hidraulica
- Energy rating
- To +++
- Maximum heating (ÂșC)
- 75
- WiFi
- Opcional
- High Ud. Interior (mm)
- 840
- Width UD Interior (mm)
- 530
- Ud interior background (mm)
- 350
- Weight (kg)
- 54
- High Ud Exterior (mm)
- 850
- Width UD Exterior (mm)
- 998
- Outdoor background (mm)
- 500
- Weight Outside (kg)
- 86
