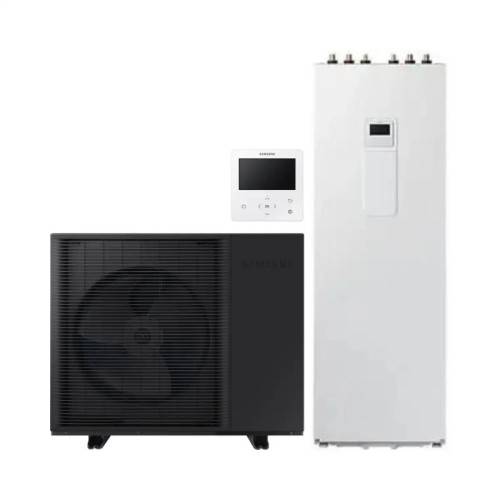

Aerotermia Samsung EHS R290 AE080CXYDEK/EU + AE200DNWMPK/EU Heat Pump AllInOne

Product description

The Samsung EHS Mono R290 Allinone AE080CXYDEK / EU + AE200DNWMPK / EU it is the comprehensive air stopover solution for medium housing that seek maximum energy efficiency with the most ecological refrigerant on the market. This all-in-one system of 8 kW power integrate heat pump, deposit of DHW 200 liters and all hydraulic components on a single compact simplified installation equipment.

Outstanding COP of 4.91 and energy rating A +++, the team consumes only 1.630W in heating mode to generate 8 kW thermal. The system is completely reversible, providing also 8 kW of refrigeration capacity with a EER of 3.90, guaranteeing thermal comfort during the four seasons.

Technology R290: Leading Sustainability

This team stands out for its environmental commitment when using natural refrigerant R290 (propane) with a load of 0.87 kg equivalent to 2,61t co2eq. The R290 presents a GWP of only 3, being more than 200 times lower than R32 and complying with the strictest European regulations (F-Gas). This natural refrigerant, in addition to its minimum environmental impact, offers excellent thermodynamic properties that translate into greater energy efficiency and lower long-term operation costs.

High-level energy efficiency

The SCOP in warm climate of 4.86 (A +++) with a seasonal Energy Efficiency of 193/143% position this team among the most efficient in its category. For each electric kw consumed, the system generates almost 5 kW of heat, resulting in a energy savings of 80% in front of traditional boilers. The ability to achieve impulse temperatures up to 75 ° C it allows its installation with any type of thermal emitter, including conventional high temperature radiators.

Core charge DHW high efficiency integrated

The 200 liter sanitary hot water tank is fully integrated in the indoor Unit, with load profile L according to ERP regulations and an exceptional efficiency of 263% (energy rating A +). The deposit incorporates electrical support of 2 (4) KW that ensures availability of DHW even in extreme weather conditions. The system automatically prioritizes production by air stopermia, using resistance only when strictly necessary.

Fully equipped hydraulic system

The Allinone format integrates all essential hydraulic components: expansion Glass of 10 liters for air conditioning, high efficiency circulator pump, , calibrated safety valve, , magnetic filter gauge that protects the exchanger, automatic diverting valve DHW/ air conditioning, and wifi flowmeter integrated. This configuration drastically reduces the installation time and eliminates possible errors in the hydraulic assembly.

TWIN ROTARY compressor of last generation

Equipped with twin Rotary Compressor with Full DC Inverter Technology, specifically designed to work with R290. This type of compressor offers a continuous modulation from 20% to 100% power, adapting instantaneously to the actual thermal demand. The result is an ultra silent run just 26/28 dB (A), Optimal energy consumption, and longer useful life when avoiding abrupt starts and stops that degrade the components.

Intelligent control MIM-E03FN with WiFi

The wiFi MIM-E03FN control module allows complete management of the system from anywhere using the application Samsung Smartthings. Advanced functionalities include: independent control of 2 zones with different thermostats, silent mode of 3 levels to minimize night noise, weekly customizable programming, , consumer statistics in real time, and compatibility with photovoltaic installations Smart Grid to maximize solar self-consumption by displacing consumption at times of maximum production.

Simplified installation and maintenance

The Allinone design significantly reduces the installation complexity. The equipment is supplied pre-loaded with R290 refrigerant and all the pre-assembled hydraulic components. It only requires: single-phase electrical connection, hydraulic connections to the air conditioning installation and DHW, and filled with the circuit. The hydraulic connection eliminates the need to manipulate the refrigerator circuit. Recommended preventive maintenance includes annual magnetic filter cleaning and biennial review by certified technician. Official guarantee Samsung 5 years in compressor and 2 years in components.

Applications and sizing

The power of 8 kW is ideal for single-family homes of 100-140 m² in areas of temperate climate, apartments of 130-160 m², , small offices or shops, or as a main system in homes up to 180 m² with good thermal insulation. Compatible with all emission systems: Radiant / refreshing (optimal) soil, low / medium temperature radiators, Flanals of 2 or 4 tubes, and ventyloconvectors. Especially recommended for new construction with CTE DB-HE regulations and deep energy rehabilitation where the minimum environmental impact is prioritized through natural refrigerants.

The Samsung EHS Mono R290 8kw Allinone (AE080CXYDEK / EU + AE200DNWMPK / EU) is the perfect comprehensive solution for housing up to 120m² seeking maximum energy efficiency and sustainability. This monoblock system without bomb it integrates heating, refrigeration and sanitary hot water by hydraulic connection with the climatehub.

Highlights for its exceptional energy rating A+++/A+ with a 4.85 scop and one COP of 4.91, guaranteeing significant savings in energy consumption. Use refrigerant R290 Natural (propane) with a GWP of only 3, positioning itself as one of the most ecological options on the market. The climatehub includes a deposit of 200 litres DHW with triple insulation, 10L expansion vessel, electric resistance 2 + 2 kW, circulating pumps, magnetic filter and safety valves.

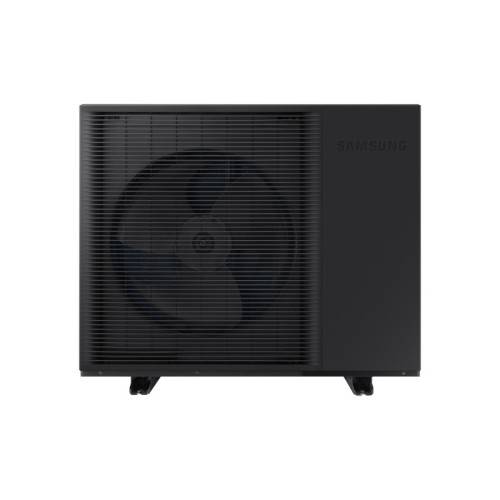

The outdoor Unit Ae080cxydek / EU without pump 998 x 850 x 500 mm and weighs 98 kg, while the indoor Unit Climatehub Ae200dnwmpk / EU measures 598 x 1850 x 600 mm with weight of 132-142 kg. Operates in extreme conditions from -25 ° C up to + 35 ° C in heating and of 10 ° C A + 46 ° C in refrigeration, generating hot water up 75 ° C.

Acquire your Samsung EHS Mono R290 8kw!

8KW Allinone system with integrated climatehub for homes up to 120m². Maximum efficiency at +++ and ecological technology R290. Simplified installation with all components included.
