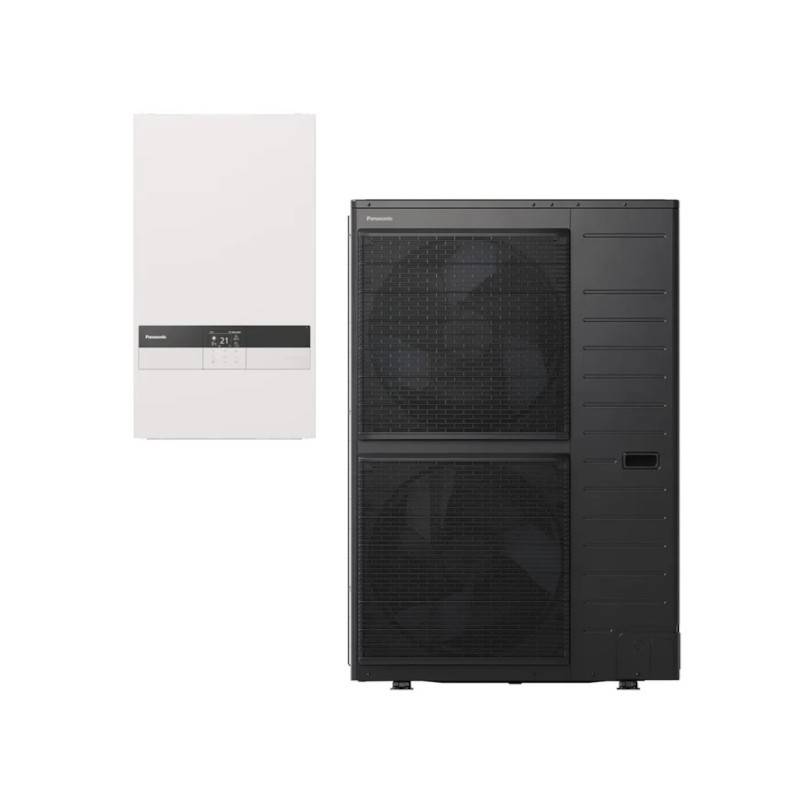

Panasonic Aquarea T-Cap R32 12 kW Kit-WXC12K6E5 single-phase K series
R32 | 12 kW | A +++ | Without DHW | Performance -20 ° C
Designed for demanding environments, the Aquarea T-Cap 12 kW It guarantees constant heat at low zero temperatures. Efficiency A +++ and R32 refrigerant from Low GWP with intelligent control Aquarea Smart Cloud.

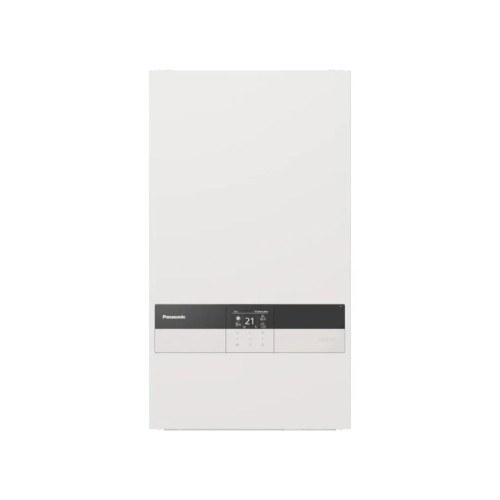

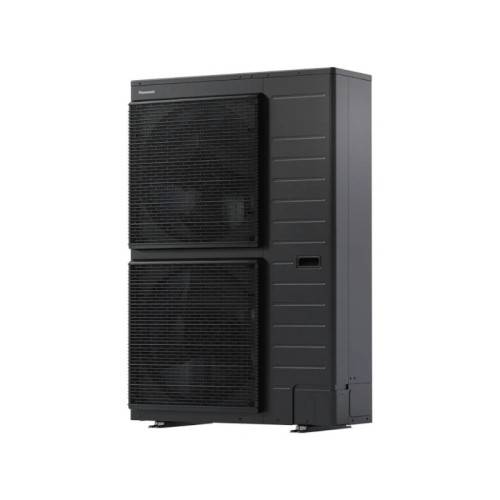

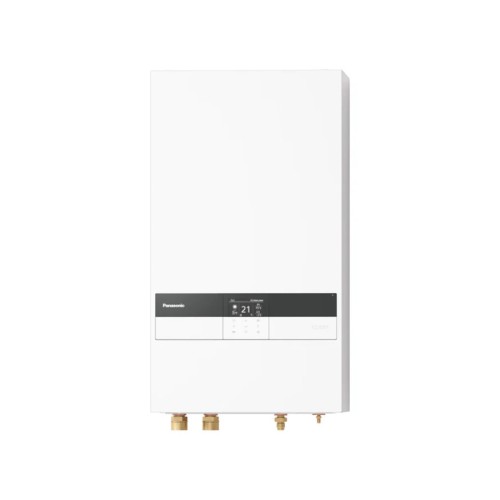

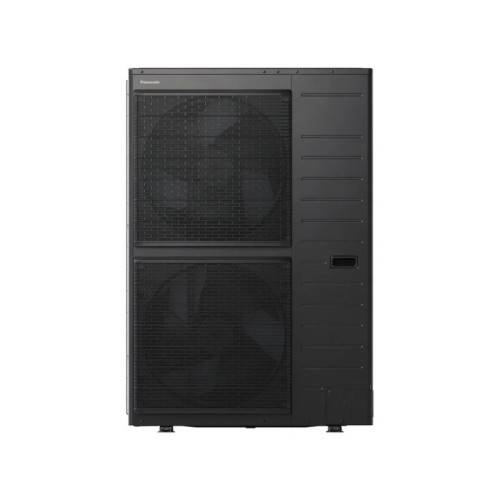

Outdoor Unit: WH-UXZ12KE5 | Indoor Unit: Wh-sxc12k6e5
DHW: Not included (optional)
ÂżAny doubt about the product?
Talk to us and consult us. We will solve all your doubts
Aerotermia Panasonic Kit-WXC12K6E5 Aquarea Bible T-Cap R32 Monophasic Generation K
Referencia: KIT-WXC12K6E5
âŹ6,679.78
Tax included
î We are currently out of stock.
Ask us about availability!!
EnvĂo GRATIS en España (PenĂnsula) a partir de 300⏠+ info
Email has been sent successfully.
ÂĄÂĄMĂDULO WI-FI INCLUIDO EN EL PRECIO!!
Calcular Gastos de EnvĂo
đĄïž Pago Seguro â
GarantĂa Oficial
Panasonic Aquarea T-Cap R32 12 kW Kit-WXC12K6E5 single-phase K series
R32 | 12 kW | A +++ | Without DHW | Performance -20 ° C
Designed for demanding environments, the Aquarea T-Cap 12 kW It guarantees constant heat at low zero temperatures. Efficiency A +++ and R32 refrigerant from Low GWP with intelligent control Aquarea Smart Cloud.
Outdoor Unit: WH-UXZ12KE5 | Indoor Unit: Wh-sxc12k6e5
DHW: Not included (optional)
Security policy
Delivery policy
Refund policy
Panasonic Aquarea T-Cap R32 12 KW single-phase (kit-wxc12k6e5)
Bible System T-Cap Generation K - No accumulator DHW integrated
12 kW power Ecological R32 A +++ / A ++ SCOP 4.72 230 V single-phase
The Panasonic Aquarea Kit-WXC12K6E5 It belongs to the prestigious range T-cap generation k r32, recognized by maintaining its total power even with outer temperatures up to -20 ° C. Its technology T-Cap (Total Capacity) It allows to preserve performance without the need for electrical resistance, ensuring maximum comfort and outstanding efficiency in cold climates.

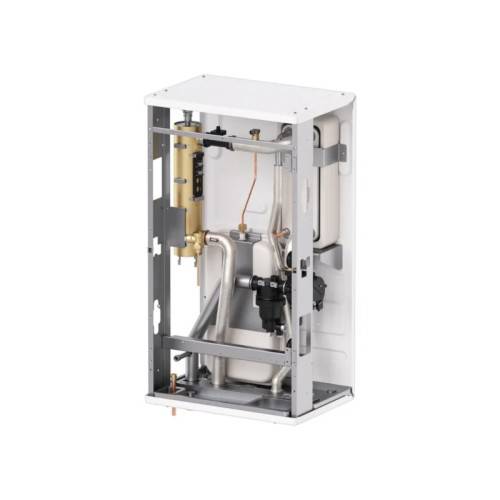

The set is formed by the outdoor Unit Wh-uxz12ke5 and the indoor Unit Wh-sxc12k6e5. Used R32 coolant With low GWP (675), reducing environmental impact and improving thermal transfer. Ideal for medium or large housing, energy reforms and projects that require a high temperature system without integrated accumulator.
It offers compatibility with Panasonic Smart cloud, Modbus and Control Integration by BMS, which facilitates its management in domotic or commercial facilities.
Main features
âïž T-CAP technology
It maintains the rated power without resistance until -20 ° C.
đż Refrigerant Gas R32
Under GWP (675) and greater efficiency in thermal transfer.
đ„ High output temperature
Up to 60 ° C of driver water for conventional radiators.
đ§ Flexibility DHW
Compatible with external deposits of 200-300 L.
đ¶ Smart Cloud Control
Wi-fi integrated for remote management and energy monitoring.
Technical specifications
| Parameter | Value |
|---|---|
| Model Outdoor Unit | Wh-uxz12ke5 |
| Model Indoor Unit | Wh-sxc12k6e5 |
| Type of system | Bible T-Cap without DHW integrated |
| Refrigerant Gas | R32 (2.15 kg) - GWP 675 |
| Power heating | 12.00 kW (A7 / W35) / 11.50 kW (A7 / W55) |
| Refrigeration Power | 10.50 kW (A35 / W18) |
| Nominal electrical consumption | 2.55 kW (A7 / W35) |
| COP / SCOP | 4.70 / 4.72 |
| Energy efficiency | A +++ (A7 / W35) / A ++ (A7 / W55) |
| Max. leak | 60 ° C |
| Outside temperature range | -28 ° C to +43 ° C |
| Sound level outdoor Unit | 52 dB (a) Power / 38 dB (a) Pressure |
| Sound level indoor Unit | 27 dB (A) |
| Dimensions Outdoor Unit | 1410 Ă 1283 Ă 320 mm (111 kg) |
| Dimensions Indoor Unit | 890 Ă 340 Ă 500 mm (47 kg) |
| Power supply | 230 V / 1 pH / 50 Hz |
| Maximum current (MCA) | 18.5 |
| Compatibility DHW | External deposit Panasonic 200 - 300 L (Optional) |
| Control and Management | Wi-Fi integrated / smart cloud / modbus (optional) |
| Compressor guarantee | 5 years (Panasonic official) |
Maximum efficiency T-CAP Panasonic 12 KW R32 single-phase!
The ideal balance between power, efficiency and silence. T-CAP technology for constant performance and smart cloud intelligent control.
â Technology T-CAP
â Ecological R32
â single-phase 230 V
â Smart Cloud integrated
KIT-WXC12K6E5
Data sheet
- Brand
- Panasonic
- Indoor Unit
- Wh-sxc12k6e5
- Outdoor Unit
- Wh-uxz12ke5
- Accumulator DHW
- No incluido
- Refrigerant Gas
- R32
- Electrical supply
- MonofĂĄsica
- Reversible or only heat
- Reversible
- Refrigerator capacity (W)
- 10.700
- Nominal consumption Cold (W)
- 2.730
- Heat capacity (W)
- 12.100
- Nominal heat consumption (W)
- 2.500
- Diameter Liquid pipe
- 1/4
- Diameter Gas Pipe
- 1/2
- COP
- 4,84
- Scop (warm weather)
- 4,96
- EER
- 3,92
- Interconnection type
- Gas Refrigerante
- Energy rating
- To +++
- Maximum heating (ÂșC)
- 60
- WiFi
- Incluido
- High Ud. Interior (mm)
- 892
- Width UD Interior (mm)
- 500
- Ud interior background (mm)
- 348
- Weight (kg)
- 38
- High Ud Exterior (mm)
- 1.340
- Width UD Exterior (mm)
- 900
- Outdoor background (mm)
- 320
- Weight Outside (kg)
- 88
