Aerotermia Mitsubishi Electric Ecodan Power Inverter High Power PUHZ-SW160YKA + ERSE-MEE THREEPHANY

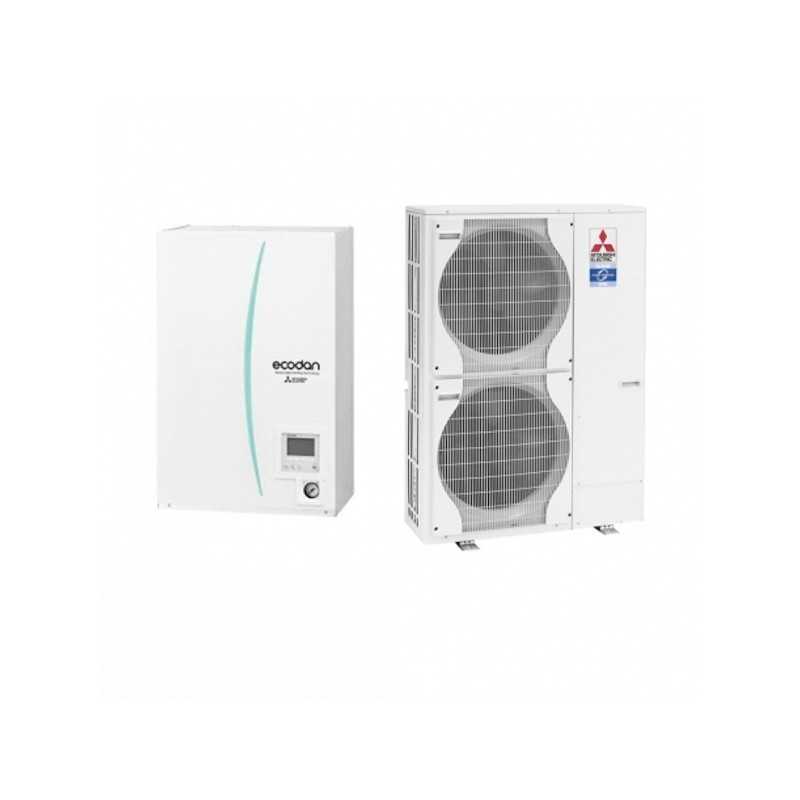

The Mitsubishi Electric Ecodan PUHZ-SW160YKA + ERSE-MEE it represents the most robust high-capacity solution of the POWER Inverter R410A range for large facilities. Combining the outdoor Unit Puhz-sw160yka with the indoor Unit Erse-Med without accumulator, this system offers 22KW of nominal capacity with three-phase technology for commercial buildings, industrial and large facilities that require maximum thermal power.

With a heating capacity of 22kw nominal and up to 27.7 kW maximum at 7 ° C / 35 ° C, this system is ideal for large commercial buildings, hotels, industries and facilities that need high thermal capacity without compromising efficiency. Technology Three-phase Power it guarantees robust and efficient functioning, adapting perfectly to the high thermal demands of large spaces.

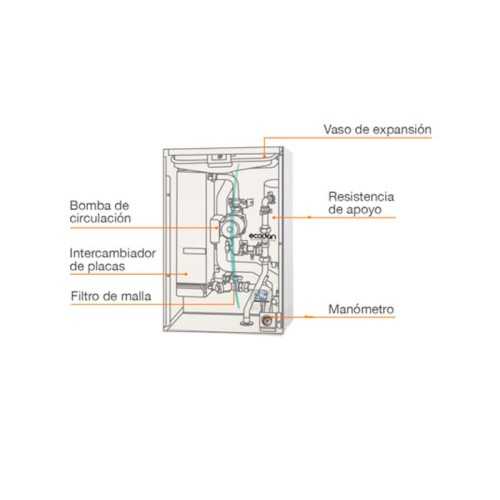

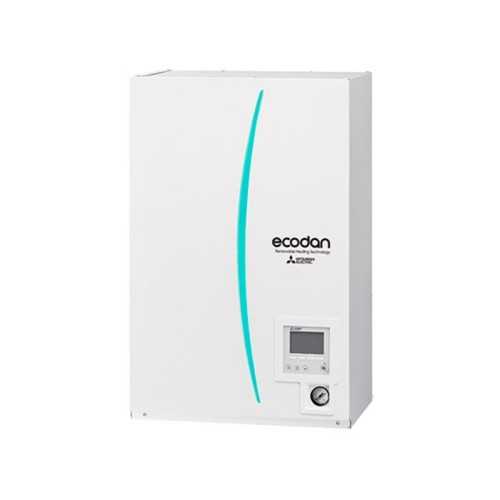

The indoor Unit Erse-Med with dimensions of 950 x 600 x 360 mm, it is optimized to work with the high capacity of the outdoor Unit Puhz-sw160yka. Its configuration without DHW it makes it the perfect option for commercial facilities that require only high capacity air conditioning with maximum flexibility.

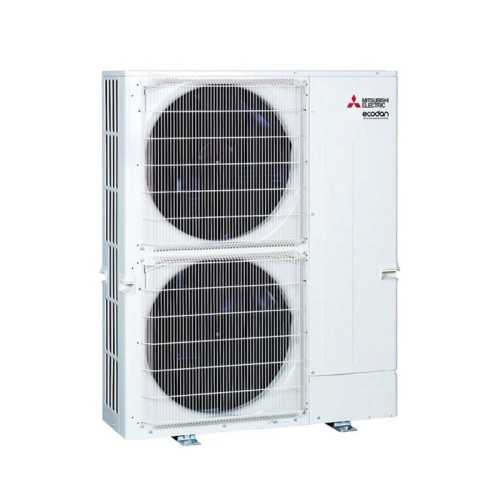

The outdoor Unit Puhz-sw160yka it incorporates three-phase power inverter technology with high capacity and extended dimensions (1338 x 1050 x 330 mm), maintaining a robust COP of 4.20 that demonstrates energy efficiency even with high commercial power. The variable speed compressor optimizes consumption throughout the high capacity operating range.

The energy classification A ++ in heating with COP of 4.20 and SCOP of 5.45 in warm climate confirms that high capacity maintains superior commercial energy efficiency. In Refrigeration mode it provides 16.0 kw with EER of 2.76, ensuring comfort throughout the year in large facilities.

The guaranteed operation from -20 ° C up to + 21 ° C in heating it maintains reliable high capacity features, while the power of 22kw ensures comfort temperatures even in large commercial spaces. The Power Inverter technology gently modulates high power according to commercial needs.

With a sound level of 62 dB in operation, the system maintains adequate acoustic levels for commercial facilities considering the high capacity of 22kw. The R410A refrigerant load optimizes both performance and reliability for high capacity commercial applications.

The PUHZ-SW160YKA + ESSE-MED represents the perfect choice for large commercial facilities seeking high thermal capacity without compromising energy efficiency, keeping the simplicity of a split system without production complications DHW for commercial applications.

Main features

Specs Outdoor Unit Puhz-sw160yka

Specs Indoor Unit Erse-Med

Energy classification

Applications and advantages

High commercial capacity: 22kw Power Inverter!

The high capacity solution for large commercial facilities. 22KW with three-phase Power Inverter technology. Efficiency A ++ commercial guaranteed!
