Heat pump for pool Klinwass Dolphin 15.3 kW | DC Inverter R32
Advanced air conditioning system for swimming pools Klinwass, corresponding to the large capacity model Dolphin 15.3kw With DC Inverter technology. Designed for a volume of suction pool of 25 to 50 m³, this heat pump incorporates a high-end compressor Mitsubishi Electric and uses ecological coolant R32. Thanks to its titanium tube heat exchanger and its battery with hydrophilic fins, it ensures excellent resistance against chemical products and corrosion, allowing to expand the bath season with optimal efficiency and intelligent connectivity using Wi-Fi series (SMART LIFE).
• Heating capacity (Max): 15,30 kW (Air 27 ° C / Water 26 ° C)
• Recommended pool volume: 25 to 50 m³
• Premium components: Mitsubishi compressor and titanium exchanger
• Wireless management: Wi-Fi module integrated with Smart Life application
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts

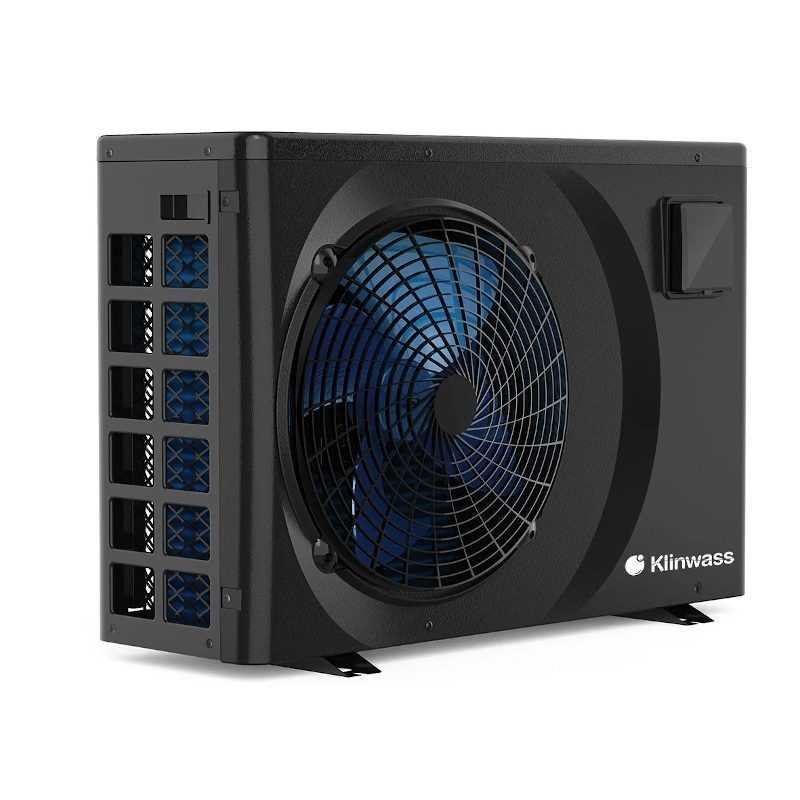

Heat pump for swimming pools Klinwass Dolphin 15.3kw
Referencia: 4606010314
€2,063.43
Tax included
IMMEDIATE DELIVERY!
For deliveries in Europe, consult delivery time
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Heat pump for pool Klinwass Dolphin 15.3 kW | DC Inverter R32
Advanced air conditioning system for swimming pools Klinwass, corresponding to the large capacity model Dolphin 15.3kw With DC Inverter technology. Designed for a volume of suction pool of 25 to 50 m³, this heat pump incorporates a high-end compressor Mitsubishi Electric and uses ecological coolant R32. Thanks to its titanium tube heat exchanger and its battery with hydrophilic fins, it ensures excellent resistance against chemical products and corrosion, allowing to expand the bath season with optimal efficiency and intelligent connectivity using Wi-Fi series (SMART LIFE).
• Heating capacity (Max): 15,30 kW (Air 27 ° C / Water 26 ° C)
• Recommended pool volume: 25 to 50 m³
• Premium components: Mitsubishi compressor and titanium exchanger
• Wireless management: Wi-Fi module integrated with Smart Life application
Security policy
Delivery policy
Refund policy
Heat pump pool Klinwass Dolphin 15.3 kW
Lengthen the bathroom season with the most advanced DC Inverter technology. Optimized performance with Mitsubishi compressor, titanium exchanger and integrated Wi-Fi control.
Technical Study and Custom Sizing
Due to the multiple meteorological factors, the surface thermal losses and the geographical area that determine the demand for real heat of a glass of water, we carry out personalized technical studies for your pool. To ensure correct choice of equipment, determine the temperature lift periods (recommended thermal blanket) and calculate the hydraulic design of the installation with by-pass kit, our engineering department exhaustively studies each request.
🏊♂️
1. Dimensions and cover
Facilitate the surface sheet surface, average depth and if you have bubble cover to verify that the 15.3 kW Dolphin model is optimally adapted to your needs.
📍
2. Location and surroundings
Tell us your province and the months of the year where you want to maintain heated water (for example, from April to October or all year) to perform precise energy balance.
📩 Propordance This data and our technical team will send you a performance breakdown and the perfect hydraulic configuration.
Maximum efficiency and thermal comfort: the smart air conditioning engine for your pool
The heat pump for swimming pools Klinwass Dolphin 15.3 kW represents one of the most robust and balanced technological solutions for the air conditioning of buried residential pools, covering a recommended volume range from 25 to 50 m³. By integrating a variable compression system DC Inverter, the equipment leaves the ancient cyclical consumption of on / off type, modulating its speed continuously to deliver only the thermal energy required by the vessel. This not only maximizes electrical savings, but also optimizes the COP (coefficient of performance), achieving exceptional values of up to 16.5 under environmental conditions of full summer.
The mechanical heart of the Dolphin series is composed of a compressor of the prestigious signature Mitsubishi Electric, who works in perfect consonance with the R32 ecological refrigerant of low atmospheric warming index. Durability to the demanding chemical conditions of pool water (traditional chlorination, saline or bromine chlorination) is fully guaranteed thanks to a heat exchanger manufactured entirely with titanium pipe (Titanium Tube Heat Exchanger), armored front To corrosive attacks. Likewise, the air circuit has an evaporator provided with a hydrophilic fin slaps (Hydrophilic End Exchange) that streamlines condensate drainage and prevents deterioration Premature in humid exterior environments.
Regarding the comfort of use, this equipment stands out for an acoustic and superior operating flexibility by incorporating three operating modes accessible from its digital panel: Turbo mode for a rapid rapid temperature elevation, intelligent mode for optimal automated maintenance, and mode Silent, which reduces the revolutions of the direct current fan and stabilizes the sound pressure in its minimum ranges (34 dB (A)). The set is completed as standard with a Wi-Fi module that allows to link the heat pump to the Global SMART LIFE application, facilitating alarm monitoring, time schedules and temperature changes from any smartphone.
Technical characteristics
Approved technical performance
Commercial model: Dolphin 15.3kw of tab heat pump Dolphin Klinwass.pdf
CONDITIONS 1 (AIR 27 ° C DB / 24.3 ° C WB, Water In / Out 26 ° C / 28 ° C):
• Global warming capacity: 3.48 ~ 15.30 kW
• Electrical power absorbed: 0.17 ~ 1,74 kW
• System COP (Total Range): 16.5 ~ 6.6 W / W
• Turbo mode: 15,30 kW / 6.5
• Intelligent Mode (Capacity / COP): 11,55 kW / 9.32
• Silent mode (Capacity / COP): 7,35 kW / 13.6
CONDITIONS 2 (AIR 15 ° C DB / 12 ° C WB, Water Input 26 ° C):
• Total heating capacity: 2,20 ~ 8.21 kW
• Electrical power absorbed: 0.27 ~ 1,61 kW
• System COP: 8.1 ~ 5.1 W / W
• Turbo mode: 8,21 kW / 5.1
• Intelligent Mode (Capacity / COP): 6,19 kW / 6,20
• Silent mode (Capacity / COP): 4.37 kW / 7.55
Electrical and hydraulic specifications
Power supply: 220-240V ~ / 1 phase / 50 Hz
Maximum energy entry: 2.3 kW
Maximum current intensity: 14.5
Power cable section: 3G 4.0 mm² (AWG specification 12)
Flow of nominal water from the circuit: 6.6 m³ / h
Hydraulic connection diameter (IN / OUT): 50 mm (PVC glue pipe)
Water pressure limits (max / min): 0.6 MPa / 0.1 MPa
Adjustable heating temperature range: 15 ° C at 40 ° C
Operating limits of ambient temperature: -10 ° C to 43 ° C
Acoustic noise level: 34 ~ 48 dB (A)
Net dimensions of the equipment (LXAnxal): 1000 x 400 x 660 mm
Net weight of the unit: 42 kg
Kind of Refrigerant Gas Used: Ecological R32
Frequently Asked Questions and Installation
How should the hydraulic connection and the installation of the by-pass?
The heat pump must be connected mandably to the filtration circuit by means of a 3-valid bypass or by-pass configuration, always located after the water pump and the sand filter, and before any automatic water treatment system (as saline chlorinators or pH dosers). The central by-pass valve must be partially strangled (open medium) to adjust the exact flow that flows by the machine (6.6 m³ / h), avoiding excessive hydraulic pressures and guaranteeing an optimal thermal exchange.
What preventive measures should be taken in the face of the winter hibernation period?
During the winter months, if the pool is not going to be used, it is vital to completely disconnect the electrical supply of the equipment to protect the electronics. Subsequently, the equipment should be isolated by closing the by-pass valves and proceeding to the total vacuum of the accumulated water inside the housing by unscrewing the bonding nozzles of the lower pipe. If the water is frozen inside due to low temperatures, the expansion of the ice would irreversibly break the titanium heat exchanger.
Would you like advice for the sizing of your commercial installation?
On https://tualmacendelclima.com/en/ we are engineers specialists in technical design, control and optimization of air conditioning networks, air stopermia and water heating for residential and public pools. If you need to solve doubts about simultaneity coefficients, maximum slopes or check the official performance specifications of the range Klinwass, our engineering department is at your entire disposal.
Call 623 541 934
4606010314
Data sheet
- Brand
- Klinwass
- Electrical supply
- Monofásica
- COP (Maximum capacity)
- 5,0
- Maximum sound level (dB)
- 48
- Recommended flow (M3 / h)
- 6,0
- Power Heating (KW)
- 10,9
- Nominal current (A)
- 14,5
- Nominal consumed power (KW)
- 2,30
- TRA MINIMUM WORK (ºC)
- -10
- WiFi
- Incluido
- High (mm)
- 662
- Width (mm)
- 970
- Deep (mm)
- 398
- Weight (kg)
- 47
