Heat pump Zodiac Z250iq MD12 | Full Inverter 24 kW
Heat Pump of great capacity full inverter Zodiac, model Z250iq MD12 with ecological refrigerant R32. Designed for certified performance under standard weather conditions of ** Air 15 ° C / Water 26 ° C / Humidity 70% **, this powerful equipment provides a maximum heating capacity of 24.0 kW. It has the highest Sustainability Certification Classification «A» according to European standard EN17645, with a seasonal scop of 8.8. Its advanced electronics automatically regulates the power of the compressor and the fan in three smart modes (BOOST, SMART and ECOSilence), operating solvent even at temperatures up to -7 ° C and including Wi-Fi connectivity. With the app Fluidra Pool.
• Restituted power (max min): 24.0 - 6.3 kW (air 15 ° C / water 26 ° C)
• Certified work COPs: 5.3 ~ 0.8 W / W (air 15 ° C / water 26 ° C)
• Efficiency and sustainability: classification "A" (seasonal scop: 8,8)
• Total connectivity: Wi-Fi interface standard with app Fluidra Pool
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts

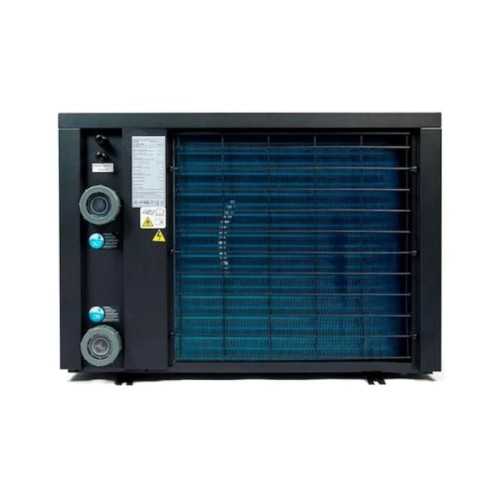

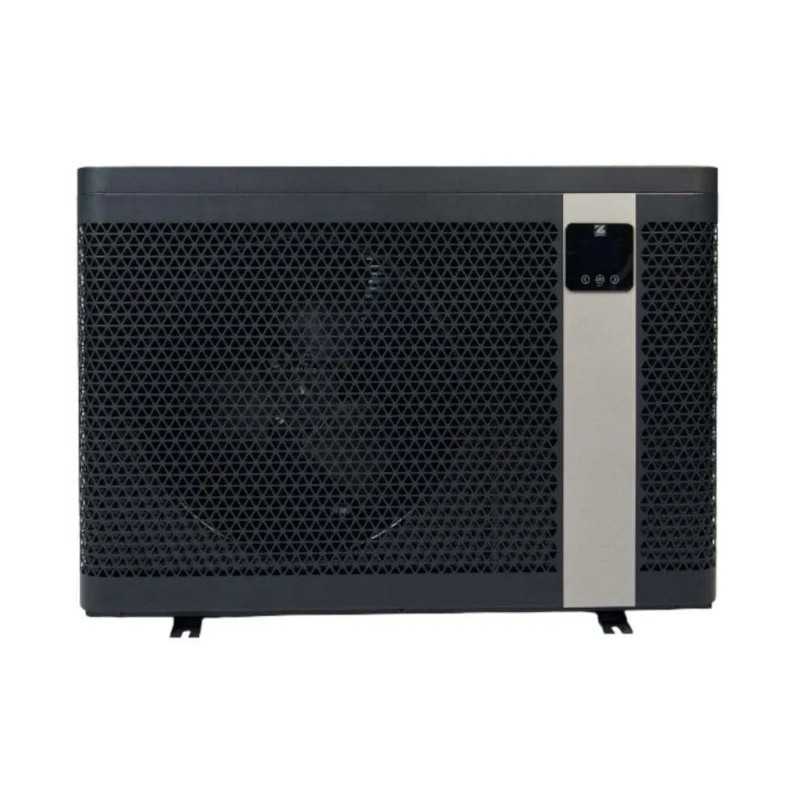

Zodiac Z250iq MD12 R32 Heat pump for pool
Referencia: WH000595
€4,118.77
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Heat pump Zodiac Z250iq MD12 | Full Inverter 24 kW
Heat Pump of great capacity full inverter Zodiac, model Z250iq MD12 with ecological refrigerant R32. Designed for certified performance under standard weather conditions of ** Air 15 ° C / Water 26 ° C / Humidity 70% **, this powerful equipment provides a maximum heating capacity of 24.0 kW. It has the highest Sustainability Certification Classification «A» according to European standard EN17645, with a seasonal scop of 8.8. Its advanced electronics automatically regulates the power of the compressor and the fan in three smart modes (BOOST, SMART and ECOSilence), operating solvent even at temperatures up to -7 ° C and including Wi-Fi connectivity. With the app Fluidra Pool.
• Restituted power (max min): 24.0 - 6.3 kW (air 15 ° C / water 26 ° C)
• Certified work COPs: 5.3 ~ 0.8 W / W (air 15 ° C / water 26 ° C)
• Efficiency and sustainability: classification "A" (seasonal scop: 8,8)
• Total connectivity: Wi-Fi interface standard with app Fluidra Pool
Security policy
Delivery policy
Refund policy
Zodiac Z250iq MD12 Full Inverter
Exceptional power and guaranteed performance under real conditions of use. Optimized heating for large volumes with certified air performance 15 ° C / water 26 ° C / humidity 70%, energy classification A and smart management Fluidra Pool.
Technical study and air conditioning balance
Due to the thermal losses caused by radiation, wind and surface evaporation, which vary according to the climatic zone and the size of the vessel, we carry out personalized sizing studies for your pool. To ensure the correct choice of the Z250iq series model, determine optimal initial lifting times based on normal air parameters 15 ° C / water 26 ° C / humidity 70% and suitably configure installation with by- kit Pass, our engineering department exhaustively studies each request.
🏊♂️
1. Dimensions and surroundings
Provide us with the square meters of water sheet, average depth and if it has a cover to validate the performance of the MD12 model with its high seasonal capacity of 24.0 kW.
📍
2. Season and objectives
Indicate your province of residence and if you want a conventional use of summer or extend the bath to the cold months taking advantage of its operating range of up to -7 ° C.
📩 Facilitate this data and our engineers team will calculate a tailored thermal balance for your pool.
Efficient and lasting air conditioning: actual performance adapted to the bath season
The heat pump Zodiac Z250iq MD12 stands out as a large-format premium solution, suitable for heating outdoor pool vessels or large interiors. By implementing a full-generation Full Inverter system, the equipment continuously and automatically adjusts the frequency of your compressor and fan revolutions according to the actual water demand. This millimeter control mitigates the peaks of electricity consumption, extends the longevity of the mechanical pieces and provides extremely silent operation that preserves rest in the garden environment.
Supplied under the new and strict European Sustainability Normative EN17645, the Z250iq MD12 has an official "A" energy certification. This ensures that the seasonal performance coefficient (SCOP), reaching a value of 8.8 calculated rigorously from multiple measurements under real environmental conditions, is located at the sector's highest standards. The chassis is fully compatible with any water disinfection system - including saline, bromine or chemical chlorination - thanks to a high purity titanium exchanger. Its robust engineering allows you to extract thermal energy from ambient air even under severe weather conditions up to -7 ° C, ensuring excellent comfort in spring and autumn.

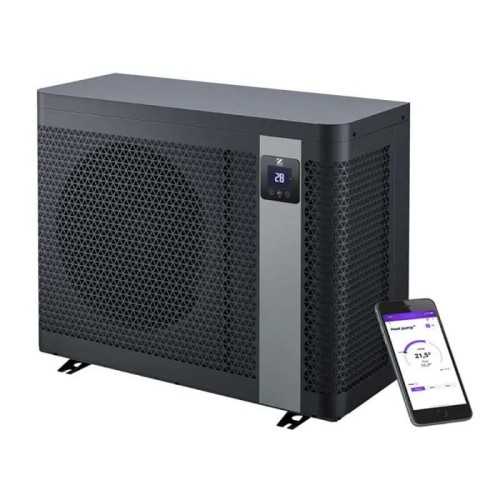

The digital use experience is raised through a clear and intuitive LCD screen integrated into the chassis itself and a Wi-Fi interface. Through the application Fluidra Pool, users can configure, monitor and remotely adjust the water temperature 24 hours a day. The system has three preconfigured operating modes: the mode Boost, oriented to deliver the maximum power for a rapid increase in temperature; way Smart, which automatically manages the power adapting in real time; and the mode Ecosilence, which prioritizes extreme energy savings and completely minimizes the emission of noise.
Technical characteristics
Certified Energy Performance
Model reference: Z250iq MD12 (official technical sheet Zodiac)
Certified Sustainability: Classification "A" according to EN17645 standard
In 17645 seasonal scop: 8,8
Approved performance (air 15 ° C / water 26 ° C / humidity 70%):
• Maximum heating power: 24.0 kW
• Minimum heating power: 6.3 kW
• Max consumed power: 5.3 kW - 0.8 kW
• COP performance coefficient (total range): 4.5 ~ 7.8 W / W
Climate Operation Limit: It works up to -7 ° C of outside air
Mechanical and hydraulic specifications
Recommended water flow: 11 m³ / h
Electrical supply of the system: Single-phase 220-240V / 1 / 50-60 Hz
Gas-type Refrigerant Gas / Sustainability: R32 ecological low impact
Treatment compatibility: All kinds of water (chlorine, bromine, salt)
Internal exchanger material: Titanium high strength chemistry
Hydraulic connection: 1/2 "Union of PVC Adhesive 50 mm in diameter
Acoustic pressure at 10 m (max min): 43 dB (A) - 32 dB (A)
Dimensions of the chassis (an. X al. X prof.): 1165 x 1025 x 575 mm
Accessories included as standard
• Protective Premium Case for Hibernation Periods
• Complete drainage kit for condensate management
• 2 1/2 "PVC binding links (Ø 50 mm) to glue
• 4 robust feet base support anti-vibration
Frequently Asked Questions and Climate Management
How are Boost, Smart and Ecosilence modes configured and differentiate?
The Full Inverter system of the Zodiac Z250iQ allows you to select three operating strategies: the mode Boost squeeze the compressor 100% of its ability to heat the water in the shortest possible time (ideal for the start of season); way Smart monitors the temperature constantly and self-management the intermediate optical speed; while the mode Ecosilence it limits the power ceiling, prioritizing the energy saving of the house and achieving an ultrasilence functioning.
What relevance does the classification "A" obtained under the European standard EN17645?
Standardized regulations EN17645 promotes the ecological sustainability of pool equipment through the evaluation of the seasonal performance coefficient (SCOP). It establishes a strict classification of efficiency that goes from the letter "A" to the "F". To achieve the maximum grade of class "A", the system must certify a SCOP equal to or greater than 7, a value that the Z250IQ MD12 model exceeds in a loose manner reaching an 8.8 scop thanks to its excellent modulation relationship under real environmental conditions.
Would you like advice for the sizing of your commercial installation?
On https://tualmacendelclima.com/en/ we are engineers specialists in technical design, control and optimization of air conditioning, air stopermia and water heating for residential and collective pools. If you need to solve doubts about simultaneity coefficients, maximum slopes or check the official performance specifications of the range Zodiac, our engineering department is at your entire disposal.
Call 623 541 934
WH000595
Data sheet
- Brand
- Zodiac
- Electrical supply
- Monofásica
- COP (Maximum capacity)
- 8,6
- Maximum sound level (dB)
- 67
- Recommended flow (M3 / h)
- 11,0
- Power Heating (KW)
- 24,0
- Nominal current (A)
- 23,0
- Nominal consumed power (KW)
- 5,30
- TRA MINIMUM WORK (ºC)
- -7
- WiFi
- Incluido
- High (mm)
- 846
- Width (mm)
- 1.133
- Deep (mm)
- 545
- Weight (kg)
- 94
