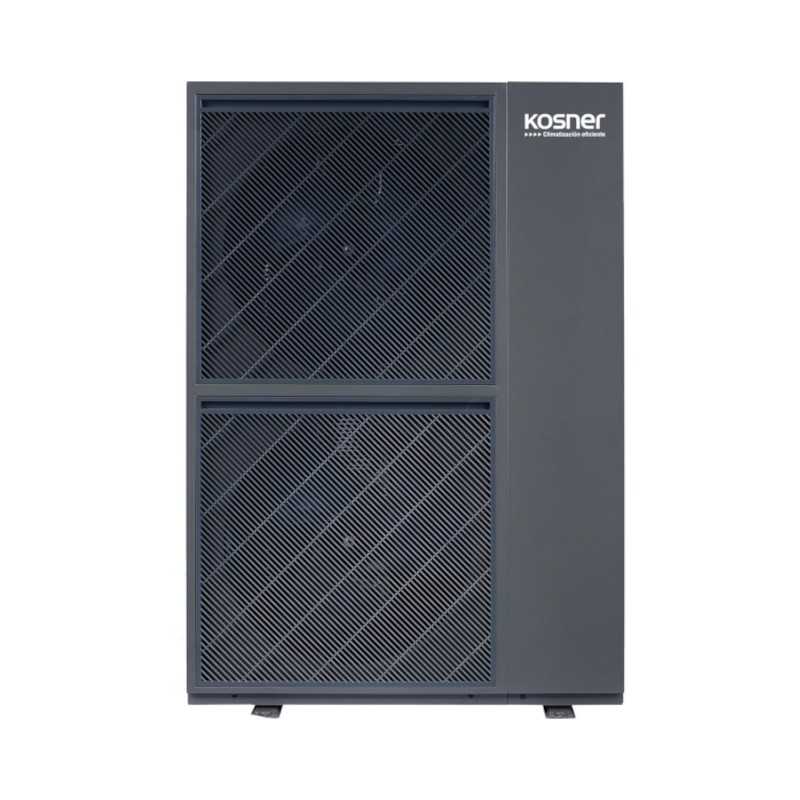

Aerotermia Pump Heat Monobloc Kosner Aquaris D HT 16T R-290 Three-phase

Maximum three-phase power with high temperature performance

The air pump airplane Kosner Aquaris D HT 16T Three-phase monobloc is positioned on the highest step of capacity and electrical balance of the brand, offering an exceptional engineering solution for projects that have three-phase assets at 400V. With a nominal power of 16.1 kW in heating, this Inverter system is meticulously developed to provide high power centralized heating, efficient cooling during summer and sanitary hot water (DHW). Being configured in a 100% hydronic monobloc format, the cooling circuit comes completely airtight and sealing of the factory in the outer module, drastically reducing hydraulic installation times and canceling the need to manipulate gas pipes in the zones Interiors of the building.

🌿 Refrigerant Gas Natural propane R-290 and higher level performance

The ecological motor that drives the Kosner Aquaris D HT 16T is based on the use of natural refrigerant propane R-290, a sustainable alternative to European restrictions on artificial greenhouse gases. Thanks to the magnificent mechanical and thermodynamic qualities of this gas, the system optimizes its seasonal performance until reaching an extraordinary energy classification of ** A +++ / A ++ ** (W35 ° C / W55 ° C). With a 4.60 SCOP with water at 35 ° C and a Seer up to 6.47 with water at 18 ° C, this equipment balances the electric charges between its three phases to minimize the absorbed current, guaranteeing substantial economic savings on the electricity invoice of Industries, hotels or large residences.

🔧 Integrated hydraulic architecture and external mounting ease

The Aquaris D HT range has been carefully developed to facilitate the tasks of technical professionals abroad of building. Inside your vertical double-fan chassis, the unit houses a full integrated hydraulic set of factory that includes as standard: an electronic water pump variable, 6 liter expansion vessel, 3 bar safety valve, flow switch, flow switch of water, integrated water pressure sensor and a refrigerant / water separator with automatic disappointing valve. Additionally, the basic supply incorporates rubber antivibratories for its lower base and a type water filter and to protect the welded plate exchanger. The electrical panel is fully folding to ensure clean technical access.

🌡️ Water drive at 75 ° C and stability against rigorous climates

With the Kosner Aquaris D HT 16T It is possible to undertake direct energy renovations without the need for interior reforms or changing existing cast iron or aluminum radiators. The Inverter compressor squeezes propane technology to drive warm water at extreme temperatures up to 75 ° C directly and fully hydronically, regarding the use of support resistance. Operating climate limits are excellent, maintaining a stable operation and continuous performance in heating and DHW even under severe frosts up to -20 ° C exteriors. In summer, the cycle is inverted efficiently to air conditioning by installation by means of high-power floors or refreshing floor with outer temperatures up to 43 ° C.

🔌 Advanced centralized management: series wifi and modbus connectivity

Connectivity and intelligent control are an integrated standard on each machine. The equipment includes as standard and loose the KDA-120 cable wall driver along with a bus cable 20 meters long. This intuitive touch screen control exerts high-precision environmental thermostat functions and has integrated WiFi connectivity serial to synchronize the aerothermia with the exclusive application of Kosner on mobile devices. Since the APP, you can configure operating modes, advanced weekly schedules and access the detailed energy measurement of the equipment in real time. For applications in advanced home automation or automation of large residential buildings or from the tertiary sector, the Modbus protocol for its direct link with centralized BMS systems incorporates.

🔇 Superior acoustic comfort by mechanical insulation

To minimize the exterior sound impact despite its imposing 16 kW capacity, Kosner it has implemented an exhaustive design of perimeter mechanical insulation in the D HT range. The unit incorporates acoustically optimized fans, vibration reducing blocks, acoustic insulation by metal layers combined with high density cotton, and double-layer rubber antivibratios at the base of its compressor. Thanks to this technical insulation, it records a sound pressure of only 50 dB (A) to 1 meter away (63 dB (A) of nominal sound power), including two silent operating modes programmable by schedule to guarantee maximum discretion during hours of Night Rest.

🎯 Verified technical characteristics (Official data)

All the information contained in the following technical data table faithfully reflects the official specifications of the manufacturer Kosner for the three-phase model Aquaris D HT 16T, extracted from the reference technical document "Aquaris D HT R-290 Monobloc Kosner.pdf ":
