Maximum power, insurmountable efficiency
The model LG Hm123hf.ub60 12KW with three-phase feeding is the jewel of the crown for demanding residential and commercial facilities. With an extraordinary seasonal performance in medium climate that records a scop of 5,45, it is positioned as one of the most profitable options of the market. Designed for large surface properties, it offers a perfect balance of electrical phases, Drive hot water at 75 ° C and optimized operation thanks to its ultra-silent advanced biomimetic fan.
12,00 kW heating Three-phase A +++ Scop 5,45
ÂżAny doubt about the product?
Talk to us and consult us. We will solve all your doubts

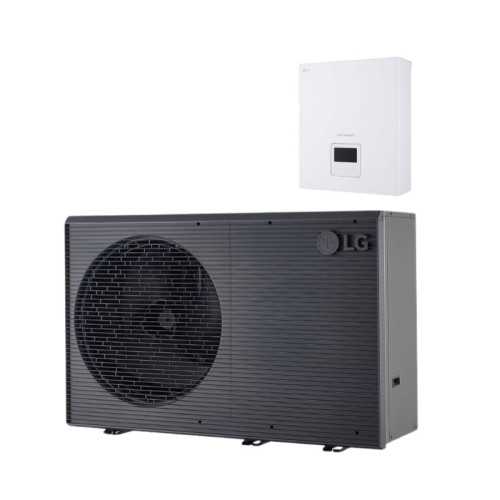

Aerotermia HM123HF.UB60 Monobloc Control Box LG THERMA V R290 Three-phase
Referencia: HM123HFTPHCS0
âŹ6,433.64
Tax included
î We are currently out of stock.
Ask us about availability!!
EnvĂo GRATIS en España (PenĂnsula) a partir de 300⏠+ info
Email has been sent successfully.
Calcular Gastos de EnvĂo
đĄïž Pago Seguro â
GarantĂa Oficial
Maximum power, insurmountable efficiency
The model LG Hm123hf.ub60 12KW with three-phase feeding is the jewel of the crown for demanding residential and commercial facilities. With an extraordinary seasonal performance in medium climate that records a scop of 5,45, it is positioned as one of the most profitable options of the market. Designed for large surface properties, it offers a perfect balance of electrical phases, Drive hot water at 75 ° C and optimized operation thanks to its ultra-silent advanced biomimetic fan.
12,00 kW heating Three-phase A +++ Scop 5,45
Security policy
Delivery policy
Refund policy
Professional Monobloc Aerotermia | R290 three-phase
LG Therma V R290 12KW
Model HM123HF.UB60: Three-phase electric balance and maximum seasonal efficiency.
Superior performance for modern home
The LG THERMA V MONOBLOC R290 of 12KW Three-phase (HM123HF.UB60) It is the definitive response to the highly efficiency air conditioning needs in three00V three-phase electrical networks. When using the ecological natural refrigerant R290 (propane), LG He has developed a system capable of rendering excellently under severe winter conditions, guaranteeing a water drive temperature of up 75 ° C. and an operating range of stable heating even before extreme outer temperatures up to -28 ° C. This three-phase model stands out for its magnificent seasonal scopping 5,45 In low temperature, achieving maximum energy classification To +++ and a perfect distribution of loads between phases.

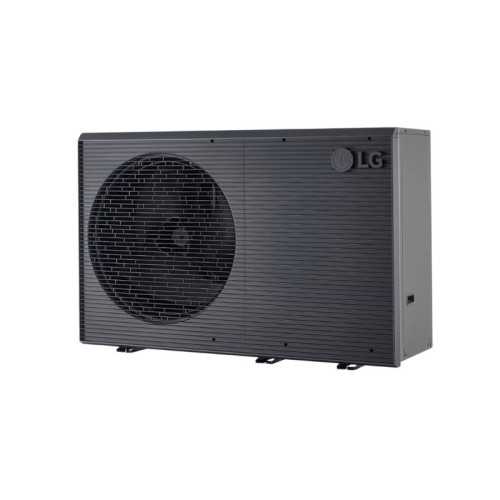

Its balanced compact monobloc architecture houses all the hydraulic components and the refrigerator circuit in a single outdoor Unit. This releases useful space in the stays and technical rooms of housing, at the same time that drastically simplifies the technical assembly tasks, since the installation is carried out exclusively by hydraulic water pipes, dispensing completely from the manipulation of conventional refrigeration lines inside the building.
Full technical sheet HM123HF.UB60
Thermal yield (35 ° C / 55 ° C)
Nominal power heat: 12.00 kW
COP (A + 7 / W35): 4,70
COP (A + 7 / W55): 3,10
SCOP medium climate (W35): 5,45
SCOP medium climate (W55): 3,97
Energy class (W35 / W55): A +++ / A +++
Dimensions and sound
Measures Outdoor Unit: 1560 x 1019 x 520 mm
Net weight Outdoor Unit: 178 kg
Acoustic power (heat): 48 dB (A)
Gas Refrigerant Gas / Preload: R290 / 1.2 kg
Electrical supply: 380-415V, 3 phases, 50Hz
Hydraulic connections: Male thread, pt 1 inch
Exclusive technologies of LG
âïž Advanced Scroll Compressor: Component adapted specifically to support the pressure regimens of the natural propane gas, dispel internal vibrations and optimizing the useful life of the pump components.
âïž Black End Coating: Advanced anticorrosive treatment on the fins of the external exchanger, conferring the maximum protection against atmospheres with saline fog or residential environments with high pollution rates.
âïž Intelligent control THINQ: Intelligent digital ecosystem of LG To schedule comfort temperatures, monitor the electrical consumption curve and access preventive diagnostics from your smartphone.

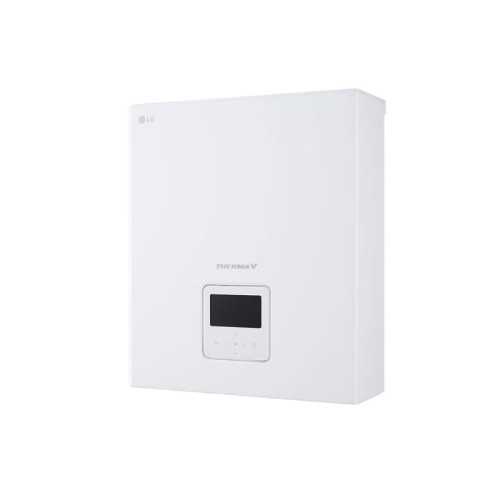

âïž Control Box PHCS0 Included: Electronic module that is integrated into the supply to centrally and intuitively centralize the signals of the flow sensors, thermal probes of the premium rooms and actuators.
Frequently asked questions
What advantages does the three-phase configuration of this model provide?
The three-phase connection distributes in a balanced manner the current strength between the three phases, which reduces the section of the feeding cables, decreases the risk of voltage drops and avoids imbalances in the general installation of the housing.
Is it compatible with old traditional radiators?
Yes, thanks to the ability to boost hot water at 75 ° C directly through its refrigeration cycle, this equipment perfectly replaces conventional boilers feeding networking of iron or aluminum radiators at full performance.
Do you require a periodic gas recharge inside?
No. Being a monobloc autonomous team, the propane load R290 comes hermetically sealed from the factory in the outdoor Unit. The installer only handles water pipes towards the technical room, minimizing refrigeration interventions.
Do you need help with your Aerotermia project?
In your climate store we are specialists in integral solutions LG. Consultation with our specialized engineers to plan the hydraulic schemes of your work and obtain an optimized budget.
Call 623 541 934
HM123HFTPHCS0
Data sheet
- Brand
- LG
- Refrigerant Gas
- R290
- Control
- Control Box PHCS0
- Electrical supply
- TrifĂĄsica
- COP
- 4,50
- Scop (warm weather)
- 6,35
- EER
- 2.99
- Type
- FrĂo/Heat
- Maximum temperature Heating (ÂșC)
- 75
- Power Nominal heat (W)
- 14.000
- Heat consumption (W)
- 3.110
- Nominal cold power (W)
- 14.000
- Cold consumption (W)
- 4.010
- Energy efficiency
- A+++
- WiFi
- Opcional con Accesorio PWFMDD200
- High (mm)
- 1.019
- Width (mm)
- 1.560
- Background (mm)
- 520
- Weight (kg)
- 178
