Maximum power, insurmountable efficiency
The model LG Hm161hf.ub60 16KW is the maximum exponent of power and performance for large-scale residential heating. With exceptional seasonal performance in average climate that reaches a scop of 5,45, it stands out as a choice of highly profitable and sustainable air conditioning. Designed for large volume homes, isolated chalets or areas with extreme winters, it offers Drive hot water at 75 ° C and an optimal acoustic comfort thanks to its ultra-silent advanced biomimetic fan.
16,00 kW heating A +++ Scop 5,45
ÂżAny doubt about the product?
Talk to us and consult us. We will solve all your doubts

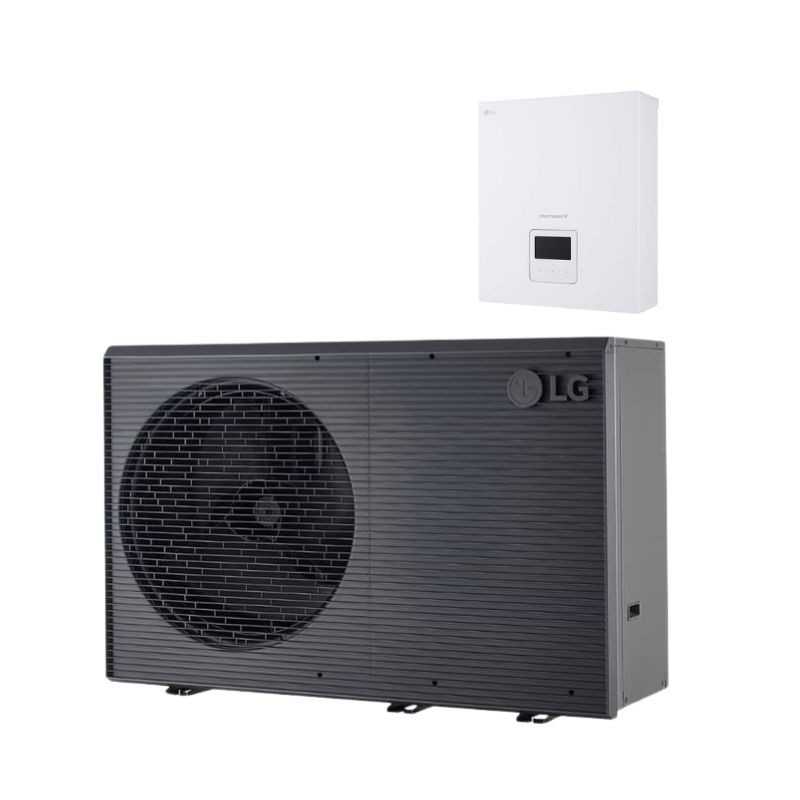

Aerotermia HM161HF.UB60 Monobloc Control Box LG Therma V R290
Referencia: HM161HFMPHCS0
âŹ6,876.99
Tax included
î We are currently out of stock.
Ask us about availability!!
EnvĂo GRATIS en España (PenĂnsula) a partir de 300⏠+ info
Email has been sent successfully.
Calcular Gastos de EnvĂo
đĄïž Pago Seguro â
GarantĂa Oficial
Maximum power, insurmountable efficiency
The model LG Hm161hf.ub60 16KW is the maximum exponent of power and performance for large-scale residential heating. With exceptional seasonal performance in average climate that reaches a scop of 5,45, it stands out as a choice of highly profitable and sustainable air conditioning. Designed for large volume homes, isolated chalets or areas with extreme winters, it offers Drive hot water at 75 ° C and an optimal acoustic comfort thanks to its ultra-silent advanced biomimetic fan.
16,00 kW heating A +++ Scop 5,45
Security policy
Delivery policy
Refund policy
Professional Monobloc Aerotermia | R290
LG Therma V R290 16kw
Model HM161HF.UB60: The maximum seasonal efficiency for total comfort.
Superior performance for modern home
The LG Therma V Monobloc R290 from 16KW (HM161HF.UB60) It represents the final thermal solution of great capacity for demanding air conditioning projects and energy reforms of draft. Thanks to the advanced use of natural ecological refrigerant R290 (propane), LG has designed a system capable of dealing with the most severe weather conditions in Europe, maintaining a stable water drive temperature up to 75 ° C. and an operating range of guaranteed heating even before outer temperatures up to -28 ° C. This model stands out for its excellent seasonal efficiency, recording a scop of 5,45 In low temperature, which gives it solvency the maximum energy classification To +++.

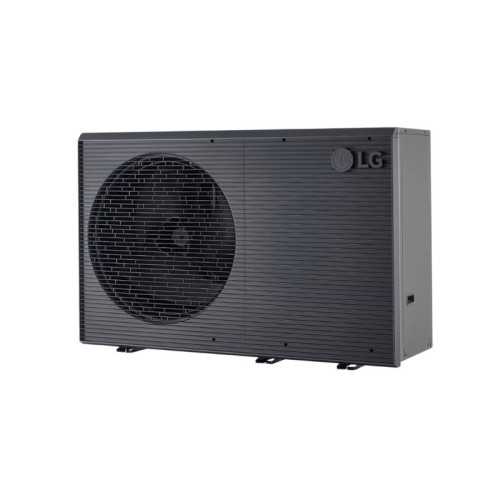

Its monobloc conception unifies all the mechanical elements and the cooling cycle in the outdoor Unit. This releases a valuable space in the interior stays and technical rooms of the property, while substantially simplifies installation tasks on site, since the assembly runs purely through hydraulic water connections, dispensing completely from handling of conventional refrigeration lines inside the house.
Full technical sheet HM161HF.UB60
Thermal yield (35 ° C / 55 ° C)
Nominal power heat: 16.00 kW
COP (A + 7 / W35): 4,24
COP (A + 7 / W55): 2,75
SCOP medium climate (W35): 5,45
SCOP medium climate (W55): 3,97
Energy class (W35 / W55): A +++ / A +++
Dimensions and sound
Measures Outdoor Unit: 1560 x 1019 x 520 mm
Net weight Outdoor Unit: 178 kg
Acoustic power (heat): 48 dB (A)
Gas Refrigerant Gas / Preload: R290 / 1.2 kg
Electrical supply: 220-240V, 1 phase, 50Hz
Hydraulic connections: Male thread, pt 1 inch
Exclusive technologies of LG
âïž Advanced Scroll Compressor: Optimized component to work with total balance under the operational pressures of natural refrigerant, reducing structural vibrations and increasing system durability.
âïž Black End Coating: Anti-corrosive treatment of high resistance applied on the external heat exchanger, ideal to combat the harmful effects of marine saline and contaminated industrial environments.
âïž Intelligent control THINQ: Intuitive digital ecosystem to coordinate the comfort slogans at home, monitor the consumption of electricity to detail and receive preventive diagnostic notifications directly on the smartphone.

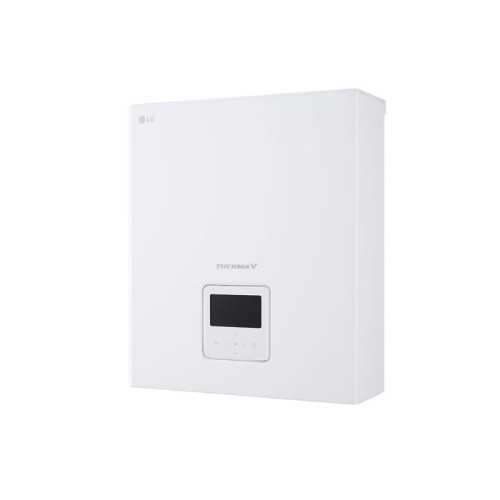

âïž Control Box PHCS0 Included: Electronic Intelligent Control Module Included Series Centralizing And Organizes Cleaning The Reading Of Flow Sensors, Temperature Probes and Hydraulic Elements of the Installation.
Frequently asked questions
Is this suitable model to replace boilers in traditional radiators?
Yes, perfectly. Thanks to that it is capable of supplying hot drive water at 75 ° C directly by the cooling cycle, this system allows to keep ancient iron or aluminum radiators intact without the need for additional thermal supplements.
What functions do you manage the supplied Box PHCS0 control?
The BOX control acts as the electronic central node of the circuit. Allows you to connect and interconnect the room temperature probes, remote controls, mixing valves and the diversion signals for switching to the accumulator DHW.
Do you need annual refrigerant gas leak inspections?
Not in the domestic circuit. As it is a monobloc format with a hermetically sealed and installed circuit, installed on the outside, the installation only requires maintenance on the ordinary water hydrochor, reducing the legal requirements associated with synthetic gases.
Do you need help with your Aerotermia project?
In your climate store we are specialists in integral solutions LG. Consultation with our specialized engineers to plan the hydraulic schemes of your work and obtain an optimized budget.
Call 623 541 934
HM161HFMPHCS0
Data sheet
- Brand
- LG
- Refrigerant Gas
- R290
- Control
- Control Box PHCS0
- Electrical supply
- MonofĂĄsica
- COP
- 4,30
- Scop (warm weather)
- 6,35
- EER
- 2,95
- Type
- FrĂo/Heat
- Maximum temperature Heating (ÂșC)
- 75
- Power Nominal heat (W)
- 16.000
- Heat consumption (W)
- 3.720
- Nominal cold power (W)
- 16.000
- Cold consumption (W)
- 4.240
- Energy efficiency
- A+++
- WiFi
- Opcional con Accesorio PWFMDD200
- High (mm)
- 1.019
- Width (mm)
- 1.560
- Background (mm)
- 520
- Weight (kg)
- 178
