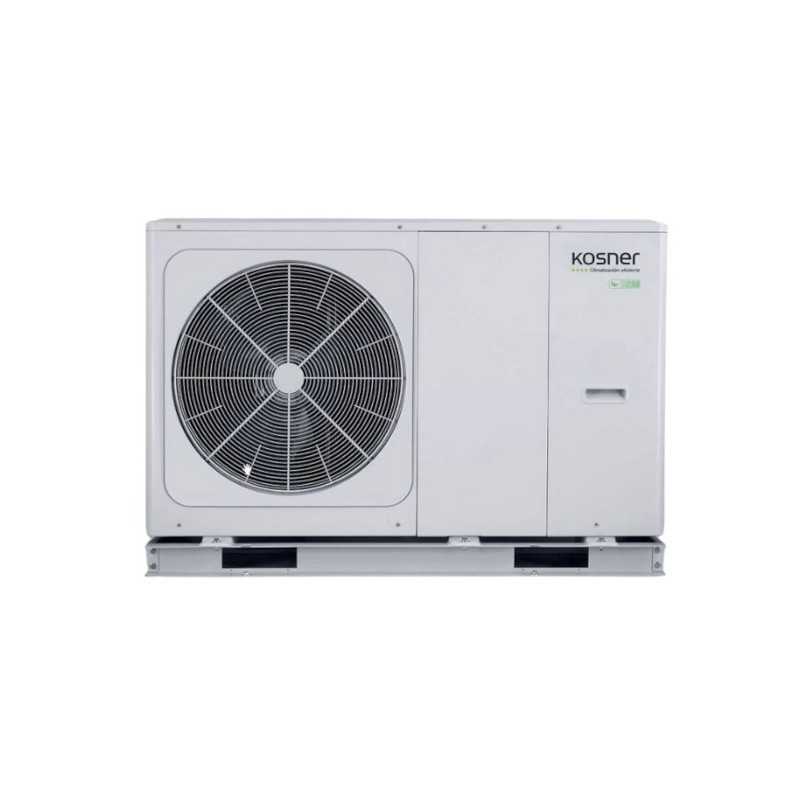

Monobloc Aerotermia Kosner Aquaris MD 10 pump heat R32

Outstanding performance and unlimited versatility

The air pump airplane Kosner Aquaris MD 10 Monobloc establishes a new reference in sustainable air conditioning for large spaces or homes with high energy demands, presenting a 100% hydronic solution that maximizes performance and efficiency at any time of year. This powerful 10KW model redefines sector standards, providing centralized heating services, refrigeration and sanitary hot water (DHW) With exceptional performance. By grouping the mechanical, hydraulic and electronic components in a single outer compact unit, its maintenance is facilitated by front access and the need to handle fluorinated coolant pipes is eliminated inside the house.

🌿 Twin compression Rotary and maximum energy saving

The efficiency of the Kosner Aquaris MD 10 is based on its latest generation inverter technology, starring a sophisticated Twin Two-cylinder compressor on the same axle and a DC Inverter modulator. These elements vary their speed continuously, adapting millimeterly to the thermal needs of building and avoiding sudden starts. Using an optimized load of Ecological Gas R32 of only 1.4 kg, the system reaches a leading SCOP of 5.2 in average climate (and up to 7.09 in warm weather), achieving the maximum energy classification A +++ to ensure consumption Optimized at all times.

❄️ Protection Anti-Triple Action in extreme conditions

Severe winter climates are not an obstacle to the thermal stability of your installation. Aquaris MD 10 ensures optimal operation even under extreme conditions of up to -25 ° C exterior in winter and 43 ° C in summer. To ensure the protection of the exchanger without sacrificing the comfort of the household, it has an active anti-hiper protection through control software and automatic antifreeze resistances located in the gas-water plates, in the hydraulic circuit and in the chassis Lower, which prevents the freezing of the condensates generated in the defrosting phases.

🏘️ Integrated air conditioning systems and high-power issuers

The Kosner Aquaris MD 10 demonstrates exceptional versatility in its practical application. Thanks to an overdimposed exchanger of welded plates, the equipment is capable of reaching water drive temperatures up to 65 ° C in heating and direct slogans of DHW up to 60 ° C in a totally hydronic way, regardless of thermal support resistors that raise the invoice. This allows its direct integration with multiple thermal emitters: from comfortable high-efficiency radiant / refreshing soil networks, through high-powered fancails, to conventional low temperature radiators, adapting accurately at any kind of need for Air conditioning in the domestic or commercial scope.

🔌 Wi-Fi connectivity series and intelligent photovoltaic management

The total control of the thermal ecosystem is performed in a simple manner using the KJRH-120F cable control panel that is supplied as standard and loose. This intuitive device acts as a precision environmental thermostat and indicates the main operating parameters, including the instantaneous thermal capacity, the actual water flow and the accumulated electrical consumption of the system. With integrated WiFi connectivity, you can manage all operating modes, schedule weekly schedules and monitor consumption from any Smartphone or Tablet. In addition, the unit is compatible natively with intelligent electrical networks (Smart Grid) and with the intelligent use of energy surpluses of photovoltaic solar installations, accumulating energy in the tank in the hours of maximum solar production.

🔇 Certified acoustic comfort in demanding environments

Despite its great thermal capacity, the Aerotermia Kosner Aquaris MD 10 stands out for its ultrasilence functioning, registering only 60 dB (A) of nominal sound power. To comply with the strictest municipal acoustic ordinances in residential or commercial cores, the unit incorporates two additional silent operating modes programmable by schedule range. These advanced configurations attenuate the mechanical revolutions of the compressor and the fan to reduce the operative sound level until reaching 53 dB, guaranteeing absolute acoustic comfort.

🎯 Verified technical characteristics (Official data)

The following table collects in detail the technical specifications of the manufacturer's Kosner for the Aquaris MD 10 model, in accordance with the reference technical document "Monobloc aquaris md Kosner R32.pdf ":
