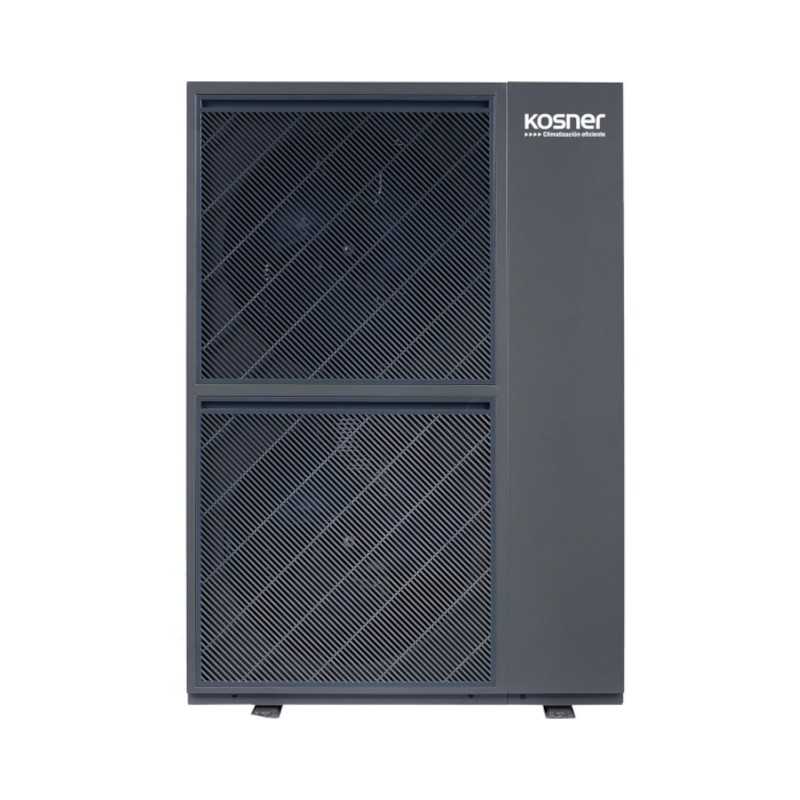

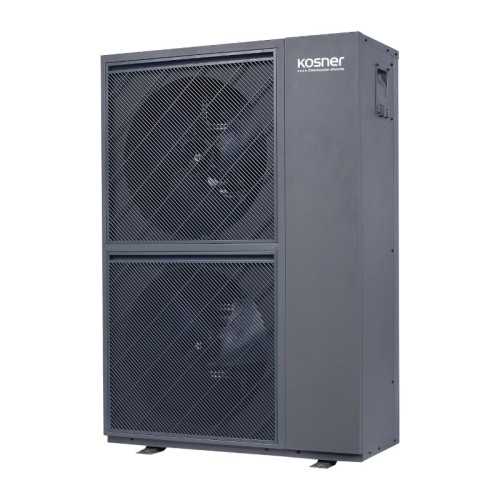

Aerotermia Pump Heat Monobloc Kosner Aquaris D HT 12 R-290

The perfect high temperature solution for the replacement of boilers

The air pump airplane Kosner Aquaris D HT 12 high temperature monobloc represents the definitive engineering response to air-conditioning large single-family homes, chalets or commercial premises that require a high thermal capacity. With its 12.1 kW of nominal power in heating, this inverter equipment provides centralized powerful heating services, comfortable refrigeration in summer and sanitary hot water (DHW) Abundant. Its 100% hydronic monobloc configuration concentrates the entire lubrication circuit in the way in the outer module, which speeds up the installer assembly and completely eliminates the risks associated with the handling of coolant pipe pipelines in interior stays.

🌿 Refrigerant Gas Natural propane R-290 and higher level performance

Ecological commitment and high efficiency go hand in hand in Kosner Aquaris D HT 12 thanks to the use of propane natural gas R-290. This ecological refrigerant stands out for its potential for insignificant global warming and a null impact on the ozone layer, anticipating strictest European environmental regulations. Squeezing the physical qualities of this gas, the team reaches an extraordinary energy classification of A +++ / A +++ both working at low temperature (W35 ° C) and a half-high temperature (W55 ° C). With a SCOP of 4.58 (W35 ° C) and a SEER of 7.2 (W18 ° C), this system optimizes electricity consumption, guaranteeing continuous comfort and strong savings.

🔧 Integrated hydraulic kit factory for efficient assembly

The Aquaris D HT range has been meticulously developed to facilitate the work of professionals abroad. Its robust vertical double fan chassis houses a full-integrated hydraulic kit: Variable speed electronic water pump, 6-liter expansion vessel, 3 bar safety valve, water flow switch, water pressure sensor Integrated and a refrigerant / water separator with automatic disappointing valve. Factory also includes rubber antivibratia for its lower base and a type and indispensable water filter to protect the impurities plaque exchanger. The electrical table is fully folding, guaranteeing comfortable and direct technical access to internal electronics.

🌡️ Water drive at 75 ° C and severe frost resistance

With the Kosner Aquaris D HT 12 It is not necessary to carry out expensive reforms by replacing existing radiators. Its advanced Inverter technology allows you to drive water at extreme temperatures up to 75 ° C in a fully hydronic way, maintaining performance without dependent on additional electrical resistances. Your climate operating limits are leaders in your segment: in heating mode and DHW it maintains optimal operation even in the most rigorous winter conditions of up to -20 ° C exterior. In the summer season, it invests its cycle with the same solvency to provide refreshing refreshing through Flancoils or refreshing soil with outer temperatures up to 43 ° C.

🔌 Advanced Digital Control: Serial Wi-Fi and Modbus Connectivity

Each equipment is supplied as standard with the KDA-120 cable touch controller (provided with a 20-meter bus communication cable) for its loose placement inside the house. This intuitive command exerts thermostat functions and has serial Wi-Fi connectivity to link the aerothermia with the exclusive application of Kosner on any mobile device. From the app, the user can regulate modes, establish advanced weekly programming and access the detailed energy measurement of the equipment in real time. In addition, for complex integrations in the domestic or tertiary field, it incorporates the Modbus protocol as standard for its direct link with domotic and centralized technical management (BMS).

🔇 Superior acoustic comfort by mechanical insulation

Despite its great thermal capacity of 12 kW, Kosner it has implemented an exhaustive design of perimeter mechanical insulation to minimize the acoustic impact. The unit incorporates acoustically optimized fans, vibration reducing blocks, acoustic insulation by metal layers combined with high density cotton, and double-layer rubber antivibratios at the base of its compressor. Thanks to this, it records a sound pressure of only 46 dB (A) to 1 meter (59 dB (A) of nominal sound power), including two silent operating modes programmable by schedule to guarantee total discretion and acoustic well-being during The hours of night rest.

🎯 Verified technical characteristics (Official data)

All the information contained in the following technical data table has been verified in accordance with the official specifications contained in the reference technical document "Aquaris D HT R-290 Monobloc Kosner.pdf ":
