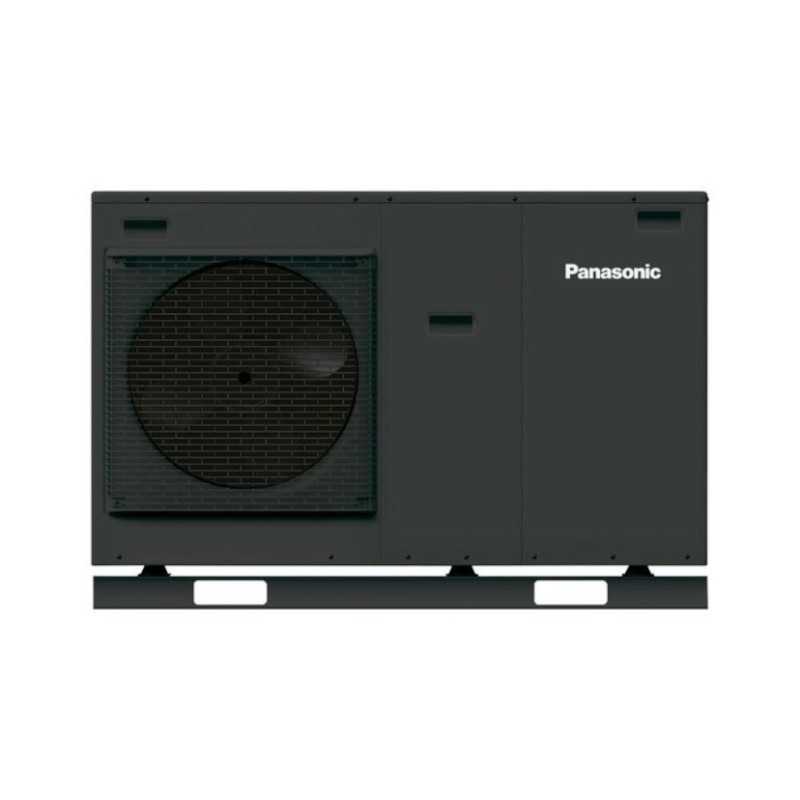

Aerotermia monobloc WH-MDC05J3E5-1 Panasonic Aquarea pump heat R32

Energy efficiency (35 ° C / 55 ° C)

Heating power (A + 7 ° C, W35 ° C): 5,00 kW

COP (A + 7 ° C, W35 ° C): 5,08

Heating power (A + 7 ° C, W55 ° C): 5,00 kW

COP (A + 7 ° C, W55 ° C): 3,01

Refrigerator power (A35 ° C, W18 ° C): 5,00 kW

EER (A35 ° C, W18 ° C): 5,05

SCOP medium climate (W35 / W55): 5.12 / 3,63

Energy class (W35 / W55): A +++ / A ++

Installation and electrical components

Dimensions (on. X x pr.): 865 x 1283 x 320 mm

Net weight: 99 kg

Sonora power (heat): 59 dB (A)

Water pipe connector: Inches R1¼

Electrical support resistance: 3,00 kW (integrated)

Recommended disconnector: 30/15

Minimum section of the cable: 3x1.5 / 3x1.5 mm²

Electrical supply: Single-phase

✔️ Extreme operating range: Forget the frost. The Aquarea J series is designed to hold an optimal operating range in heating even before outer temperatures up to -20 ° C.

✔️ Intelligent support resistance: Incorporates serially a 3.00 kW electrical support resistance to act automatically and ensure absolute comfort during exceptional winter cold peaks.

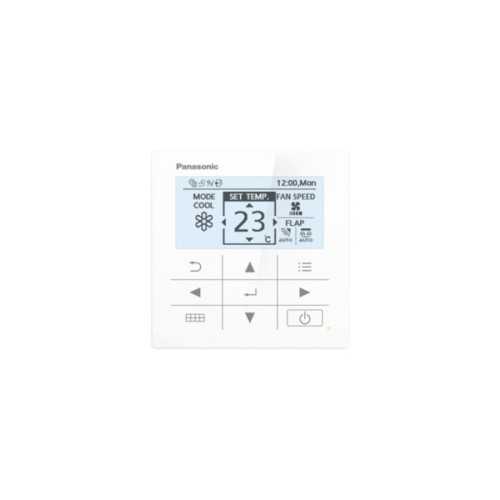

✔️ Optional remote control Wi-Fi (CZ-TAW1B): Allows the integration of the intelligent Wi-Fi adapter of Panasonic To regulate the drive temperature, schedule schedules and monitor consumption from your tablet or smartphone.

✔️ Monobloc design "All-in-One" Exterior: It brings together the plaque exchanger, the high efficiency water pump and the refrigerated components on the outside, releasing useful space inside the house.

What advantages does R32 refrigerant gas offer in this model?

The R32 is a pure energy-efficient coolant that reduces 68% the overall heating potential compared with ancient mixtures such as R410A. This allows you to use a lower gas load and maximize the seasonal performance of the equipment.

Is it compatible with traditional radiators?

Yes, the equipment reaches an A ++ energy classification by driving water at half temperature (55 ° C), which makes it ideal for both modern flock-soil facilities and efficient traditional radiator networks.

Is the handling of fluorinated gases necessary during the assembly?

Not in the house. Being a compact monobloc format, the propane or fluorine gas circuit comes completely airtight and factory loaded. The installer only connects water pipes inward, shortening assembly times.
