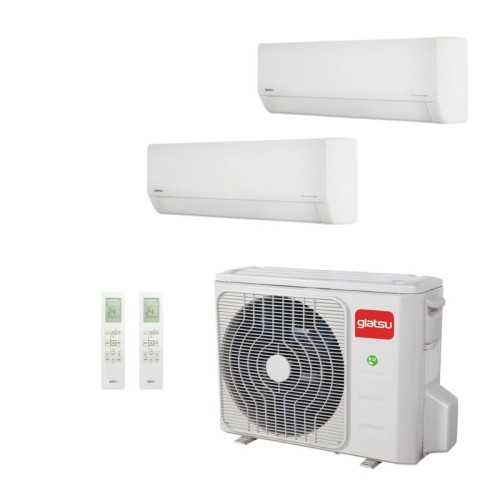

Multi Split Kit Giatsu Aroma 3 2x1
GIA-MO3-21IX41B2R32 • 09 + 18 AROMA 3 • 6,15 kW
Advanced climate control of your home through an ideal asymmetric combination to balance comfort between the bedroom and the day zone: a unit of 2.5 kW designed for the bedroom or office and a great power unit of 5.0 kW Designed specifically for the living room. The whole system works connected to a single outdoor outdoor motor 6,15 kW With three connection ports available, allowing the compressor to always work free and excellent performance. Autonomously regulates the temperature of each space, saves space on your façade or terrace and enjoy maximum wellness with Wi-Fi integrated with artificial intelligence logics, high temperature sterilizing self-cleaning and R32 ecological gas.
A unique outdoor motor inverter high performance for two independent areas
Wi-Fi control standard compatible with smartphone and voice commands
Advanced self-cleaning at 56 degrees to remove bacteria and mold
A ++ / A + excellent seasonal energy saving level inverter
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Multi Split 2x1 Giatsu Gia-MO3-21IX41B2R32 + GIA-MSI-09AR3R32 + GIA-MSI-18AR3R32 AROMA 3
Referencia: 2025607445019
€1,209.20
Tax included
IMMEDIATE DELIVERY!
For deliveries in Europe, consult delivery time
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Multi Split Kit Giatsu Aroma 3 2x1
GIA-MO3-21IX41B2R32 • 09 + 18 AROMA 3 • 6,15 kW
Advanced climate control of your home through an ideal asymmetric combination to balance comfort between the bedroom and the day zone: a unit of 2.5 kW designed for the bedroom or office and a great power unit of 5.0 kW Designed specifically for the living room. The whole system works connected to a single outdoor outdoor motor 6,15 kW With three connection ports available, allowing the compressor to always work free and excellent performance. Autonomously regulates the temperature of each space, saves space on your façade or terrace and enjoy maximum wellness with Wi-Fi integrated with artificial intelligence logics, high temperature sterilizing self-cleaning and R32 ecological gas.
A unique outdoor motor inverter high performance for two independent areas
Wi-Fi control standard compatible with smartphone and voice commands
Advanced self-cleaning at 56 degrees to remove bacteria and mold
A ++ / A + excellent seasonal energy saving level inverter
Security policy
Delivery policy
Refund policy
Giatsu Multi Split 2x1 GIA-MO3-21IX41B2R32 AROMA 3
Outdoor Unit 6.15 kW connected to an asymmetric combination of optimum performance: a 2.5 kW unit and a large capacity split of 5.0 kW.
Two stays at the ideal temperature: maximum power in the living room and minimum consumption in the bedroom
The multi-split air conditioning system Giatsu with asymmetric indoor units of the Aroma 3 range constitutes the perfect option to efficiently and fully independently and fully independent the two main areas of your home. By centralizing the refrigerating operation of two spaces in one single outdoor Unit Inverter of 6.15 kW of nominal capacity, the set decreases significantly the visual impact on facades, patios or terraces, optimizing the outer space and embrashing the installation costs compared to the placement of multiple separate individual motors. With this balanced distribution, the large-format unit of 5.0 kW airly climates the living room quickly during the highest hours, while the compact 2.5 kW unit maintains the fresh bedroom at night with a minimum electricity expense, allowing you to fully regulate Autonomous temperatures according to the real use of each area of the house.
In the technical section, the outdoor Unit it incorporates an advanced technological heart with its compressor Dc inverter Giatsu. This state-of-the-art engine effectively compensates by mechanical forces of internal rotation, which mitigates operating vibrations, reduces external noise and eliminates startups and continuous stops from the ancient equipment, making the engine stabilize electrical consumption in values Minimum operating. The outer exchange fins have an optimal anti-oxidation protection that ensures excellent durability against meteorological inclemences and urban environments. Working in harmony with last generation refrigerant gas R32, the system reaches excellent energy class coefficients To ++ in refrigeration and A + in Heating.
The great practical advantage of the mural units of the series Giatsu AROMA 3 it lies in its versatility, its intelligent functions and its characteristics designed to improve the purity of the ambient air. The splits integrate an advanced self-cleaning process that raises the internal temperature of the evaporator to 56 degrees, effectively eliminating dust, bacteria and mold accumulated to guarantee a much pure and healthier air. Its operation is extremely comfortable and silent, ideal to take care of your night rest in the bedrooms. In addition, with the Wi-Fi including serial and the use of artificial intelligence, you can control the machines from your smartphone or tablet, monitor the use or regulate the direction of the deflectors intuitively.
Technical characteristics

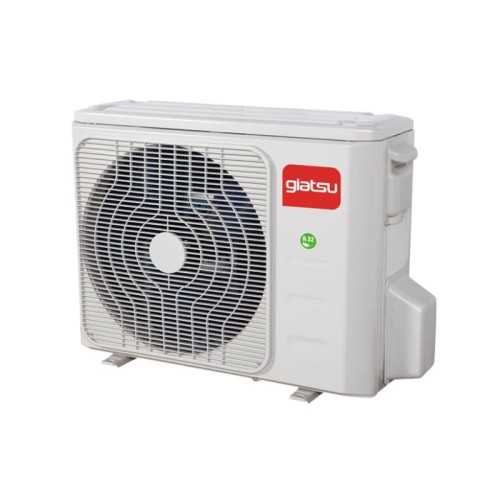

Performance of the Outdoor Unit (Gia-mo3-21ix41b2r32)
Cooling capacity (nominal): 6,15 kW (1,94 kW Inverter Working Range at 6,86 kW)
Capacity Heating (nominal): 6,15 kW (stable and heat efficient performance)
Seasonal energy classification (cold / heat): A ++ / A + (efficient performance)
Seer efficiency coefficient (cold): 6,1
Efficiency coefficient SCOP (heat): 4,0
Compressor technology: High efficiency inverter DC
Power supply: 220-240V (1 phase - 50Hz)
Gas Refrigerant Gas Ecological: R32 high thermal transfer
Indoor units included (Aroma 3 series)
Split Dispatch or Bedroom: 1x GIA-MSI-09AR3R32 (2,60 kW cold / 2.93 kW heat)
Main split or lounge: 1x GIA-MSI-18AR3R32 (5.27 kW cold / 5,40 kW heat)
Minimum sound pressure (2.5 kW model): 19 dB (A) (ultrasilence)
Dimensions Split 2.5 kW (an x at x PR): 723 x 286 x 199 mm
Dimensions Split 5.0 kW (an x at x PR): 975 x 308 x 218 mm
Diameter of connections (model 2.5 kW): Liquid 1/4 - Gas 3/8
Connection diameter (model 5.0 kW): Liquid 1/4 - Gas 1/2
Domotic wireless connectivity: Wi-Fi series included (control by smartphone or voice)
Technologies for daily comfort of the series Giatsu AROMA 3
✔️ Smart ecosystem with Wi-Fi included: Every indoor Unit includes factory pre-installed a wireless receiver module. By linking with the mobile application on your smartphone or tablet, it allows you to control the two rooms independently or manage the basic functions using voice commands with Alexa and Google Home.
✔️ High temperature self-cleaning process (56 ° C): Take care of the air quality of your home. The split runs an automatic cycle that raises the internal temperature of the battery up to 56 degrees, managing to dry and sterilize the evaporator to remove dust, accumulated bacteria and mold, significantly reducing odors.
✔️ Compressor and Fans DC Inverter: The outer motor and the ventilation system of Giatsu they optimize seasonal performance adaptively. By continuously modular the velocity of the refrigerant flow R32 According to the real loads of the house, avoid consumer peaks and offers very efficient operation.
✔️ Optimized design for installation and maintenance: AROMA 3 units incorporate practical elements such as a level support included to ensure a perfect alignment, easy access to electric wiring and an electronic plate (PCB) simply, greatly facilitating technical tasks.
✔️ Housing and Golden End / Contact ON / OFF: The exterior chassis has long-term anti-corrosion treatment. Likewise, splits support remote connectivity to perform stop / running functions, which is ideal for its integration with hotel cards or management systems.
Frequently asked questions
How does asymmetric management work for stays with units of 2.5 kW and 5.0 kW?
Independence in the air conditioning of the two stays is total and is electronically coordinated by the external engine expansion valves of Giatsu. Each of the aroma 3 mural units has its own wireless control and its own thermal reading probes. You can program the 5.0 kW unit in the main room in cold mode during the day while the bedroom unit remains completely off or at a smooth setpoint temperature, adapting the outer compressor exactly to the proportional proportional expenditure.
Is it necessary to purchase any optional accessory for the Wi-Fi control of the units?
No, the aroma 3 mural units incorporate the integrated wireless receiver module into the factory equipment's own chassis. It is not necessary to perform complex wiring facilities or acquire optional domotic gateways. You only need to have an Internet wireless Internet connection and configure the equipment with the official mobile application compatible with smartphone or tablet.
What installation flexibility does this system of 6,15 kW nominal?
The system supports a flexible installation to adapt to the distribution of your home. The maximum vertical rate allowed between the outdoor Unit (installed in facade, patio or roof) and the interiors is 15 meters, while the vertical maximum difference between the indoor units mounted within the house is up to 10 meters, facilitating the laying of copper refrigeration lines of Form totally secure.
Do you need technical advice to plan your multi split installation of Giatsu?
On https://tualmacendelclima.com/en/ we are engineers specialists in the design, calculation and optimization of advanced multi-zone air conditioning systems Giatsu. If you have doubts about how to plan the layout of copper pipes (the 2.5 kW model requires 1/4 liquid lines and 3/8 gas, while the 5.0 kW unit requires 1/4 liquid interconnections and 1/2 gas), calculate volume From refrigerant from the length of the pre-installation or integrate voice control, our technical department is at your disposal. Ensure your comfort at the best market price with totally safe shipment.
Call 623 541 934
2025607445019
Data sheet
- Outdoor Unit
- GIA-MO3-21IX41B2R32
- Indoor Unit 1
- Gia-MSI-09ar3r32
- Indoor Unit 2
- Gia-MSI-18ar3r32
- Color
- Blanco
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Refrigerator capacity (W)
- 6.100
- Refrigerator capacity (kcal / h)
- 5.246
- Nominal consumption Cold (W)
- 1.889
- Energy class (cold)
- A++
- SEER
- 6,3
- Heat capacity (W)
- 6.160
- Heat capacity (Kcal / h)
- 5.298
- Nominal heat consumption (W)
- 1.660
- Energy class (heat)
- A
- SCOP
- 3,8
- Minimum sound pressure UI DB
- 19/20
- Net weight (kg)
- 64
- Diameter Liquid pipe
- 1/4
- Diameter Gas Pipe
- 3/8 - 1/2
- Possibility Integration
- Integrated WiFi
- Surface recommend UI1
- 20
- Surface recommend UI2
- 40
- EU dimensions (anxfxh) mm
- 890 x 342 x 673
- Dimensions UI1 (ANXFXH) mm
- 723 x 199 x 286
- Dimensions UI2 (ANXFXH) mm
- 975 x 218 x 308
