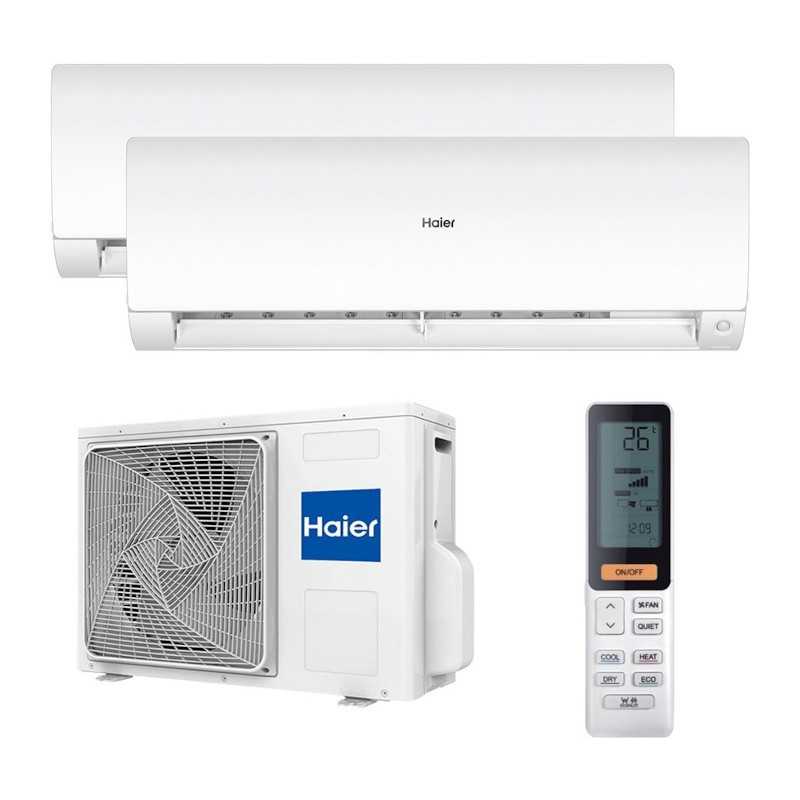

Air conditioning Multi Split 2x1 Haier 3U55S2SR5FA + AS25SBBHRA-MW + AS35SBBHRA-MW FLEXIS WHITE

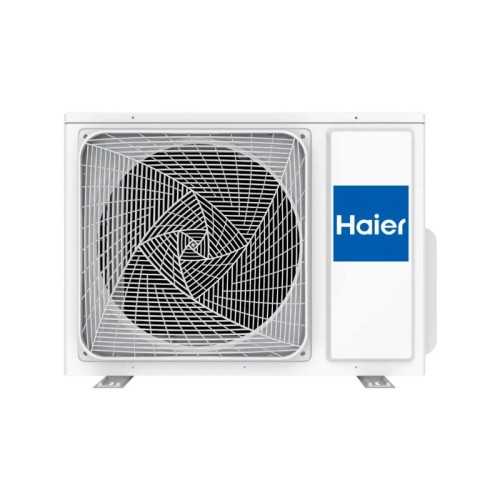

External system performance (3U55S2SR5FA)

Cooling capacity (nominal): 5.50 kW (2,10 kW - 6.80 kW)

Capacity Heating (nominal): 6,80 kW (2.40 kW - 7.60 kW)

Energy classification (cold / heat): A +++ / A ++

Seer efficiency coefficient (cold): 8,50

Efficiency coefficient SCOP (heat): 4,60

Gas Refrigerant Gas Ecological: R32

Electrical supply from the set: Single-phase, 220-240V, 50Hz

Interior units included

Bedroom / Dispatch Unit: 1x AS25SBBHRA-MW (2.5 kW / 9,000 BTU)

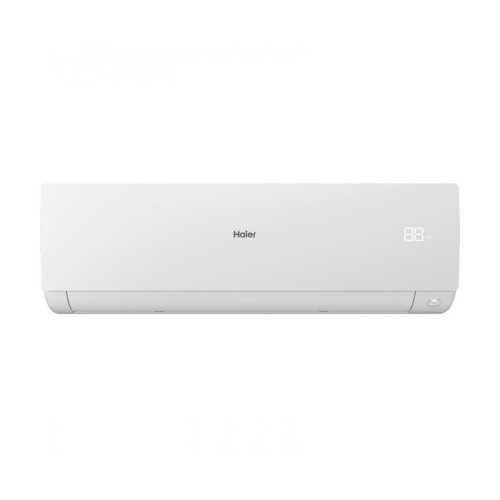

Living unit / main stay: 1x AS35SBBHRA-MW (3.5 kW / 12,000 BTU)

Aesthetics / exterior finish: White Matte Textured Premium

Minimum sound pressure (Quiet mode): 16 dB (A) (Inaudible)

Purification technology: UV-C and Steri-Clean lamp 56 ° C

Intelligent presence sensor: Eco-pilot built-in

Wireless connectivity: Wi-Fi of integrated standard (HONEP)

✔️ Steri-Clean hygienic technology 56 ° C: By precise thermal control, the split raises the temperature of its internal evaporator at 56 ° C for half an hour after the defrost cycle. This thermal shock effectively destroys the cellular structure of the paters adhered to the fins, providing a completely disinfected air.

✔️ Integrated UV-C generation module: It incorporates a short wave ultraviolet light emitter (UV-C) inside the split air flow. When circulating the ambient air, the light inactivates instantly the DNA of the suspension pathogens that pass through the equipment without leaving chemical residues.

✔️ Eco-pilot intelligent presence sensor: An advanced infrared sensor continuously monitors the living space. It detects the location and movement of the users to direct the air indirectly (avoiding discomfort) or direct, automatically reducing the power if the stay remains empty.

✔️ Ultrasilencious operation of 16 dB (A): Thanks to an optimized tangential flow fan and a high precision DC Inverter ventilation engine, the unit reduces internal turbulence and mechanical friction, operating with an ideal imperceptible murmur for bedrooms.

✔️ New generation connectivity with HONEP: Total intelligent control from your smartphone. Serial Wi-Fi allows you to turn on the units remotely, pay advanced schedules, control the purification functions and integrate natively with the Google Assistant and Alexa voice attendants.

What advantage does it provide to install a outdoor Unit 3U55 with only two splits (2x1)?

The advantage is excellent in terms of durability and performance. As a outdoor Unit dimensioned to support up to three splits, working with only two interior units causes the compressor to run out unknown. It reaches the desired temperatures much faster, reduces mechanical wear and offers impeccable thermal behavior even under extreme conditions of heat or outer cold.

How do you manage this system control by asymmetric capabilities (9K + 12K)?

Independence is total. Each Flexis mural unit integrates its own temperature probe and is managed autonomously with its own remote control or smartphone. Split 3.5 kW may be running at room at full performance while the 2,5 kW split of the bedroom stays off, modulating the consumption of the outdoor Unit proportion.

Is the use of the UV-C light generator for people from the home?

Fully safe. The UV-C light emitter is hermetically encapsulated in the internal structure of the mural chassis, which prevents the rays from being projected towards the outside of the room. The air is sanitized continuously only when it is sucked into the equipment, eliminating direct exposure risks.
