Simultaneous massive power, disadvantaged compressor and ultra compact chassis
The air conditioning system Multi Split 2x1 Panasonic Cu-3tz52tbe It is the definitive high-performance configuration designed to independently climate two broad stays by guaranteeing an impeccable thermal response without mechanical effort. This set associates a powerful outdoor Unit Inverter with two last generation interior units Cs-tz35ckew 3.5 kW (12,000 BTU) each. When operating with ecological gas R32 On an oversized exterior chassis for three zones, it reaches excellent class efficiency coefficients To ++. It stands out for its reduced width chassis of only 765 mm, Aerowings deflectors to prevent direct currents, ultrasilencious operation and integrated Wi-Fi standard.
Range Panasonic Multi tz 2x 3.5 kW compact units
ÂżAny doubt about the product?
Talk to us and consult us. We will solve all your doubts

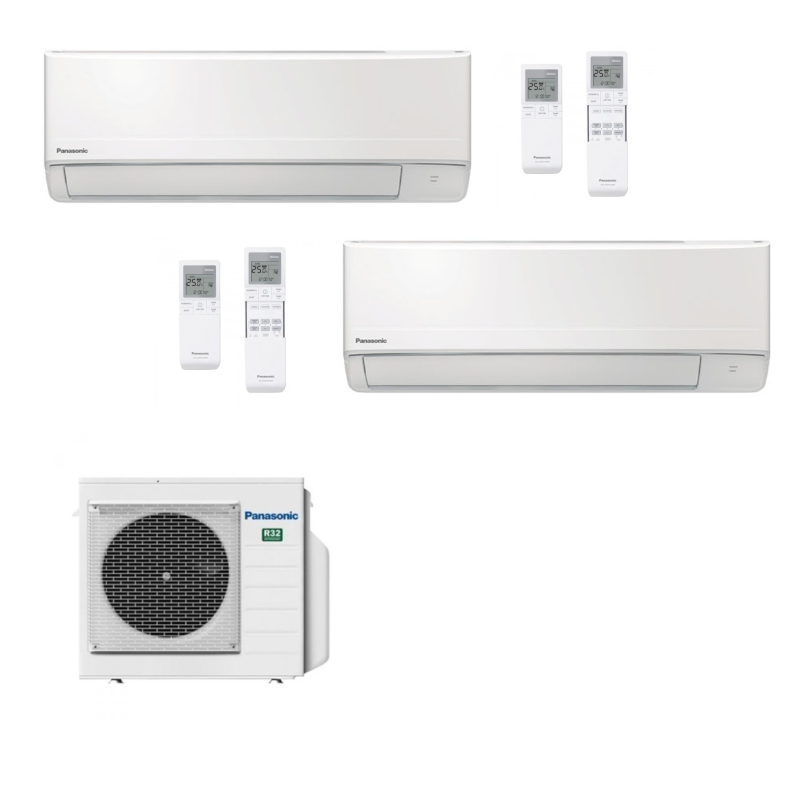

Air conditioning Multi Split 2x1 Panasonic CU-3Q52TBE + 2X CS-TZ35CKEW
Referencia: 2025607445034
âŹ1,872.03
Tax included
î IMMEDIATE DELIVERY!
For deliveries in Europe, consult delivery time
EnvĂo GRATIS en España (PenĂnsula) a partir de 300⏠+ info
Email has been sent successfully.
Calcular Gastos de EnvĂo
đĄïž Pago Seguro â
GarantĂa Oficial
Simultaneous massive power, disadvantaged compressor and ultra compact chassis
The air conditioning system Multi Split 2x1 Panasonic Cu-3tz52tbe It is the definitive high-performance configuration designed to independently climate two broad stays by guaranteeing an impeccable thermal response without mechanical effort. This set associates a powerful outdoor Unit Inverter with two last generation interior units Cs-tz35ckew 3.5 kW (12,000 BTU) each. When operating with ecological gas R32 On an oversized exterior chassis for three zones, it reaches excellent class efficiency coefficients To ++. It stands out for its reduced width chassis of only 765 mm, Aerowings deflectors to prevent direct currents, ultrasilencious operation and integrated Wi-Fi standard.
Range Panasonic Multi tz 2x 3.5 kW compact units
Security policy
Delivery policy
Refund policy
MULTI INVERTER R32 SYSTEM | Outdoor Unit of three zones + 2 interior units of 765 mm
Panasonic Multi Split 2x1 Cu-3TZ52TBE TZ
Outdoor Unit High-capacity CU-3Q52TBE with two 3.5 kW splits: Oversized compressor for effortless comfort, Filters PM2.5 and domotic control.
High-capacity simultaneous air conditioning: loose compressor and reduced chassis
The system of Air conditioning Multi Split 2x1 Panasonic CU-3TZ52TBE with two TZ units of 3.5 kW it represents the ideal configuration for housing or commercial premises that require a contound and simultaneous power delivery in two considerable volume areas, such as two main rooms or bedrooms. When unifying the refrigeration lines in the robust outdoor Unit high capacity (factory designed to support up to three independent interior units), an excellent margin of electromechanical maneuver is achieved. The Inverter compressor works fully and loosely, managing to reach the setpoint temperatures immediately and drastically minimizing mechanical stress on the components against extreme weather climatological peaks.
The outdoor Unit incorporate technology Inverter Panasonic of last generation. This high precision motor modulates the regime of turns continuously to adapt with total accuracy to the instantaneous thermal demand of the interior spaces, completely eliminating the starts and abrupt stops of traditional systems. Working in consonance with high thermal transfer ecological gas R32, the system maximizes seasonal efficiency, achieving an energy classification of class To ++ in refrigeration and A + in heating, which translates into a remarkable relief on your monthly invoices.
The great differential advantage of the mural units of the series Panasonic Tz inverter resides in its ultra compact stylized profile design. With a width of only 765 mm, Splits can be installed elegantly in very limited spaces, as on top of the doors or in narrow corridors, without subtracting performance or volumetric air flow. Your equipment is completed with the Double Intelligent Deflector Aerowings, in charge of directing the air towards the roof to create a severity air conditioning effect and avoid direct uncomfortable bursts on the skin, an advanced filter to trap thin particles PM2.5 and a silent operation that guarantees a nightly rest Repairman.
Technical characteristics

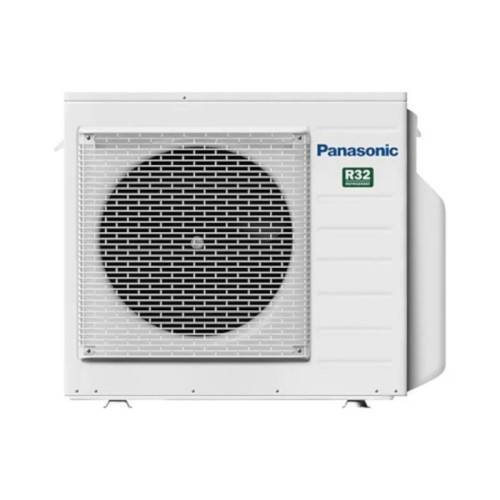

External system performance (CU-3TZ52TBE)
Cooling capacity (nominal): 5,20 kW (Rank: 1,80 kW - 6,80 kW)
Capacity Heating (nominal): 6,80 kW (Rank: 1.60 KW - 8,30 kW)
Seasonal energy classification: A ++ (cold) / A + (heat)
Seer efficiency coefficient (cold): 6,30 (certified efficiency)
Efficiency coefficient SCOP (heat): 4.00 (certified efficiency)
Compressor technology: Rotary high modulation inverter
Gas Refrigerant Gas operation: R32 ecological low impact

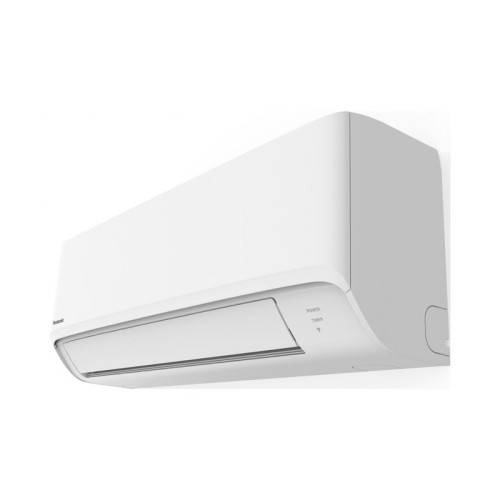

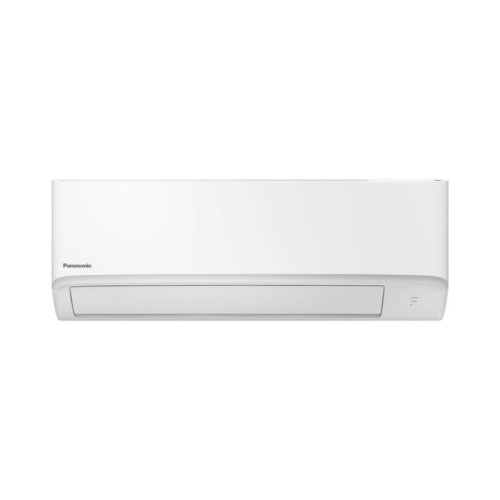

Interior units (2x cs-tz35ckew)
Commercial range / series: Panasonic TZ Compact Inverter 12k
Individual refrigeration capacity: 3.50 kW (12,000 BTU / H)
Individual heat capacity: 4,20 kW (14,336 BTU / H)
Ultra compact dimensions (at x an x PR): 290 x 765 x 214 mm
Net weight per mural unit: 8.0 kg (lightened structure)
Air distribution technology: Double Lama Aerowings
Incorporated special filtering: Filter PM2.5 for suspension particles
Wireless connectivity: Wi-Fi of integrated series (Comfort Cloud App)
Exclusive range technologies Panasonic Tz compact
âïž 765 mm ultra-compact design chassis: The interior units have an optimized structure of advanced engineering that reduces their width at only 76.5 centimeters. This stylized design allows you to locate splits elegantly in very limited spaces on doors or receiver without subtracting performance or volumetric air flow.
âïž Double Air Flow Control Aerowings: It incorporates two independent slats that concentrate and direct the air intelligently. In cold mode, they project the flow to the top of the room to create a severity air conditioning effect (shower cooling), avoiding annoying direct currents over people.
âïž Environmental purification with Filter PM2.5: A high efficiency filtering system in charge of keeping the air from the home clean. It is able to accurately capture microscopic particles of fine dust, allergens, pollen and impurities suspended in the environment, actively protecting your family's respiratory health.
âïž Super silent performance of comfort: Thanks to an optimized cross-sectional fan and the Inverter control of the compressor, the internal air flow is remarkably softened, achieving that the Split operates with an imperceptible murmur ideal for bedrooms, libraries or areas of study.
âïž Advanced connectivity with Panasonic Comfort Cloud: The factory integrated Wi-Fi module within the chassis allows you to monitor and manage air conditioning from any smartphone wirelessly. Turn on the units remotely before arriving home, programmated weekly timers program or audits the energy consumption accumulated in a transparent manner.
Frequently asked questions
What actual advantage does provide installing a outdoor Unit CU-3TZ52TBE of three zones with only two splits (2x1)?
The advantage is excellent in terms of durability, seasonal performance and reliability. The internal units of 3.5 kW demand a refrigerator flow and a high thermal transfer rate. When connecting them to a outdoor Unit high capacity 5,2 kW nominal sized to feed up to three splits, the Inverter compressor works completely loose. It reaches a faster setpoint temperatures, significantly reduces mechanical wear of components and offers impeccable thermal behavior even under weather outdoor climatic conditions.
How is independence managed by stays when installing two units of 3.5 kW?

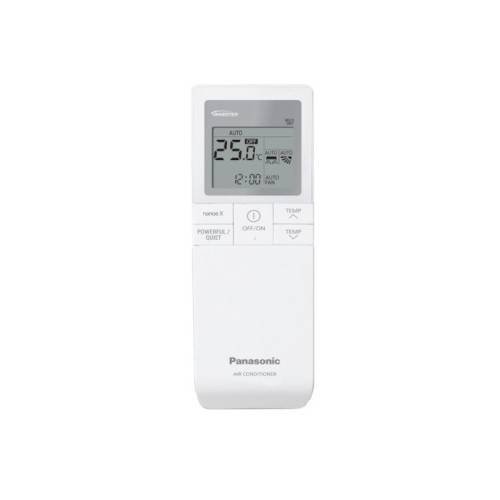

Independence in air conditioning is total. Each Expert Mural unit has its own remote control and its own integrated thermal probes. You can have on the split of one of the stays at full performance in cold mode at 24 ° C during the day while the other unit remains completely off, adapting the outer compressor exactly to the proportional expenditure demanded so as not to spend more energy.
Is it required to acquire an optional accessory for homemade control by Smartphone?
No, the internal units of the TZ series bring the pre-installed Wi-Fi-Fi receptor module from the factory serial within the housing itself. It does not require the purchase of additional walkways of any kind. You only need to have an Internet wireless internet connection and download the official application for free Panasonic Comfort Cloud on your mobile device.
Do you need technical advice to plan your multi split installation of Panasonic?
On https://tualmacendelclima.com/en/ we are engineers specialists in advanced air conditioning solutions. If you have doubts about how to plan the distribution of your ultra compact equipment, size the refrigeration lines of copper (both inner units require 1/4 liquid connections and 3/8 gas) or configure the Comfort Domotic Network Cloud from your home, our technical department is at your entire disposal. Ensure your comfort at the best market price with safe shipment.
Call 623 541 934
2025607445034
Data sheet
- Outdoor Unit
- CU-3TZ52CBE
- Indoor Unit 1
CS-TZ35ZKEW- Indoor Unit 2
CS-TZ35ZKEW- Color
- Blanco
- Refrigerant Gas
- R32
- Electrical supply
- MonofĂĄsica
- Refrigerator capacity (W)
- 5.200
- Refrigerator capacity (kcal / h)
- 4.472
- Nominal consumption Cold (W)
- 1.150
- Energy class (cold)
- A++
- SEER
- 7.6
- Heat capacity (W)
- 6.800
- Heat capacity (Kcal / h)
- 5.848
- Nominal heat consumption (W)
- 1.590
- Energy class (heat)
- A+
- SCOP
- 4,2
- Minimum sound pressure UI DB
- 20/20
- Net weight (kg)
- 87
- Diameter Liquid pipe
- 1/4
- Diameter Gas Pipe
- 3/8
- Possibility Integration
- Integrated WiFi
- Surface recommend UI1
- 28
- Surface recommend UI2
- 28
- EU dimensions (anxfxh) mm
- 875 x 320 x 795
- Dimensions UI1 (ANXFXH) mm
- Dimensions UI2 (ANXFXH) mm
