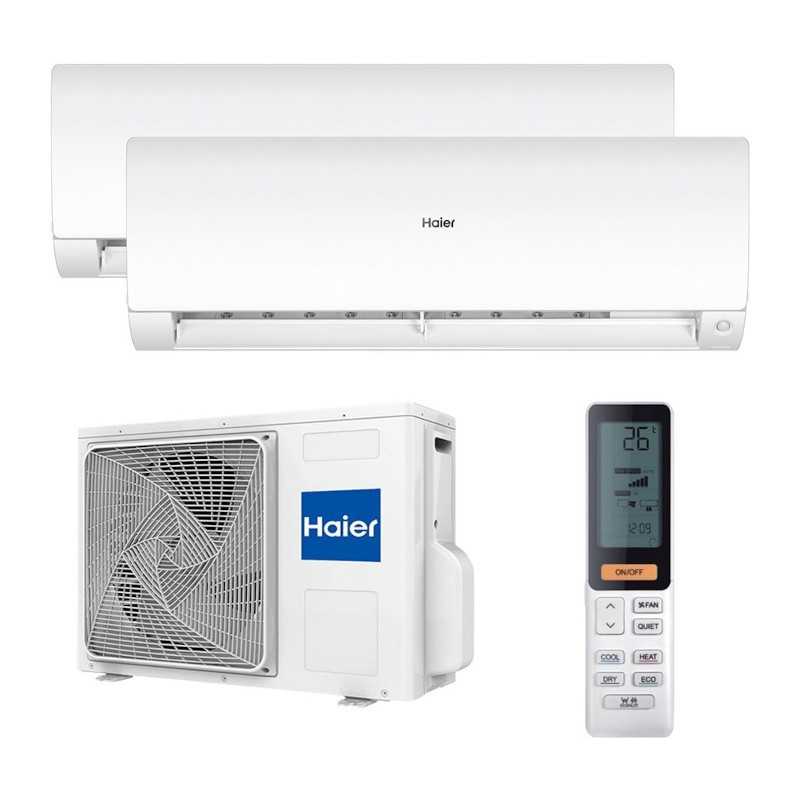

Air conditioning Multi Split 2x1 Haier 4U85S2SR5FA + 2X AS50SDBHRA-MW FLEXIS WHITE

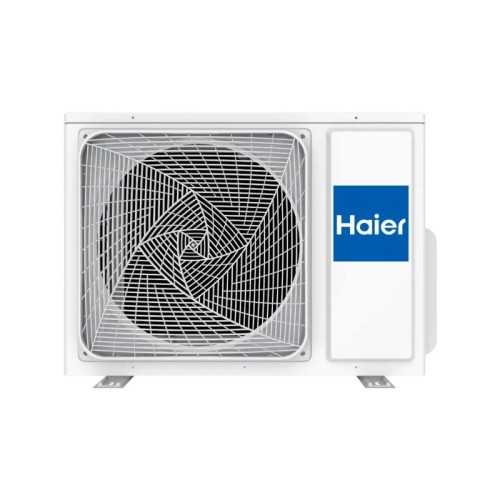

External system performance (4U85S2SR5FA)

Cooling capacity (nominal): 8,50 kW (3,20 kW - 9.50 kW)

Capacity Heating (nominal): 9,60 kW (3.40 kW - 10.50 kW)

Seasonal energy classification (cold / heat): A +++ / A ++

Seer efficiency coefficient (cold): 8,50

Efficiency coefficient SCOP (heat): 4,60

Gas Refrigerant Gas Ecological / Compressor: R32 / A-Pam Inverter

Electrical supply from the set: Single-phase, 220-240V, 50Hz

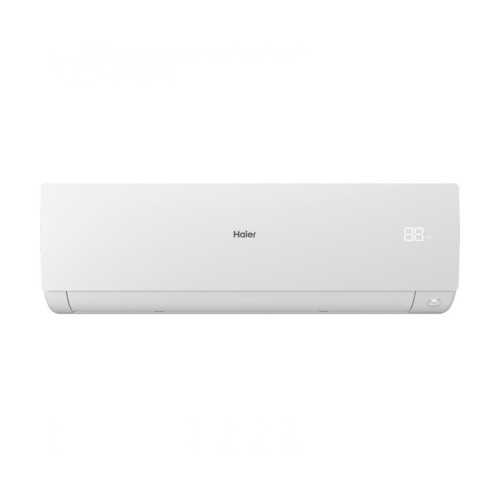

Interior units (2x AS50SDBHRA-MW)

Commercial range / series: Haier Flexis Inverter 18k

Aesthetics / exterior finish: White Matte Textured Premium

Individual refrigeration capacity: 5,00 kW (4,300 frversees / 18k BTU)

Purification technology: UV-C and Steri-Clean lamp 56 ° C

Intelligent presence sensor: Eco-pilot built-in series

Wireless connectivity: Wi-Fi of integrated standard (HONEP)

Diameter of refrigerated connections: Liquid pipes 1/4 - Gas 1/2 (x2)

✔️ Steri-Clean hygienic technology 56 ° C: After performing a hydrophobic defrost to clean the aluminum slats of the inner battery, the equipment increases controlled the temperature of the inner evaporator at 56 ° C for 30 minutes. This continuous thermal shock effectively destroys the cellular structure of adhered pathogens, providing an air completely free of contaminants.

✔️ Integrated UV-C generation module: It incorporates a short wave ultraviolet light emitter (UV-C) into the mechanical interior of the Flexi units. By circulating the flow of ambient air, the light inactivates instantly the DNA and RNA of the suspended pathogens that pass through the ventilation turbine, disinfecting cleanly without generating residual chemical byproducts.

✔️ Eco-pilot intelligent presence sensor: An advanced infrared sensor monitors the occupation plan of the rooms. Constantly detects the location and movement of the users to direct the air indirectly (preventing direct upset currents on the body) or direct, and automatically reduces the returns whether the stay is empty to minimize energy consumption.

✔️ Powerful 3D air flow: The optimized hydrodynamic design of 5.0 kW flexi splits allows you to project a homogeneous air jet at a great distance, guaranteeing a continuous circulation throughout the surface of large rooms by horizontal automatic synchronized oscillation and Vertical.

✔️ New generation connectivity with HONEP: Comprehensive smart control from any smartphone. The Wi-Fi series allows you to turn on the units remotely before you get home, schedule calendars and advanced schedules, tactically manage the purification protocols and link naturally with the Google Assistant smart assistants and Alexa.

What actual advantage does provide installing a outdoor Unit 4U85 of four zones with only two splits (2x1)?

The advantage is excellent in terms of durability, seasonal performance and reliability. The internal units of 5.0 kW demand a refrigerator flow and a very high thermal transfer rate. When connecting them to a outdoor Unit industrial 8.5 kW nominal sized for feeding up to four splits, the Inverter compressor works in a completely loose and without efforts to the limit, ensuring immediate massive cooling and a long-lasting compressor life.

How is independence managed by stays when installing two units of 5.0 kW?

Independence in comfort is total. Each of the large-capacity mural units incorporates its own thermal sensor and is managed autonomously with its smartphone or wireless remote control. You can program the split of an area in cooling mode to full performance while the unit installed in the other space remains completely off or modulating at low power, adapting the external compressor exactly to the proportional expenditure demanded.

Is the use of the integrated UV-C lamp for the people of the house or trade?

It is completely safe. The UV-C light emitter is located hermetically encapsulated in the internal chassis structure of the mural unit, which prevents ultraviolet rays from being projected towards the outside of the rooms. The air is highly sanitized solely as it passes through the internal flow of the machine, eliminating any risk of direct exposure.
