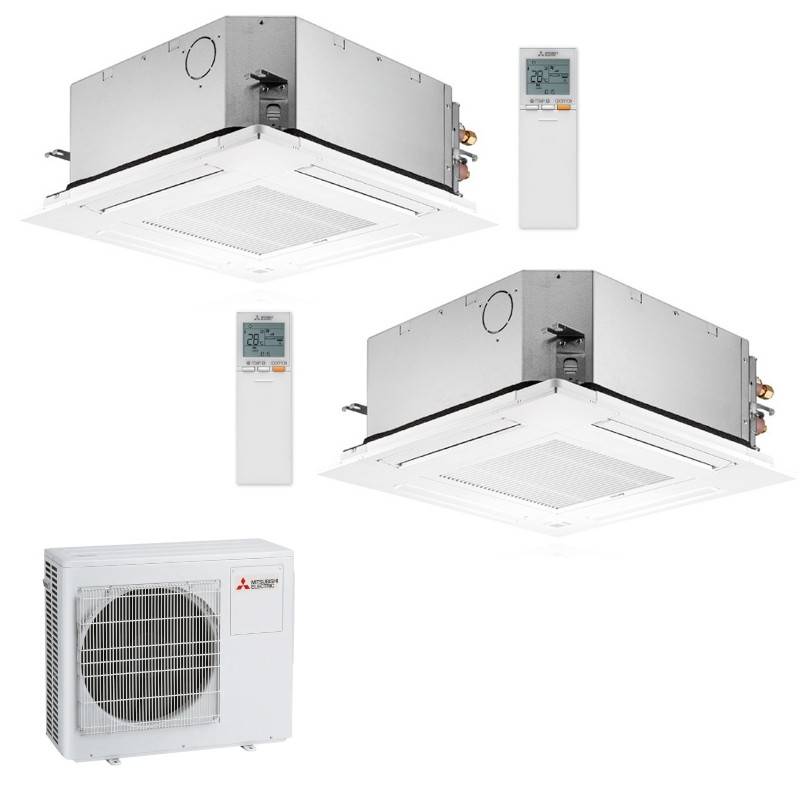

Kit Multisplit Mitsubishi Cassette 2x1 Standard
MXZ-2F53VF + 2x SLZ-M25FA • 5.3 kW
Cassette system 4 professional tracks with exterior 5.3 kW + twin cassettes of 2.5 kW + 2.5 kW. Stop two commercial spaces. 360° distribution from ceiling.
Main advantages
20m2 + 20m2 commercial
Cassette 4-way 360°
24/24 dB(A) professional
A++/A++ commercial
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Air conditioning Multi Split 2x1 cassette Mitsubishi Electric MXZ-2F53VF + 2X SLZ-M25FA
Referencia: 2025607445049
€3,621.05
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Kit Multisplit Mitsubishi Cassette 2x1 Standard
MXZ-2F53VF + 2x SLZ-M25FA • 5.3 kW
Cassette system 4 professional tracks with exterior 5.3 kW + twin cassettes of 2.5 kW + 2.5 kW. Stop two commercial spaces. 360° distribution from ceiling.
Main advantages
20m2 + 20m2 commercial
Cassette 4-way 360°
24/24 dB(A) professional
A++/A++ commercial
Security policy
Delivery policy
Refund policy
CASSETTE GEMELA MEDIANA ALTA POTENCIA
Kit Multisplit Mitsubishi 2x1 MXZ-3F68VF + 2x SLZ-M35FA Cassette
SLZ Cassette White Series - Gemela Mediana 4 Vias Configuration
Complete system 6.8 kW + 3.5+3.5 kW + optional WiFi + A++ + Cassette 4 track + 25/25 dB(A) + 28+28m2
Kit Multisplit Mitsubishi 2x1 MXZ-3F68VF + 2x SLZ-M35FA Cassette represents the high-power median twin configuration with 4-way distribution, combining a outdoor Unit high capacity of 6.8 kW with two identical cassettes SLZ-M35FA of 3.5 kW each for spaces of 28 m2. Ideal for air conditioning two symmetrical medium commercial spaces with uniform distribution from the ceiling, high capacity and continuous professional performance.
Ción Configuration Cassette Gemela Mediana Professional 3.5+3.5 kW
This professional ceiling configuration offers 360° uniform distribution for two large meeting rooms, two medium-sized stores, two large queries, two classrooms, two large offices or symmetrical commercial spaces that require discrete high-capacity climate from the ceiling.
The outdoor Unit MXZ-3F68VF with high capacity Inverter technology efficiently manages its 6.8 kW distributed between two medium-high demand cassettes, achieving a solid Efficiency SEER OF 8.0 Rating A ++ in cooling and 4.1 rating A+ in heating, optimized for intensive commercial use.
Every cassette SLZ-M35FA of 3.5 kW with compact design 570x570 mm is perfectly integrated into false standard 600x600 mm ceilings, offering 25 dB(A) optimized for medium-high capacity and distribution 4 tracks horizontal which eliminates direct currents by creating uniform and professional environment in meeting rooms, shops, consultations or medium-sized commercial spaces.
Incorporate optional 3D I-See sensor in each cassette that detects multiple occupants and automatically adjusts consumption by area, easyClean robust panel which automatically descends up to 4m to facilitate commercial maintenance, integrated powerful drainage pump and adaptive control system. Control Optional WiFi with professional management MELCloud.
PROFESSIONAL TRADE POTENCE
7.0 kw
Total Commercial Capacity
56 m²
Total Dual coverage
360°
Complete distribution
A++
Trade efficiency
Ideal configuration for identical medium commercial spaces - Balanced professional power
| Cassette Gemela 3.5+3.5 Professional medium configuration | 6.8 kW High Capacity Outdoor Unit commercial | A++/A+ Commercial Seer 8.0 - Scop 4.1 |
| ) 25/25 dB(A) Professional Optimized commercial silence | 🏠 28 + 28m² medium Two commercial spaces | ️ Sensor 3D Pro Dual Multiple occupier detection |
Advanced Cassette Technologies
Flow 4 Medium Ways
Optimized horizontal distribution for medium-sized commercial spaces.
Commercial maintenance
EasyClean robust panel designed for intensive commercial use and frequent maintenance.
Reinforced Drainage
Commercial drainage system with powerful pump for continuous use and high capacity.
Es Ideal commercial applications
Meeting facilities
Two identical spacious conference rooms
Two identical spacious conference rooms
Retail Stores
Two medium commercial premises
Two medium commercial premises
Medical Centres
Two specialized comprehensive consultations
Two specialized comprehensive consultations
Educational centres
Two classrooms or training rooms
Two classrooms or training rooms
Es Professional Trade Benefits
Commercial operation:
- Continuous operation 8-12 hours
- Uniform distribution without currents
- Independent area management
- Professional energy monitoring
Economic advantages:
- Lower cost than individual systems
- Effective centralized maintenance
- Programmable time control
- ROI optimized for commercial use
Technical specifications
| Specification | Value |
|---|---|
| Outdoor Unit | MXZ-3F68VF (High Capacity 3F Series) |
| Interior units | 2x SLZ-M35FA (Cassette 4 mediumway) |
| Total refrigeration capacity | 5.848 kcal / h (6,800 W) |
| Total heat capacity | 7.396 kcal / h (8,600 W) |
| Power distribution | 3.5 kW + 3.5 kW (medium twin configuration) |
| Energy classification | A ++ cold + heat |
| Seer / Scop | 8.0 / 4.1 |
| Indoor sound level | 25 dB(A) + 25 dB(A) |
| Recommended area | 28 m² + 28 m² |
| Cassette dimensions | 570 x 570 x 245 mm (Each unit) |
| Annual consumption (cold / heat) | 299 kWh / 2.312 kWh |
| Installation type | Standard ceiling 600x600 mm |
| Total weight system | 93 kg |
Ideal Commercial applications Median
Corporate officesMedium business Two spacious meeting rooms | Premium RetailMedium commercial Two medium stores | Health CentresMedian health Two broad consultations |
Kit Multisplit Mitsubishi Cassette 2x1 - Commercial Median Gemela Configuration
6,8 kW total + 3.5+3.5 kW + optional WiFi + A++/A+ + Cassette 4 track + 25/25 dB(A) + 28+28m2
Cassette Comercial Medium spaces High Capacity
2025607445049
Data sheet
- Outdoor Unit
- MXZ-3F68VF
- Indoor Unit 1
- SLZ-M35FA
- Indoor Unit 2
- SLZ-M35FA
- Color
- Blanco
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Refrigerator capacity (W)
- 6.800
- Refrigerator capacity (kcal / h)
- 5.848
- Nominal consumption Cold (W)
- 1.840
- Energy class (cold)
- A++
- SEER
- 8
- Heat capacity (W)
- 8.600
- Heat capacity (Kcal / h)
- 7.396
- Nominal heat consumption (W)
- 1.910
- Energy class (heat)
- A+
- SCOP
- 4,1
- Minimum sound pressure UI DB
- 25/25
- Net weight (kg)
- 93
- Diameter Liquid pipe
- 1/4
- Diameter Gas Pipe
- 3/8
- Possibility Integration
- Optional WiFi
- Surface recommend UI1
- 28
- Surface recommend UI2
- 28
- EU dimensions (anxfxh) mm
- 840 x 330 x 710
- Dimensions UI1 (ANXFXH) mm
- 570 x 570 x 245
- Dimensions UI2 (ANXFXH) mm
- 570 x 570 x 245
