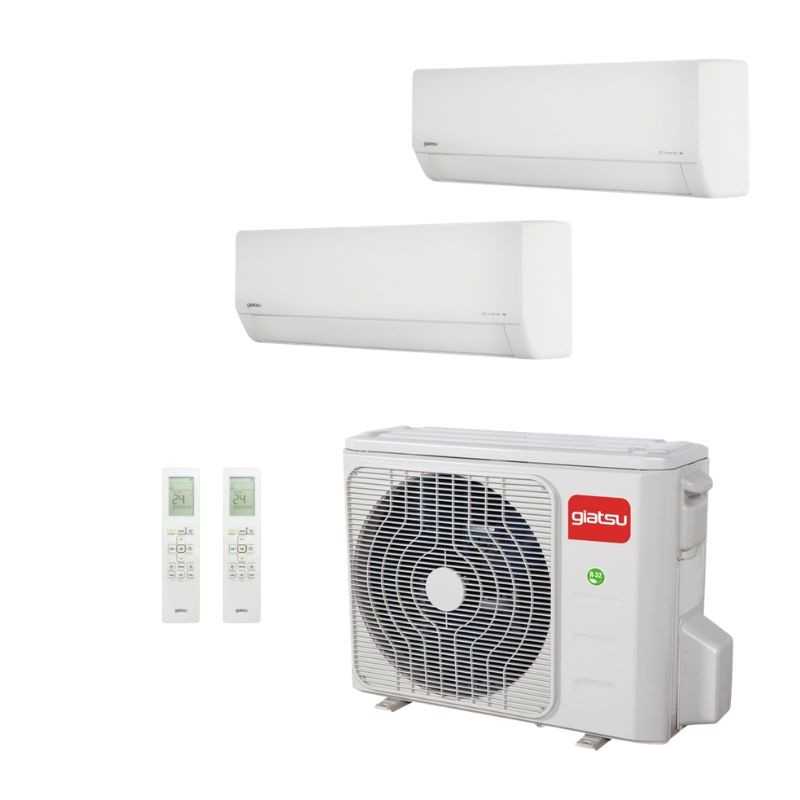

Multi Split 2x1 Giatsu GIA-MO3-27IX41B2R32 + GIA-MSI-09AR3R32 + GIA-MSI-12AR3R32 AROMA 3

Performance of the Outdoor Unit (Gia-mo3-27ix41b2r32)

Cooling capacity (nominal): 8,20 kW (Work Range inverter from 2,10 kW to 9.80 kW)

Capacity Heating (nominal): 8,20 kW (High Efficiency Working Range of 2,10 kW to 9.40 kW)

Seasonal energy classification (cold / heat): A ++ / A + (efficient performance)

Seer efficiency coefficient (cold): 6,1

Efficiency coefficient SCOP (heat): 4,0

Compressor technology: DC Inverter High Efficiency and Performance

Exterior air flow: 3.000 m³ / h

Gas Refrigerant Gas Ecological / load: R32 / 1.85 kg

Indoor units included (Aroma 3 series)

Split Dispatch or secondary bedroom: 1x GIA-MSI-09AR3R32 (2,60 kW cold / 2.93 kW heat)

Main split or lounge: 1x GIA-MSI-12AR3R32 (3,51 kW cold / 3.81 kW heat)

Minimum sound pressure (2.5 kW model): 19 dB (A) (ultrasilence)

Dimensions Split 2.5 kW (an x at x PR): 723 x 286 x 199 mm

Dimensions Split 3.5 kW (an x at x PR): 813 x 289 x 201 mm

Connection diameter (all models): Liquid 1/4 - Gas 3/8

Domotic wireless connectivity: Wi-Fi series included (control by smartphone or voice)

✔️ Smart ecosystem with Wi-Fi included: Every indoor Unit includes factory pre-installed a wireless receiver module. When linking with the mobile application on your smartphone or tablet, it allows you to control the rooms independently or manage the basic functions through voice commands with Alexa and Google Home.

✔️ High temperature self-cleaning process (56 ° C): Take care of the air quality of your home. The split runs an automatic cycle that raises the internal temperature of the battery up to 56 degrees, managing to dry and sterilize the evaporator to remove dust, accumulated bacteria and mold, significantly reducing odors.

✔️ Compressor and Fans DC Inverter: The outer motor and the ventilation system of Giatsu they optimize seasonal performance adaptively. By continuously modular the velocity of the refrigerant flow R32 According to the real loads of the house, avoid consumer peaks and offers very efficient operation.

✔️ Optimized design for installation and maintenance: The aroma 3 of 2.5 kW and 3.5 kW aroma incorporate practical elements such as an included level support to ensure a perfect alignment, easy access to the electrical wiring and an electronic plate (PCB) simply, greatly facilitating technical tasks.

✔️ Housing and Golden End / Contact ON / OFF: The exterior chassis has long-term anti-corrosion treatment. Likewise, splits support remote connectivity to perform stop / running functions, which is ideal for its integration with hotel cards or management systems.

What actual advantage does provide to install a high capacity engine of 8.20 kW with only two interior units connected?

The advantage is excellent in durability, seasonal performance and absolute mechanical reliability. The selected interior units (from 2.5 kW and 3.5 kW) require an optimal refrigeration flow when they work at full capacity. When connecting them to a outdoor Unit high capacity of 8,20 kW nominal sized in a chassis of three independent ports, the Inverter compressor works in a totally relieved regime. It does not suffer from mechanical overwhelming, reaches the desired temperatures faster and guarantees impeccable thermal behavior under demanding climatic conditions.

How does Asymmetric Management work for stays with units of 2.5 kW and 3.5 kW?

Independence in the air conditioning of both rooms is total and is electronically coordinated by the external engine expansion valves of Giatsu. Each of the aroma 3 mural units has its own wireless control and its own thermal reading probes. You can program the 3.5 kW unit in the main room in cold mode during the day while the bedroom unit remains completely off or at a smooth setpoint temperature, adapting the outer compressor exactly to the defendant proportional proportional expenditure.

What are the maximum refrigeration and uneven distances of this multi-split set?

According to the official data sheet of the GIA-MO3-27IX41B2R32 engine, the outdoor Unit it supports a maximum total length of pipes up to 60 meters by adding the refrigerated branches of the installation, with a maximum limit per individual branch of up to 30 meters. The maximum vertical rate allowed between the outdoor Unit and the interiors are 15 meters, while the maximum vertical unevenness between the indoor units mounted within the house is up to 10 meters.
