Reinforced asymmetric power, loose compressor and ultra compact chassis
The air conditioning system Multi Split 2x1 Panasonic Cu-3tz52tbe It is the technological solution of great definitive capacity designed to independently airly climate two rooms with markedly different volumes using a single outer compressor. This high performance set associates a powerful outdoor Unit Inverter with a indoor Unit CS-TZ25CKEW (2.5 kW) Ideal for medium-sized stays or bedrooms, and a unit of great flow CS-TZ42CKEW (4.2 kW) Suitable for wide rooms. Ecological gas driven R32 On an over-dimensioned outer chassis for three zones, it reaches a seasonal classification classification To ++ Cold It stands out for its chassis of only 765 mm wide, aerowings flow control, silent operation and integrated wi-fi series.
Range Panasonic Multi tz Ultra compact 9k + 15k combination
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts

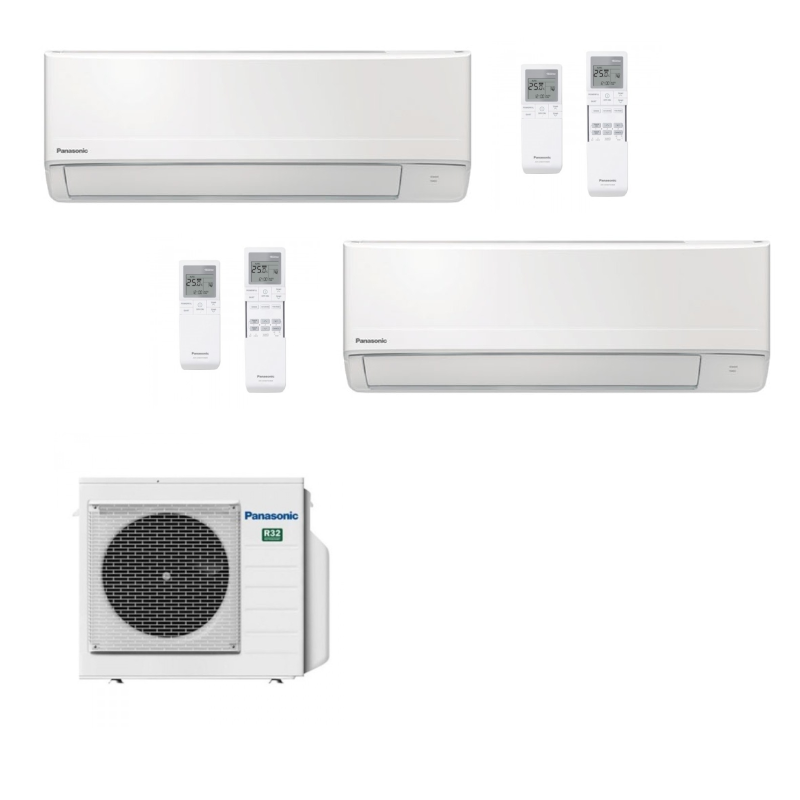

Air conditioning Multi Split 2x1 Panasonic CU-3TZ52TBE + CS-TZ25CKEW + CS-TZ42CKEW
Referencia: 2025607445069
€1,934.52
Tax included
IMMEDIATE DELIVERY!
For deliveries in Europe, consult delivery time
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Reinforced asymmetric power, loose compressor and ultra compact chassis
The air conditioning system Multi Split 2x1 Panasonic Cu-3tz52tbe It is the technological solution of great definitive capacity designed to independently airly climate two rooms with markedly different volumes using a single outer compressor. This high performance set associates a powerful outdoor Unit Inverter with a indoor Unit CS-TZ25CKEW (2.5 kW) Ideal for medium-sized stays or bedrooms, and a unit of great flow CS-TZ42CKEW (4.2 kW) Suitable for wide rooms. Ecological gas driven R32 On an over-dimensioned outer chassis for three zones, it reaches a seasonal classification classification To ++ Cold It stands out for its chassis of only 765 mm wide, aerowings flow control, silent operation and integrated wi-fi series.
Range Panasonic Multi tz Ultra compact 9k + 15k combination
Security policy
Delivery policy
Refund policy
MULTI INVERTER R32 SYSTEM | Outdoor Unit of three zones + 2 interior units of 765 mm
Panasonic Multi Split 2x1 Cu-3TZ52TBE TZ
Outdoor Unit CU-3TZ52TBE with asymmetric splits of 2.5 kW and 4.2 kW: the ideal balance for massive comfort in the salon and rest relief.
Professional asymmetric air conditioning: maximum flexibility for stays with a loose compressor
The system of Air conditioning Multi Split 2x1 Panasonic CU-3QZ52TBE with TZ units it represents the ideal engineering solution for housing where the distribution of space requires a dispatch of forceful and asymmetric power. When you connect a indoor Unit 2.5 kW and another 4.2 kW to the robust outdoor Unit high capacity (factory designed with hydraulic architecture to support up to three independent indoor areas), an excellent margin of electromechanical maneuver is achieved. The Inverter compressor works fully and loose, achieving the thermal charges quickly off by 4.2 kW split in salons or dining rooms, while providing fast and silent air conditioning in bedrooms with the split of 2.5 kW, optimizing the outer space of your facade or terrace to the maximum.
The outdoor Unit incorporate technology Inverter Panasonic of last generation. This high electromechanical high-precision motor completely removes startups and sudden stops from traditional systems, continuously modulating its rotation speed to fit with millimeter accuracy to the instantaneous thermal load of the rooms. Working in consonance with high thermal transfer ecological gas R32, the system maximizes seasonal efficiency, achieving excellent energy classifications classifications To ++ in refrigeration and A + in heating, which translates into a remarkable relief on your monthly invoices.
The great differential advantage of the mural units of the series Panasonic Tz inverter it resides in its ultra compact stylized profile design, avoiding rough and voluminous chassis from high-power traditional splits. With a width of only 765 mm in both models, the interior units can be installed with absolute naturalness in very small spaces, as on top of the doors or in narrow corridors, without subtracting performance or volumetric air flow. Your equipment is completed with the Double Intelligent Deflector Aerowings, in charge of directing the air to the roof to create a severity air conditioning effect and avoid direct uncomfortable bursts on the skin, an advanced filter to trap thin particles PM2.5 and a silent operation that guarantees a repairing rest.
Technical characteristics

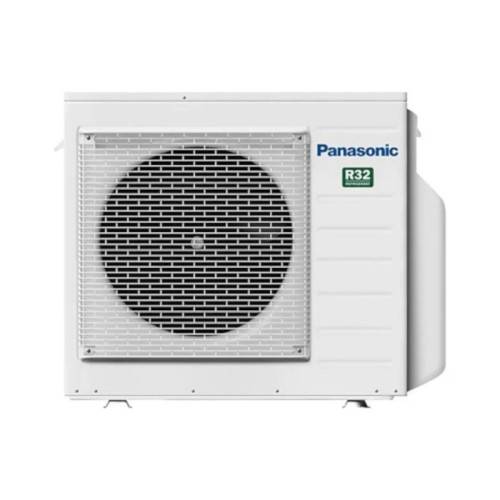

External system performance (CU-3TZ52TBE)
Cooling capacity (nominal): 5,20 kW (Rank: 1,80 kW - 6,80 kW)
Capacity Heating (nominal): 6,80 kW (Rank: 1.60 KW - 8,30 kW)
Seasonal energy classification: A ++ (cold) / A + (heat)
Seer efficiency coefficient (cold): 6,30 (certified efficiency)
Efficiency coefficient SCOP (heat): 4.00 (certified efficiency)
Compressor technology: Rotary high modulation inverter
Gas Refrigerant Gas operation: R32 ecological low impact

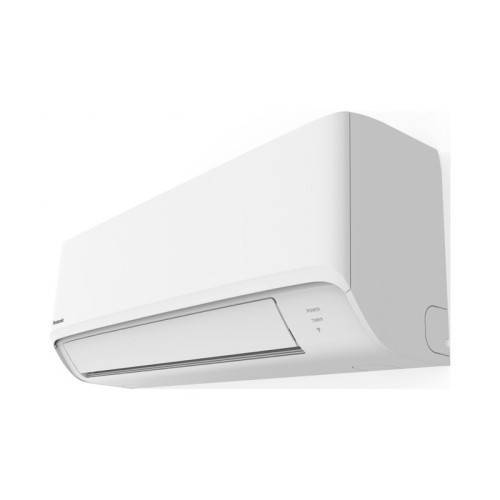

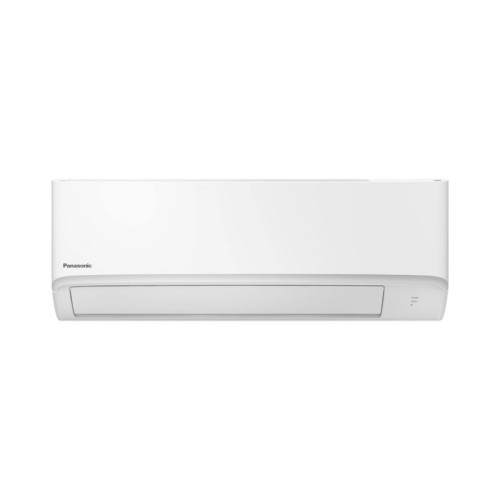

Indoor units included (TZ series)
Split bedroom / dispatch unit: 1x CS-TZ25CKEW (2.50 kW / 9,000 BTU / H)
Split Living / Large Zone unit: 1x CS-TZ42CKEW (4,20 kW / 15,000 BTU / H)
Ultra compact dimensions (at x an x PR): 290 x 765 x 214 mm
Net weight per mural unit: 8.0 kg (lightened structure)
Air distribution technology: Double Lama Aerowings
Incorporated special filtering: Filter PM2.5 for suspension particles
Wireless connectivity: Wi-Fi of integrated series (Comfort Cloud App)
Exclusive range technologies Panasonic Tz compact
✔️ 765 mm ultra-compact design chassis: The interior units have an optimized structure of advanced engineering that reduces their width at only 76.5 centimeters. This stylized design allows you to locate splits elegantly in very limited spaces on doors or receiver without subtracting performance or volumetric air flow.
✔️ Double Air Flow Control Aerowings: It incorporates two independent slats that concentrate and direct the air intelligently. In cold mode, they project the flow to the top of the room to create a severity air conditioning effect (shower cooling), avoiding annoying direct currents over people.
✔️ Environmental purification with Filter PM2.5: A high efficiency filtering system in charge of keeping the air from the home clean. It is able to accurately capture microscopic particles of fine dust, allergens, pollen and impurities suspended in the environment, actively protecting your family's respiratory health.
✔️ Super silent performance of comfort: Thanks to an optimized cross-sectional fan and the Inverter control of the compressor, the internal air flow is remarkably softened, achieving that the Split operates with an imperceptible murmur ideal for bedrooms, libraries or areas of study.
✔️ Advanced connectivity with Panasonic Comfort Cloud: The factory integrated Wi-Fi module within the chassis allows you to monitor and manage air conditioning from any smartphone wirelessly. Turn on the units remotely before arriving home, programmated weekly timers program or audits the energy consumption accumulated in a transparent manner.
Frequently asked questions
What actual advantage does provide installing a outdoor Unit CU-3TZ52TBE of three zones with only two splits (2x1)?
The advantage is excellent in terms of durability, seasonal performance and reliability. The indoor units of great capacity (especially that of 4.2 kW) require a refrigerated flow and a very high thermal transfer rate. When connecting them to a outdoor Unit high capacity 5,2 kW nominal sized to feed up to three splits, the Inverter compressor works completely loose. It reaches a faster setpoint temperatures, significantly reduces mechanical wear of components and offers impeccable thermal behavior even under weather outdoor climatic conditions.
How does asymmetric management work for stays with units of 2.5 kW and 4.2 kW?
Independence in air conditioning is total and is perfectly coordinated by external electronic management. Each TZ mural unit has its own remote control and its own integrated thermal probes. You can have the 4.2 kW split on the mainstatting master room during the day while the 2.5 kW unit installed in the bedroom remains completely off or running under a soft slogan, adapting the exterior compressor exactly to proportional expense Respondent.
Is it required to acquire an optional accessory for homemade control by Smartphone?
No, the internal units of the TZ series bring the pre-installed Wi-Fi-Fi receptor module from the factory serial within the housing itself. It does not require the purchase of additional walkways of any kind. You only need to have an Internet wireless internet connection and download the official application for free Panasonic Comfort Cloud on your mobile device.
Do you need technical advice to plan your multi split installation of Panasonic?
On https://tualmacendelclima.com/en/ we are engineers specialists in advanced air conditioning solutions. If you have doubts about how to plan the distribution of your ultra compact asymmetric capabilities, size the copper refrigeration lines (units require different diameters: 1/4-3 / 8 for the 2.5 kW model and 1/4-1 / 2 For the 4.2 kW model) or configure the home network, our technical department is at your disposal. Ensure your comfort at the best market price with safe shipment.
Call 623 541 934
2025607445069
Data sheet
- Outdoor Unit
- CU-3TZ52CBE
- Indoor Unit 1
- Indoor Unit 2
- Color
- Blanco
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Refrigerator capacity (W)
- 5.200
- Refrigerator capacity (kcal / h)
- 4.472
- Nominal consumption Cold (W)
- 1.150
- Energy class (cold)
- A++
- SEER
- 7.6
- Heat capacity (W)
- 6.800
- Heat capacity (Kcal / h)
- 5.848
- Nominal heat consumption (W)
- 1.590
- Energy class (heat)
- A+
- SCOP
- 4,2
- Minimum sound pressure UI DB
- 20/25
- Net weight (kg)
- 87
- Diameter Liquid pipe
- 1/4
- Diameter Gas Pipe
- 3/8 - 1/2
- Possibility Integration
- Integrated WiFi
- Surface recommend UI1
- 20
- Surface recommend UI2
- 33
- EU dimensions (anxfxh) mm
- 875 x 320 x 795
- Dimensions UI1 (ANXFXH) mm
- Dimensions UI2 (ANXFXH) mm
