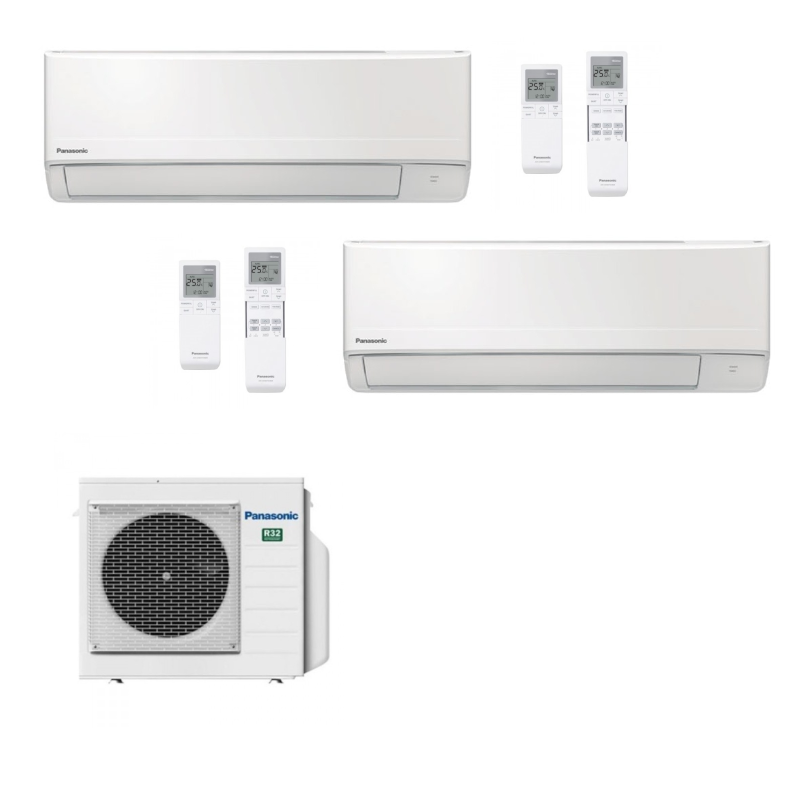

Air conditioning Multi Split 2x1 Panasonic CU-2QZ41TBE + 2X CS-TZ20CKEW

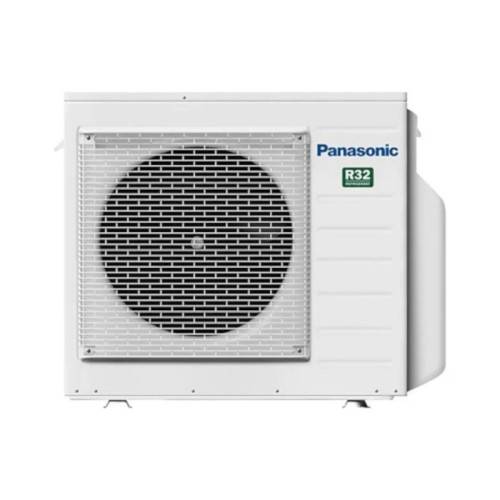

External system performance (CU-2QZ41TBE)

Cooling capacity (nominal): 4,10 kW (range: 1.50 kW - 4.50 kW)

Capacity Heating (nominal): 4,40 kW (range: 1,10 kW - 4,80 kW)

Seasonal energy classification: A ++ (cold) / A + (heat)

Seer efficiency coefficient (cold): 6.50 (certified efficiency)

Efficiency coefficient SCOP (heat): 4,20 (certified efficiency)

Compressor technology: Rotary high modulation inverter

Gas Refrigerant Gas operation: R32 ecological high transfer

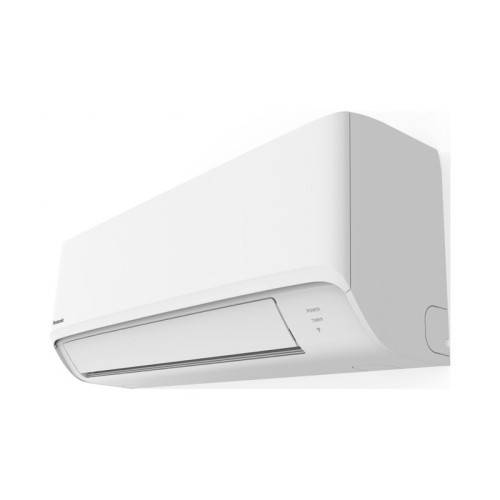

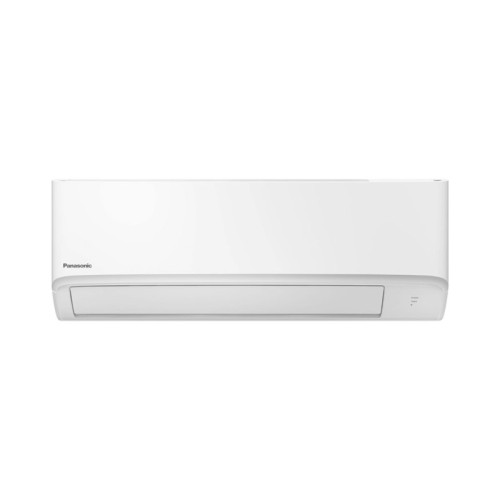

Interior units (2x cs-tz20ckew)

Commercial range / series: Panasonic Tz compact inverter

Individual refrigeration capacity: 2,00 kW (7,000 BTU / H)

Individual heat capacity: 3,20 kW (10,920 BTU / H)

Ultra compact dimensions (at x an x PR): 290 x 765 x 214 mm

Net weight per mural unit: 8.0 kg (lightened structure)

Air distribution technology: Double Lama Aerowings

Incorporated special filtering: Filter PM2.5 for suspension particles

Wireless connectivity: Wi-Fi of integrated series (Comfort Cloud App)

✔️ 765 mm ultra-compact design chassis: The interior units have an optimized structure of advanced engineering that reduces their width at only 76.5 centimeters. This stylized design allows you to locate splits elegantly in very limited spaces on doors or receiver without subtracting performance or volumetric air flow.

✔️ Double Air Flow Control Aerowings: It incorporates two independent slats that concentrate and direct the air intelligently. In cold mode, they project the flow to the top of the room to create a severity air conditioning effect (shower cooling), avoiding annoying direct currents over people.

✔️ Environmental purification with Filter PM2.5: A high efficiency filtering system in charge of keeping the air from the home clean. It is able to accurately capture microscopic particles of fine dust, allergens, pollen and impurities suspended in the environment, actively protecting your family's respiratory health.

✔️ Super silent performance of comfort: Thanks to an optimized cross-sectional fan and the Inverter control of the compressor, the internal air flow is remarkably softened, achieving that the Split operates with an imperceptible murmur ideal for bedrooms, libraries or areas of study.

✔️ Advanced connectivity with Panasonic Comfort Cloud: The factory integrated Wi-Fi module within the chassis allows you to monitor and manage air conditioning from any smartphone wirelessly. Turn on the units remotely before arriving home, programmated weekly timers program or audits the energy consumption accumulated in a transparent manner.

How does management by independent zones with two 2.0 kW splits installed?

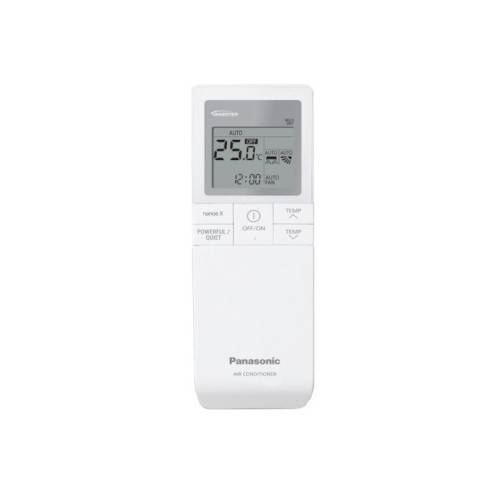

Independence in air conditioning is total. Each of the mural units of the TZ series has its own remote control and its own integrated thermal probes. You can have the split of a full-performance stay in cold mode at 24 ° C while the unit installed in the other room remains completely off or running under a different setpoint, adapting the exterior compressor exactly to the defendant proportional expense.

Is it required to acquire an optional accessory for homemade control by Smartphone?

No, the internal units of the TZ series bring the pre-installed Wi-Fi-Fi receptor module from the factory serial within the housing itself. It does not require the purchase of additional walkways of any kind. You only need to have an Internet wireless internet connection and download the official application for free Panasonic Comfort Cloud on your mobile device.

What benefits does the R32 ecological refrigerant gas provide in this multi 2x1 assembly?

GAS R32 has a global warming potential (PCA) 68% lower than traditional antique refrigerants such as R410A. Due to its excellent thermal properties of mechanical exchange, it requires less volume of load per metro copper and yields in a way a more efficient 10%, minimizing the environmental impact.
