Multi Split 2x1 LG Infinity 12 + 18 MU3R21.U23 + EZ12CSN.CSJ1 + EZ18CSN.CSK1 WiFi Air conditioning

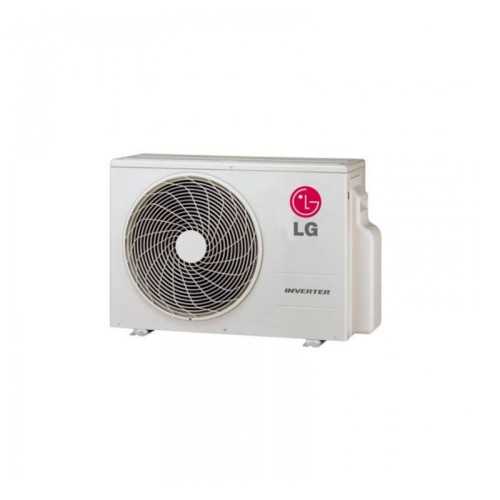

External system performance (MU3R21)

Cooling capacity (nominal): 6,15 kW

Refrigeration capacity (range): 1,06 kW - 7,33 kW

Capacity Heating (nominal): 7.03 kW

Capacity Heating (Range): 1,37 kW - 7,80 kW

Seasonal energy classification (cold): To +++

Seasonal energy classification (heat): To ++

Operation compressor: BLDC Inverter Twin Rotary

Gas Refrigerant Gas Ecological / load: R32

Electrical supply of the team: Single-phase, 220-240V, 50Hz

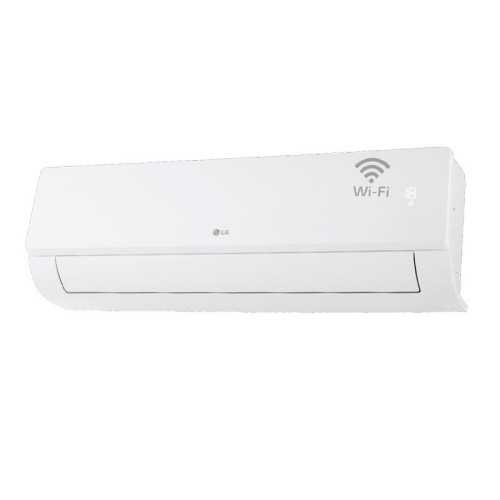

Interior mural units

Unit Room / Large Kitchen: 1x EZ12CSN.CSJ1 (3.5 kW / 12,000 BTU)

Salon unit / diaphanous area: 1x EZ18CSN.CSK1 (5.0 kW / 18,000 BTU)

Range / Commercial Series: LG Infinity Multi

Wireless connectivity: Wi-Fi Native serial

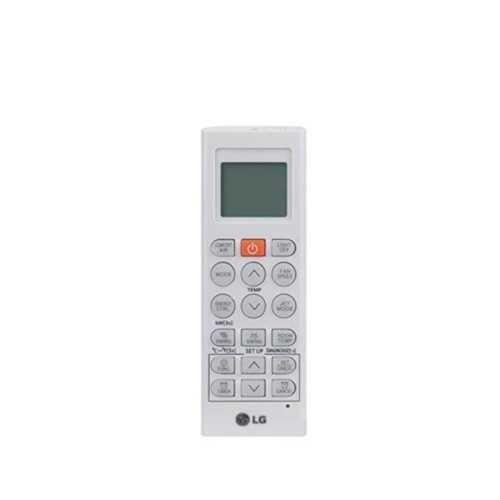

Remote control application: LG Thinq (iOS and Android)

Outer battery protection: Ocean Black Anticorrosion End

Diameter of refrigerated connections: Split 12K: 1/4 - 3/8 | Split 18K: 1/4 - 1/2

✔️ Ocean Black Battery Treatment End: The thermal exchanger of the outdoor Unit high-power has a reinforced black epoxy resin coating next to a hydrophilic layer. This shield provides exceptional protection against saline fogs, wet coastal environments and corrosion by urban or industrial pollution.

✔️ Active control of intelligent energy: Infinity units allow you to score the level of maximum electrical consumption of the equipment from the remote control. You can directly restrict the capacity to 80%, 60% or 40% of its usual consumption according to the people who occupy the stay, regulating the expenditure in real time.

✔️ Double pressure and temperature sensor: The outdoor electronics constantly measures the working pressure of the R32 refrigerant in addition to its temperature. This allows a much more precise and fast refrigerating cycle control, reaching the desired comfort temperature up to 30% before.

✔️ Wi-Fi connectivity of Thinq series: Without cables or additional expansion cards. The factory wireless receiver allows to link both internal units to the mobile application LG Thinq To program remote lit, set complex weekly calendars or transparently audit the historic consumption.

✔️ Advanced Comfort Air mode: Automatically reorie the tilt of ventilation slats. In cooling mode directs the air jet completely parallel to the ceiling for a homogeneous distribution by gravity, and in heating mode projects the flow to the soil, preventing upset direct currents.

How is asymmetric power behavior coordinated between stays (12 + 18)?

Independence is absolute and is perfectly managed by the Electronic External Module. During the day, you can turn on the 5.0 kW drive at maximum power to acclimate the living room in front of meetings, keeping the 3.5 kW split of the other stay totally turned off. The Twin Rotary compressor will adjust its revolutions exactly to the power demanded by the room, minimizing electric expenditure.

Is it necessary to buy external walkways or accessories to have a mobile control?

No, the mural units LG Infinity bring the integrated serial Wi-Fi receptor module within the factory housing itself, including both the 3.5 kW model and 5.0 kW. It is only required to have an Internet wireless signal on the home and download the official application for free LG Thinq on your intelligent device.

What advantages does R32 refrigerant gas provide in a multi power installation?

Gas R32 has a global warming potential (PCA) 68% lower than that of the former traditional chemical compounds such as R410A. Additionally, thanks to its outstanding exchange properties, it requires less load volume per metro copper and works by 10% more efficient, drastically cutting the impact on the environment.
