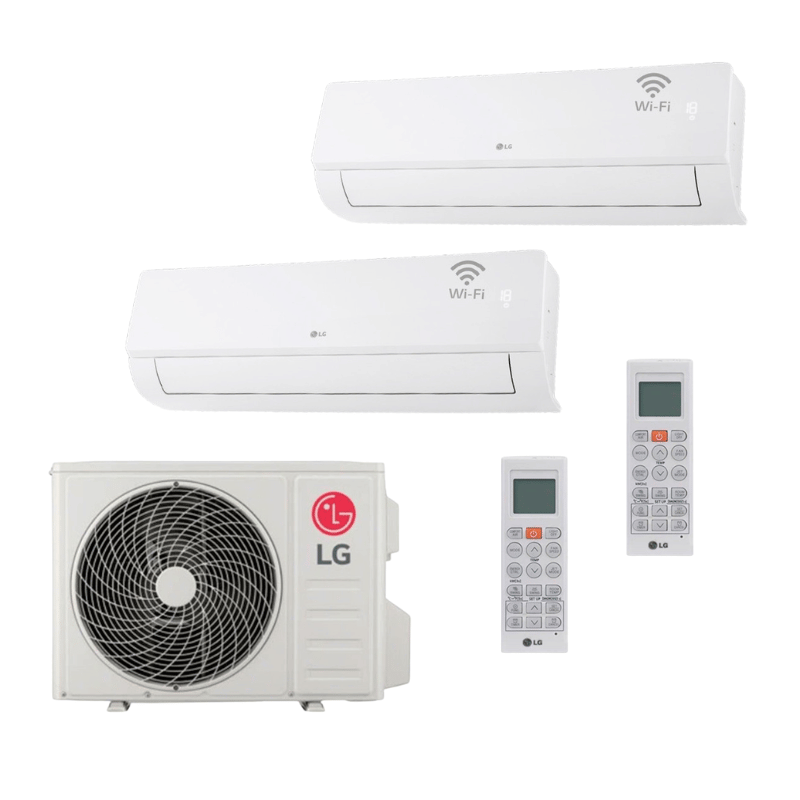

Multi Split 2x1 LG Infinity 9 + 9 mu2r17.u13 + 2x EZ09CSN.CSJ1 WiFi Air conditioning

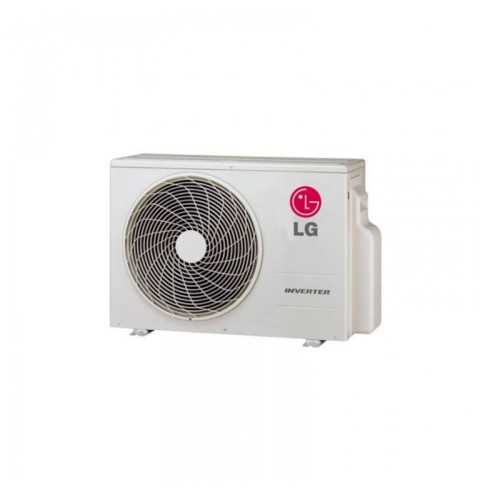

External system performance (MU2R17)

Refrigeration capacity (range): 4.69 kW (0.88 kW - 5.39 kW)

Capacity Heating (Range): 5.28 kW (0.97 kW - 5,69 kW)

Seasonal energy classification (cold): To +++

Seasonal energy classification (heat): To ++

Operation compressor: BLDC Inverter Twin Rotary

Gas Refrigerant Gas Ecological: R32

Electrical supply: Single-phase, 220-240V, 50Hz

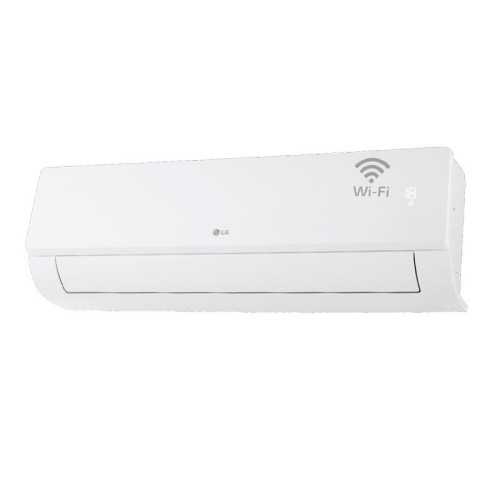

Interior units (2x EZ09CSN.CSJ1)

Range / Commercial Series: LG Infinity Multi

Individual refrigeration capacity: 2.5 kW (9,000 BTU / H)

Individual heat capacity: 3.2 kW (10,900 BTU / H)

Wireless connectivity: Wi-Fi Native serial

Control application: LG Thinq (iOS and Android)

Outdoor protection Battery: Ocean Black Anticorrosion End

Diameter of liquid / gas connections: 1/4 inches - 3/8 inches

✔️ Ocean Black Battery Treatment End: The thermal exchanger of the outdoor Unit it has a reinforced black epoxy resin coating next to a hydrophilic layer. This shield provides exceptional protection against salt fogs, coastal environments and acid corrosion.

✔️ Active control of intelligent energy: Infinity units allow you to score the level of maximum electrical consumption of the equipment from the remote control. You can restrict the capacity to 80%, 60% or 40% according to the people who occupy the room, optimizing real spending in real time.

✔️ Double pressure and temperature sensor: Outdoor electronics constantly measures the pressure of the R32 refrigerant in addition to its temperature. This allows a much more precise and fast refrigerating cycle control, reaching the desired setpoint temperature up to 30% before.

✔️ Integrated Wi-Fi connectivity THINQ: No cables or additional adapters. The factory wireless receiver allows to link the internal units to the mobile application LG ThinQ To program remote lit, set weekly complex calendars or audit consumer historic.

✔️ Advanced Comfort Air mode: Automatically adjust the inclination of the inner lama to orient the air flow completely parallel to the roof in cold mode or perpendicular to the soil in heat mode, preventing it from impacting directly on the body upset.

How is the control by zones managed in this 2x1 multi-split system?

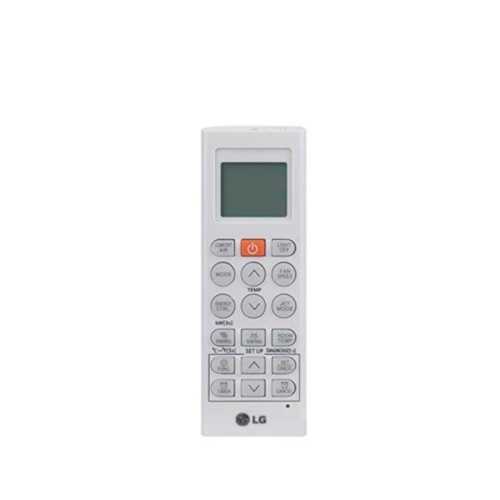

Independence is absolute. Each Infinity mural unit incorporates its own wireless remote control and includes its own temperature sensor. You can schedule a split in cold mode at 24 ° C in the room while the secondary bedroom split remains completely off, consuming only the proportional energy fraction.

Do you need to buy a Wi-Fi or optional gateway to control the splits by mobile?

No, the mural units LG Infinity EZ09CSN.CSJ1 bring the integrated standard Wi-Fi communication module into the housing itself. Only a wireless internet signal is required in the stay of the house and free download the official mobile application LG Thinq.

What benefits does R32 ecological refrigerant gas provide on this equipment?

Gas R32 has a global warming potential (PCA) 68% lower than the former conventional R410A refrigerant. Additionally, given its outstanding physical characteristics of thermal exchange, it requires less volume of load per meter of pipe and yields 10% more efficient, decreasing the environmental impact.
