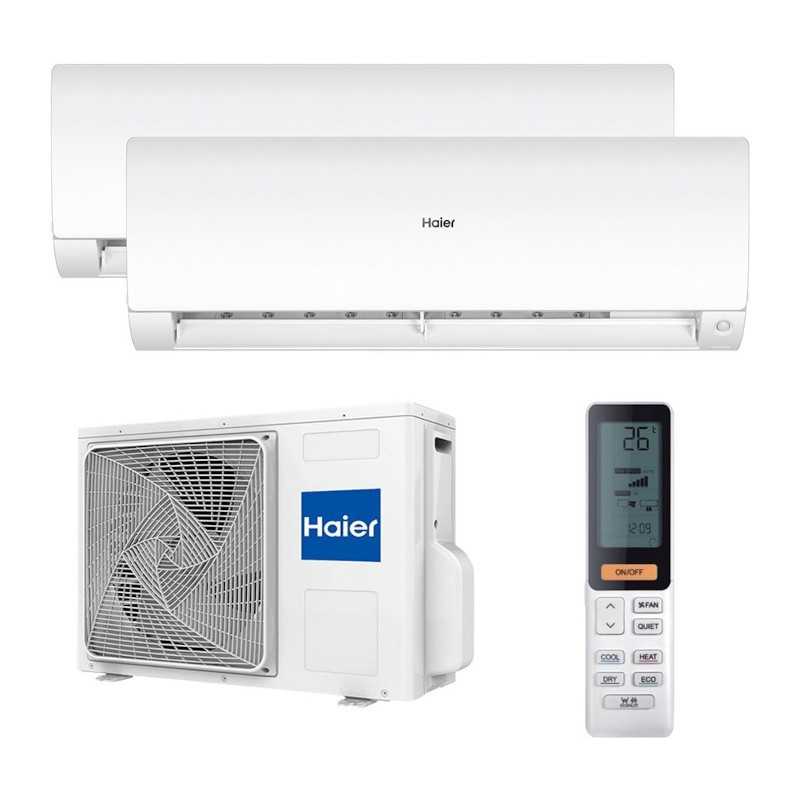

Air conditioning Multi Split 2x1 Haier 3U55S2SR5FA + 2X AS35SBBHRA-MW FLEXIS WHITE

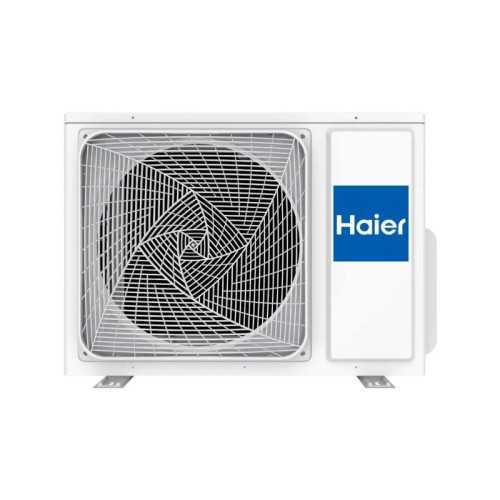

External system performance (3U55S2SR5FA)

Cooling capacity (nominal): 5.50 kW (2,10 kW - 6.80 kW)

Capacity Heating (nominal): 6,80 kW (2.40 kW - 7.60 kW)

Energy classification (cold / heat): A +++ / A ++

Seer efficiency coefficient (cold): 8,50

Efficiency coefficient SCOP (heat): 4,60

Gas Refrigerant Gas Ecological: R32

Electrical supply from the set: Single-phase, 220-240V, 50Hz

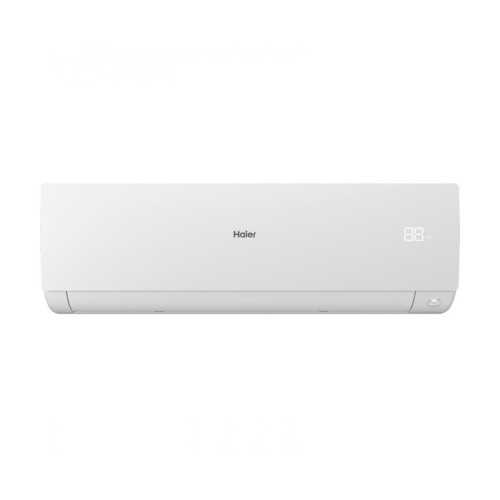

Interior units (2x AS35SBBHRA-MW)

Commercial range / series: Haier Flexis inverter

Aesthetics / exterior finish: White Matte Textured Premium

Individual refrigeration capacity: 3,50 kW (3.010 FRIGTORS / 12K BTU)

Minimum sound pressure (Quiet mode): 17 dB (A) (Inaudible)

Purification technology: UV-C and Steri-Clean lamp 56 ° C

Intelligent presence sensor: Eco-pilot built-in series

Wireless connectivity: Wi-Fi of integrated standard (HONEP)

✔️ Steri-Clean hygienic technology 56 ° C: After performing a hydrophobic defrost to clean the aluminum fins of the inner battery, the equipment elevates controlled the temperature of the inner evaporator at 56 ° C for 30 minutes. This continuous thermal shock effectively destroys the cellular structure of adhered pathogens, providing an air completely free of contaminants.

✔️ Integrated UV-C generation module: It incorporates a short wave ultraviolet light emitter (UV-C) into the mechanical interior of the Flexi units. By circulating the flow of ambient air, the light inactivates instantly the DNA and RNA of the suspended pathogens that pass through the ventilation turbine, disinfecting cleanly without generating residual chemical byproducts.

✔️ Eco-pilot intelligent presence sensor: An advanced infrared sensor monitors the occupation plan of the rooms. Constantly detects the location and movement of the users to direct the air indirectly (preventing direct upset currents on the body) or direct, and automatically reduces the returns whether the stay is empty to minimize energy consumption.

✔️ Ultrasilencious operation of 17 dB (A): Thanks to the optimized design of its decentral tangential blades and the use of high-precision DC Inverter ventilation engines, the 3.5 kW Flexi Mural unit reduces internal turbulence by air friction, operating with a murmur Excellent imperceptible to ensure a restful rest.

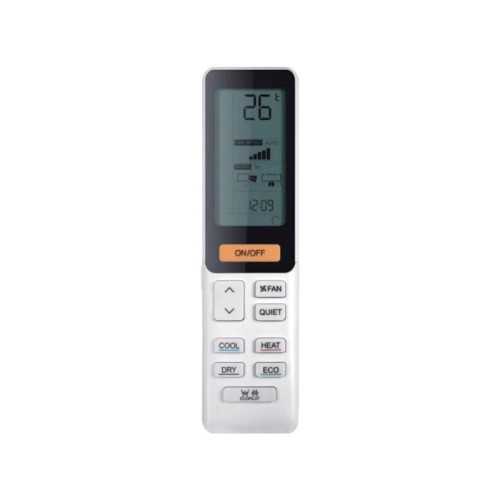

✔️ New generation connectivity with HONEP: Comprehensive smart control from any smartphone. The Wi-Fi series allows you to turn on the units remotely before you get home, schedule calendars and advanced schedules, tactically manage the purification protocols and link naturally with the Google Assistant smart assistants and Alexa.

What actual advantage does provide installing a outdoor Unit 3U55 with only two splits (2x1)?

The advantage is outstanding in terms of durability, performance and seasonal efficiency. When it is a outdoor Unit of 5.5 kW sized with hydraulic capacity to support up to three refrigeration lines, working with only two 3,5 kW splits causes the Inverter compressor to operate reliefly. It reaches the desired setpoint temperatures faster and substantially reduces mechanical wear of the components even under extreme heat or outer cold conditions.

How is independence managed by stays when installing two units of 3.5 kW?

Independence in comfort is total. Each of the Flexis mural units incorporates its own thermal sensor and is managed autonomously with its smartphone or wireless remote control. You can program the split of a stay in refrigeration mode at 24 ° C while the unit installed in the other room remains completely off, modulating the exterior compressor exactly the proportional expenditure demanded.

Is the use of the integrated UV-C lamp for the people of the house?

It is completely safe. The UV-C light emitter is located hermetically encapsulated in the internal chassis structure of the mural unit, which prevents ultraviolet rays from being projected towards the outside of the rooms. The air is highly sanitized so that it passes through the evaporator filter, eliminating any risk of direct exposure.
