Multi Split Kit Giatsu Aroma 3 3x1
GIA-MO4-36IX41BR32 • 3X GIA-MSI-12AR3R32 • 10,50 kW
Advanced high capacity air conditioning for three large stays Through a high-performance symmetric combination: three index units independent of the series Giatsu AROMA 3 of 3.5 kW each connected to a robust reinforced outer motor 10.50 kW with native capacity for four zones. When connecting only three zones, the compressor works very unlived. This system allows you to fully autonomously the temperature of each room, optimize the space of your façade when centralizing everything in a single team and enjoying the maximum seasonal comfort with artificial intelligence technology, integrated Wi-Fi connectivity, high temperature purification and ecological gas R32.
A 4-zone engine that works very loosely in 3x1
Wi-Fi control included as standard with optimization logics by IA
Advanced self-cleaning at 56 degrees for a cleaner air
A ++ / A + high seasonal efficiency with optimized consumption
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts

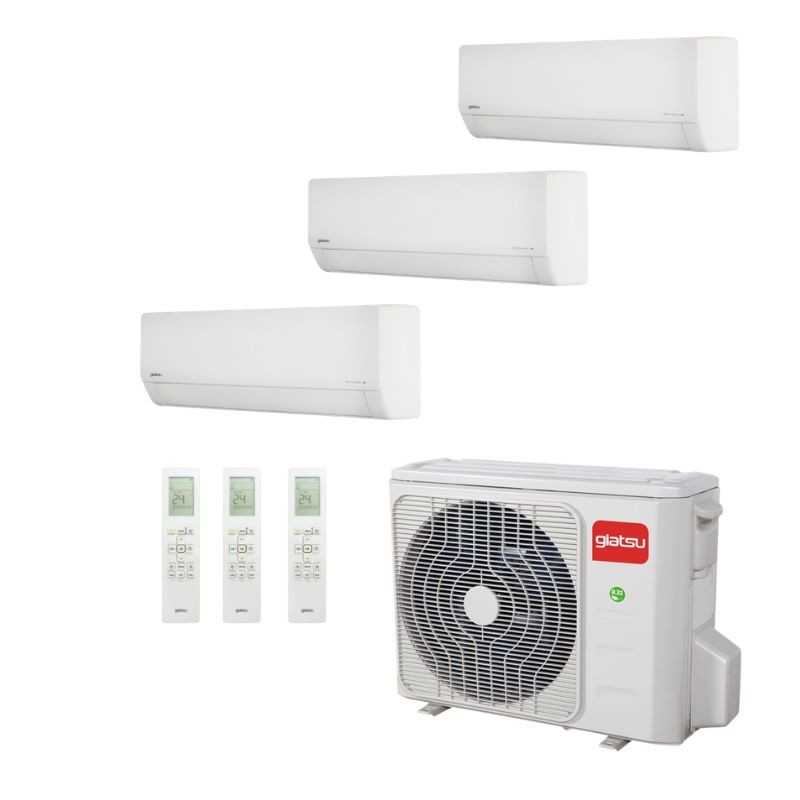

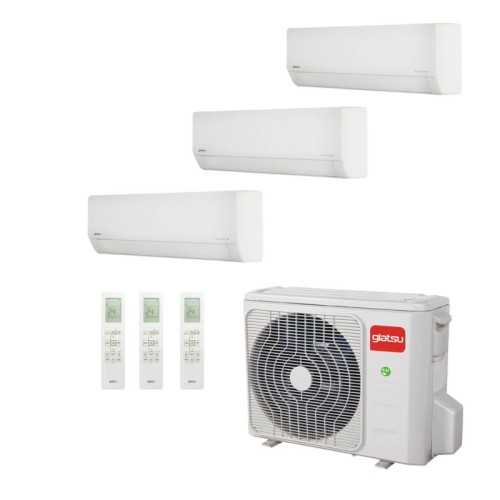

Multi Split 3x1 Giatsu GIA-MO4-36IX41BR32 + 3X GIA-MSI-12AR3R32 AROMA 3 Air conditioning
Referencia: 3x1GIA436121212SP
€1,969.71
Tax included
IMMEDIATE DELIVERY!
For deliveries in Europe, consult delivery time
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Multi Split Kit Giatsu Aroma 3 3x1
GIA-MO4-36IX41BR32 • 3X GIA-MSI-12AR3R32 • 10,50 kW
Advanced high capacity air conditioning for three large stays Through a high-performance symmetric combination: three index units independent of the series Giatsu AROMA 3 of 3.5 kW each connected to a robust reinforced outer motor 10.50 kW with native capacity for four zones. When connecting only three zones, the compressor works very unlived. This system allows you to fully autonomously the temperature of each room, optimize the space of your façade when centralizing everything in a single team and enjoying the maximum seasonal comfort with artificial intelligence technology, integrated Wi-Fi connectivity, high temperature purification and ecological gas R32.
A 4-zone engine that works very loosely in 3x1
Wi-Fi control included as standard with optimization logics by IA
Advanced self-cleaning at 56 degrees for a cleaner air
A ++ / A + high seasonal efficiency with optimized consumption
Security policy
Delivery policy
Refund policy
MULTI INVERTER R32 SYSTEM | Smart comfort for three rooms with a single exterior engine
Giatsu Multi Split 3x1 GIA-MO4-36IX41BR32 AROMA 3
Outdoor Unit high power of 10.50 kW connected to three symmetric internal units of 3.5 kW: loose performance, self-cleaning sterilizing and control by IA.
A large capacity for three main stays: maximum efficiency and lower wear
The multi-split air conditioning system Giatsu with three interior units of the Symmetric range aroma 3 of 3.5 kW constitutes the perfect engineering response for single-family homes, large floors or commercial stays that require a contound and simultaneous power delivery in three areas of considerable volume. By centralizing the refrigerator operation in the robust outdoor Unit of 10.50 kW nominal (originally designed from the factory with architecture to support up to four independent connection branches), an extraordinary electromechanical venture is achieved. The engine always works loose and rested, managing the thermal loads immediately in the three main rooms and drastically minimizing mechanical stress on the components against extreme climate peaks, reducing the presence of engines in facade and Optimizing energy consumption consciously.
In the technical section, the outdoor Unit it incorporates an advanced technological heart with its compressor Dc inverter Giatsu. This state-of-the-art engine effectively compensates by mechanical forces of internal rotation, which mitigates operational vibrations, reduces external noise and eliminates continuous starts and stops from the old equipment, so that it stabilizes consumption in minimum values. The exterior exchange battery is protected with a housing and fans with antioxidation treatment, guaranteeing excellent durability against weather inclemences. Working in harmony with last generation refrigerant gas R32, the system reaches excellent energy class coefficients To ++ in refrigeration and A + in Heating.
The great practical advantage of the mural units of the series Giatsu AROMA 3 it lies in its versatility, its intelligent functions and its characteristics designed to improve the purity of the ambient air. The splits integrate an advanced self-cleaning process that raises the internal temperature of the evaporator to 56 degrees, effectively eliminating dust, bacteria and mold accumulated to guarantee a much pure and healthier air. Its operation is extremely comfortable and silent, ideal to take care of your night rest in the bedrooms. In addition, with the Wi-Fi including serial and the use of artificial intelligence, you can control the machines from your smartphone or tablet, monitor the use or regulate the direction of the deflectors intuitively.
Technical characteristics)

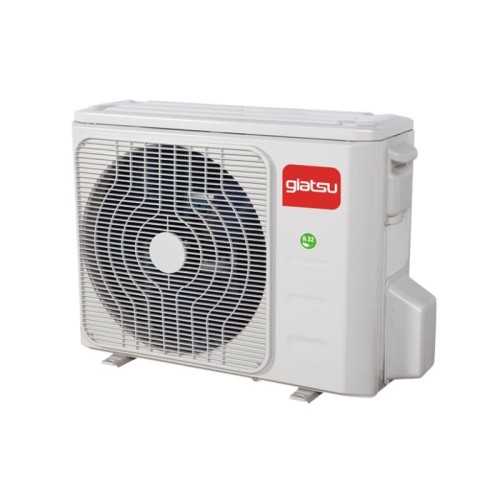

Performance of the Outdoor Unit (Gia-mo4-36ix41br32)
Cooling capacity (nominal): 10.50 kW (work range of 6.2 kW to 10.5 kW)
Capacity Heating (nominal): 10.50 kW (Working Range of 7.0 kW to 11.1 kW)
Seasonal energy classification (cold / heat): A ++ / A + (optimal performance)
Seer efficiency coefficient (cold): 6,2
Efficiency coefficient SCOP (heat): 3,8
Compressor technology: High efficiency inverter DC
Exterior air flow: 4,000 m³ / h
Gas Refrigerant Gas Ecological / load: R32 / 2,10 kg

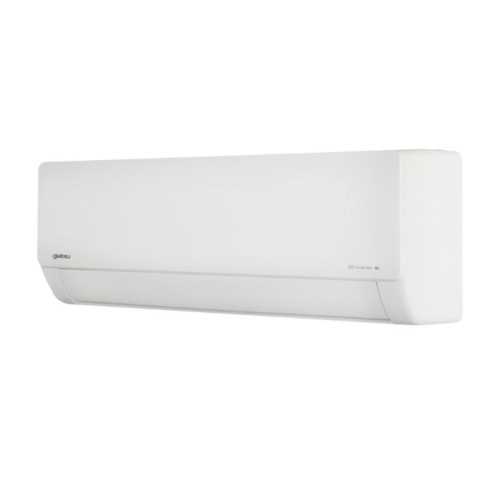

Symmetrical interior units (3x GIA-MSI-12AR3R32)
Commercial range / series: Giatsu Aroma 3 home multi
Individual refrigeration capacity: 3.51 kW (range of 1.1 kW to 3.8 kW for each split)
Individual heat capacity: 3.81 kW (range of 1.01 kW to 4.05 kW for each split)
Minimum sound pressure (silent mode): 20 dB (A) (ultrasilence)
Net dimensions of each split (an x at x PR): 813 x 289 x 201 mm
Net weight per mural unit: 7.9 kg
Diameter of refrigerated pipes (each): Liquid 1/4 - Gas 3/8
Domotic wireless connectivity: Wi-Fi series included (control by smartphone or voice)
Technologies for daily comfort of the series Giatsu AROMA 3
✔️ Smart ecosystem with Wi-Fi included: Every indoor Unit includes factory pre-installed a wireless receiver module. When linking with the mobile application on your smartphone or tablet, it allows you to control the three rooms independently or manage the basic functions using voice commands with Alexa and Google Home.
✔️ High temperature self-cleaning process (56 ° C): Take care of the air quality of your home. The split executes an automatic cycle that raises the internal temperature of the battery up to 56 degrees, managing to dry and sterilize the evaporator to remove dust, bacteria and mold accumulated, reducing odors.
✔️ Compressor and Fans DC Inverter: The outer motor and the ventilation system of Giatsu they optimize seasonal performance adaptively. By continuously modular the velocity of the refrigerant flow R32 According to the real loads of the house, avoid consumer peaks and offers very efficient operation.
✔️ Optimized design for installation and maintenance: The aroma 3 of 3.5 kW aroma have extremely useful features as easy access to electric wiring and an electronic plate (PCB) simply, greatly facilitating technical tasks in the e-commerce.
✔️ Housing and Golden End / Contact ON / OFF: The exterior chassis has long-term anti-corrosion treatment. Likewise, splits support remote connectivity to perform stop / running functions, which is ideal for its integration with hotel cards or management systems.
Frequently asked questions
What actual advantage does provide to install an engine of four zones with only three connected interior units?
The advantage is excellent in durability, seasonal performance and absolute mechanical reliability. The internal units selected from 3.5 kW require a refrigeration flow and a high thermal transfer rate when they work in simultaneous. When connecting them to a outdoor Unit high capacity of 10.50 kW nominal sized to feed up to four splits, the Inverter compressor works in a totally relieved regime. It does not suffer from mechanical overwhelming, reaches the desired temperatures faster and guarantees impeccable and unalterable thermal behavior even under extreme weather conditions outside.
How does independent zone management work with three symmetric 3,5 kW installed splits?
Independence in the air conditioning of the three stays is total and is electronically coordinated by the external engine expansion valves of Giatsu. Each of the aroma 3 mural units has its own wireless control and its own thermal reading probes. You can have on two spliths at full performance in day zones while the bedroom unit or resting area remains off or running under a soft slogan, adapting the external compressor exactly to the defendant instantaneous expenditure to avoid more consumption.
What are the maximum refrigeration and uneven distances of this multi-split set?
According to the official technical sheet of the GIA-MO4-36IX41BR32 engine, the outdoor Unit it supports a maximum total length of pipes up to 80 meters by adding the refrigeration branches, with a maximum limit by individual branch up to 35 meters. The maximum vertical rate allowed between the outdoor Unit and the interiors are 15 meters, while the vertical maximum difference between the internal units themselves installed within the house is up to 10 meters.
Do you need technical advice to plan your multi split installation of Giatsu?
On https://tualmacendelclima.com/en/ we are engineers specialists in the design, calculation and optimization of advanced multi-zone air conditioning systems Giatsu. If you have doubts about how to plan the layout of copper pipes (the three 3.5 kW splits of this assembly require symmetric refrigeration lines of 1/4 liquid and 3/8 gas), calculate the refrigerant volume from the Factory preload length or integrate voice control, our technical department is at your disposal. Ensure your comfort at the best market price with totally safe shipment.
Call 623 541 934
3x1GIA436121212SP
Data sheet
- Brand
- Giatsu
- Outdoor Unit
- GIA-MO4-36IX41B2R32
- Indoor Unit 1
- Gia-MSI-12ar3r32
- Indoor Unit 2
- Gia-MSI-12ar3r32
- Indoor Unit 3
- Gia-MSI-12ar3r32
- Color
- Blanco
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Refrigerator capacity (W)
- 10.500
- Refrigerator capacity (kcal / h)
- 9.030
- Nominal consumption Cold (W)
- 3.280
- Energy class (cold)
- A++
- SEER
- 6,2
- Heat capacity (W)
- 10.500
- Heat capacity (Kcal / h)
- 9.030
- Nominal heat consumption (W)
- 4.260
- Energy class (heat)
- A
- SCOP
- 3,8
- Minimum sound pressure UI DB
- 20/20/20
- Net weight (kg)
- 110
- Diameter Liquid pipe
- 1/4"
- Diameter Gas Pipe
- 3/8"
- Possibility Integration
- Integrated WiFi
- Surface recommend UI1
- 28
- Surface recommend UI2
- 28
- Surface recommend UI3
- 28
- EU dimensions (anxfxh) mm
- 946 x 410 x 810
- Dimensions UI1 (ANXFXH) mm
- 813 x 201 x 289
- Dimensions UI2 (ANXFXH) mm
- 813 x 201 x 289
- Dimensions UI3 (ANXFXH) mm
- 813 x 201 x 289
