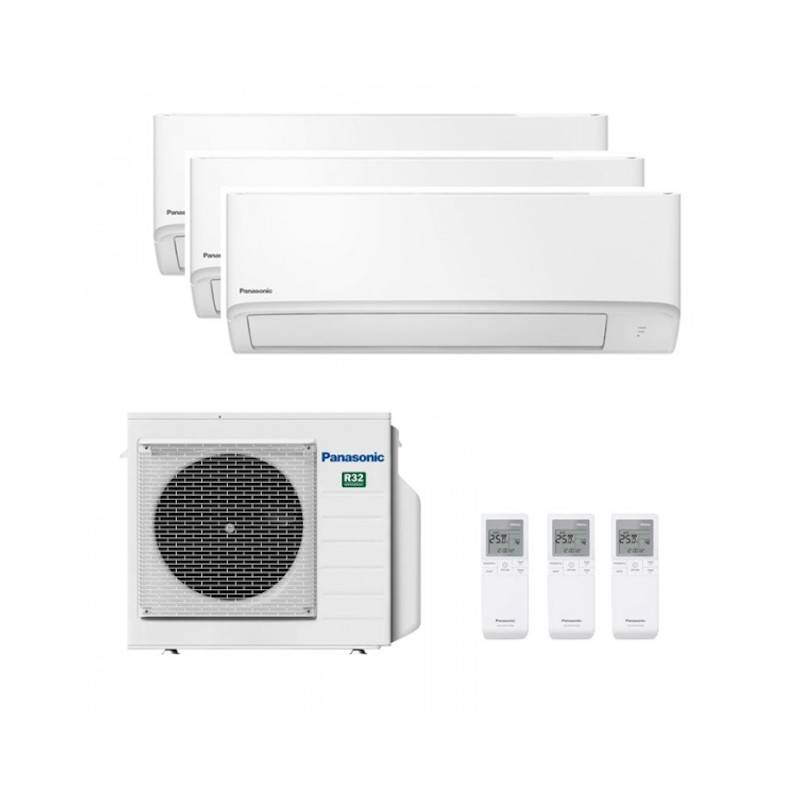

Multi Split 3x1 Panasonic CU-5Z90CBE + CS-Z20CKEW + CZ-Z35CKEW + CS-Z50CKEW ETHEREA

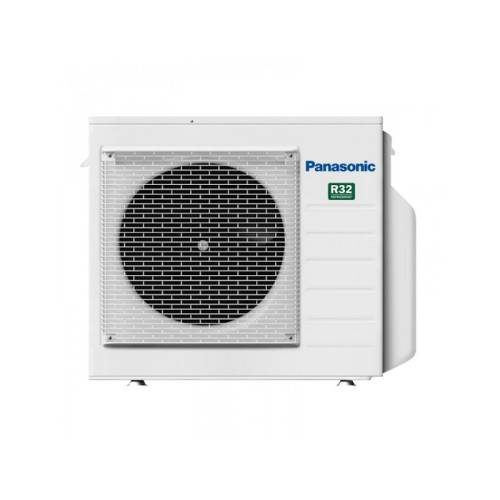

Performance of the Outdoor Unit (Cu-3z52cbe)

Cooling capacity (nominal): 5,20 kW (Elastic Operation Range Inverter)

Capacity Heating (nominal): 6,80 kW (excellent thermal performance in winter)

Seasonal energy classification (cold): A +++ (maximum energy savings)

Seasonal energy classification (heat): A +++ (maximum seasonal efficiency)

Efficiency coefficient SEER / SCOP: 8.50 / 4.60

Power supply: 220-240V (1 phase - 50Hz)

Outside net dimensions (an x at x PR): 875 x 712 x 320 mm

Gas Refrigerant Gas Ecological: R32 high thermal efficiency

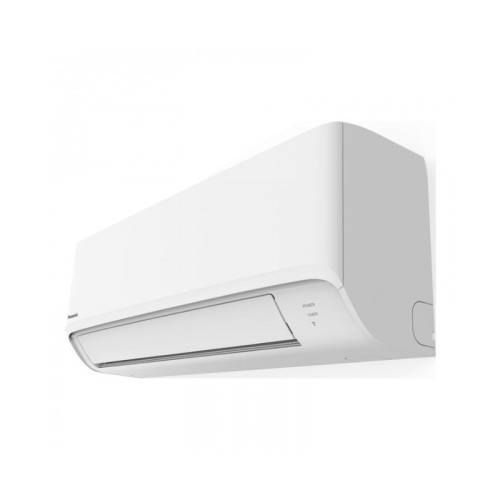

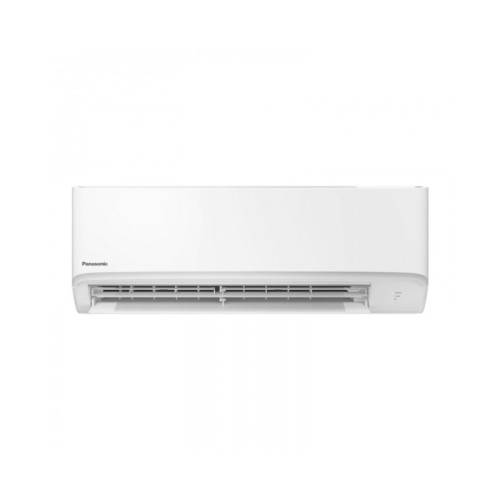

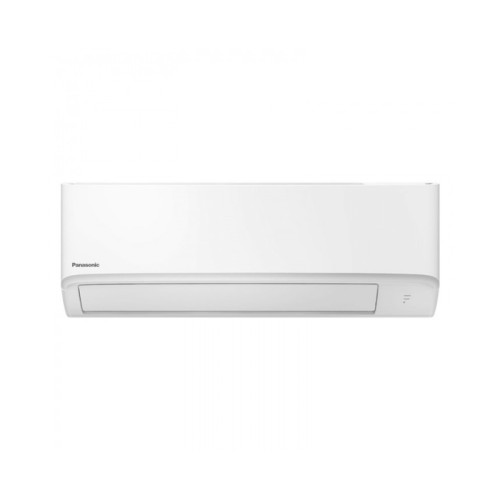

Symmetrical interior units (3x cs-z25xkew)

Commercial range / series: Panasonic Etherea Z Premium

Individual refrigeration capacity: 2,50 kW (9,000 BTU / blunt air conditioning)

Individual heat capacity: 3.40 kW (powerful response in heating mode)

Minimum sound pressure (Quiet mode): 19 dB (A) (absolute acoustic comfort for rest)

Net dimensions of each split (an x at x PR): 870 x 295 x 229 mm

Air purification system: nanoe ™ X integrated with hydroxyl radical generator

Diameter of refrigerated pipes (each): Liquid 1/4 - Gas 3/8

Integrated wireless connectivity: Wi-Fi Series (App Panasonic Comfort Cloud)

✔️ Active Purification Technology Nanoe ™ X: Actively cares about the environmental health of your home uninterruptedly. By constant release of hydroxyl (OH) radicals wrapped in water, the system denatures the molecular structure of polluting elements, managing inhibit viruses with great efficiency, bacteria, rust, allergens and Remaining upset upset odors from the air or adhered to the tissues.

✔️ Air diffusion design Aerowings 2.0: Optimizes the distribution of air flow to avoid annoying direct currents. Thanks to the incorporation of two independent deflectors of extended size, the Split efficiently projects the air flow to the roof, creating an indirect "soft rain" type air conditioning system that greatly increases well-being.

✔️ Wi-Fi connectivity and integrated consumption management: Every indoor Unit it has a pre-installed wireless module of origin that is directly linked to the application Panasonic Comfort Cloud. From your smartphone, you can ignite, externally turn off or regulate the three areas of the house, as well as monitor the historic electricity consumption to encourage savings.

✔️ Compatibility with domotic voice assistants: The Etherea system is completely integrated into the smart home, facilitating the linking of the three indoor units with Google Assistant or Amazon Alexa Control Services to regulate the comfort parameters of the rooms through comfortable voice instructions.

✔️ Stylized and compact premium design: With a compact width of 870 mm and an elegant front of high-end matte textured lines, ETHERE Z mural units are naturally adapted to the decorative design of any residential space, by offering a simple access for tasks of Maintenance.

How does the power distribute the outdoor Unit CU-3Z52CBE Between the three Splits of 2.5 kW?

Power management is fully intelligent and adaptive, regulated electronically by compressor expansion valves of Panasonic. If the three rooms demand air conditioning at the same time, the outer motor distributes its 5.20 kW of nominal capacity balanced and equitably among the three 2.5 kW splits. At the time when it is only required to air one or two rooms, the outdoor Unit it will instantly adapt your Inverter regime to deliver the exact power suffered by these rooms, reducing the power consumption to the minimum possible.

Is it possible to use the Nanoe ™ X air purification function autonomously?

Yes, this is one of the most valued characteristics of the Etherea series of Panasonic. The system allows you to activate the Nanoe ™ X air purification mode completely independently to the cooling or heating functions. When operating in this mode, the indoor Unit it acts as an active air debugger in an ultrasilencious ventilation regimen, consuming an amount of tiny electricity. In this way, you can keep the air from the rooms clean, sanitized and free of allergens or unpleasant odors throughout the year.

What are the maximum refrigeration distances that this multi-split 3x1 system supports?

The CU-3Z52CBE engine stands out by offering excellent assembly versatility. It allows a maximum total length of copper pipes up to 50 meters by adding the three pre-installation branches, with a distance limit by individual branch of up to 25 meters from the engine to each split. The maximum vertical service authorized between the outdoor Unit (Located on roof, facade or patio) and the interiors is 15 meters, which ensures a correct return of oil to the compressor and an unblemished refrigerator operation.
