    Outdoor Unit Aerotermia Mitsubishi Ecodan Puz-Wz90VAA-W 100% Hydraulics R290

    ¿Any doubt about the product?

    Talk to us and consult us. We will solve all your doubts

    Outdoor Unit Aerotermia Mitsubishi Ecodan Puz-Wz90ya-W 100% Hydraulic R290 Three-phase

    Referencia: PUZ-WZ90YAA
    Mitsubishi Electric
    €4,495.11
    Tax included

    We are currently out of stock.

    Ask us about availability!!

    Envío GRATIS en España (Península) a partir de 300€ + info

    Quantity
    Add to Wishlist

    Email has been sent successfully.

    E-Mail Support
    Calcular Gastos de Envío
    🛡️ Pago Seguro ✅ Garantía Oficial

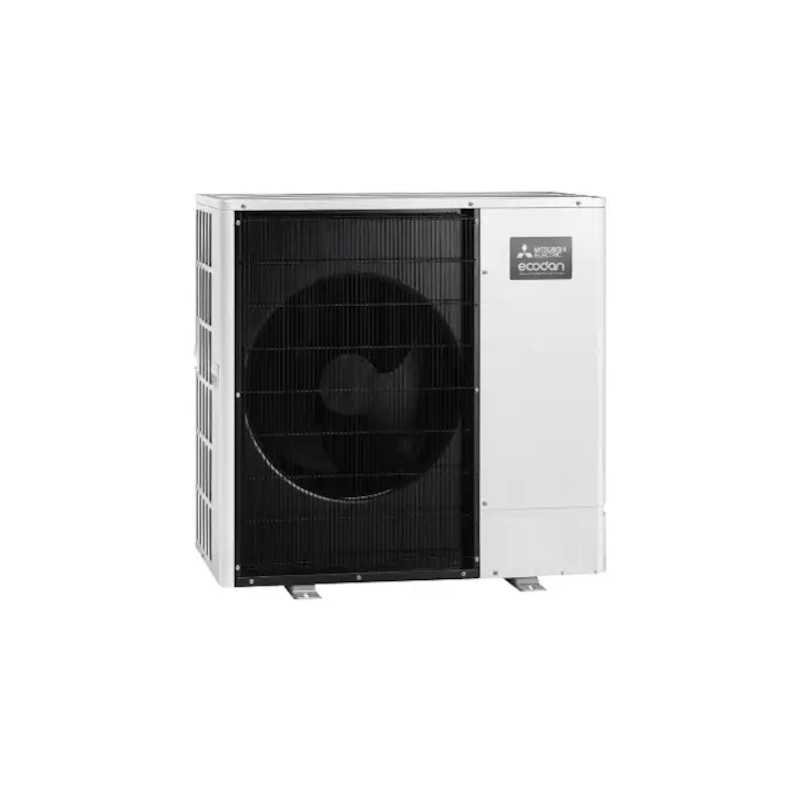

    Ecodan Puz-Wz90aA R290

    Outdoor Unit Monobloc | 9kw | Three-phase | Refrigerant Gas Natural R290

    Unit Mitsubishi Ecodan Puz-Wz90aa It offers the power and sustainability of the R290 range for three-phase installations. This 100% hydraulic monobloc system of 9 kW uses the natural refrigerant R290 (PCA = 3) and reaches an efficiency To +++. Capable of producing DHW Up to 75 ° C, is the perfect solution for a comprehensive air conditioning (cold, heat and DHW) Ecological and high performance in homes or small shops.

    Contact by Whatsapp
    Contact by e-mail


    Security policy



    Delivery policy



    Refund policy

    Ecodan Puz-Wz90ya | R290

    Three-phase power, higher efficiency and minimum environmental impact

    Refrigerant Gas R290 (PCA = 3) Three-phase monobloc 9kw Water up to 75 ° C

    The outdoor Unit Mitsubishi Ecodan Puz-Wz90aa It is the ideal solution for large residences or small businesses with three-phase rush that seek maximum sustainability. This 100% hydraulic monobloc system of 9 kW employs natural refrigerant R290, whose atmospheric warming potential is practically null (PCA = 3), ahead of the most demanding environmental regulations[680].

    Its advanced technology allows you to promote Water up to 75 ° C, which makes it perfect to replace traditional boilers in high temperature radiator systems and to produce DHW Efficiently and without legionela. Despite its great power, its chassis with reinforced acoustic isolation gives it an ultra silent operation. With an energy efficiency To +++, this three-phase unit guarantees exceptional performance and maximum saving in heating, cooling and sanitary hot water[680].

    Technical specifications

    FeatureDetail
    Nominal heating power (A7 / W35)8.5 kW[680]
    Nominal refrigeration power (A35 / W18)8.0 kw[680]
    Energy class (35 ° C / 55 ° C)A +++ / A ++[680]
    COP (A7 / W35)4,32[680]
    Maximum drive temperature75 ° C.[680]
    Dimensions (AlxAnXF)1022 x 1050 x 480 mm[680]
    Net weight117 kg[680]
    Sound level SPL (heat / cold)48/47 dB (A)[680]
    Range of operation (heating)-25 ° C A + 24 ° C[680]
    Refrigerant Gas (PCA)R290 (3)[680]
    FeedThree-phase (400V)[680]

    The most ecological three-phase solution for large projects.

    Take advantage of the power and stability of a three-phase installation with the most sustainable technology. Ask us for a study for your project.

    Consult with engineering
    PUZ-WZ90YAA

    Data sheet

    Brand
    Mitsubishi Electric
    Refrigerant Gas
    R290
    Electrical supply
    Trifásica
    Reversible or only heat
    Reversible
    Refrigerator capacity (W)
    5.000
    Nominal consumption Cold (W)
    1.515
    Heat capacity (W)
    8.500
    Nominal heat consumption (W)
    1.968
    Diameter Liquid pipe
    Hydraulic connection
    Diameter Gas Pipe
    Hydraulic connection
    COP
    4,32
    Scop (warm weather)
    5,92
    EER
    3,30
    Interconnection type
    Conexión Hidraulica
    Energy rating
    To +++
    Maximum heating (ºC)
    75
    High Ud Exterior (mm)
    1.040
    Width UD Exterior (mm)
    1.050
    Outdoor background (mm)
    480
    Weight Outside (kg)
    103
