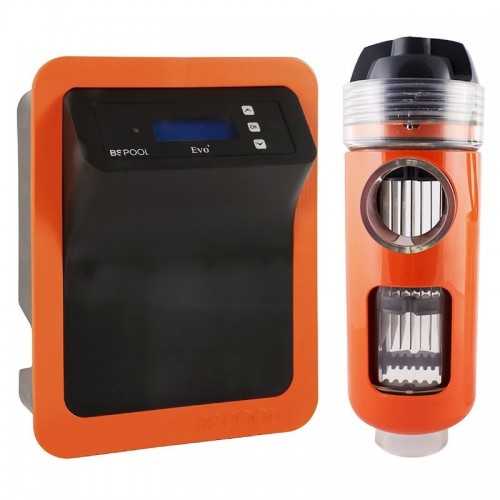

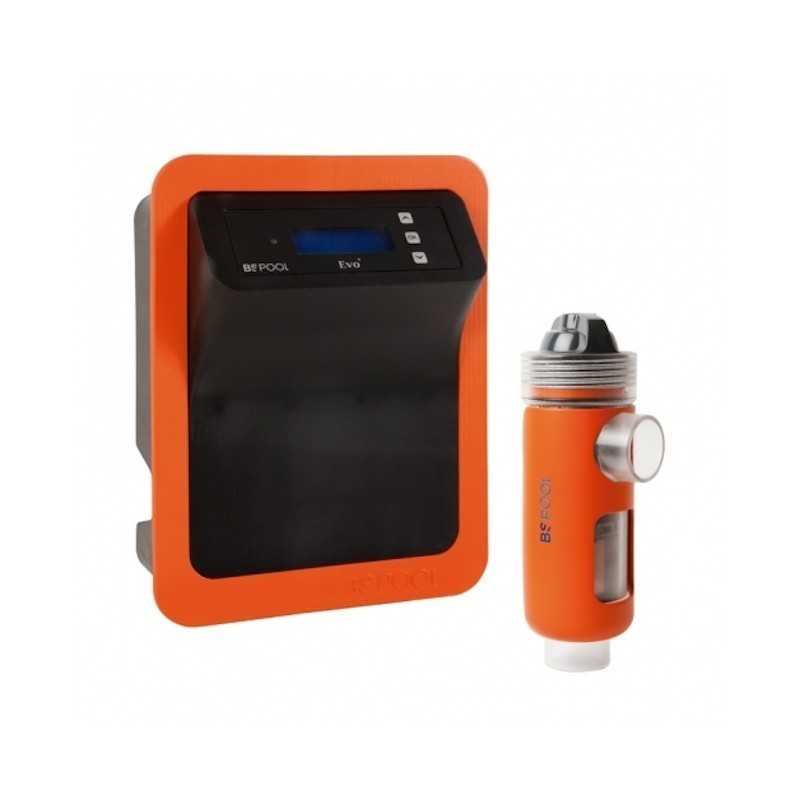

Evobasic Saline Chloriner 35gr / H BSV

BSV Evo Basic 35

Absolute power for uninterrupted natural chlorination. Greater disinfection performance through switched sources, intuitive digital display and maximum cellular useful life.

Engineering Study: Great capacity disinfection by salt cycle

The treatment of water in large volume vessels or with high load of bathers requires electrolysis systems capable of providing a mass production rate without generating unstable chemical byproducts (chloramines). The saline chlorinator Evo Basic 35 it implements an efficient natural principle: when dissolving a base concentration of common salt (4 g / l) and applying a stream from 35 A, a powerful pure disinfectant directly generates. By reacting and eliminating organic matter, this compound is combined again in common salt, closing a perfect cycle, perpetual and respectful with the environment. Thanks to its switched electronics, the module concentrates this enormous dosing capacity in a compact format of only 4 kg of weight. Our technical department analyzes the hydraulic coefficients of its installation to guarantee an optimal and continuous balance.

📊 All electrochemical and security coefficients strictly correspond to the manufacturer's data BSV.

High performance electrolysis with self-cleaning electrodes longlifecell

Compact saline chlorinator BSV EVO BASIC 35 is positioned as the reference standard for users who demand a higher disinfection capacity in large small pools. Its great technological virtue lies in the integration of a surface-generation switched font. This electronic power design replaces ancient massive and heavy electromagnetic transformers, achieving a highly clean energy transfer to the cell, decreasing the general working temperature of the internal components and setting an ideal work environment for a Constant climbing rate of 35 grams per hour.

The durability and record of the galvanic process rest on the Cell Premium Titanium electrodes Longlifecell, specifically designed to ensure a prolonged useful life cycle of up 10,000 hoursOf effective service. The team monitors water hardness variations and drives a fully automated polarity investment system; This function gives off calcium autonomously, avoiding harmful calcareous inlays and completely annulling manual cleanings with corrosive acids. Additionally, it has a high precision internal microprocessor that registers the actual accumulated technical operating hours.

The daily parameterization is carried out agile through a digital control displayIntuitive and multilanguage. Since its panel, the operator has manual control of chlorine and automated visual indicators that alert the lack or excess concentration of salt in the vessel. Although the system is parameterized from the factory to work with an optimal concentration of 4 grams per liter of common salt, the versatility of its software architecture allows an advanced reprogramming to operate with direct sea water (up to 35 grams per liter), offering a Unique versatility before various filling strategies.

Automation ecosystem and optional modular kits

The EVO Basic Electronic Baseboard stands out for its advanced modular conception. Although the team performs an impeccable job through manual control, it has the expansion ports necessary to integrate peripheral reading probes and transform into an automated home demand automated station:

• Auto Kit (pH): Connect an external dosing pump, activating the automatic regulation and showing the pH reading indication on the digital screen.
• Kit Advanced (ORP): It integrates an electrode to monitor the redox potential (ORP), allowing chlorinator to adjust natural chlorine production to the pool's instantaneous hygienne needs.
• Additional probes kits: Compatible with the temperature probe kit (Water tan indication), amperometric probe kit and the safety water probe kit.
• Kit Connect (Eypools): It grants advanced digital connectivity for remote external monitoring of water disinfection parameters.
