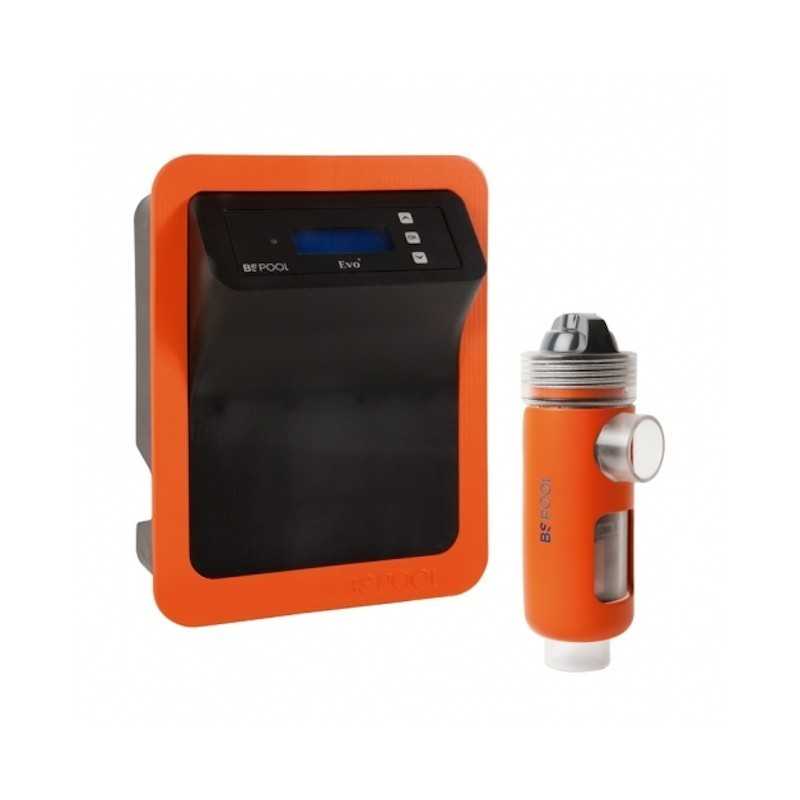

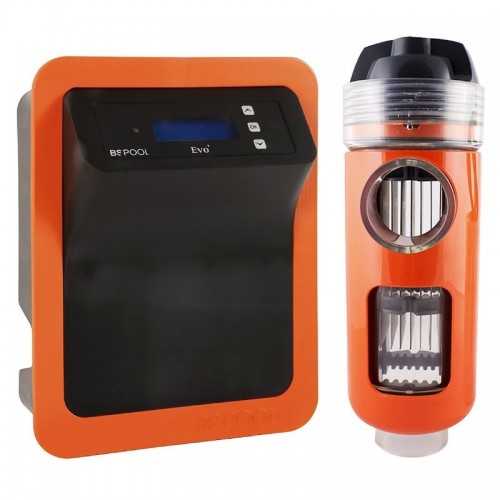

Saline chlorinator Evobasic 20gr / h BSV

BSV Evo Basic 20

The principle of natural and efficient chlorination. Impeccable and healthy water through electrolysis by switched font, automated control and maximum cellular life.

Engineering Study: The Sustainable Cycle of Natural Chlorine

Modern disinfection engineering prioritizes the elimination of industrial chemical chlorine (in pills or liquid) due to its harmful derivative residues, such as chloramines. The system Evo Basic 20 it implements a natural physical-chemical principle: when dissolving a minimum common salt concentration in the vessel (4 g / L) and making it pass through its active electrodes, a pure disinfectant agent is generated that destroys the pathogens instantaneously. By completing disinfection, this compound is transformed into salt, repeating the cycle indefinitely without degrading hydraulic water quality. Our technical department analyzes the flows of your pool to optimize this natural balance process.

📊 All electrochemical and power coefficients correspond faithfully to the manufacturer's metrics.

Advanced electrolysis: pure, automated and uninterrupted natural chlorination

Compact saline chlorinator BSV EVO Basic 20 Transforms the traditional concept of chemical maintenance in private pools, betting on an automated physical process of natural chlorination. The device takes advantage of the conductivity of the treated water with a minimum level of 4 grams per liter to activate a controlled electric field. As the hydraulic flow crosses the cell, the molecular dissociation that releases pure sodium hypochlorite in active state, an extraordinarily powerful and volatile disinfectant that eliminates bacteria, viruses and algae without Accumulate the harmful chemical stabilizers of conventional chlorine. Once this natural chlorine performs its oxidant function under the action of sunlight, it recombines and returns to salt, forming a closed, ecological and sustainable cycle.

The high performance key of this model resides in the implementation of a ** state-of-the-art switched source **. Unlike old equipment based on heavy magnetic transformers, the EVO Basic 20 switching electronics millimetrically stabilizes energy delivery to electrodes, guaranteeing a constant maximum current of 20 A with a required electrical power of only 150 W. This not only drastically reduces light consumption on the monthly invoice, but decreases the internal work temperature of the painting, preventing the wear of the components and prolonging the operational reliability of the entire system.

Durability in the heart of the system is backed by the titanium electrolysis cell ** longlifecell **, designed specifically to provide up to ** 10,000 hours ** of effective service. Thanks to its intelligent automatic polarity investment software, the cell invests the electrical flow of its plates scheduled to detach the calcium and scale incrustations by itself, maintaining 100% chlorination performance without the need for manual cleanings Corrosive All equipment behavior is coordinated by an internal microprocessor with digital display, which monitors the accumulated filtration hours and incorporates diagnostic sensors that instantly detect the lack or excess salt in the water, acting as a supervisor Automatic health of your pool.

Optional expansion modules for total control

The internal architecture of the EVO Basic 20 is designed under a modular engineering concept. This allows the system to grow stepped, transforming manual regulation into an intelligent domotic controller that measures and doses exact parameters for automatic demand:

• Auto Kit (pH): It integrates real-time reading and automated pH correction on the digital display.
• Kit Advanced (ORP): Automatically regulates the production of natural chlorine by measuring the redox potential values (ORP).
• Auxiliary probes kits: It supports the integration of temperature sensors (water tan indication), amperometric probes and safety water sensors.
• Kit Connect (Eypools): Grant advanced digital connectivity for external monitoring of pool parameters.
