KIT COMFOFAN SILENT 5 Zones Renovation Air Simple Flow Zehnder
Complete mechanical ventilation system controlled from simple flow for efficient extraction of air poured into 5 wet rooms (kitchen and 4 bathrooms). Based on the ultrasilence Zehnder ComfoFan Silent 425, this kit guarantees optimal interior air renewal with maximum energy efficiency.
- ▷ Extractor ComfoFan Silent ultrasilency (49 dB) with 425 m3/h flow
- ▷ Wireless RFZ control for easy system handling

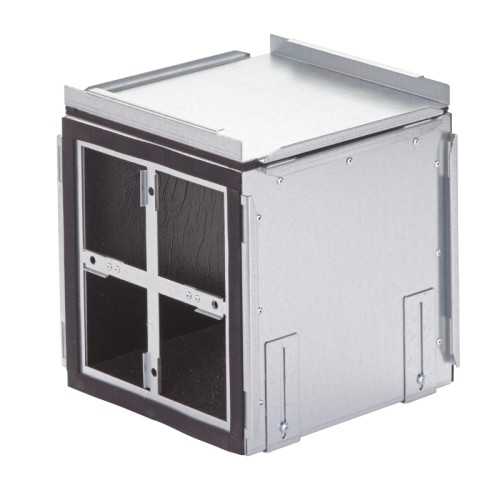

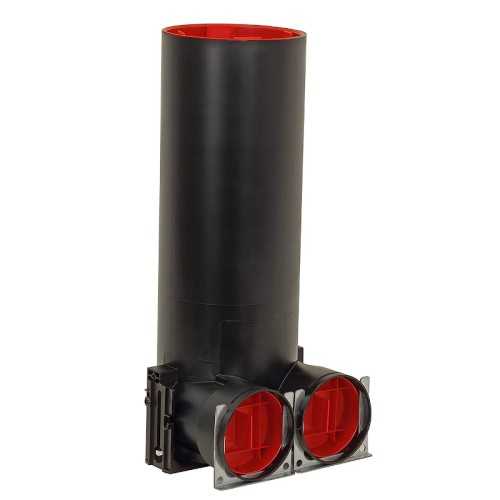

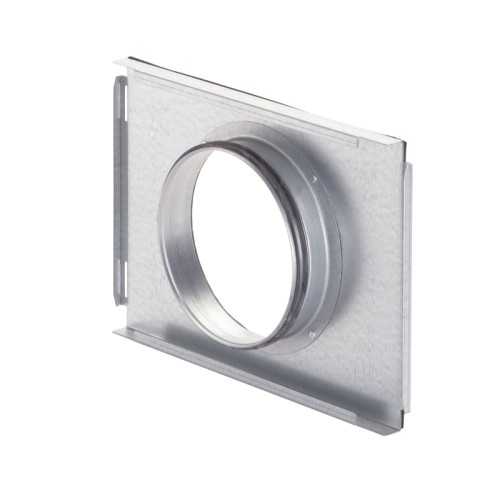

- ▷ Extraction boxes, collectors and distributors for 5 rooms

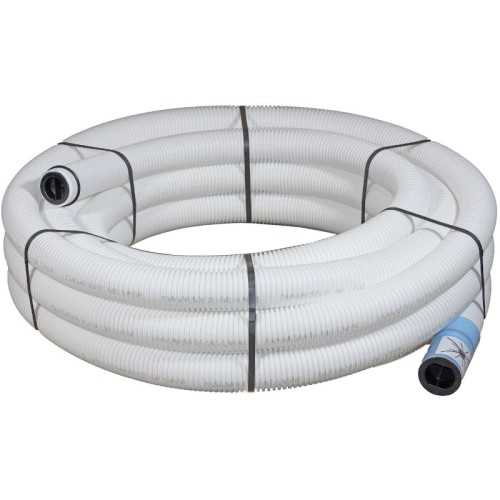

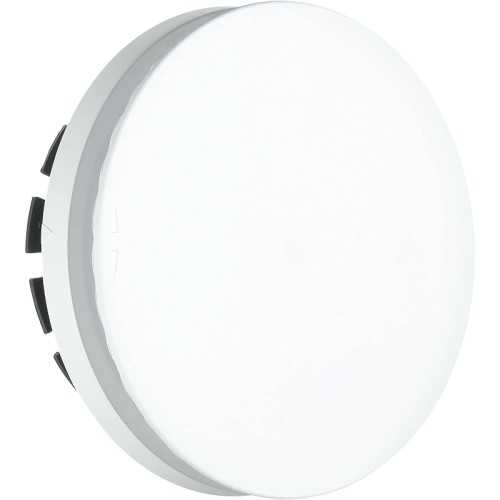

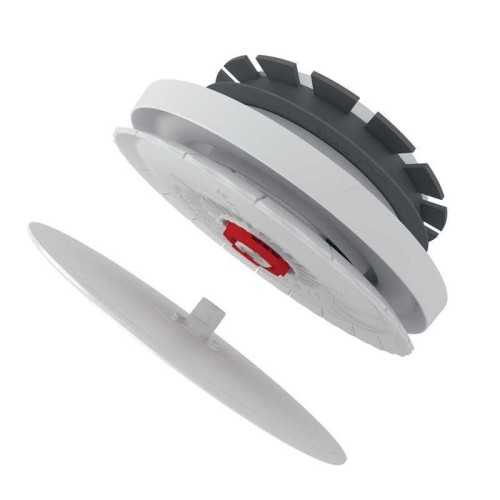

- ▷ Flexible tube, valves and external grids included
- ▷ Integrated moisture sensor with automatic control
- ▷ Warranty Zehnder up to 3 years - quality and reliability Switzerland
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Zehnder ComfoFan Silent Kit for 5 Húmedos with RFZ Control 425m3/h
Referencia: KCOMFOFAN5Z
€2,121.44
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
KIT COMFOFAN SILENT 5 Zones Renovation Air Simple Flow Zehnder
Complete mechanical ventilation system controlled from simple flow for efficient extraction of air poured into 5 wet rooms (kitchen and 4 bathrooms). Based on the ultrasilence Zehnder ComfoFan Silent 425, this kit guarantees optimal interior air renewal with maximum energy efficiency.
- ▷ Extractor ComfoFan Silent ultrasilency (49 dB) with 425 m3/h flow
- ▷ Wireless RFZ control for easy system handling

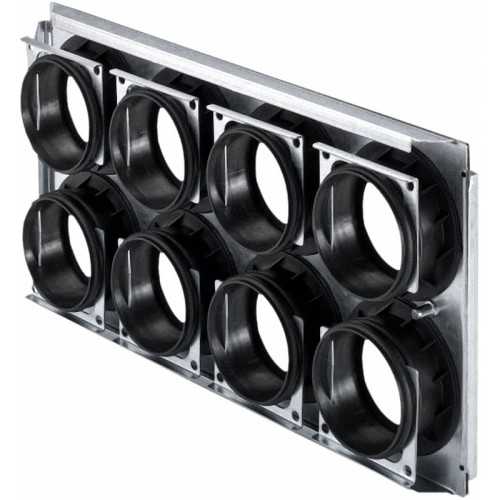

- ▷ Extraction boxes, collectors and distributors for 5 rooms

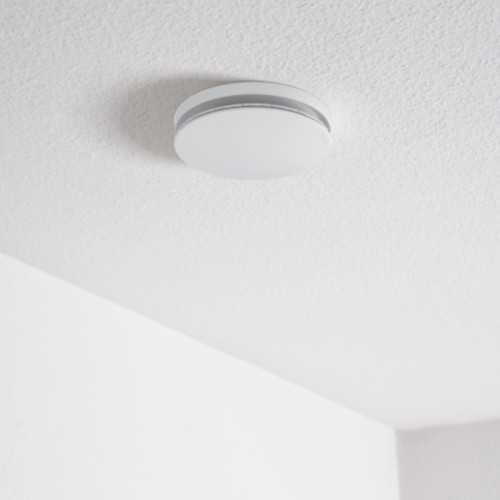

- ▷ Flexible tube, valves and external grids included
- ▷ Integrated moisture sensor with automatic control
- ▷ Warranty Zehnder up to 3 years - quality and reliability Switzerland
Security policy
Delivery policy
Refund policy
THE DEFINITIVE SOLUTION FOR THE CALITY OF THE INTERIOR AIRE
La controlled mechanical ventilation of simple flow represents one of the most efficient and economic solutions to ensure optimal quality of the interior air in homes. Unlike dual-flow systems, simple-flow ventilation focuses exclusively on the extraction of the air from the wet rooms (kitchens, bathrooms and toilets), creating a slight depression that allows the entrance of fresh air through airers located in the dry rooms.
This system works through a simple but highly effective principle: the central extractor continuously and controlled the air loaded with moisture, odors and contaminants from the areas where they are most generated, thus forcing the constant renewal of the air throughout the house. The new air enters naturally through the dry rooms and sweeps the whole house until it is expelled by the wet rooms.

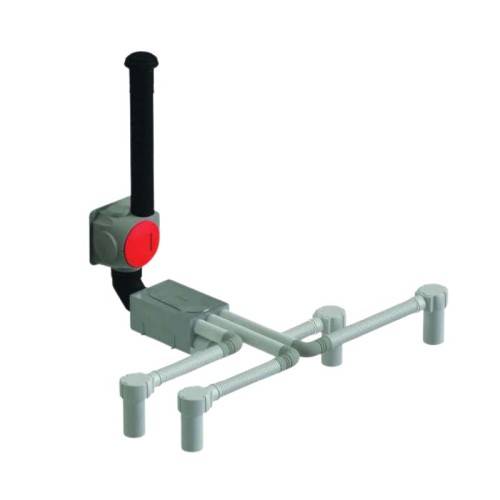

The KIT COMFOFAN SILENT 5 Areas of Zehnder offers a complete solution to implement this system, combining the ultrasilenicious extractor ComfoFan Silent 425 with all the components necessary for extraction in five wet rooms, ensuring a healthy environment, free of moisture, odors and contaminants throughout the house.

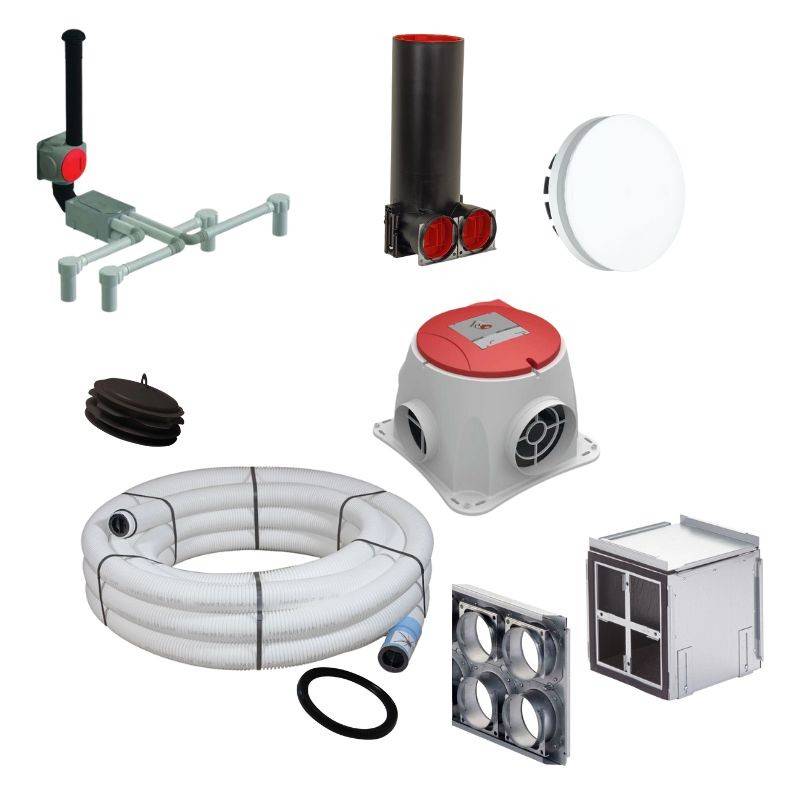

Kit Content
Note: This kit does not include the material necessary for the connection between the extractor and the outside. The installation must be carried out by qualified staff following the current regulations.

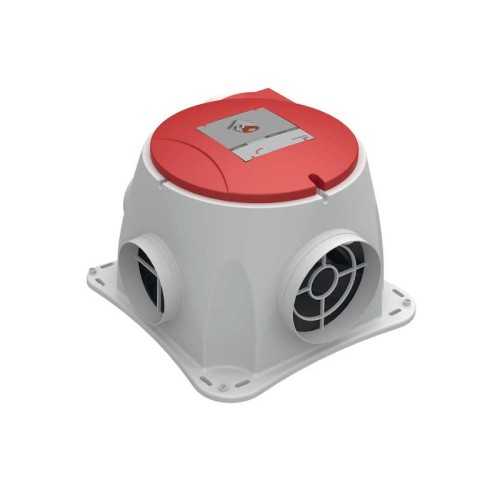

Features of ComfoFan Silent 425
💨
High Performance
Maximum range of 425 m3/h to 150 Pa which guarantees optimal ventilation even in large housings, always maintaining a healthy environment.
🔇
Quiet operation
Optimized design with integrated soft volute to minimize noise, reaching sound levels of only 49 dB(A), ideal for residential environments.
💧
Integrated Humidity Sensor
Control PI to +/- 75% HR with maximum control signal, automatically adjusting ventilation according to environmental conditions to prevent condensations.
📱
Intelligent Control
Radio printed circuit board for integrated series RF control, expandable with three-way switch, RFZ and/or 0-10V sensors for customised management.
Applications and Installation Tips
Ideal applications
- Single-family dwellings or floors with ventilation in kitchen and bathroom
- Renovations and rehabilitations where the quality of the interior air is needed
- New constructions that seek to comply with energy efficiency regulations
- Solutions for humidity, condensation or indoor air quality problems
Installation Tips
- The installation must be performed by qualified technical staff
- Place the ComfoFan Silent extractor in an accessible space to facilitate maintenance
- Use rigid ducts and minimize the number of elbows to reduce load losses
- Ensure good grip and tightness of the ducts to prevent vibrations
- Consider the local regulations for the location of the external removal grid
System maintenance
To ensure the optimal functioning and prolong the service life of the system, the following maintenance actions are recommended:
- Cleaning of the extractor: Disconnect the network equipment and clean twice a year with the help of a dry brush.
- Substitution of filters: Replace the filters of the extraction mouths periodically, depending on the level of environmental pollution.
- Conduit review: Check each year the state of the ducts and the sealing of the connections.
- Operating control: Verify periodically the correct functioning of the system through RFZ control.
Important
Before any maintenance operation:
- Disconnect the electrical network equipment
- Ensure that food is not accidentally restored
- Use only original spare parts Zehnder to ensure quality and maintain the guarantee
⭐
Warranty Zehnder
All KIT COMFOFAN SILENT 5 Areas components are supported by quality assurance Zehnder, european leader in ventilation and air conditioning systems.
The heart of the system, the ComfoFan Silent 425, has a warranty of up to 3 years, reflecting the exceptional reliability and durability of the product.
KCOMFOFAN5Z
Data sheet
- Brand
- Zehnder
- Maximum consumption (W)
- 73
- Maximum sound pressure DBA
- 49
- Maximum flow (m3 / h)
- 425
