    Sodeca EVM-42

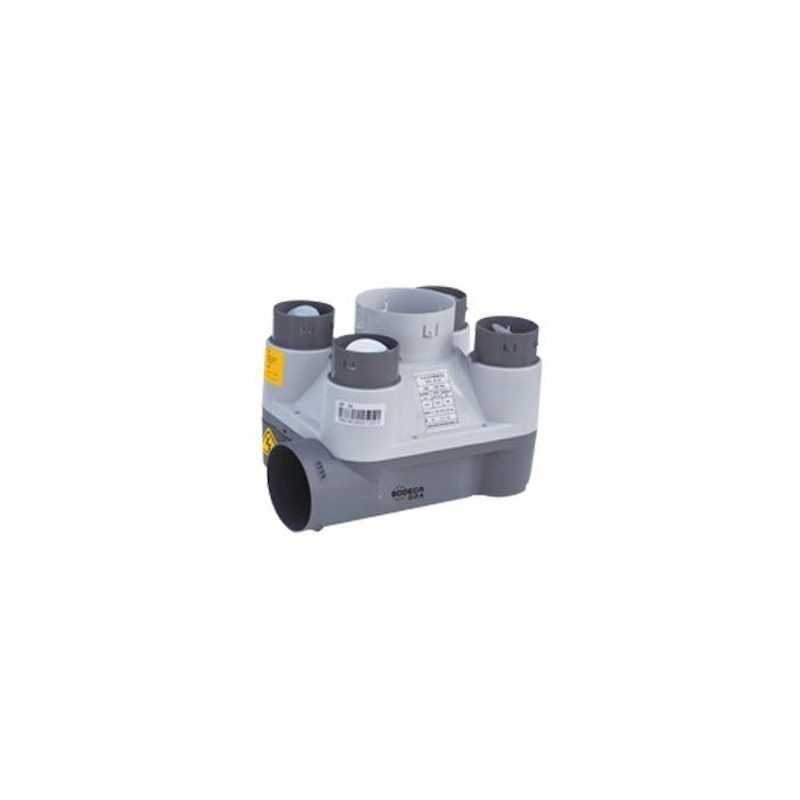

    Compact extract with multibodes and orientable output, designed for simultaneous extraction of a minimum of 5 different areas in single-family homes. It combines exceptional versatility (orientable in any position) with silent operation (33-38 dB(A)) and three selectable speeds.

    • ▷ Adjustable range between 190-380 m3/h with three speeds
    • ▷ 360° orientable output to suit any installation
    • ▷ 4 mouths Ø80 mm and 1 mouth of Ø125 mm for air input
    • ▷ Easy flow regulation in the extraction mouths themselves
    • ▷ Removable with only 1⁄4 back for easy maintenance
    • ▷ Optimized consumption between 40-75W with ErP 2018 certification
    Contact by Whatsapp
    Contact by e-mail


    Security policy



    Delivery policy



    Refund policy

    ️ Sodeca EVM-42

    Compact Extractor with Multibocas and Orientable Output

    The versatile solution for ventilation in single houses

    The Sodeca EVM-42 is a compact extractor with multibodes and orientable output, designed specifically for air extraction from a minimum of 5 different areas in single-family homes. Its innovative and versatile design allows you to guide the output in any position, adapting perfectly to any architectural configuration.

    With a flow rate between 190-380 m3/h and three selectable speeds, this system provides a complete ventilation solution for the entire house in a single equipment. Its perfect surround and wrap design ensures high performances with reduced sound levels and minimum absorbed power, while its easy disassembly with only 1⁄4 back greatly facilitates maintenance.

    INTEGRAL VENTILATION
    🔄

    VERSÁTIL

    🔇

    SILENCE

    🔧

    PRACTICAL

    Main features

    💨

    Integral Ventilation

    Designed to perform extraction in at least 5 different zones simultaneously, offering a complete ventilation solution for the entire house with a single equipment.

    🔄

    Orientable departure

    Versatile design that allows to orient the output in any position, adapting perfectly to any architectural configuration and facilitating the installation in any space.

    🔌

    Three speeds

    Engine with three selectable speeds (from 1800 to 2400 rpm) to adapt the flow rate (from 190 to 380 m3/h) to the specific ventilation needs at each time.

    🔧

    Easy Maintenance

    Detachable maintenance equipment with only 1⁄4 back, greatly facilitating cleaning and preventive maintenance to ensure optimal long-term operation.

    🔇

    Quiet operation

    Sound pressure level between 33-38 dB(A), thanks to the perfect surround and surround design that minimizes noise during operation, ensuring acoustic comfort throughout the house.

    ️

    Multiple Connections

    Equipped with 4 mouths of 80 mm and 1 mouth of 125 mm for air inlet, plus 1 mouth of 125 mm for exit, allowing simultaneously to extract air from multiple areas of the house.

    Technical Specifications

    FeatureSpecification
    Minimum/maximum flow rate190/380 m3/h
    Motor speed1800/2400 rpm
    Minimum electrical power/maximum40/75 W
    Minimum/maximum sound pressure level33/38 dB(A)
    Electrical powerMonof Classic 230V - 50Hz
    Maximum intensity0.25/0.51 A
    Air entrance4 mouths Ø80 mm and 1 mouth of Ø125 mm
    Air exit1 mouth of Ø125 mm
    Dimensions (AxBxCxHxh)340 × 397 × 280 × 280 × 210 mm
    Approximate weight3 kg
    Working temperature-15oC to +50oC
    CEE classC (according to EU Regulation 1253/2014)

    * ErP Compliance 2018

    Main benefits

    🔄

    Maximum Versatility

    The combination of multiple orientable extraction and output mouths in any position allows you to adapt the equipment to virtually any architectural configuration, greatly facilitating the installation and reducing associated costs.

    💰

    Cost reduction

    By allowing extraction from a minimum of 5 different zones with a single equipment, it eliminates the need to install multiple extractors, significantly reducing the costs of material, installation and maintenance, as well as global energy consumption.

    🔧

    Personalized control

    The possibility of regulating the flow directly in the extraction mouths themselves, combined with the three selectable speeds of the engine, allows the precise adaptation of the ventilation to the specific needs of each room and every moment.

    ▪

    Healthy Interior Environment

    Efficient extraction from multiple areas of housing effectively eliminates moisture, odors and pollutants, preventing the emergence of mold and condensations, and creating a healthier interior environment that contributes to the well-being of the occupants.

    Why choose the Sodeca EVM-42?

    The Sodeca EVM-42 represents the ideal solution for the integral ventilation of single-family homes, offering a revolutionary concept that combines multiple extraction mouths with orientable output in a compact and efficient design. Unlike conventional systems that require multiple extractors, the EVM-42 allows to ventilate a minimum of 5 different zones with a single equipment, greatly simplifying the installation and reducing associated costs.

    Its ability to guide the output in any position facilitates the adaptation to any architectural configuration, while the possibility of regulating the flow directly in the extraction mouths themselves and selecting between three speeds of the engine provides a personalized control for each stay. With a sound level of only 33-38 dB(A), it guarantees acoustic comfort throughout the house.

    Manufactured entirely in high quality plastic material and equipped with a motor with long-lasting ball bearings, the EVM-42 offers a durable and reliable solution, while its easy dismantling with only 1⁄4 back greatly simplifies maintenance work. All this supported by the quality and experience of Sodeca, with ErP 2018 certification, ensuring an efficient and sustainable solution for the controlled mechanical ventilation of single-family homes.

    Integral ventilation for your entire home in a single team

    Discover the multibode extractor Sodeca EVM-42, the versatile and efficient solution for ventilating up to 5 different areas of your home with a single equipment. Compact design, orientable output and silent operation to ensure a healthy interior environment with maximum comfort.

    REQUEST INFORMATION
    1180089

    Data sheet

    Brand
    Sodeca
    Maximum consumption (W)
    75
    Maximum sound pressure DBA
    38
    Maximum flow (m3 / h)
    380
    High (mm)
    280
    Width (mm)
    397
    Deep (mm)
    397
    Weight (kg)
    3,0
