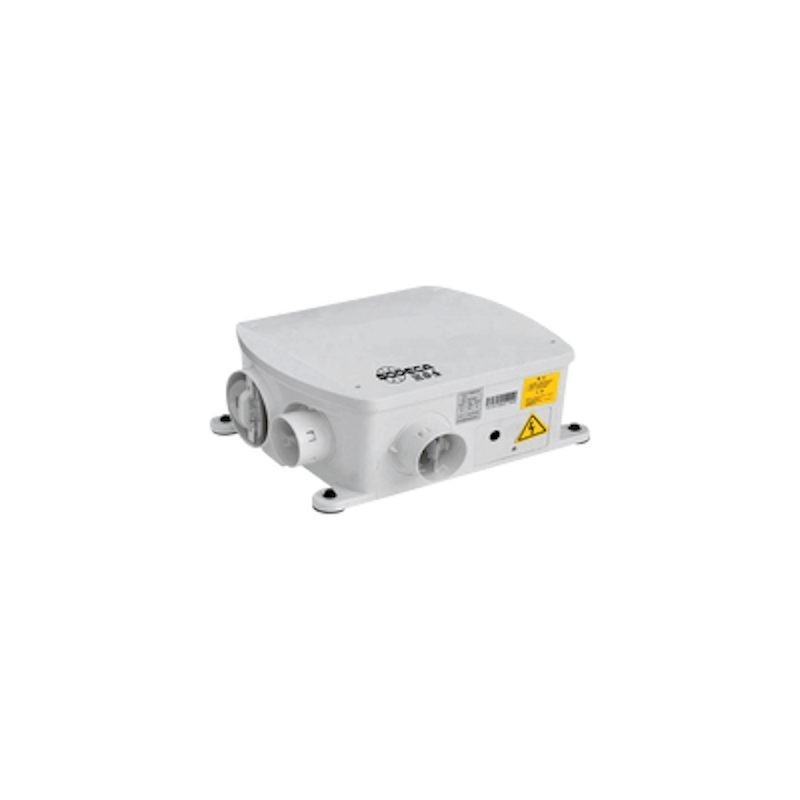

    Sodeca EVP-42 Low silhouette Extraction 3 Zones 2.400R/Min

    ¿Any doubt about the product?

    Talk to us and consult us. We will solve all your doubts

    Sodeca EVP-42 Low silhouette Extraction VMC

    Referencia: 1180096
    €435.79
    Tax included

    We are currently out of stock.

    Ask us about availability!!

    Envío GRATIS en España (Península) a partir de 300€ + info

    Email has been sent successfully.

    Calcular Gastos de Envío
    🛡️ Pago Seguro ✅ Garantía Oficial

    Sodeca EVP-42

    Low silhouette extract for false ceiling, designed to perform simultaneous extraction of 3 different areas in spacious dwellings. It combines high performance (420 m3/h) with silent operation (38 dB(A)) and certified energy efficiency ErP 2018.

    • ▷ Maximum ratio of 420 m3/h ideal for larger housing
    • ▷ Three selectable speeds to suit every need
    • ▷ 3 mouths Ø80 mm and 1 mouth of Ø125 mm for air input
    • ▷ 30-minute adjustable timer for programmed ventilation
    • ▷ Silent operation of only 38 dB(A) for maximum comfort
    • ▷ Annual heating saving up to 4500 kWh in temperate climate


    Security policy



    Delivery policy



    Refund policy

    ️ Sodeca EVP-42

    High Performance Low Silhouette Extractor for False Roof

    The advanced solution for ventilation in spacious housing

    The Sodeca EVP-42 is a high-performance low silhouette extractor, specifically designed to be installed on false roof and perform air extraction from three different areas in single-family homes or apartments. Its compact design and low profile make it the ideal solution for spaces with height limitations.

    With a maximum flow of 420 m3/h, this system provides a superior ventilation capacity ideal for larger housing. Its three selectable speeds allow the ventilation to be adapted to the specific needs of each moment, while its perfect surround and surround design ensures high performance with very small sound levels.

    HIGH COMMISSIONER
    💨

    POTENT

    🔇

    SILENCE

    ️

    VERSÁTIL

    Main features

    💨

    High Performance

    Maximum flow rate of 420 m3/h, ideal to ensure optimal ventilation in larger housings, effectively eliminating moisture and contaminants even in large spaces.

    🔄

    Three speeds

    Simple regulation of the flow thanks to its three selectable speeds, allowing the ventilation to be adapted to the specific needs of each moment and of different rooms of the house.

    🔇

    Quiet operation

    Acoustic power level of only 38 dB(A), thanks to the perfect surround and surround design that minimizes noise during operation, ensuring acoustic comfort throughout the house.

    ️

    Integrated timer

    Equipped with adjustable timer up to 30 minutes, allowing the ventilation to be programmed according to specific needs and ensuring complete air renovation even after leaving the room.

    ️

    Multiple connections

    Equipped with 3 mouths of 80 mm and 1 mouth of 125 mm for the air inlet, plus 1 mouth of 125 mm for the exit, allowing to extract air simultaneously from three different areas of the house.

    🔋

    Energy efficiency

    With optimized electrical consumption and ErP 2018 certification, it contributes to the energy efficiency of the house with an annual electricity consumption of only 200 kWh/a in temperate climate.

    Technical Specifications

    FeatureSpecification
    Maximum rate420 m3/h
    Maximum electrical power75 W
    Motor speed2400 rpm
    Acoustic power level38 dB(A)
    Electrical powerMonof Classic 230V - 50Hz
    Air entrance3 Ø80 mm and 1 mouth of Ø125 mm
    Air exit1 mouth of Ø125 mm
    Dimensions (AxBxCxDxH)445 × 341 × 400 × 426 × 185 mm
    Approximate weight3,60 kg
    Working temperature-15oC to +50oC
    CEE classC (according to EU Regulation 1253/2014)

    * ErP Compliance 2018

    Main benefits

    💨

    Higher ventilation

    With a flow of 420 m3/h, it provides a superior ventilation capacity ideal for spacious housing, ensuring a complete air renovation even in large spaces and effectively eliminating odors, humidity and contaminants.

    🔇

    Acoustic comfort

    Despite its superior power, it maintains a very low noise level of only 38 dB(A), thanks to the optimized design of the surround and the envelope, allowing you to enjoy a quiet and comfortable atmosphere in all the rooms of the house.

    ▪

    Healthy Interior Environment

    Efficient extraction from three different zones effectively eliminates moisture, smells and contaminants, preventing the appearance of mold and condensations, and creating a healthier inner environment that contributes to the well-being of the occupants.

    💰

    Energy Saving

    With optimized electrical consumption and an annual saving in heating up to 4500 kWh in temperate climate, the EVP-42 contributes significantly to reducing the energy cost of the house, quickly amortizing the initial investment.

    Why choose the Sodeca EVP-42?

    The Sodeca EVP-42 represents the ideal solution for ventilation of larger housing, combining superior extraction capacity with ultra-compact design and reduced sound levels. Its maximum flow of 420 m3/h guarantees efficient air renovation even in wider spaces, allowing a healthy interior environment throughout the house.

    Unlike other conventional extractors, the EVP-42 allows simultaneous extraction from three different zones, optimizing the installation and reducing costs by eliminating the need for multiple equipment. Its silent operation, with only 38 dB(A), guarantees acoustic comfort in all rooms, while its adjustable timer and three selectable speeds provide total flexibility.

    With ErP 2018 certification and optimized electrical consumption, the EVP-42 significantly contributes to the energy efficiency of the housing, reducing both electricity consumption and heating costs. All this supported by the quality and experience of Sodeca, guaranteeing a durable, efficient and reliable solution for controlled mechanical ventilation of single-family homes and spacious apartments.

    Powerful and silent ventilation for spacious housing

    Discover the low silhouette extractor Sodeca EVP-42, the perfect solution to ensure optimal ventilation in larger housings. Maximum performance, minimum noise and energy efficiency certified in a compact design for false ceiling.

    REQUEST INFORMATION
    1180096

    Data sheet

    Brand
    Sodeca
    Maximum consumption (W)
    75
    Maximum sound pressure DBA
    38
    Maximum flow (m3 / h)
    420
    High (mm)
    185
    Width (mm)
    426
    Deep (mm)
    445
    Weight (kg)
    3,6
