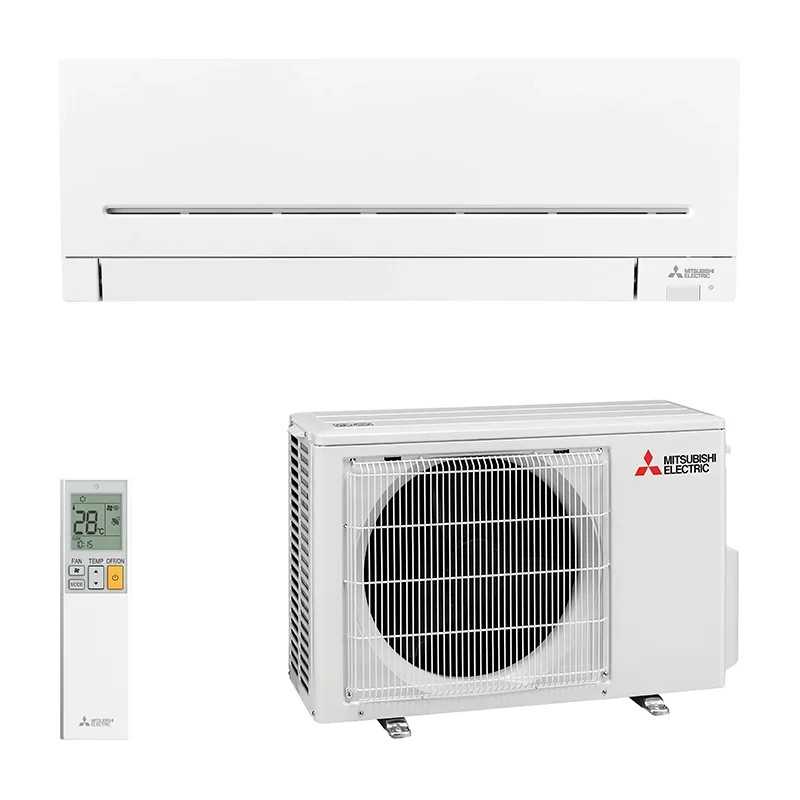

Split Air Conditioning 1x1 Mitsubishi MSZ-AP71VGK

Mitsubishi MSZ-AP71VGK Air Conditioning offers you a power 6.106 cold and 6.966 in heat. With energy efficiency and A++/A+ and a sound only 30 dB.

Air Conditioning Mitsubishi MSZ-AP71VGK features as optional Filter Plasma Quad, Based on plasma technology it eliminates or inhibits 6 types of threats (virus, bacteria, allergens, etc.).

And what it does has integrated series is integrated series WiFi, compatible with Alexa

Benefits:
Inner air quality

• Responds to the growing need in a cleaner environment with several functions:

• Dual Barrier coating on the battery. It keeps our machine clean by improving efficiency and ensuring an impurity-free air.

• Self-Clean mode. To make sure our battery is completely dry, thus avoiding the appearance of molds and odors.

• V Blocking Filter integrated. The IAQ solution to capture viruses, bacteria, molds and allergens.

Design

• His elegant matte finish fits perfectly with the latest trends in design. It also facilitates the cleaning of the machine and is more difficult to dirty or scratch.

We improve performance on several fronts:

• Sound level: we arrived 18 dB capacity 25 and 35. In model 71 it reaches 30dB as lower

• Installation and maintenance facility: we facilitate the work of the professional, with an improved installation plate, perfected ground and more space for installation and maintenance work.

• We increase energy efficiency (SEER) in all models.

Other improvements:

Installation and maintenance

• They've introduced improvements in the installation sheet, with additional space in case you want to use pre-installed pipe boxes.

• The terminal box is also improved, changing the position of the ground so that it facilitates its connection with the current solution.

Connectivity-MELCloud

• Maintains serial WiFi, but we improve the way we pair the router. Now the process is faster and intuitive and is done in a remote control menu indoor Unit.

• We added the Plasma Quad function to the control menu of this series.

• We added the Night Mode function to the control menu of this series.

Mitsubishi MSZ-AP71VGK Air Conditioning :

REF Indoor Unit: MSZ-AP71VGK

REF External unit: MUZ-AP71VG

CONJUNTO: MSZ-AP71VGK

General data of the team:

Nominal cold capacity (minim/max): 7,1 (2,0/8,7) kW

Nominal heat capacity (minim/max): 8.1(2,2/10,3)kW

Capacity in Kcal/h(cold): 6.106 Kcal/h

Capacity in Kcal/h(heat): 6.966 Kcal/h

Nominal consumption Cold/heat: 2,01/2,12 kW

Annual cold electrical consumption: 364 kW/year

Annual electric consumption heat intermediate zone: 2,204 kW/year

Energy coefficient EER/COP: 3.33/3,63

Energy coefficient SEER(Label): 7,2(A++)

Energy coefficient SCOP intermediate climate zone (label): 4,4(A+)

Energy coefficient SCOP warm climate zone (label): 5.8 (A++)

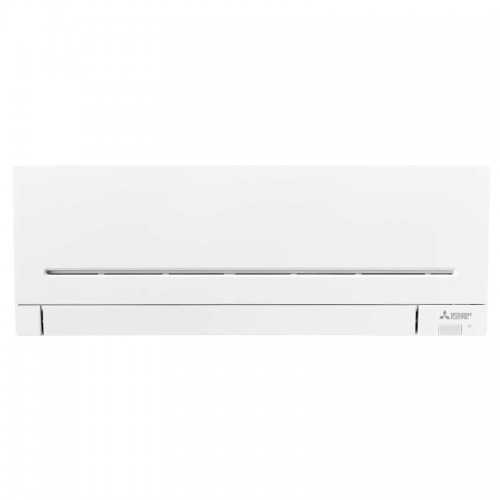

Data indoor Unit :

Air flow (Silence/Baja/media/high/maximum): 9,6 / 11,5 / 13,2 / 15,3 / 18,6 m3/min.

Sound level (Silence/Baja/media/alt)a/maximum): 30 / 37 / 41 / 45 / 49 dB(A)

Sound power: 65 dB(A)

Dimensions high x width x background: 325 x 1.100 x 257 mm

Weight: 17.0 kg

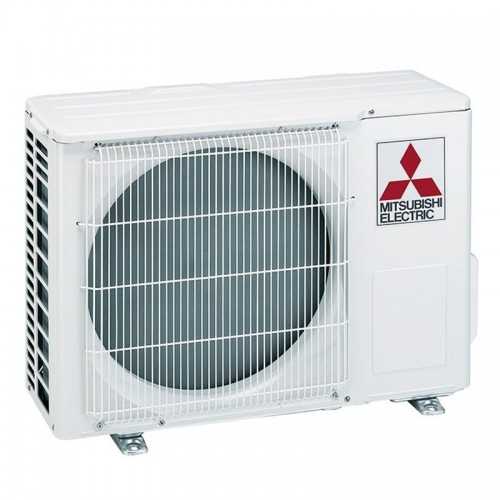

Data outdoor Unit :

Air flow: 54.1 m3/min.

Sound level: 56 dB(A)

Sound power: 69 dB(A)

High measures x width x bottom: 880 x 840 x 330 mm

Weight: 55 kg

Refrigerant Gas/cantity: R-32

Voltage/Fases-Maximum intensity: 230/16,60 A

Diameter liquid/gas pipes: 6,35/12,70 mm

Maximum length vertical/total pipe: 15/30 m

Operation outer temperature range for cooling: -10~+46 °C

Operating range temperature exterior for heating: -15~+24 °C
