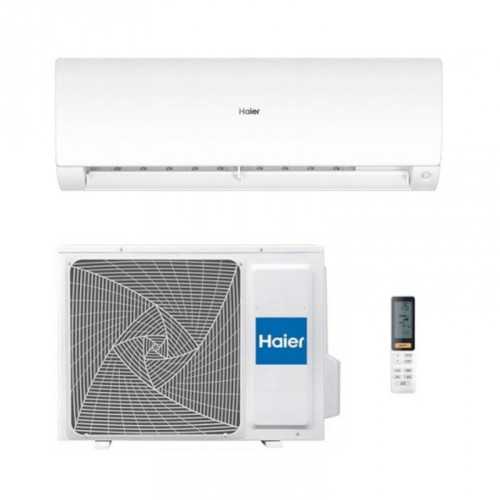

Split Air Conditioning 1x1 Haier Flexis S 50 White
Set Split Air Conditioning 1x1 Haier Flexis S 50 White It is the high-capacity climate solution for wide classrooms, commercial premises and modern offices that prioritize a bright, minimalist and clean design (range reference ** HJ1-W **). It offers an imposing nominal power of 5.30 kW in refrigeration supported by the maximum seasonal energy classification To +++. Its exclusive chassis in satin white finish is integrated with absolute distinction in any stay, providing intelligent management management through its eco presence sensor and an advanced active biocidal disinfection system UVC Plus.
- â Double maximum efficiency A +++: Outstanding energy saving ratios with a Seer of 8.50 and a 5.10 SCOP in heat mode.
- â Eco smart sensor: It scans the room volumetically to adjust the air flow and avoid annoying currents over the occupants.
- â Sterilization UVC Plus: Latest Biological Purification than inactive virus and chemically eliminates bad odors.
- â Great air flow: Move an optimized air volume of 830 mÂł / h for a homogeneous air conditioning of large spaces.
- â Wi-Fi Module Serial: Universal domotic control and analytical supervision of consumer historicals using smartphone.
Commercial Sku Reference (Master-Kit): As50sdbhra-mw
ÂżAny doubt about the product?
Talk to us and consult us. We will solve all your doubts
Split Air Conditioning 1x1 Haier Flexis S 50 White
Referencia: FlexisS50Blanco
âŹ1,052.18
Tax included
î IMMEDIATE DELIVERY!
For deliveries in Europe, consult delivery time
EnvĂo GRATIS en España (PenĂnsula) a partir de 300⏠+ info
Email has been sent successfully.
Calcular Gastos de EnvĂo
đĄïž Pago Seguro â
GarantĂa Oficial
Split Air Conditioning 1x1 Haier Flexis S 50 White
Set Split Air Conditioning 1x1 Haier Flexis S 50 White It is the high-capacity climate solution for wide classrooms, commercial premises and modern offices that prioritize a bright, minimalist and clean design (range reference ** HJ1-W **). It offers an imposing nominal power of 5.30 kW in refrigeration supported by the maximum seasonal energy classification To +++. Its exclusive chassis in satin white finish is integrated with absolute distinction in any stay, providing intelligent management management through its eco presence sensor and an advanced active biocidal disinfection system UVC Plus.
- â Double maximum efficiency A +++: Outstanding energy saving ratios with a Seer of 8.50 and a 5.10 SCOP in heat mode.
- â Eco smart sensor: It scans the room volumetically to adjust the air flow and avoid annoying currents over the occupants.
- â Sterilization UVC Plus: Latest Biological Purification than inactive virus and chemically eliminates bad odors.
- â Great air flow: Move an optimized air volume of 830 mÂł / h for a homogeneous air conditioning of large spaces.
- â Wi-Fi Module Serial: Universal domotic control and analytical supervision of consumer historicals using smartphone.
Commercial Sku Reference (Master-Kit): As50sdbhra-mw
Security policy
Delivery policy
Refund policy
High-end capacity ELEGANCE âą Novelty 2025
Haier Flexis S 50 White
High power and sophisticated white satin, double seasonal efficiency A +++, Eco sensor and UVC Plus biological immunity.
âïž Nominal refrigeration: 5.30 KW đ„ Nominal heating: 6.00 kW đ± ERP classification: A +++ / A +++
Large thermodynamic capacity and author design for Luminous Premium Projects
The air conditioning system mono-split wall Haier Flexis S 50 White (Commercial Reference of Gama ** HJ1-W **) is a high capacity air conditioning solution to meet the highest expectations of architects, indoor studies, promoters and installers. This set conjugates the indoor Unit large volume in pure white satin finish As50sdbhra-mw with the powerful and efficient unit condensor exterior inverter of last generation 1u50kebfra-'s. Operating ecologically with ecological refrigerant gas R32, Provides a nominal power of 5.30 kW in refrigeration and 6.00 kW in heat mode. Its premium chassis is the perfect asset for the comprehensive air conditioning of wide classrooms, diaphanous commercial premises or office areas that require a uniform air distribution and a perfectly integrated timeless aesthetic, strictly complying with the maximum classifications of The Ecodesign Directive of the ERP European Union.
đïž
Smart echo sensor
It incorporates a dual-sensitive dual infrared volumetric sensor that continuously scans the areas of the stay continuously. Identify the presence and activity of users to guide the slats, allowing to choose between a direct or indirect air flow, and decreases autonomously the frequency of the compressor if the stay is empty.
đĄïž
Medical Sterilization UVC Plus
Latest biocide module that emits upper band ultraviolet radiation over the forced air flow driven by the split. This process effectively destroys the genetic material of the microorganisms suspended in the environment. In parallel, it chemically decomposes odoriferous particles, achieving an air of high environmental purity.
âš
Steri-Clean sanitization cycle
Through a precise management of the refrigerant pressures, the equipment freezes the internal battery to trap the suspended dust particles and, then, runs a rapid defrosting phase followed by intense heating. This raises the battery at 56 ° C for 30 minutes, eliminating from root molds and bacteria.
Installation and Comfort Engineering: Features of the Flexis S 50 series
đš precise heat shrinkage i feel

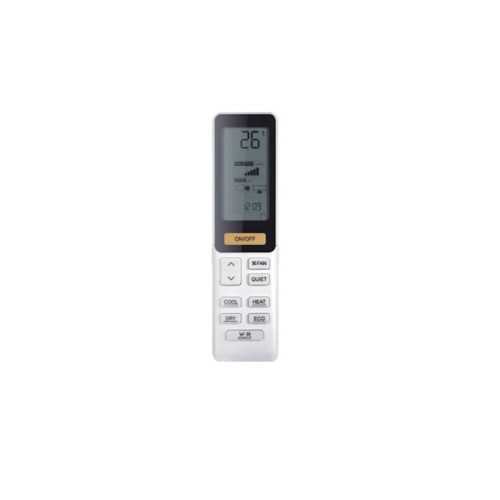

The wireless infrared controller has an integrated thermal sensor to continuously evaluate the temperature conditions of the actual occupancy zone instead of the upper roof return, achieving a millimetric and non-fluctuating inverter compressor response.
đ§ Easy professional installation kit
The chassis of the indoor Unit it has been designed to significantly optimize assembly times. It incorporates a robust support template, greater internal maneuver space for the connection of refrigerated pipes and front access to electronic components.
đ± IoT connectivity with HONEP
The integrated Wi-Fi module serial lies the split directly to the HON ECOSYSTEM Haier. It allows to monitor immediately seasonal energy consumption, establish advanced time schedules and control the functions of voice comfort with Alexa and Google Assistant.
Complete technical specifications (AS50SDBHRA-MW / 1U50KEBFRA-S)
| Parameter / Mechanical and thermal magnitude | Certified official value (5.0 kW) | |
|---|---|---|
| Identification of system components | ||
| Commercial reference code | Set Split 1x1 Monosplit Wall Great Capacity | Flexis S 50 White (HJ1-W) |
| Model Indoor Unit | Satin residential evaporator / commercial | As50sdbhra-mw |
| Model Outdoor Unit | Rotary compressor inverter high durability | 1u50kebfra-'s |
| Nominal thermodynamic performance data | ||
| Power delivered in refrigeration | Nominal (minimum range - maximum) in KW | 5.30 (1.40 - 6.00) |
| Power delivered in heating | Nominal (minimum range - maximum) in KW | 6.00 (1.50 - 6,80) |
| Power absorbed cooling | Nominal in KW (energy consumption) | 1,47 (0.40 - 2.00) |
| Power absorbed heating | Nominal in KW (energy consumption) | 1.50 (0.50 - 2,40) |
| Static efficiency coefficients | EER / COP (W / W) Officers | 3.61 / 4.00 |
| Seasonal energy efficiency ERP structure | ||
| Seer (Cold Mode) | Seasonal efficiency factor | 8.50 (A +++) |
| SCOP (Heat Mode - Average Climate) | Seasonal efficiency factor | 5.10 (A +++) |
| Cold annual electrical consumption | Estimated seasonal consumption | 218 kWh / year |
| Technical specifications Indoor Unit (As50sdbhra-mw) | ||
| Treated air flow (H) | Maximum volume of drive per hour | 830 mÂł / h |
| Sound pressure Ui (cold) | Scales: High / Medium / Low / Super Silence | 44/40/36/31 dB (A) |
| Net Dimensions Chassis UI | Width x depth x high in mm | 999 x 225 x 323 mm |
| Net Structural Weight UI | Evaporator mass without packing | 12.00 kg |
| Installation data and refrigeration magnitudes | ||
| Fluid Refrigerant Gas Used / load | Pure fluorinated ecological gas / factory load | R32 / 950 g |
| Liquid line diameters / gas | Mechanical abdoDing connections (inches) | 6.35 mm (1/4 ") / 12.70 mm (1/2") |
| Maximum length / maximum height | Limits of admissible mechanical layout | 25 m / 15 m |
Frequently asked questions about the Haier Flexis S 50 White
What advantages does the satin white finish in this high capacity split?
Satin white finish of the indoor Unit (Reference AS50SDBHRA-MW) has been expressly developed to merge into broad and commercial residential environments with a luminous and modern aesthetic. Unlike conventional large units, its satin texture gently absorbs indirect lighting of stays, mitigating strident reflections and integrating discreetly on clear walls.
How does the Eco sensor maximize the Savings in a 5.0 kW model?
The Eco Intelligent Sensor volumetically monitors the infrared stay. By identifying the exact location of the occupants, it allows the team to direct the air flow or divert it to offer superior comfort. Its main benefit in large capabilities is that, by detecting that the room remains empty for a long time, it autonomously reduces the frequency of the Inverter compressor, drastically mitigating energy waste.
What level of filtering and hygienization does the UVC Plus system provide?
The advanced UVC PLUS system emits ultraviolet radiation directly on high-speed-driven air (830 mÂł / h). This breaks the structures of the viruses and bacteria suspended in the environment. In addition, the equipment chemically decomposes annoying volatile gases and bad odors, guaranteeing deep environmental sterilization, free of harmful and suitable chemical compounds for commercial or family environments.
What are the technical constraints and pipelines required for installation?
For this system of 5.0 kW, the use of abosarded copper pipes with a diameter of 6.35 mm (1/4 ") is required for the liquid line and 12.70 mm (1/2") for the gas line. The refrigerator circuit tolerates a maximum track of tracing of up to 25 meters, with a maximum vertical rate limit of 15 meters between both units, providing excellent mounting versatility for residential buildings and commercial premises.
Highly climate large spaces with maximum exclusivity and elegant design
Get the Haier Flexis S 50 White Benefiting you of our best guaranteed price, preferred professional rates and direct discount at your climate store.
Official supply reference: AS50SDBHRA-MW
FlexisS50Blanco
Data sheet
- Brand
- Haier
- Indoor Unit
- As50sdhra-mw
- Outdoor Unit
- 1u50debfa-'s
- Color
- White Mate
- Refrigerant Gas
- R32
- Electrical supply
- MonofĂĄsica
- Recommended area (M2)
- Estancia de 32 a 45 m2
- Refrigerator capacity (W)
- 5.200
- Refrigerator capacity (kcal / h)
- 4.472
- Nominal consumption Cold (W)
- 1.460
- Energy class (cold)
- A+++
- SEER
- 8,5
- Heat capacity (W)
- 6.000
- Heat capacity (Kcal / h)
- 5.160
- Nominal heat consumption (W)
- 1.470
- Energy class (heat)
- A+++
- SCOP
- 4,6
- Minimum sound pressure UI DB
- 31
- Dimensions u.i (anxfxh) mm
- 983 x 221 x 322
- Dimensions u.e (anxfxh) mm
- 820 x 306 x 642
- Weight Indoor Unit (Kg)
- 12,8
- Weight Outdoor Unit (Kg)
- 36,3
- Diameter Liquid pipe
- 1/4"
- Diameter Gas Pipe
- 1/2"
- Possibility Integration
- Integrated WiFi
