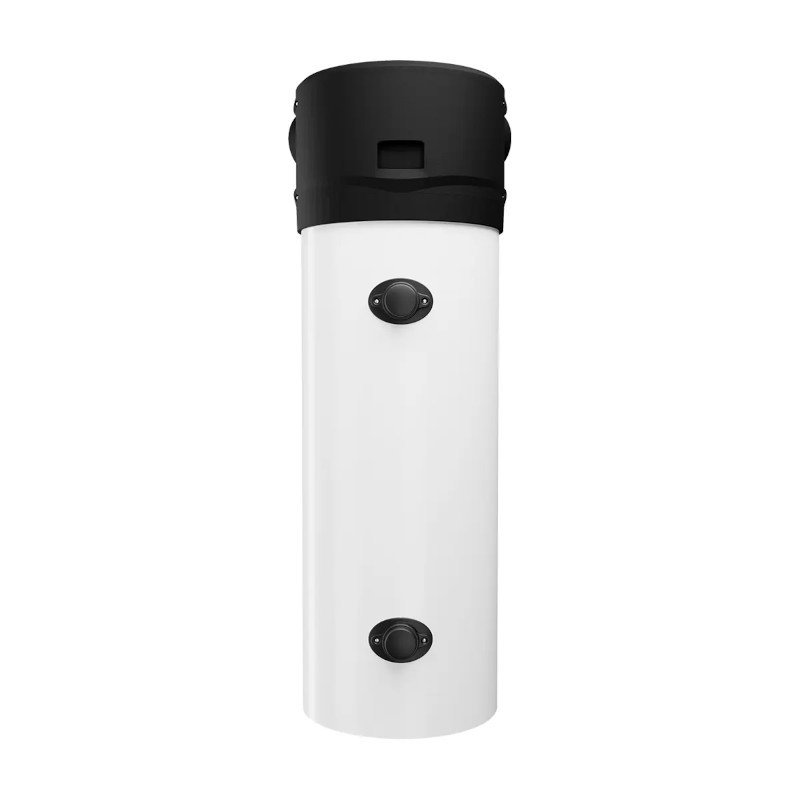

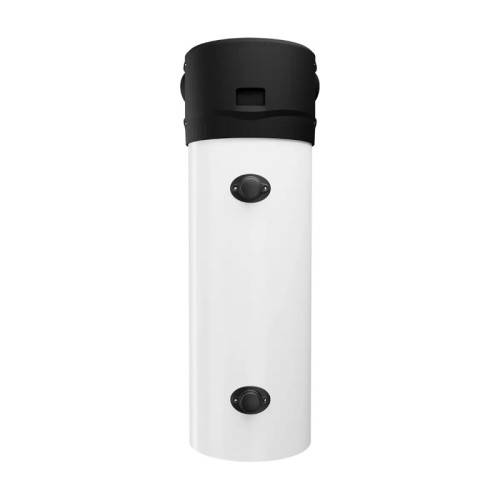

Heat pump DHW Panasonic P.-dhw200cae5
Aquarea DHW R290 with coil | 200l | COP 3.36 | Profile l | A + 3 Climates | Solar / fv
The Heat pump DHW Panasonic P.-dhw200cae5 It represents the definitive hybrid solution with natural refrigerant R290 for medium families seeking maximum energy versatility. With deposit of 200 liters and additional coil 1.05m² for solar / photovoltaic integration, reaches COP 3.36 in temperate climate and generates 267 liters of useful water at 40 ° C with classification A + in three climates. Its Ecological Technology R290, Operating Range -7 ° C to + 43 ° C, Temperature 65 ° C Only with BC, Construction on soil 1621 × 705 × 694mm and Professional L profile Position it as a reference in renewable hybrid systems for installations that prioritize maximum energy efficiency, advanced solar connectivity and certified environmental sustainability.
☀️ Solar coil
1,05m² FV integration
💧 267L Useful water
134% use
🏆 A + Triple
3 Certified Climates
🌿 R290 natural
Maximum sustainability
Key Specifications
Capacity: 200 liters (194L water)
Tempered COP: 3.36 (140% ηWh)
Useful water 40 ° C: 267l
Solar coil: 1,05m² 1'm
BC power: 470w
Weather Heating: 7h 11min (14 ° C)
Profile Load: L (Large)
Refrigerant Gas: R290 0.15kg
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Heat pump ACS Panasonic P-DHW200CAE5 C / SERPENTIN 200L R290
Referencia: P-DHW200CAE5
€2,153.93
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Heat pump DHW Panasonic P.-dhw200cae5
Aquarea DHW R290 with coil | 200l | COP 3.36 | Profile l | A + 3 Climates | Solar / fv
The Heat pump DHW Panasonic P.-dhw200cae5 It represents the definitive hybrid solution with natural refrigerant R290 for medium families seeking maximum energy versatility. With deposit of 200 liters and additional coil 1.05m² for solar / photovoltaic integration, reaches COP 3.36 in temperate climate and generates 267 liters of useful water at 40 ° C with classification A + in three climates. Its Ecological Technology R290, Operating Range -7 ° C to + 43 ° C, Temperature 65 ° C Only with BC, Construction on soil 1621 × 705 × 694mm and Professional L profile Position it as a reference in renewable hybrid systems for installations that prioritize maximum energy efficiency, advanced solar connectivity and certified environmental sustainability.
☀️ Solar coil
1,05m² FV integration
💧 267L Useful water
134% use
🏆 A + Triple
3 Certified Climates
🌿 R290 natural
Maximum sustainability
Key Specifications
Capacity: 200 liters (194L water)
Tempered COP: 3.36 (140% ηWh)
Useful water 40 ° C: 267l
Solar coil: 1,05m² 1'm
BC power: 470w
Weather Heating: 7h 11min (14 ° C)
Profile Load: L (Large)
Refrigerant Gas: R290 0.15kg
Security policy
Delivery policy
Refund policy
The Heat pump DHW Panasonic P.-dhw200cae5 it represents the leading hybrid solution with natural refrigerant R290 for medium families seeking maximum energy versatility through solar and photovoltaic integration. With deposit of 200 liters on soil and extra surpent of 1.05m² with 1'm connection, reaches the Solid COP of 3.36 in temperate climate (140% ηWh) keeping classification A + in three climates (tempered / warm / cold), certifying your excellence at any geographical location.
Your ability to generate 267 liters of useful water at 40 ° C from a 194L reservoir establishes a thermal use of 134%, reaching 65 ° C using exclusively the heat pump without the need for electrical resistance. The integrated solar coil allows preheating of water through solar thermal panels or connection to photovoltaic systems with aerothermia, maximizing energy savings when combining complementary renewable sources.
Designed with ecological technology R290 (propane) low environmental impact with minimum load of 0.15kg, construction on robust floor 1621 × 705 × 694mm (110kg), Professional L cargo profile for 3-4 people, Wide operating range -7 ° C to + 43 ° C, intuitive touch control, anti-corrosion system with dry verifiable magnesium and integrated anti-egionela function. Its optimized heating time of 7h 11min, 3h 39min Boost mode and maximum pressure 8 bar position it as a final reference in renewable hybrid systems for facilities that prioritize maximum efficiency, advanced solar connectivity and certified sustainability.
☀️ Solar coil 1.05m²
Surface: 1,05m² Exchange
Connection: 1'm Standard Male
Integration: Solar Thermal / FV
Advantage: Maximum energy saving
🏆 A + Triple Climate
Tempered climate: A + (140% / COP 3,36)
Warm weather: A ++ (150% / COP 3.61)
Cold weather: A (108% / COP 2.63)
Versatility: Triple Certification
💧 Take advantage 134%
Deposit: 200L (194L real water)
Useful water 40 ° C: Extraordinary 267L
Use: 134% efficient
Advantage: + 73L Extra useful water
🌿 R290 ecological
Refrigerant Gas: R290 Natural Propane
Minimum load: Ecological 0.15kg
Environmental impact: Minimum GWP
Sustainability: Certified Maximum
🌡️ 65 ° C SINGLE BC
BC temperature: 65 ° C without resistance
Maximum temperature: 75 ° C with support
Operating Range: -7 ° C A + 43 ° C
Efficiency: Maximum without electrical support
⚡ Optimal performance
BC power: 470W efficient
Total power: 1970w
Weather Heating: 7h 11min (14 ° C)
Boost mode: 3h 39min fast
🏆 Advantages model P-DHW200CAE5
☀️
Solar coil 1.05m²
FV / thermal integration
🏆
A + Triple Climate
Certification 3 Climates
💧
267L Useful water
134% use
🌿
R290 natural
Maximum sustainability
👨👩👧👦
Families 3-4 people
Single-family homes with medium-high consumption and solar connection / FV
☀️
Renewable facilities
Projects with existing thermal or photovoltaic solar panels
🌍
Sustainable projects
Eco-efficient housing that prioritize maximum sustainability
📋 Compulsory technical information
Energy classification: A + According to Regulation (EU) 812/2013 in temperate climate. A ++ in warm, cold. Load profile: L (large) for family use.
Installation: About soil 1621 × 705 × 694mm. Conduits Ø160mm, Losses load 88 Pa nominal. Weight 110kg. Solar coil connection 1'm.
Operation: Refrigerant Gas R290 / 0.15kg natural. AIR RANGE -7 ° C ~ + 43 ° C. Water temperature 65-75 ° C. COP 3,36 tempered, 3,61 warm.
Regulations: Complies European directives. Marked CE. Anti-corrosion magnesium anode system. Integrated anti-elegate cycle. Maximum pressure 8 bar.
P-DHW200CAE5
Data sheet
- Brand
- Panasonic
- Refrigerant Gas
- R290
- Consumption profile
- L
- Capacity (L)
- 200
- Type of installation
- Suelo
- Type
- Compacta
- Anti-corrosion system
- Ánodo Magnesio
- Power consumed Nominal (W)
- 495
- Energy efficiency DHW
- A+
- COP (Tª Air 14ºC)
- 3,35
- Weather Heating Accumulator (Tª Air 7ºC)
- 7h:37min
- Power Electrical Resistance (W)
- 1.500
- Maximum production temperature DHW with heat pump
- 65
- Max. DHW with support electrical resistance
- 70
- Additional coil
- Sí
- Additional coil surface (m2)
- 1,00
- Sound level DB
- 50
- High (mm)
- 1.625
- Width (mm)
- 700
- Background (mm)
- 695
- Weight (kg)
- 109
- WiFi
- No
